Product Introduction

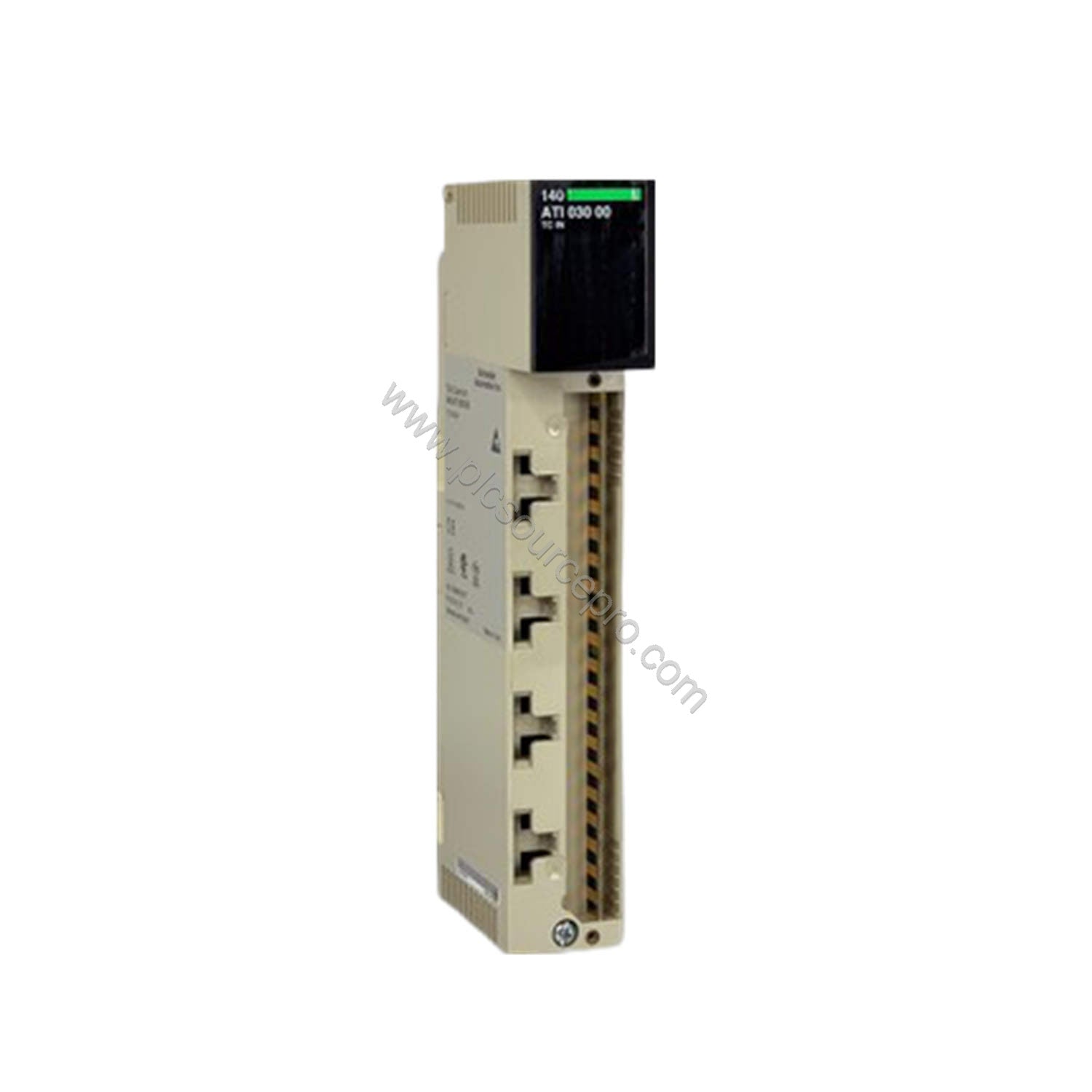

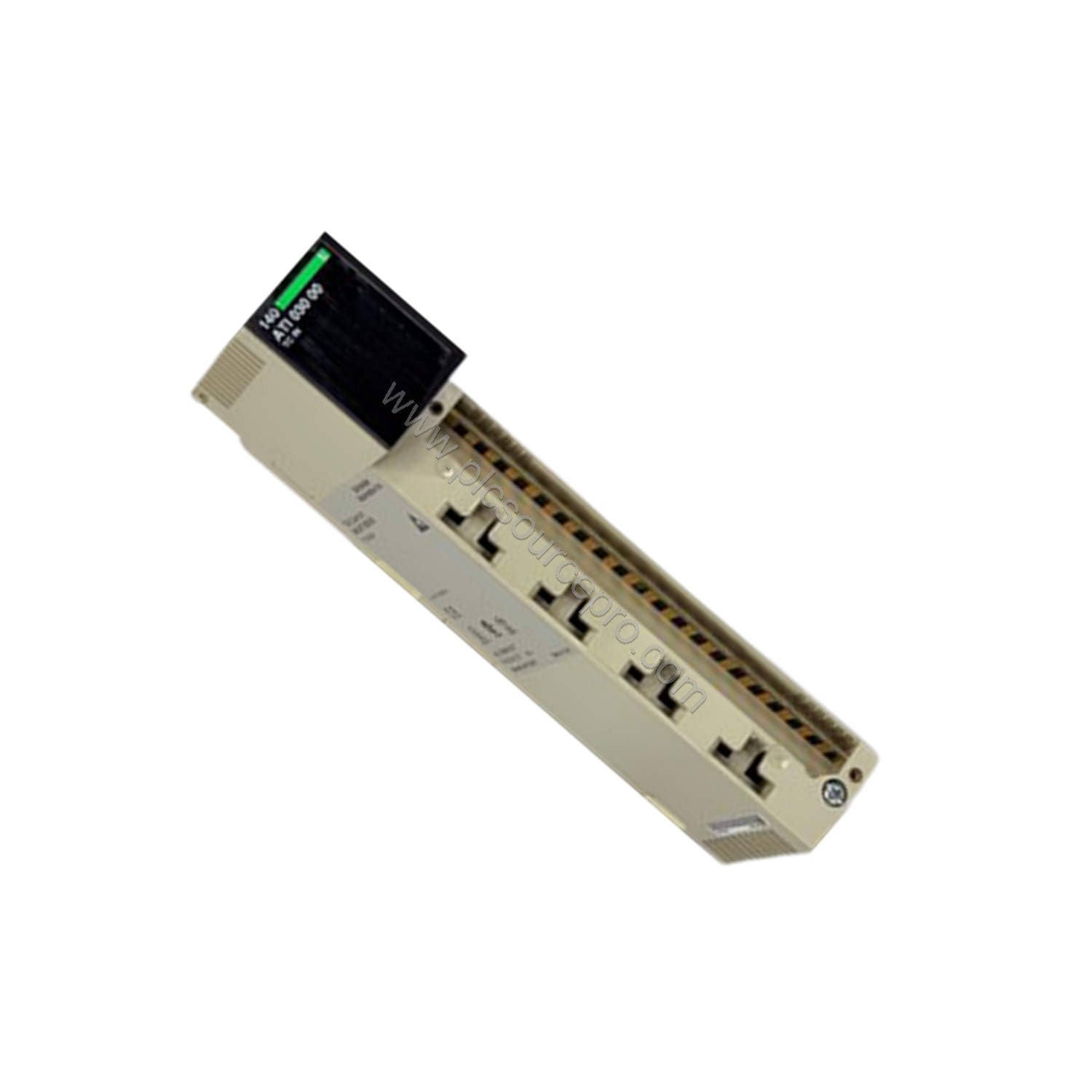

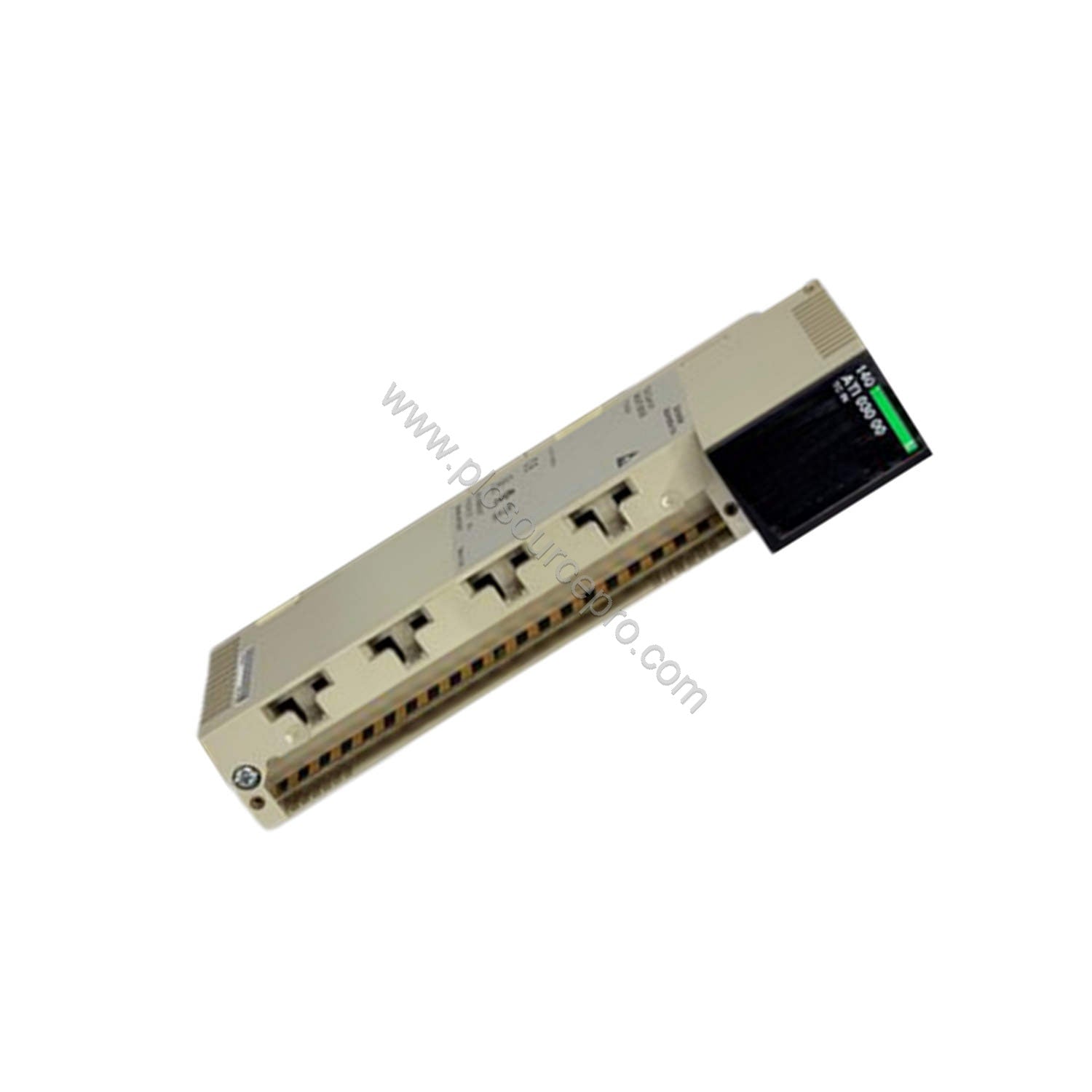

In industrial temperature monitoring, electrical noise and signal drift often compromise thermocouple readings. The Schneider 140ATI03000C analog input module directly addresses these challenges with robust filtering and high-resolution measurement. Designed for the Modicon Quantum automation platform, this I/O expansion module provides eight dedicated analog input channels specifically for thermocouple sensors. Its precision circuitry ensures that temperature data remains accurate even in electrically noisy environments, reducing false alarms and improving process consistency.
Key Specifications
| Parameter |
Value |
| Input Channels |
8 (Analog, Thermocouple) |
| Resolution |
16 bits |
| Filter Type |
Notch filter – 3 dB at 50/60 Hz; Single pole low pass – 3 dB at 20 Hz |
| Update Time |
1000 ms |
| Bus Current |
280 mA |
| Power Dissipation |
1.5 W |
| Isolation – Channel to Bus |
1780 V AC for 60 s; 2500 V DC for 60 s |
| Channel-to-Channel Isolation |
300 V DC; 220 V AC |
| Common Mode Rejection |
> -120 dB at 50/60 Hz |
| Operating Temperature |
32…140 °F (0…60 °C) |
| Weight |
0.7 lb (0.3 kg) |
For further technical parameters, please contact UBEST Automation. The 140ATI03000C is engineered for reliable operation under demanding conditions, featuring conformal coating and compliance with UL 508 and CSA standards.
Industry Applications
The 140ATI03000C excels in processes requiring precise temperature measurement across multiple points. Typical applications include:
-
Heat treatment furnaces – monitors zones with J, K, T, E, R, and S thermocouples, ensuring uniform thermal profiles.
-
Chemical reactors – provides accurate readings from thermocouple inputs to maintain reaction stability.
-
Plastic molding machinery – tracks barrel and mold temperatures with 16-bit resolution for consistent product quality.
Each application benefits from the module’s ability to reject common-mode noise and filter out power-line interference, a common cause of erratic readings.
Installation & Setup Guidance
When installing the 140ATI03000C, note that cold junction compensation can be performed internally or externally. For internal compensation, ensure the ambient temperature around the module is within 32…140 °F. Mount the module in a standard Quantum rack slot and verify that the bus current requirement of 280 mA does not exceed the rack’s power supply capacity. Use shielded thermocouple extension wires and avoid routing cables near high-voltage lines to preserve signal integrity. The module’s diagnostic LEDs (one green for active, one red for fault, and eight green/red per channel) assist in quick status verification during commissioning.
Maintenance & Reliability
Routine maintenance for the 140ATI03000C is minimal. The conformal coating protects against moisture and corrosive atmospheres. Periodically check for loose connections and inspect thermocouple wiring for breakage. The module includes broken-wire detection (fault type) to alert operators of sensor failures. With an operating temperature range of 32…140 °F and storage tolerance from -40…185 °F, the module suits most industrial environments. Its isolation barriers (>1780 V AC) prevent ground loops that could degrade accuracy over time.
Troubleshooting & Common Issues
Operators using the 140ATI03000C may encounter the following situations:
-
Incorrect readings – verify thermocouple type matches the module configuration; check for loose terminals or damaged wires.
-
Red fault LED illuminated – indicates an external fault; use the channel LEDs to identify which input is problematic.
-
No communication – ensure the rack backplane is properly seated and the bus current supply is adequate.
-
Drift over time – recalibrate using the internal cold junction compensation and verify that the ambient temperature has not changed drastically.
The 140ATI03000C’s diagnostic capabilities simplify troubleshooting, reducing downtime and maintenance costs.
