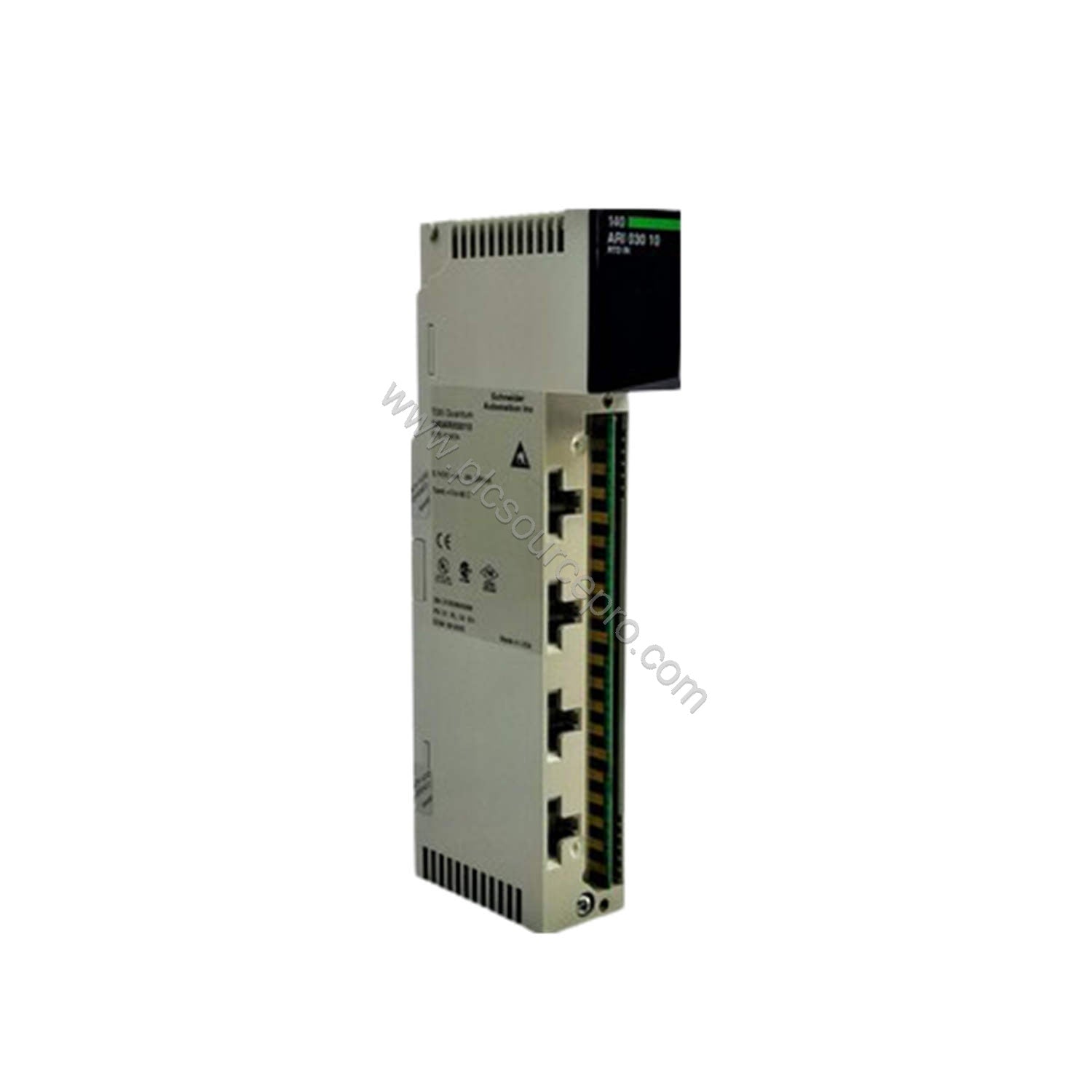

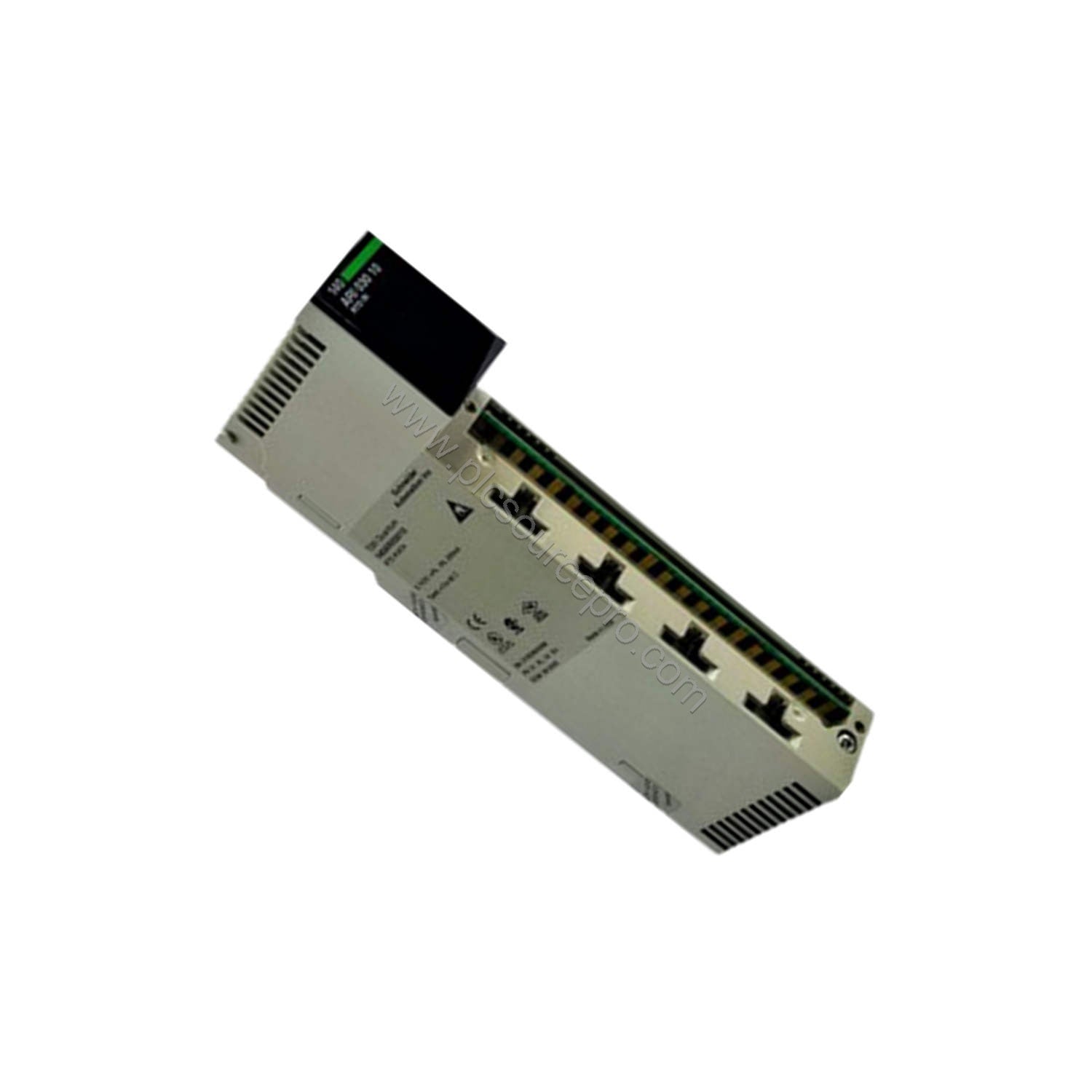

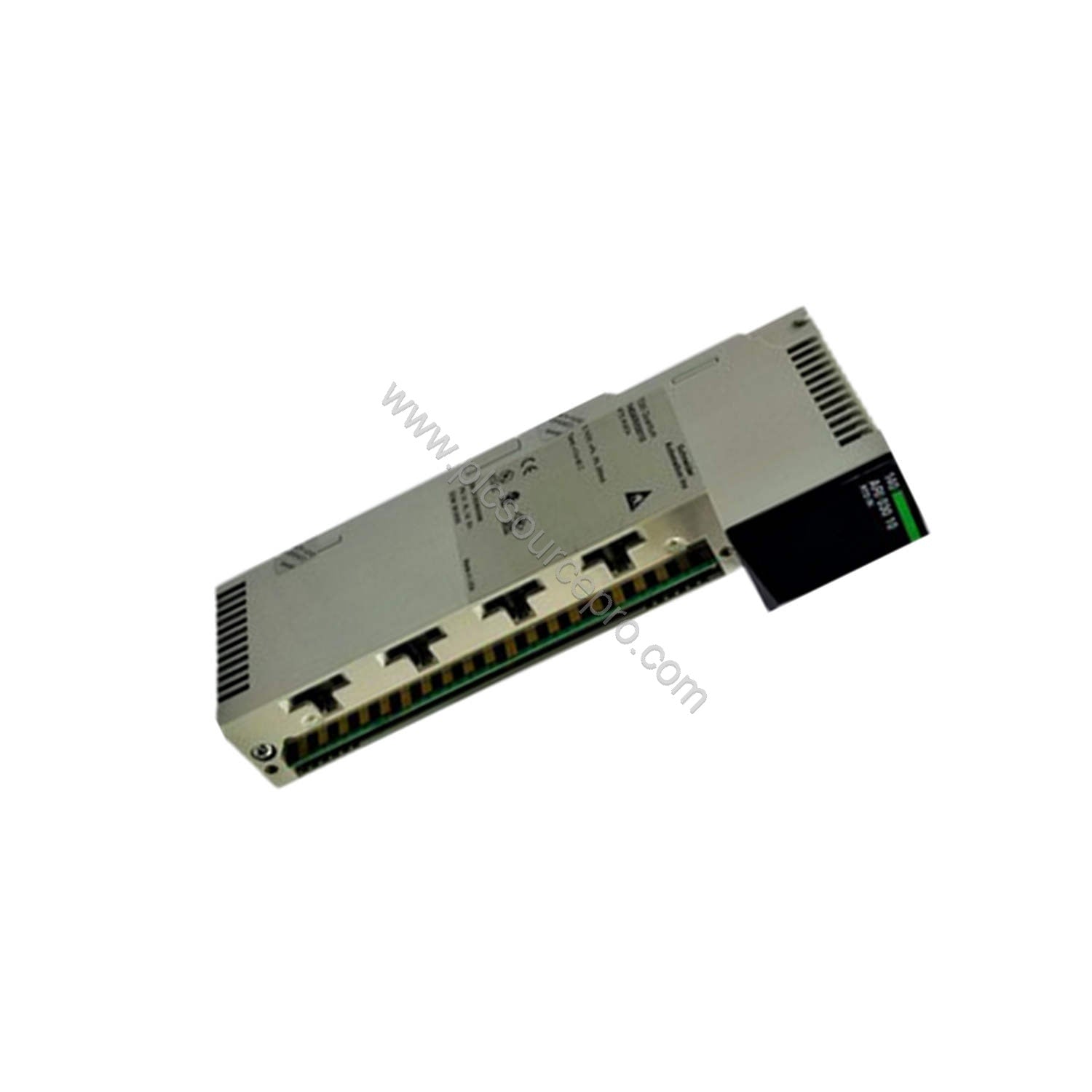

Schneider 140ARI03010C Analog Input Module – Built for Signal Integrity
Analog input modules often face challenges like signal noise, wire breaks, and accuracy drift. The Schneider 140ARI03010C from the Modicon Quantum series addresses these issues directly. With 8 differential analog inputs and 13-bit resolution, it delivers precise measurements in demanding environments. Integrated fault detection for broken wires and overtracking scales ensures operators quickly identify problems before they escalate.
Key Technical Specifications of the 140ARI03010C
The 140ARI03010C provides essential parameters for analog signal acquisition:
-
Number of Inputs: 8 analog inputs, differential type
-
Resolution: 13 bits
-
Input Impedance: ≥ 10 MOhm
-
Absolute Accuracy Error: 0.1 °C
-
Power Dissipation: 1 W
-
Isolation: 1780 V AC between channel and bus, 300 Vrms AC between channels
-
Update Time: 640 ms for 2/4 wires, 1200 ms for 3 wires
These specifications ensure stable performance even in electrically noisy industrial environments.
Installation Guidance for the 140ARI03010C
Integrating the 140ARI03010C into a Quantum rack is straightforward. The module uses a standard format and requires a bus current of 200 mA. Ensure proper grounding and shielding for differential inputs to maximize noise rejection. Use twisted-pair cables for PT100 or Ni100 temperature probes to maintain accuracy.
Troubleshooting Common Issues with Analog Input Modules
The 140ARI03010C includes built-in diagnostics to simplify maintenance. Red LEDs indicate channel faults, while a red LED signals external faults. Common issues include broken wires – the module detects this and alerts the user. If readings drift, check for temperature variations; the module’s accuracy drift is ±0.5 °C at 25 °C and ±0.9 °C over 0–60 °C. For overrange conditions, the overtracking scale flag provides early warning.
Selection Guide for the 140ARI03010C
When selecting the Schneider 140ARI03010C, verify compatibility with your Quantum rack and power supply. The module supports various temperature probes (PT100, Ni100 etc.) with 2-, 3-, or 4-wire connections. For reliable sourcing, choose a trusted supplier like UBEST Automation (ubest101) – we stock genuine modules ready for immediate shipment.
For further technical details or application support, refer to the Schneider 140ARI03010C datasheet.
