Product Overview

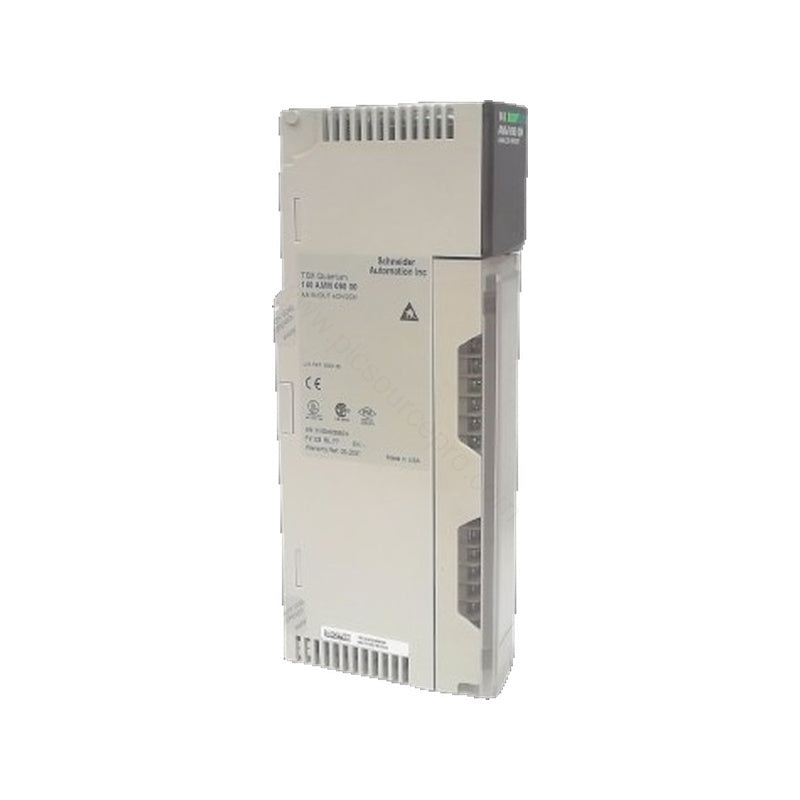

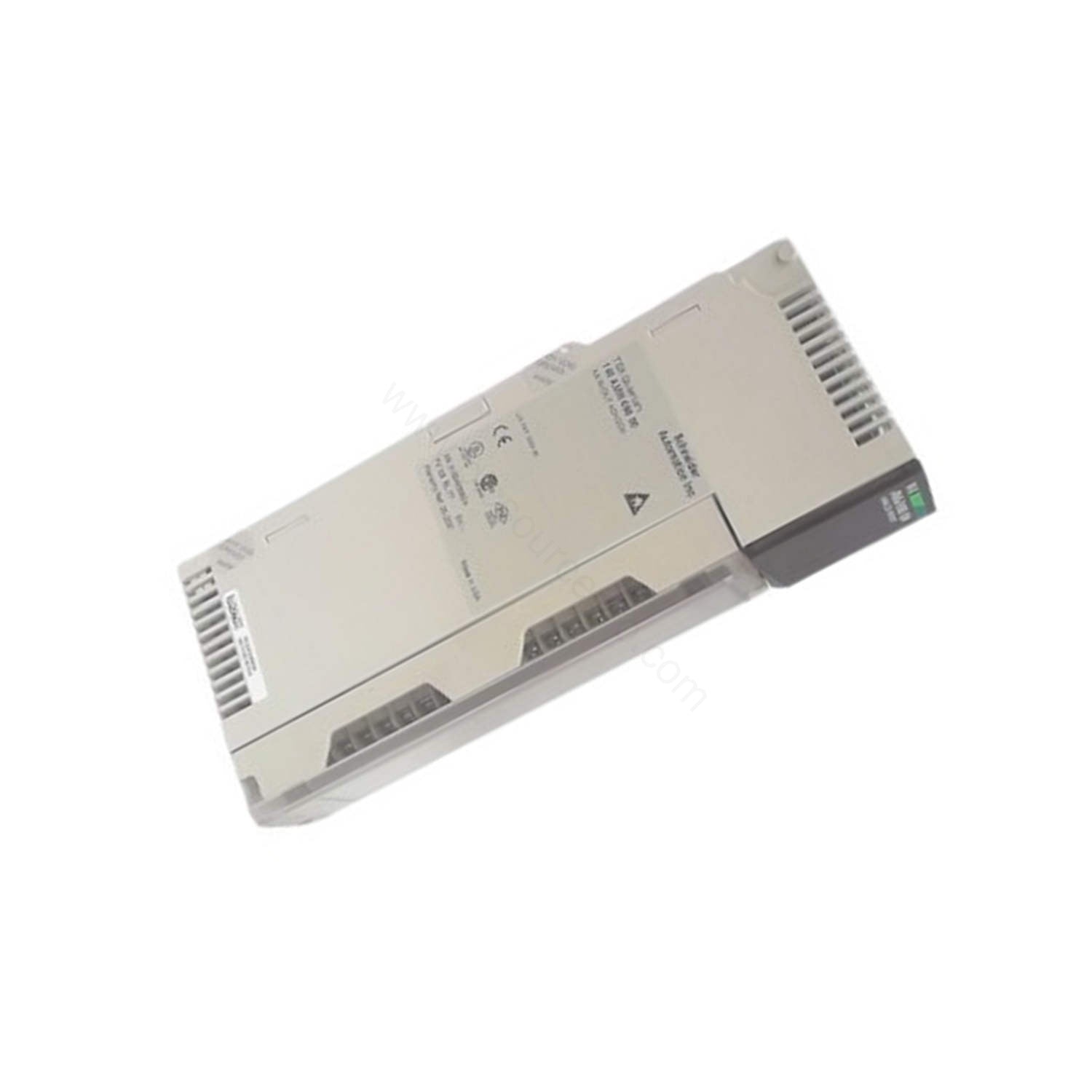

The Schneider 140AMM09000C is an analog input module designed for the Modicon Quantum series, providing four analog inputs for precise signal conversion. Equipped with a single pole low pass filter operating at 21 Hz, this module effectively suppresses high-frequency noise, ensuring clean data acquisition. With five input words and two output words, it integrates seamlessly into control systems, requiring a bus current of 350 mA. Operating in temperatures from 0°C to 40°C and humidity up to 80%, the 140AMM09000C delivers reliable performance in industrial environments.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
Schneider Electric |
| Product Type |
Analog Input Module |
| Product Line |
Modicon Quantum |
| Part Number |
140AMM09000C |
| EAN |
3595861136199 |
| Filter Type |
Single Pole Low Pass |
| Frequency |
21 Hz |
| Number of Output Words |
2 |
| Number of Input Words |
5 |
| Analog Input Number |
4 |
| Bus Current Requirement |
350 mA |
| Maximum Ambient Temperature |
40°C |
| Minimum Ambient Temperature |
0°C |
| Max. Operating Humidity |
80% (non-condensing) |
| Max. Storage Humidity |
80% (non-condensing) |
| Max. Operating Altitude |
1000m above sea level |
| Weight |
0.3 kg |
Industry Applications
The Schneider 140AMM09000C suits applications requiring accurate analog signal conditioning with noise filtering. For example, in process control systems (e.g., temperature or pressure monitoring), its 21 Hz low-pass filter removes electrical interference, improving measurement reliability. Similarly, in material handling automation, the module’s four inputs handle multiple sensors, reducing wiring complexity and enhancing system uptime.
Installation Guide
Mount the 140AMM09000C in a Quantum backplane, ensuring proper alignment with the bus connector. Connect analog signals to the input terminals, observing polarity and shielding for noise reduction. Verify that the bus current does not exceed the backplane capacity. Secure the module with the locking screws and power up the system. The module will auto-configure; confirm communication via the input and output word mapping.
Routine Maintenance
Periodically check the module’s LED indicators for fault signals. Clean the module and backplane contacts with a dry cloth to prevent corrosion. Monitor ambient temperature and humidity; the 140AMM09000C relies on proper ventilation. Annual inspection of filter performance is recommended, as consistent filter operation at 21 Hz ensures long-term data integrity.
Selection Guide
Before purchasing, verify compatibility with your Modicon Quantum rack and power supply. The 140AMM09000C requires a 350 mA bus current, so ensure your backplane can supply this. For additional support, UBEST Automation (ubest101) offers genuine modules and technical advice to match your application.
