Product Overview

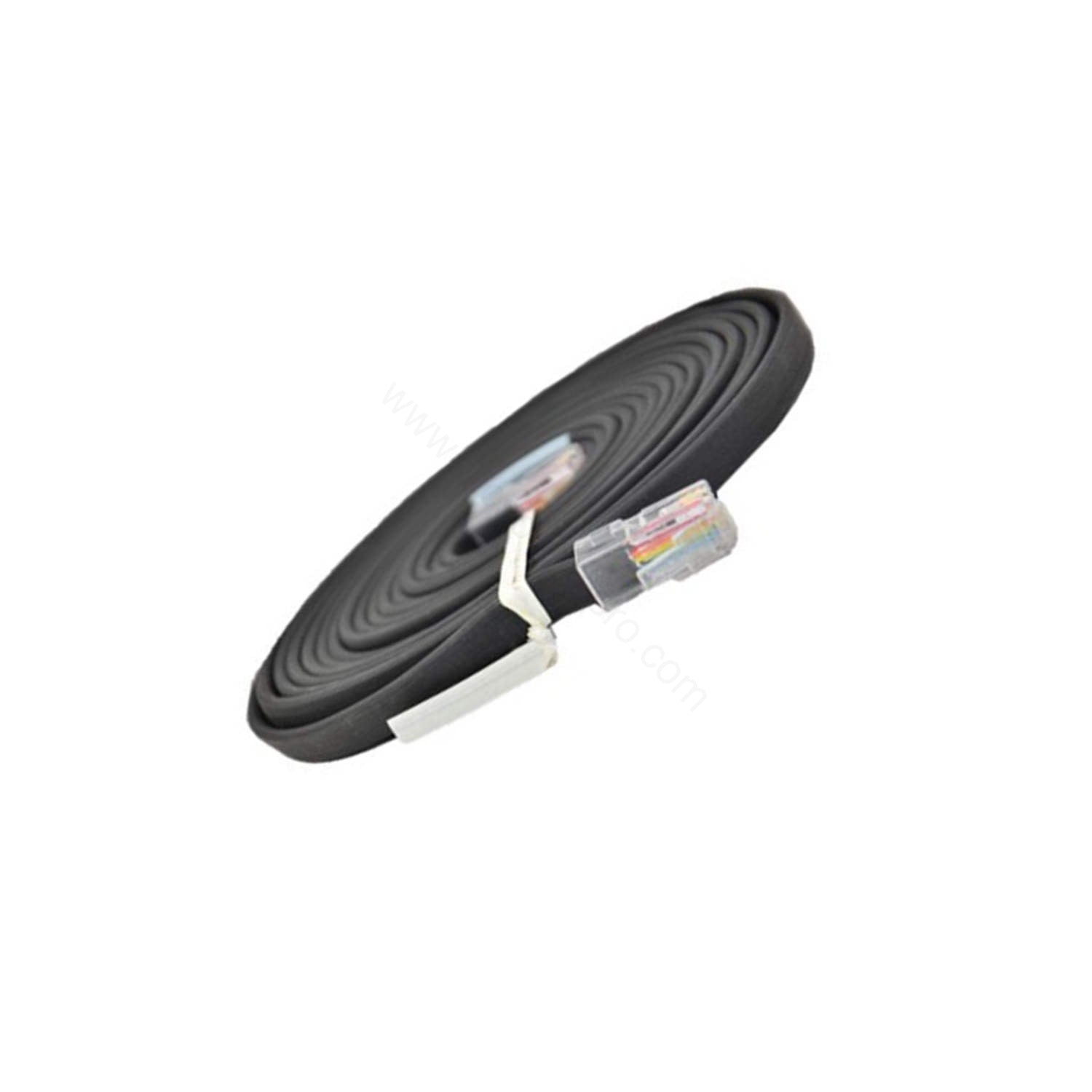

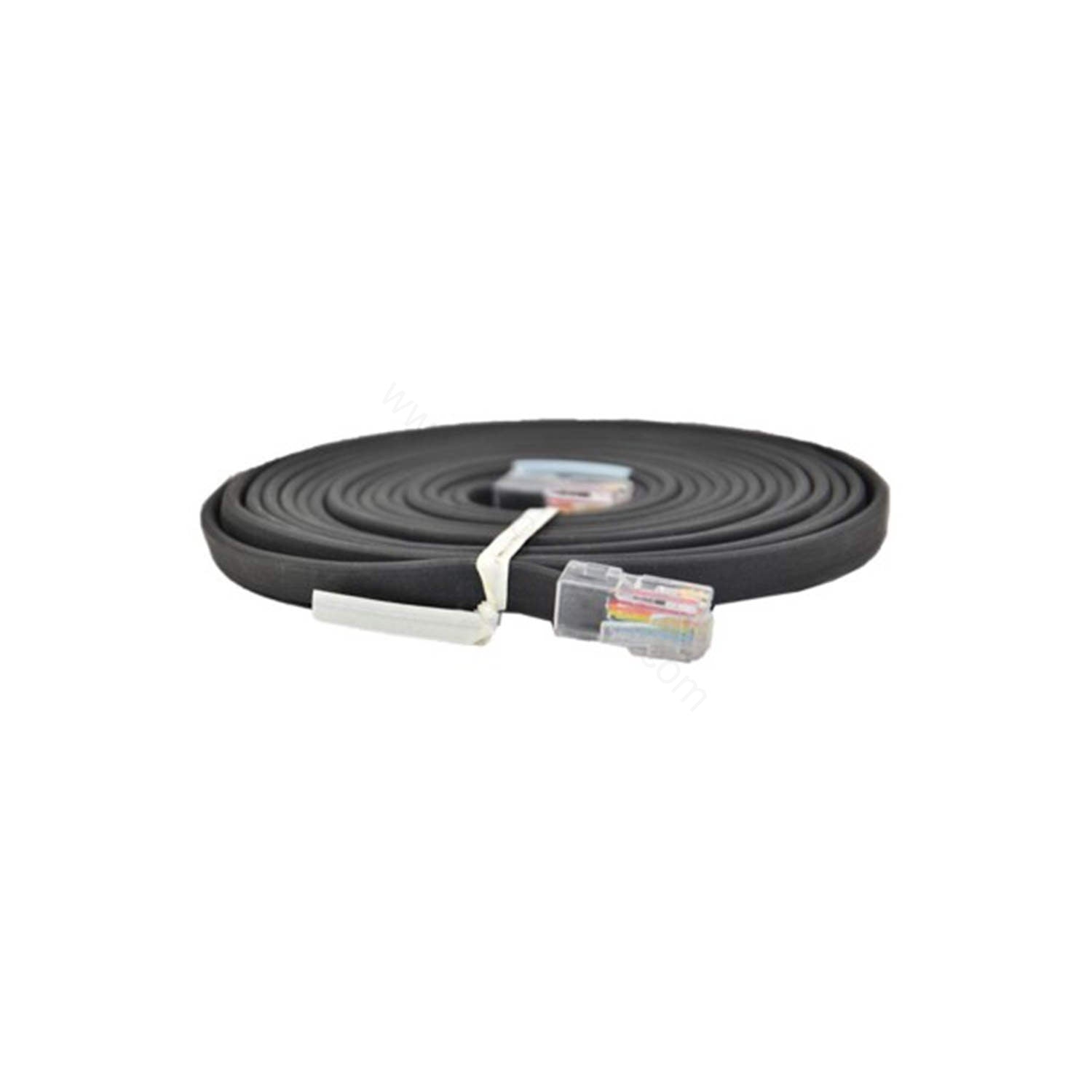

The Schneider 110XCA17102 is a specialized cable engineered for the Modicon Quantum series, serving as a critical spare part for I/O expansion links. This cable facilitates connections between I/O modules and the PLC, ensuring seamless data transmission. With a length of 3 meters, it provides adequate reach for various cabinet layouts. Its robust construction withstands clean indoor environments, operating within 0 to 40°C and storing at 0 to 50°C. The cable tolerates humidity up to 80% RH without condensation, maintaining signal integrity. Weighing only 0.25 lbs (0.11 kg), it is easy to handle and install. Altitude capability extends to 1000 meters above sea level.
Real-World Applications
The Schneider 110XCA17102 cable finds application in two primary industrial settings. In manufacturing plants, it connects remote I/O racks to central Quantum controllers, handling digital and analog signals reliably across 3 meters. In process control systems, it links expansion modules in separate cabinets, ensuring low-latency data exchange. The cable's environmental ratings—0-40°C, 80% RH non-condensing—make it ideal for climate-controlled control rooms and clean industrial floors. Its altitude tolerance suits installations in high-elevation facilities up to 1000 meters.
Installation Guidance
Proper installation of the Schneider 110XCA17102 cable ensures optimal performance. Follow these guidelines:
- Install in a clean, dry indoor area free from corrosive chemicals.
- Avoid sharp bends or kinks that may damage internal conductors.
- Secure the cable with ties to prevent stress on connectors.
- Maintain ambient temperature between 0 and 40°C during operation.
- Keep humidity below 80% RH non-condensing.
Compatibility & Integration
The Schneider 110XCA17102 is exclusively compatible with Modicon Quantum series PLCs and I/O modules. It supports I/O expansion links, connecting directly to standard Quantum I/O bases and modules. No additional adapters are required for integration into existing Quantum racks. This cable is a direct replacement for original Quantum expansion cables, ensuring seamless system operation.
Selection Guide & Purchasing Advice
When selecting the Schneider 110XCA17102, confirm that your Modicon Quantum system requires a 3-meter I/O expansion cable. Measure the distance between the controller and I/O modules to verify adequate length. Ensure your environment meets the specified operating conditions (0-40°C, <80% RH, clean indoor). UBEST Automation offers this genuine spare part with fast shipping. For bulk orders or technical questions, visit ubest101.myshopify.com or contact our team. We specialize in industrial automation spares and provide reliable support.
