Product Introduction

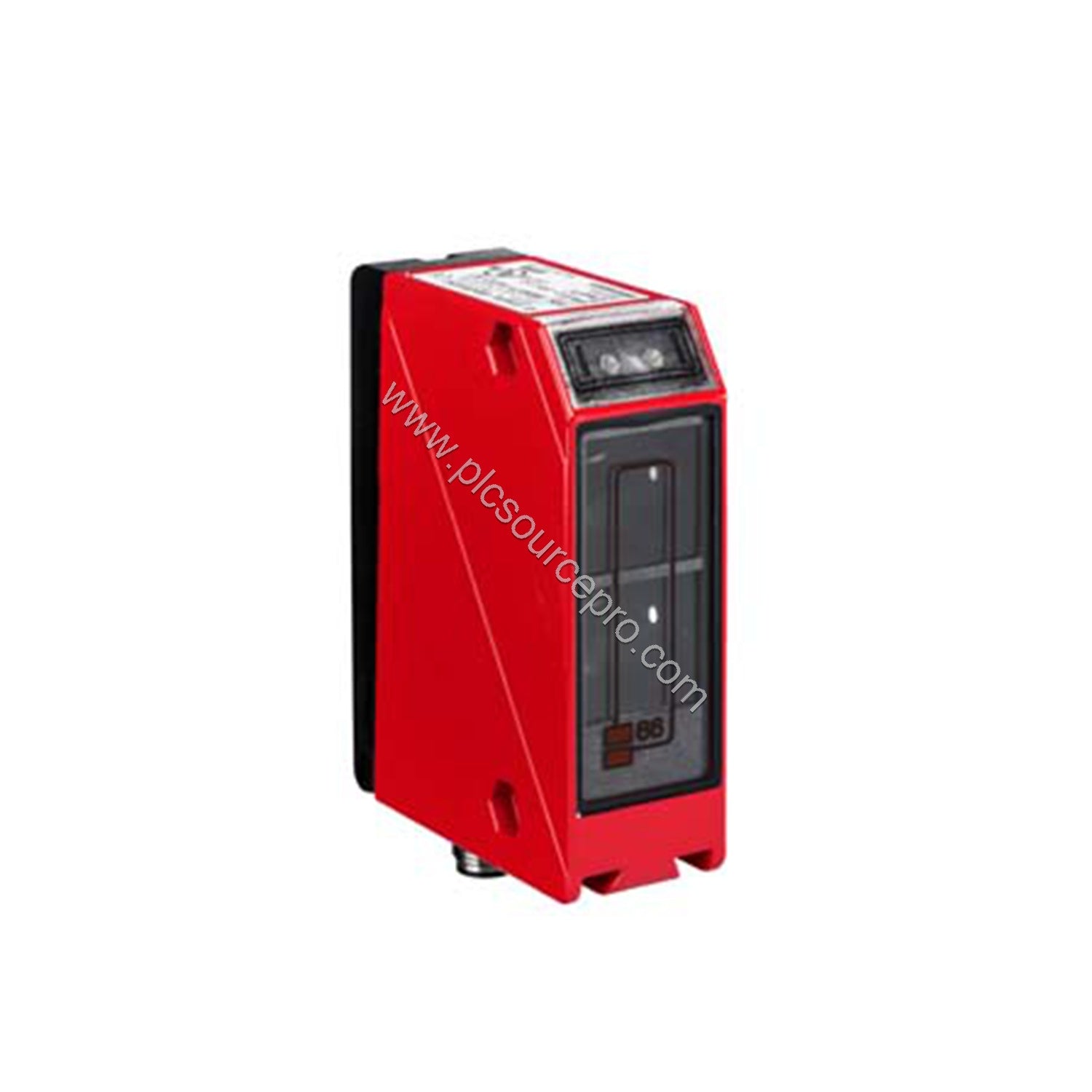

The Lenze 96M/A-3410-44 is a high-performance throughbeam photoelectric sensor from the Leuze 96 Series, designed for reliable object detection in demanding industrial environments. This industrial automation module delivers precise sensing with a guaranteed operating range of 0.3 to 15 meters (typical limit up to 18 meters) using a red LED light source. Its rugged metal housing and IP67 protection ensure durability in harsh conditions, making it an ideal choice for manufacturing and material handling applications.
Technical Specifications Breakdown
The Lenze 96M/A-3410-44 sensor operates on a reflection principle and features an AS-Interface IO interface for seamless integration into automation networks. Key specifications include:
| Parameter |
Value |
| Operating Range (guaranteed) |
0.3 ... 15 m |
| Operating Range Limit (typical) |
0.1 ... 18 m |
| Light Source |
LED, Red |
| Supply Voltage (UB) |
26.5 ... 31.6 V |
| Switching Frequency |
1,000 Hz |
| Type |
AS-Interface IO |
| Number of Connections |

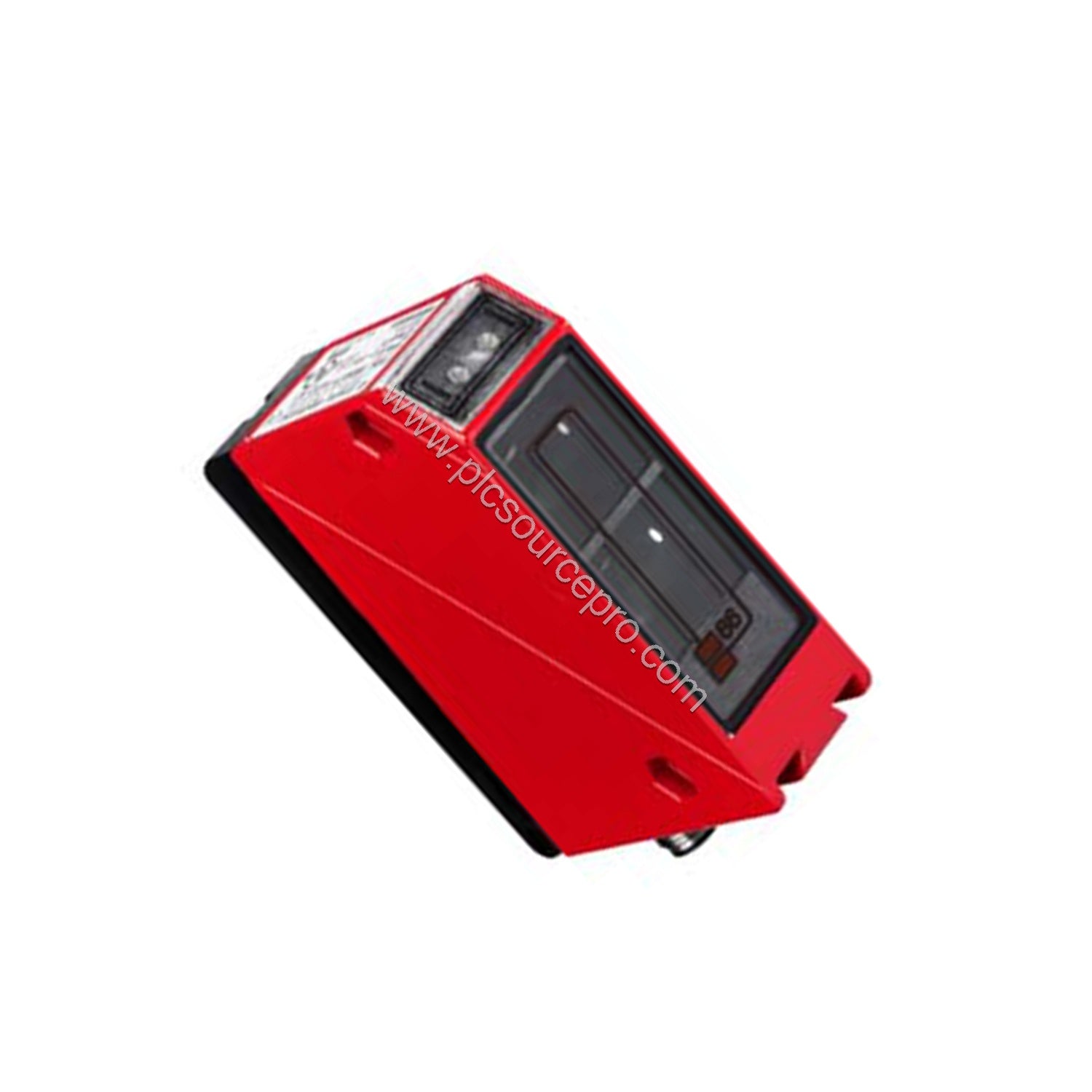

1 Piece(s), Connector M12, 4-pin, A-coded |
| Material / Housing |
Metal (Zinc) |
| Dimensions (W x H x L) |
30 mm x 90 mm x 70 mm |
| Net Weight |
380 g |
| Ambient Temperature (Operation) |
-40 ... 55 °C |
| Degree of Protection |
IP67 |
| Protection Class |
II |
| Approvals |
c UL US, IEC 60947-5-2 |
Real-World Applications
The Lenze 96M/A-3410-44 excels in applications requiring reliable presence detection over long distances. Common use cases include conveyor belt monitoring, pallet detection in warehouses, and automated assembly line positioning. Its ECOLAB material compatibility allows deployment in washdown environments such as food processing plants. With a switching frequency of 1,000 Hz, the sensor handles fast-moving objects, reducing false triggers and downtime.
Installation & Setup Guidance
Mount the Lenze 96M/A-3410-44 using its 30 mm x 90 mm x 70 mm cubic metal housing, secured via standard brackets. Connect via the M12 4-pin A-coded connector to an AS-Interface network. Adjust the 270° potentiometer to fine-tune sensitivity for optimal detection. Ensure the sensor alignment is within the 0.1–18 m operating range and avoid reflective surfaces that may cause interference.
Maintenance & Reliability
The sensor's metal housing and glass lens cover withstand mechanical shock and chemical exposure (ECOLAB compatible). IP67 protection allows dust and temporary immersion. Periodically clean the lens and check connector integrity. The red LED display indicates operational status, simplifying troubleshooting. With c UL US and IEC 60947-5-2 approvals, the Lenze 96M/A-3410-44 ensures long-term reliability in critical automation systems.
Selection Guide & Purchasing Advice
When selecting the Lenze 96M/A-3410-44, verify your system’s AS-Interface network compatibility and supply voltage (26.5–31.6 V). This model is a transmitter; pair with a compatible receiver for throughbeam operation. For bulk orders or technical support, contact PLC Source PRO at ubest101.myshopify.com. Ensure the required cable length and connector type (M12, 4-pin) are available for seamless integration.
