Product Introduction

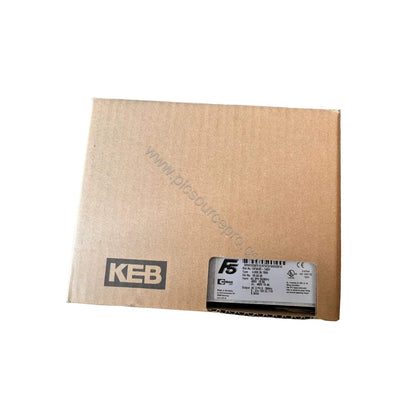

The KEB 13F5A3D-YA0H is a critical component of the F5 Combivert Axis Drive Series, engineered for precise and efficient motor control in demanding industrial environments. As a versatile drive solution, the KEB 13F5A3D-YA0H delivers reliable power conversion with an input voltage of 400V and an output capacity of 8.3 kVA. This drive is particularly suited for upgrading older systems or replacing failing drives in woodworking machinery, such as HOLZMA beam saws.
Technical Specifications
Below are the key performance parameters for the KEB 13F5A3D-YA0H, sourced directly from the manufacturer. Please note that detailed specifications are limited; contact UBEST Automation for complete technical documentation.
| Parameter |
Value |
| Input AC Phase |
AC 3 PH 50/60 Hz |
| Input Voltage |
400 V |
| Input Current |
16.8 A |
| Input UL Voltage |
480 V |
| Input UL Current |
15.4 A |
| Output AC Phase |
AC 3 PH |
| Output Voltage |
0 to Uin (Variable) |
| Output Current |
12 A |
| Output UL Current |
11 A |
| Output Frequency |
0.599 Hz |
| Output Power |
8.3 kVA |
Real-World Applications
The KEB 13F5A3D-YA0H finds primary use in HOLZMA beam saw models HPL380, HPP350, and 180, where it provides accurate speed and torque control. Its robust input stage handles three-phase power from 400V to 480V, making it suitable for both European and North American industrial plants. For manufacturers upgrading their cutting lines, replacing an older drive with the KEB 13F5A3D-YA0H ensures consistent performance and reduced downtime.
Installation & Setup Guidance
When installing the KEB 13F5A3D-YA0H, verify that the incoming power supply matches the specified input voltage and phase. Mount the drive in a clean, ventilated enclosure to prevent overheating. Connect the three-phase input to the L1, L2, and L3 terminals, and ensure proper grounding. The output connections to the motor should be checked for correct phase sequence. Refer to the wiring diagram provided with the unit for detailed pin assignments.
Compatibility & Integration
The KEB 13F5A3D-YA0H integrates seamlessly with existing automation systems that accept standard three-phase input. Its flexible output frequency range (0.599 Hz) allows precise speed control of induction motors. The drive does not require specialized communication modules for basic operation, making it a drop-in replacement for many legacy drives. For advanced control, the drive can be paired with a PLC via analog or digital I/O.
Buying Guide
Before purchasing the KEB 13F5A3D-YA0H, confirm the physical dimensions and mounting footprint match your existing setup. This drive is an exact replacement for the Homag part number 4.008.39.1905. UBEST Automation offers competitive pricing and global shipping for this model. For assistance with compatibility or to request additional technical data, contact our team at ubest101.
