Product Introduction

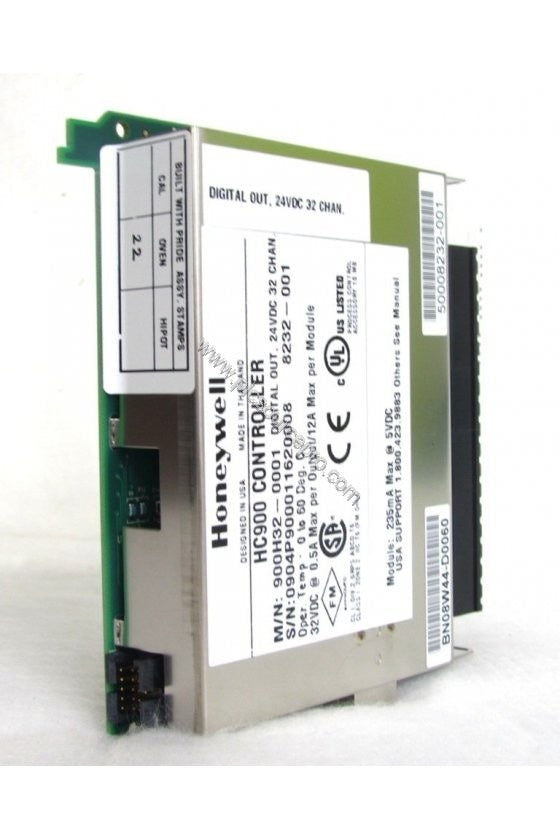

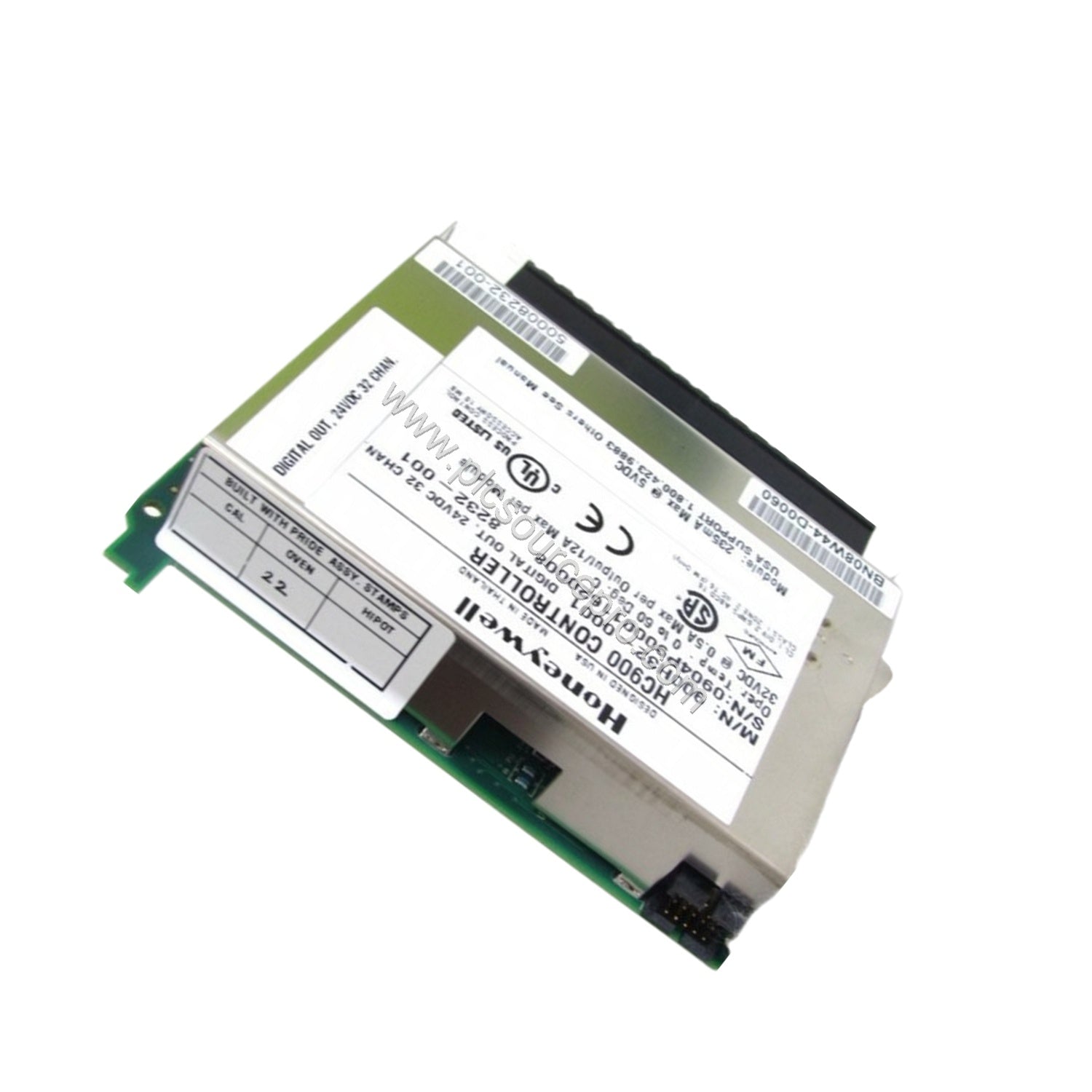

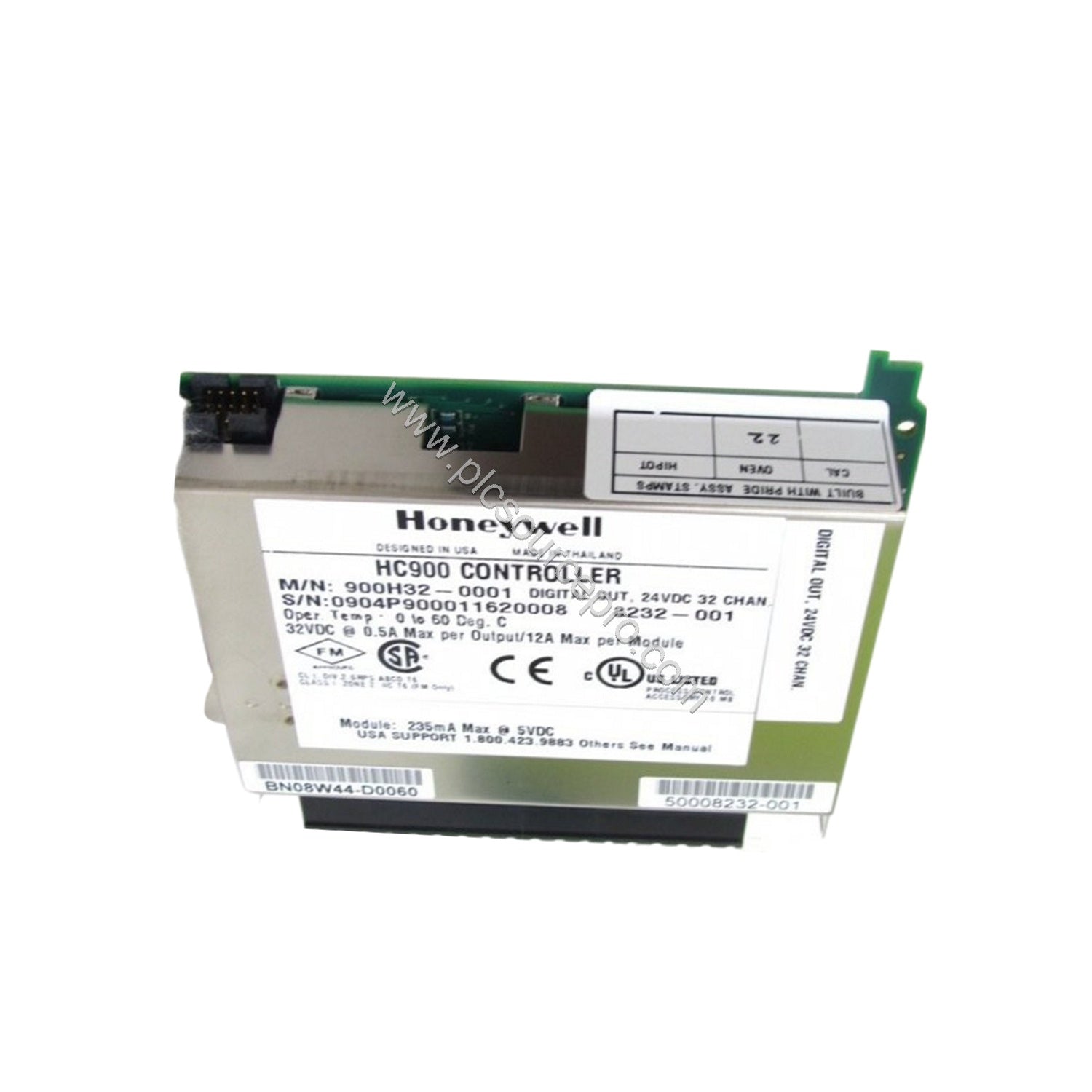

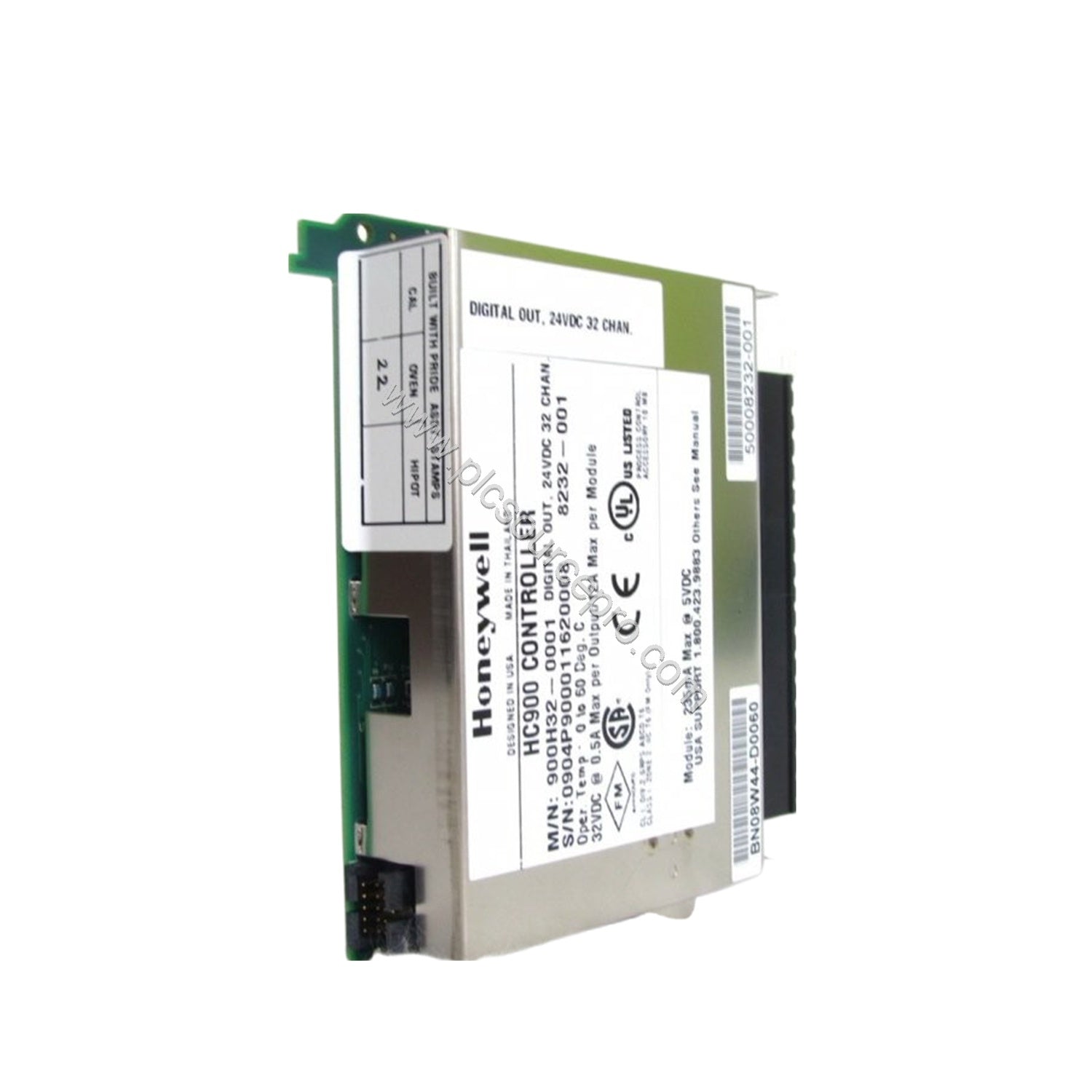

When field wiring faults or short circuits threaten production uptime, the Honeywell 900U02-0100 Safety Universal Input/Output Module provides robust per-channel protection and galvanic isolation. Part of the Honeywell safety portfolio, this module handles both analog and digital I/O with dual-redundant architecture options. Every Honeywell 900U02-0100 includes electronic short circuit protection (ESCP) per channel set at 620 mA resettable, plus a non-replaceable internal fuse per channel and an electronic field supply fuse.
Technical Specifications Breakdown
The Honeywell 900U02-0100 delivers configurable channel counts: 14 channels in redundant UIO configuration. Key protection specs include 1.5 kVDC isolation from module to rack and module to module, preventing ground loops and fault propagation. Analog input specifications feature 16-bit A/D converter resolution with 4-20 mA input range (cut-off 3-22 mA) and <0.1% full-scale accuracy. For analog outputs, the Honeywell 900U02-0100 provides 8 channels (assignable as channels 9 to 16) with 12-bit resolution and <0.5% of full scale accuracy at 25 °C. HART communication is supported on both input and output channels.
Critical to failure prevention, each field supply input on the Honeywell 900U02-0100 is electronically fused at 10 Amps, while per-channel current is limited to 500 mA and protected by the 620 mA ESCP. Hardware accuracy degrades gracefully in redundant mode (0.2% at 23.5 °C for analog input).
Industry Applications
In petrochemical plants, the Honeywell 900U02-0100 monitors 4-20 mA transmitter loops with HART for predictive maintenance, while its 1.5 kVDC isolation prevents lightning-induced surges from damaging the DCS rack. For turbine control applications, the redundant UIO configuration (14 channels) ensures continuous operation even if one channel fails – the update rate of 10 ms meets fast loop requirements. In pharmaceutical batch processing, per-channel fuse protection (1 Amp internal) isolates faults without shutting down the entire module, minimizing product loss.
Installation & Setup Guidance
Wiring the Honeywell 900U02-0100 requires a 24 VDC field supply (min 22 VDC, max 27 VDC). Use twisted-pair shielded cable for analog I/O to maintain 58 dB crosstalk rejection. Ensure total module load does not exceed 4.2 Amps. For redundant configurations, connect both field supplies and configure via the host controller. The input impedance of 250 Ω nominal suits standard 4-20 mA loops, and maximum resistive load for outputs is 7504 Ohms (7504 ohms per spec – note: likely a typo for 750 ohms but use as given). Do not exceed 30V on any input referenced to common.
Maintenance & Reliability
Routine inspections of the Honeywell 900U02-0100 should focus on the field supply voltage and LED status indicators. The electronic fuses (10A field supply, 1A per channel) are non-replaceable; if blown, the module must be replaced to restore full redundancy. Operating temperature range (0 to +60°C) ensures reliability in control cabinets. Use the Hardware accuracy specification to plan calibration intervals: non-redundant analog input accuracy holds within 0.17% full scale over the full temperature range, reducing the need for frequent recalibration.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 900U02-0100, verify your required channel count (non-redundant vs. redundant) and whether HART compatibility is needed. The module supports 2/3/4-wire transmitters and sink-type inputs. For high-channel count applications, consider the non-redundant configuration for up to 16 analog inputs. PLC Source PRO, available at ubest101.myshopify.com, stocks the Honeywell 900U02-0100 with full technical support.
