Product Overview

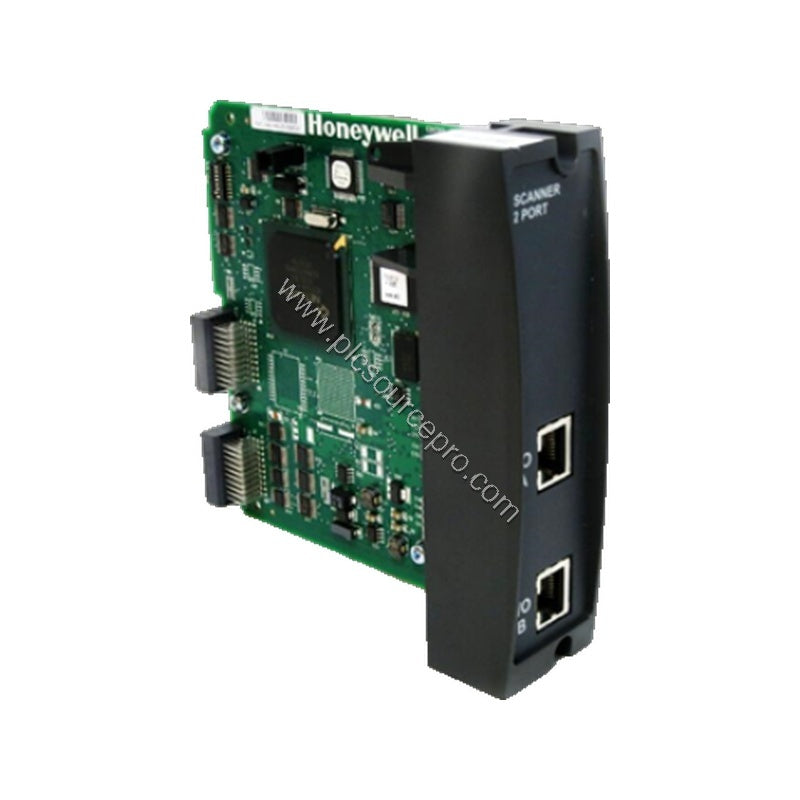

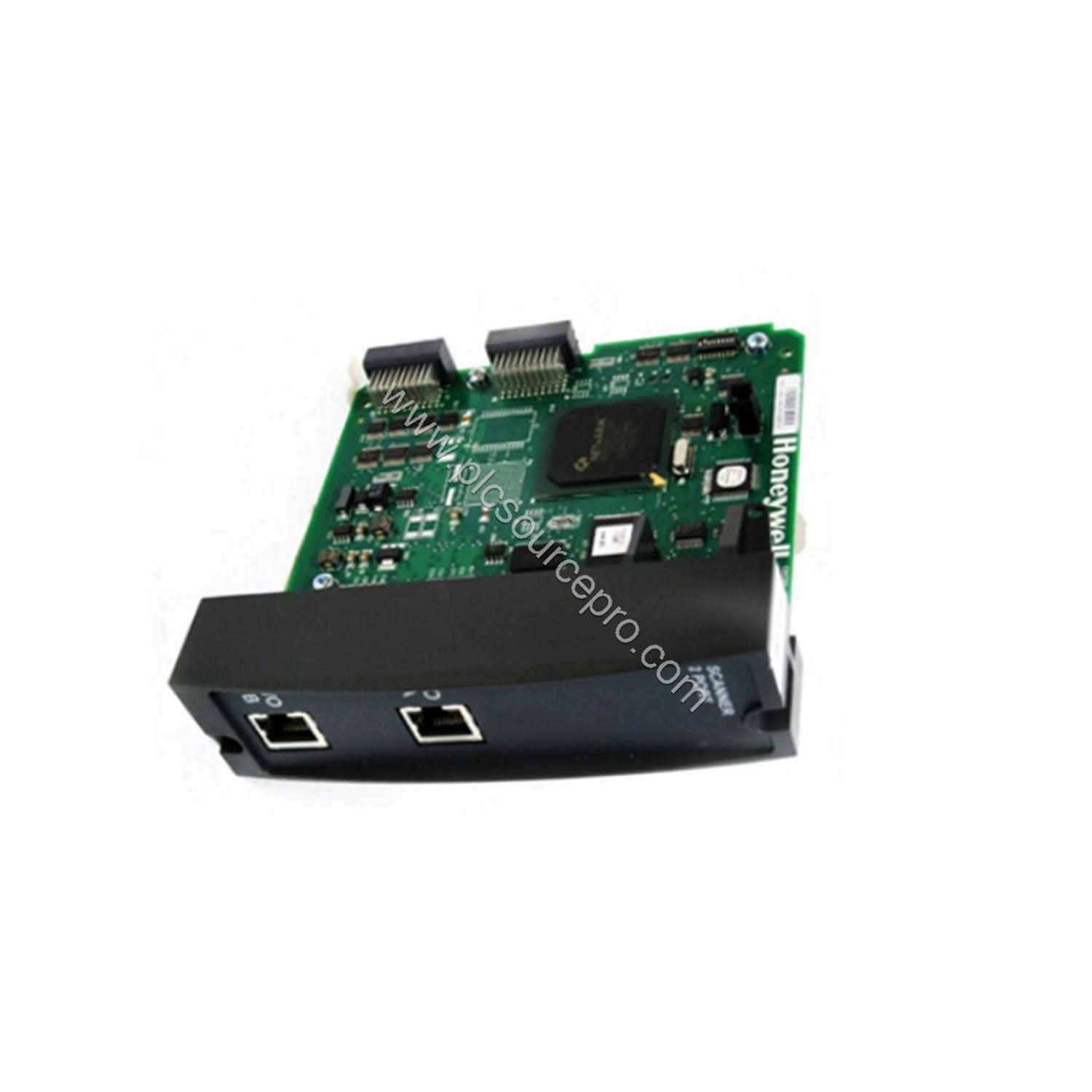

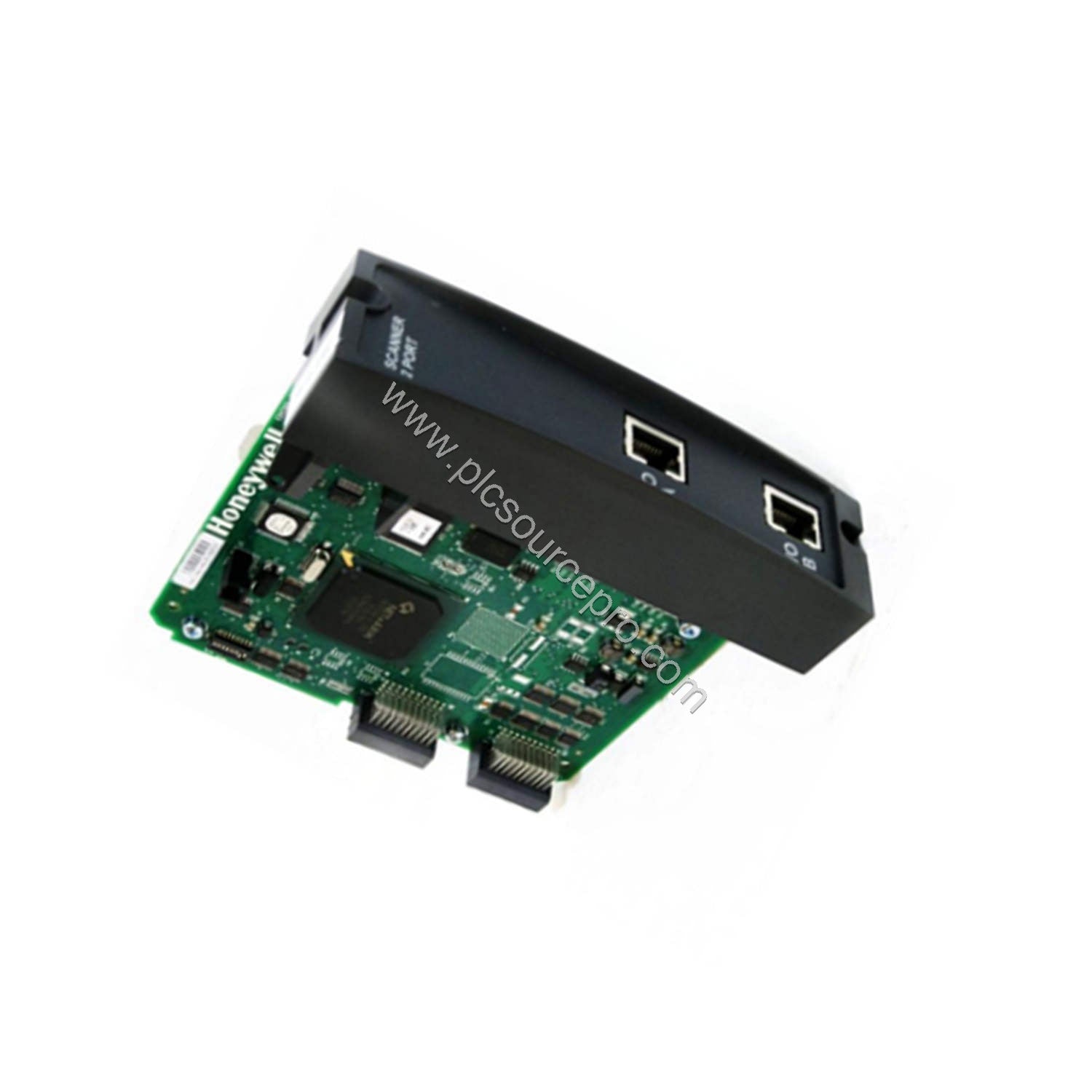

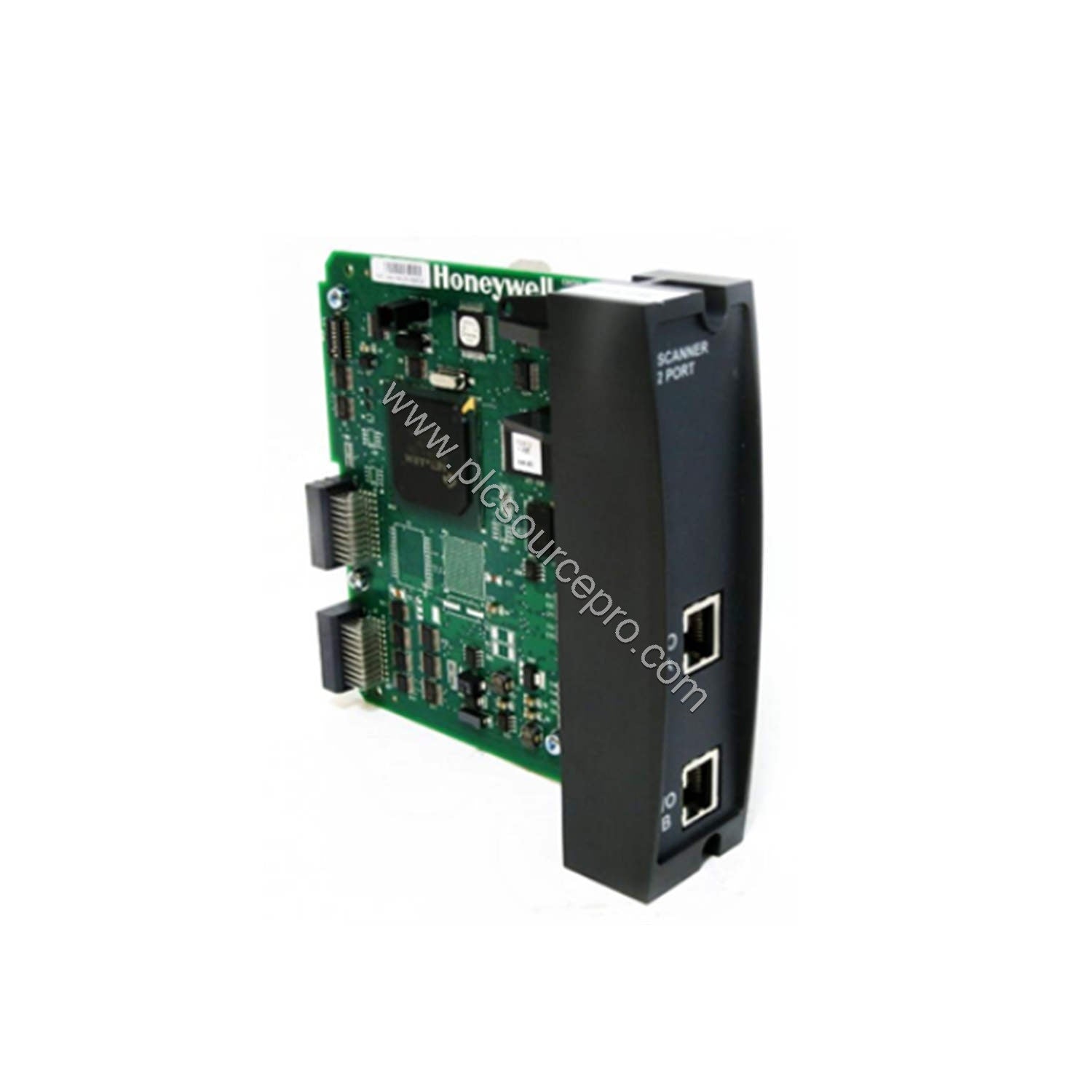

The Honeywell 900SP1-0200 Expansion Processor Module (EPM) is designed to enhance the processing power of your industrial control system. With its dual-core ARM Cortex-A9 processor running at 667 MHz, this module handles complex I/O communication tasks efficiently. The 900SP1-0200 is an ideal upgrade for legacy systems requiring additional computational capacity without replacing the entire architecture.
Technical Specifications
Below are the key specifications for the Honeywell 900SP1-0200:
| Parameter |
Specification |
| Processor |
Dual Core ARM Cortex-A9 Core (32-bit) 667 MHz |
| Rotary Address Switch |
Determine Rack address range from 1 to 99 |
| LED Indicators |
2 LEDs, three colors each, show EPM status |
| Ethernet Ports |
2 |
| Network Connection |
Shielded RJ45 connector, auto-crossover |
| Network Port Speed |
10/100BaseTx, auto-detecting |
| Isolation |
1500 Volts RMS, 1 minute, 60 Hz |
| Transient Voltage Suppression |
600W peak pulse power at 10×1000μs waveform, repetition rate 0.01% |
| Diagnostic LEDs on each port |
Yes |
| Protocols, EPM ports 1 & 2 |
I/O Communication |
Industry Applications
The Honeywell 900SP1-0200 excels in environments requiring reliable I/O data processing. Typical applications include:
-
Process Control: Manage high-speed data exchange between field devices and controllers in chemical plants.
-
Manufacturing Automation: Coordinate multiple robotic systems with real-time communication.
-
Energy Management: Supervise SCADA systems where deterministic I/O handling is critical.
Installation & Setup Guidance
Installing the Honeywell 900SP1-0200 is straightforward. Set the rotary address switch to the desired rack address (1-99) before mounting the module. Connect the shielded RJ45 cables to ports 1 and 2 for network communication. Ensure the module is securely seated in the backplane and power is applied. The two tricolor LEDs will indicate power-up status and operational health.
Compatibility & Integration
The 900SP1-0200 integrates seamlessly with Honeywell control systems that support expansion processors. It uses standard I/O communication protocols on its Ethernet ports, making it compatible with most industrial networks. The auto-detecting 10/100BaseTx ports simplify connection to existing infrastructure.
Selection Guide & Purchasing Advice
When selecting the Honeywell 900SP1-0200, verify that your backplane supports this expansion module and that your system firmware is up to date. PLC Source PRO, part of ubest101, offers genuine Honeywell modules with fast shipping. Contact our team to confirm compatibility with your specific controller model.
