Product Introduction

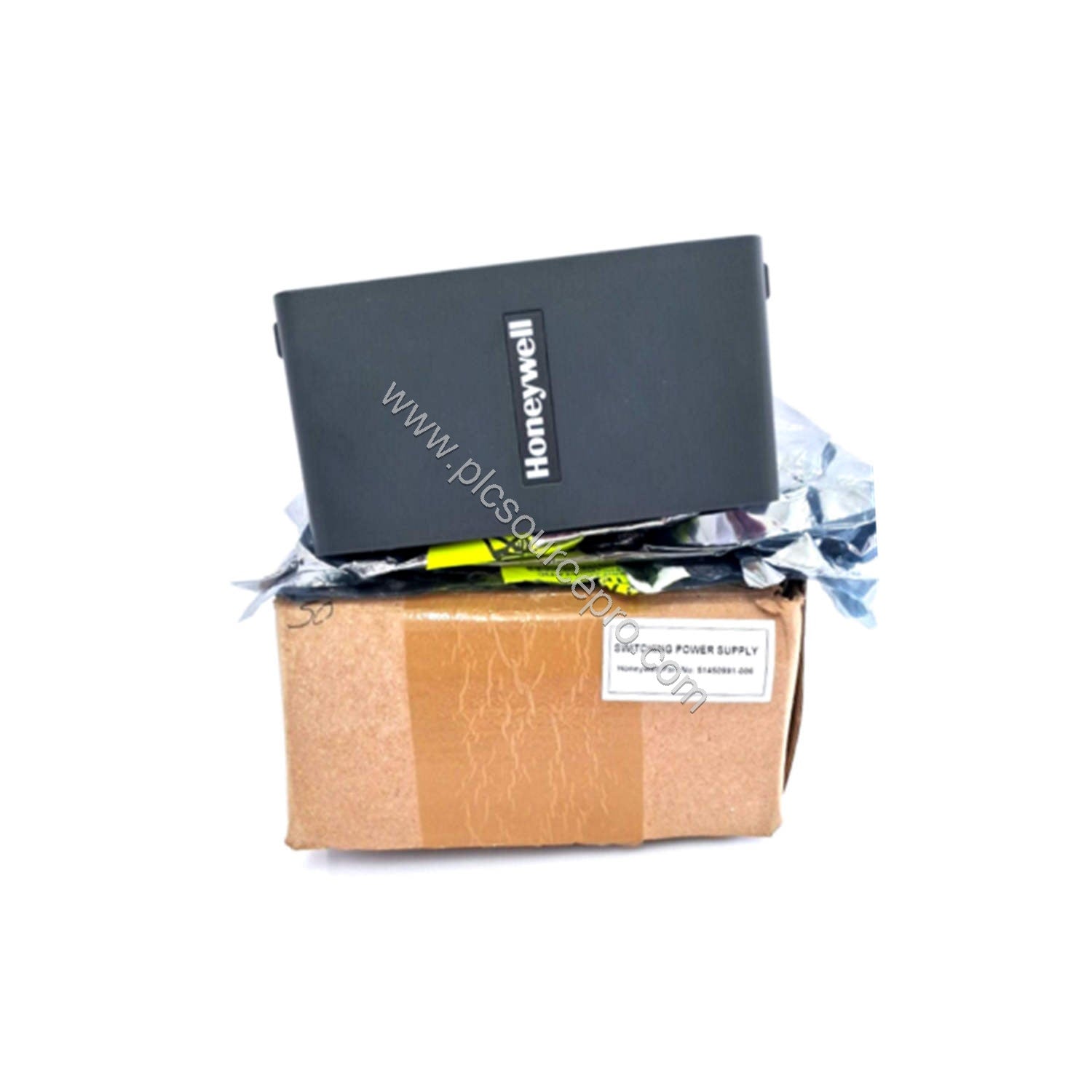

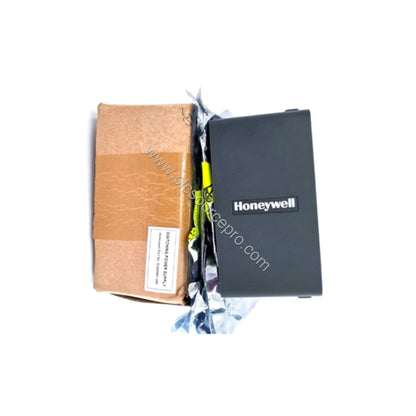

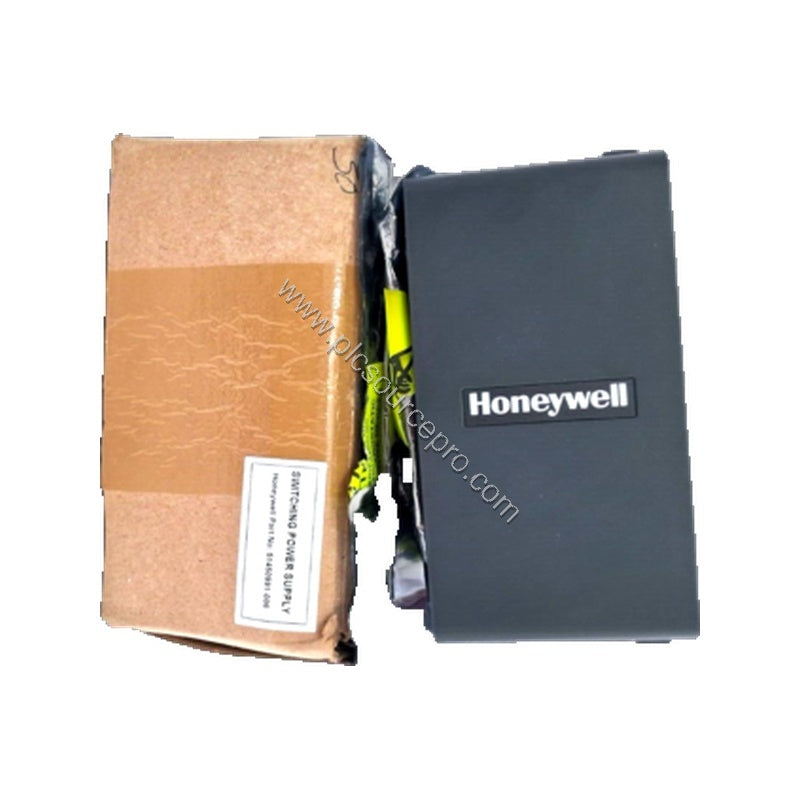

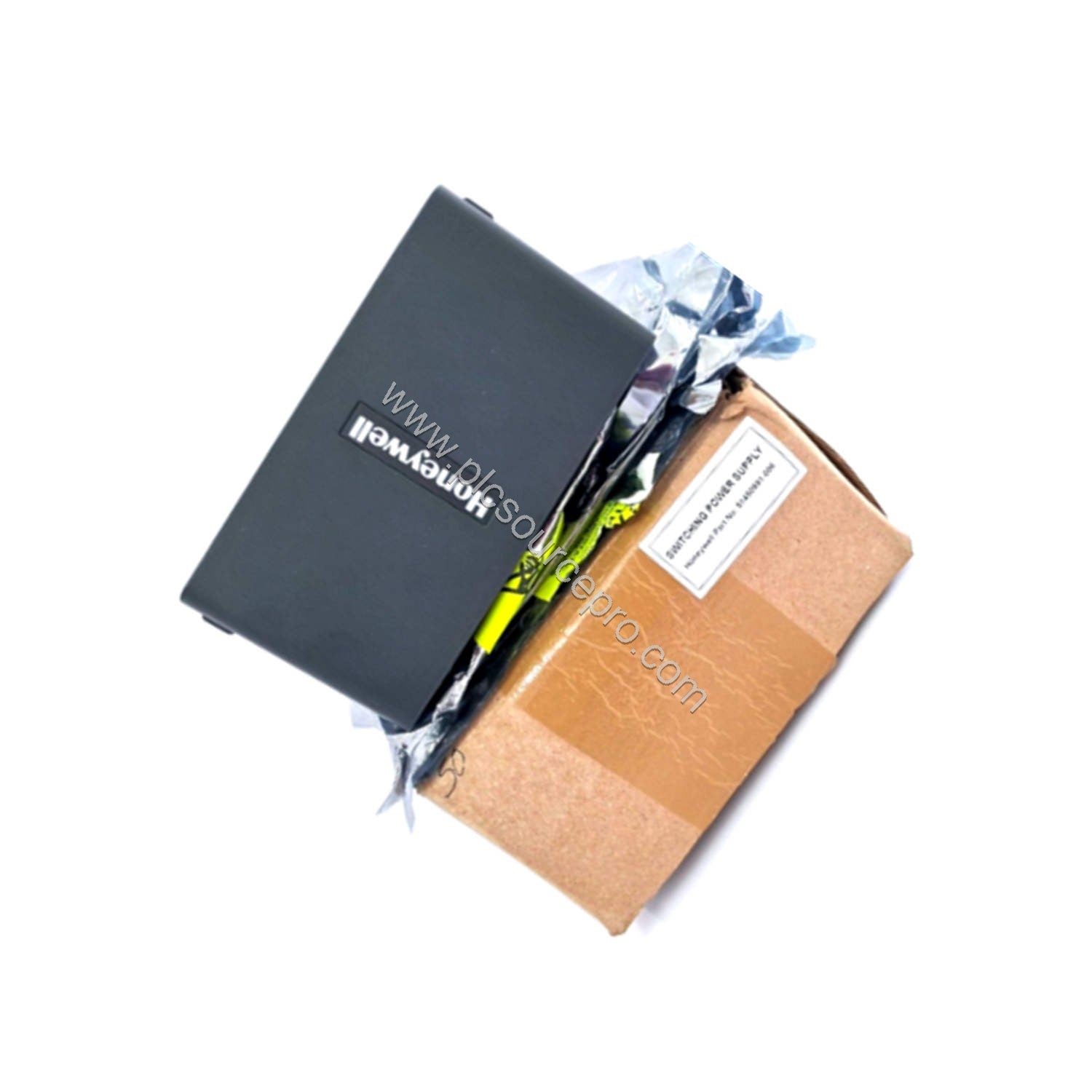

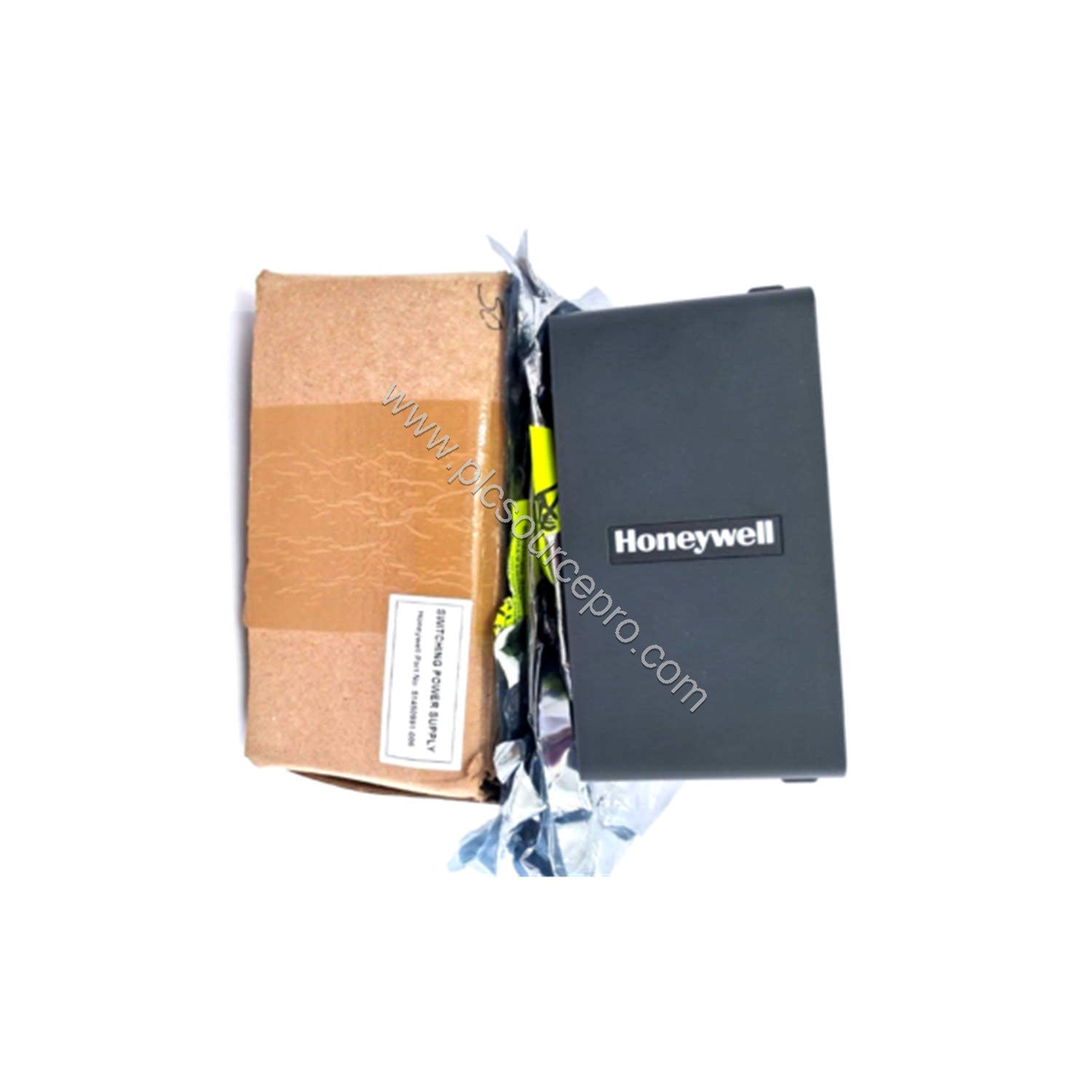

When power fluctuations threaten your control system uptime, the Honeywell 900P24-0501 provides stable 24VDC output with robust protection. This industrial automation power supply delivers 5A continuous current and a 20ms hold-up time, ensuring your PLC and DCS modules ride through brief voltage sags without resetting. Designed for demanding plant-floor environments, the 900P24-0501 operates across a wide 21 to 29VDC input range and features an internal non-replaceable fuse for fault protection.
Technical Specifications Breakdown
The table below lists the key performance parameters of the Honeywell 900P24-0501:
| Parameter |
Value |
| Input Voltage Range |
21 to 29V DC |
| Continuous Output Current |
5A Max. |
| Inrush Current |
30A for 3ms @ 29V DC |
| Input Power Rating |
72.5W |
| Output Power Rating |
51W |
| Fuse Protection |
Internal non-replaceable |
| Hold-up Time |
20ms @ 24V DC, max load |
| Wiring Terminals |
Screw type, 0.3–3.3mm² (#12–22AWG) |
| Ambient Temperature |
T4, 0°C to 51°C |
Each spec is critical for real-world reliability. The 5A continuous rating supports multiple I/O modules, while the 20ms hold-up time prevents unintended processor resets during short mains interruptions. The inrush current of 30A for 3ms ensures soft start capability without nuisance fuse blowing.
Installation & Setup Guidance
Mount the Honeywell 900P24-0501 in a clean, dry cabinet within the 0°C to 51°C ambient range. Use screw-type terminals accepting 0.3 to 3.3mm² (#12–22AWG) wire. Torque connections to manufacturer specifications (typically 0.5–0.6 Nm) to avoid loose connections. Allow adequate airflow around the unit; do not block ventilation slots. Connect the DC input (21–29V) observing correct polarity. The output is fixed at 24VDC; no adjustment is needed. Test under full load before placing the system into service.
Maintenance & Reliability
The internal non-replaceable fuse is designed for the life of the unit; however, if the fuse opens due to a fault, the entire module must be replaced. Periodically inspect terminals for corrosion or looseness. Verify that the ambient temperature stays below 51°C during peak operation. The T4 temperature rating indicates safe operation in environments with surface temperatures up to 135°C, making the 900P24-0501 suitable for many industrial zones. Regular visual checks (every 6 months) and voltage measurement at the output terminals (should be 24VDC ±0.5V) ensure long, trouble-free service.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 900P24-0501, verify your system’s total current draw does not exceed 5A at 24VDC. Consider a redundancy configuration if your process cannot tolerate any downtime. This power supply works as a drop-in replacement for Honeywell 900P24 series units. For assistance in sizing or application questions, contact PLC Source PRO (formerly ubest101) – your trusted source for genuine industrial automation spare parts.
