Product Introduction

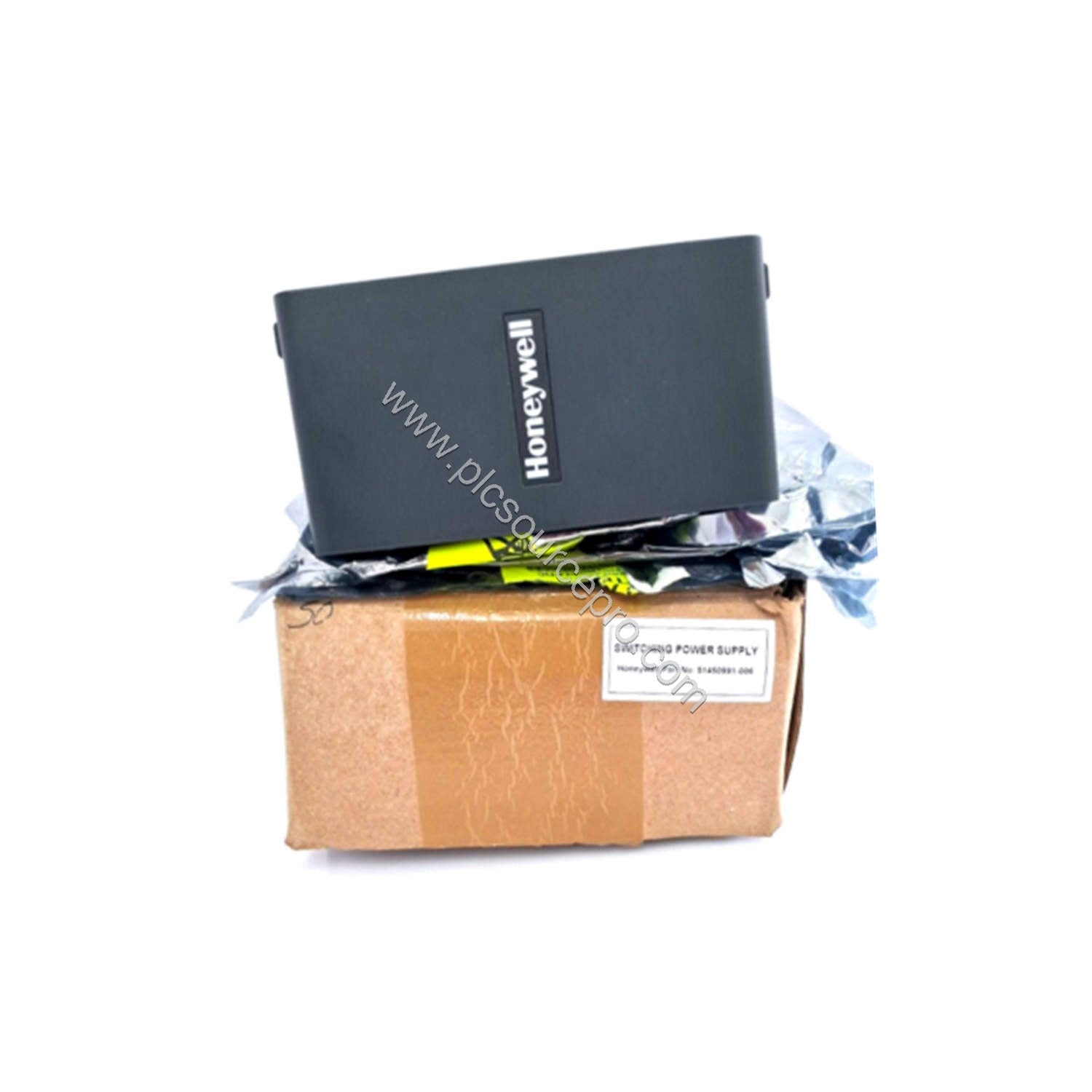

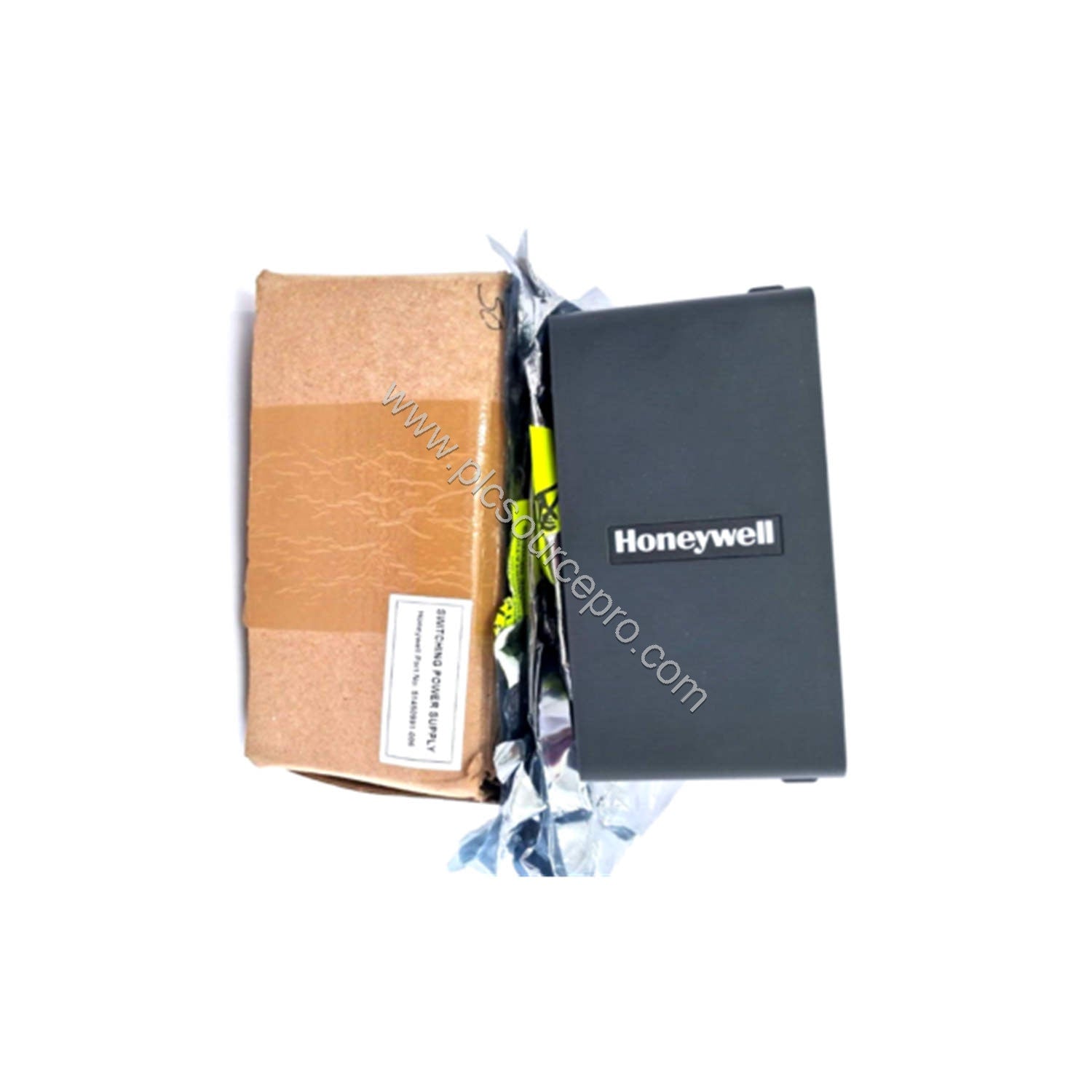

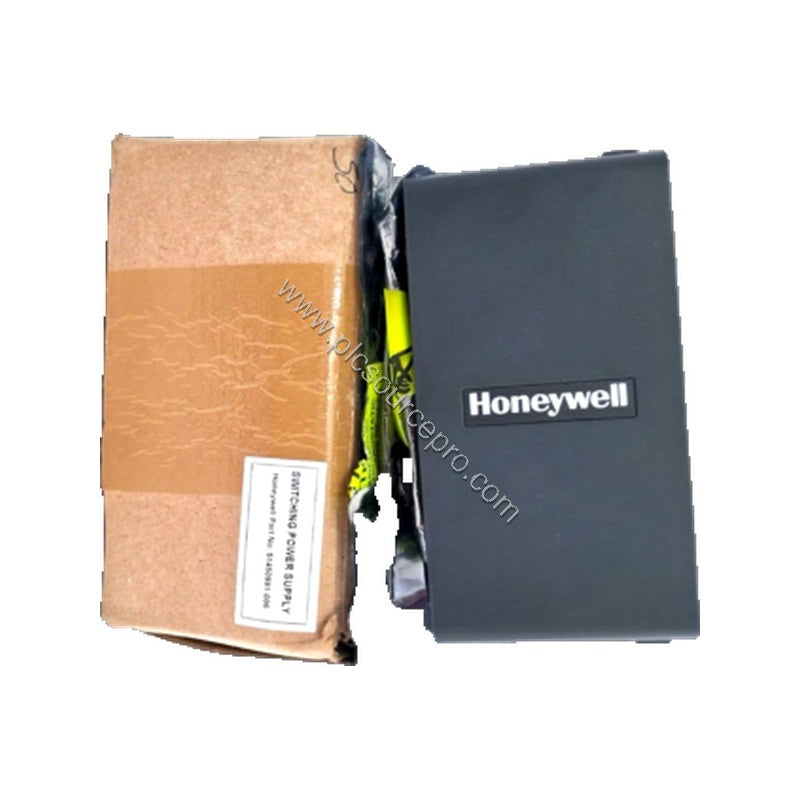

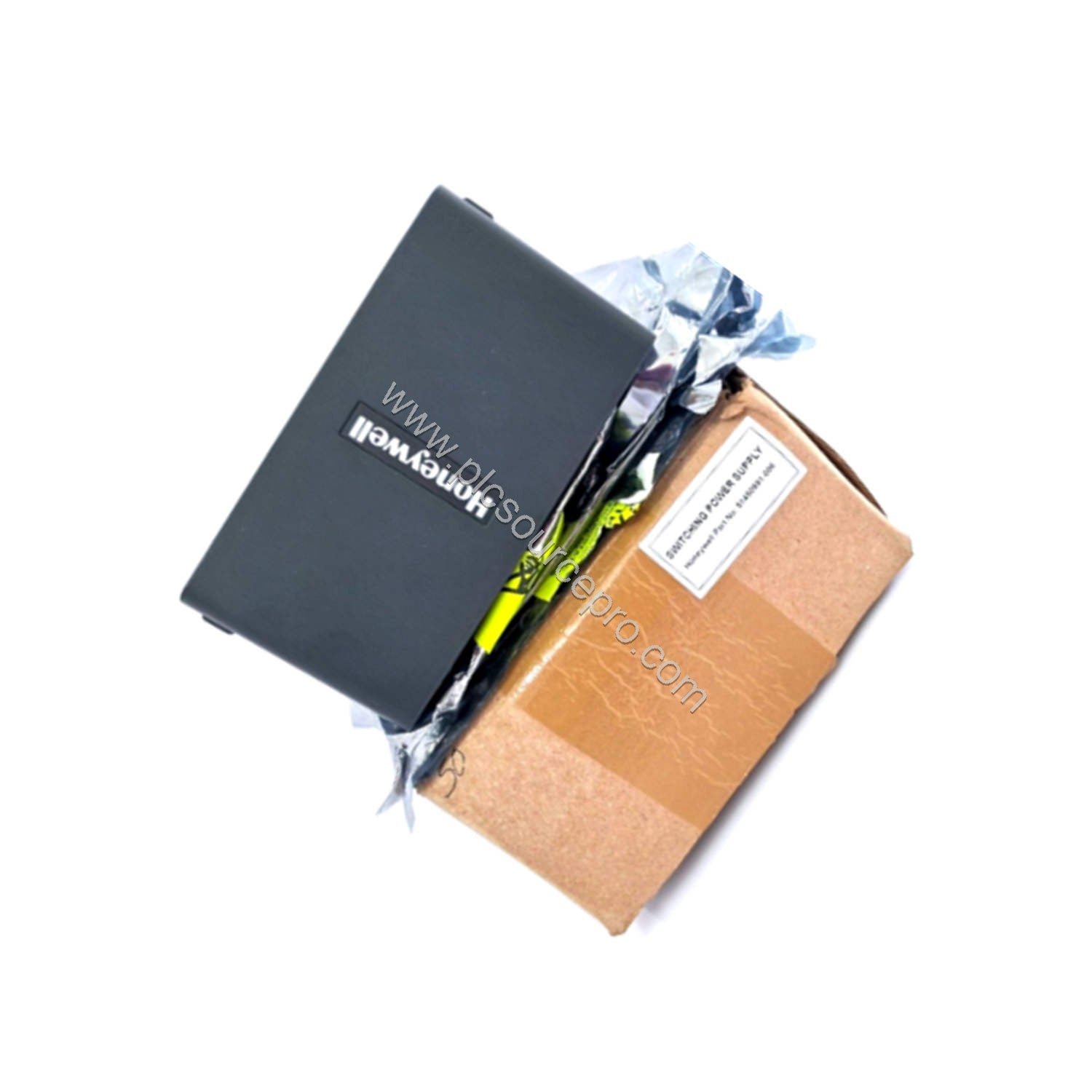

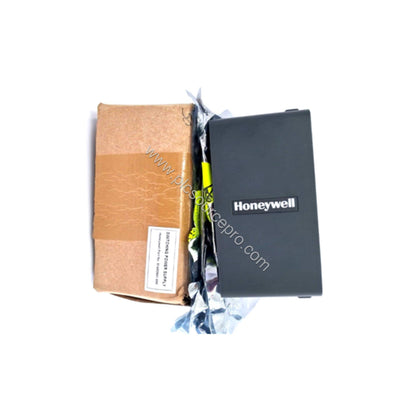

When power supply failures disrupt industrial operations, the Honeywell 900P01-0301 120/240VAC Power Supply provides a robust solution. Designed to handle voltage fluctuations from 90 to 264 V AC and 47 to 63 Hz, this unit ensures stable power delivery for critical automation systems. Its internal non-replaceable fuse protects against overcurrent, while the 40 Amps peak-to-peak inrush current handling prevents nuisance tripping.
Technical Specifications Breakdown
The Honeywell 900P01-0301 delivers consistent performance with these key parameters:
-
Input Voltage: 90–264 V AC, 47–63 Hz – wide range for global compatibility.
-
Maximum Continuous Current: 1.4 A – sufficient for typical PLC and DCS loads.
-
Input Rating: 130 VA; Output Rating: 58 W – ensures efficient power conversion.
-
Inrush Current: 40 Amps peak-to-peak for 120 ms at 240 V AC – avoids startup issues.
-
Power Supply Hold-up Time: 20 milliseconds at 115 V AC, 60 Hz maximum load – provides ride-through during brief voltage sags.
-
Wiring: Screw-type terminals accepting 0.3 mm² to 3.3 mm² (#12–22 AWG) for secure connections.
-
Test Jacks: 5 V DC and 24 V DC for easy diagnostics.
-
Dimensions: 137 mm H x 72.6 mm W (5.4” x 2.86”); Weight: 0.82 kg – compact footprint.
Industrial Applications
The Honeywell 900P01-0301 is ideal for powering PLC racks, DCS modules, and sensors in harsh environments. Its hold-up time of 20 milliseconds prevents data loss during momentary power dips, a common issue in factory floors. Use it in control panels where reliable DC power is critical for 24 V loop-powered transmitters.
Installation & Setup Guidance
Mount the Honeywell 900P01-0301 securely using the integrated mounting features. Ensure the AC supply is disconnected before wiring. Connect line and neutral to the input screw terminals, tightening securely. Verify the input voltage range matches your facility supply (90–264 V AC). After installation, use the test jacks to confirm 5 V DC and 24 V DC outputs before connecting load.
Maintenance & Reliability
Periodically inspect the Honeywell 900P01-0301 for dust accumulation and tighten terminal screws to prevent loosening from vibration. The internal non-replaceable fuse means no user-serviceable parts; if the fuse blows, replace the entire unit. Operating within the specified voltage range ensures long life. Regularly monitor output voltages via test jacks to catch drift early.
Selection Guide & Purchasing Advice
When selecting a power supply, verify your system’s total power draw does not exceed 58 W. The Honeywell 900P01-0301 is an exact replacement for units requiring 24 V DC and 5 V DC auxiliary outputs. For assured authenticity and technical support, source from UBEST Automation — your trusted partner for industrial automation spares.
