Product Introduction

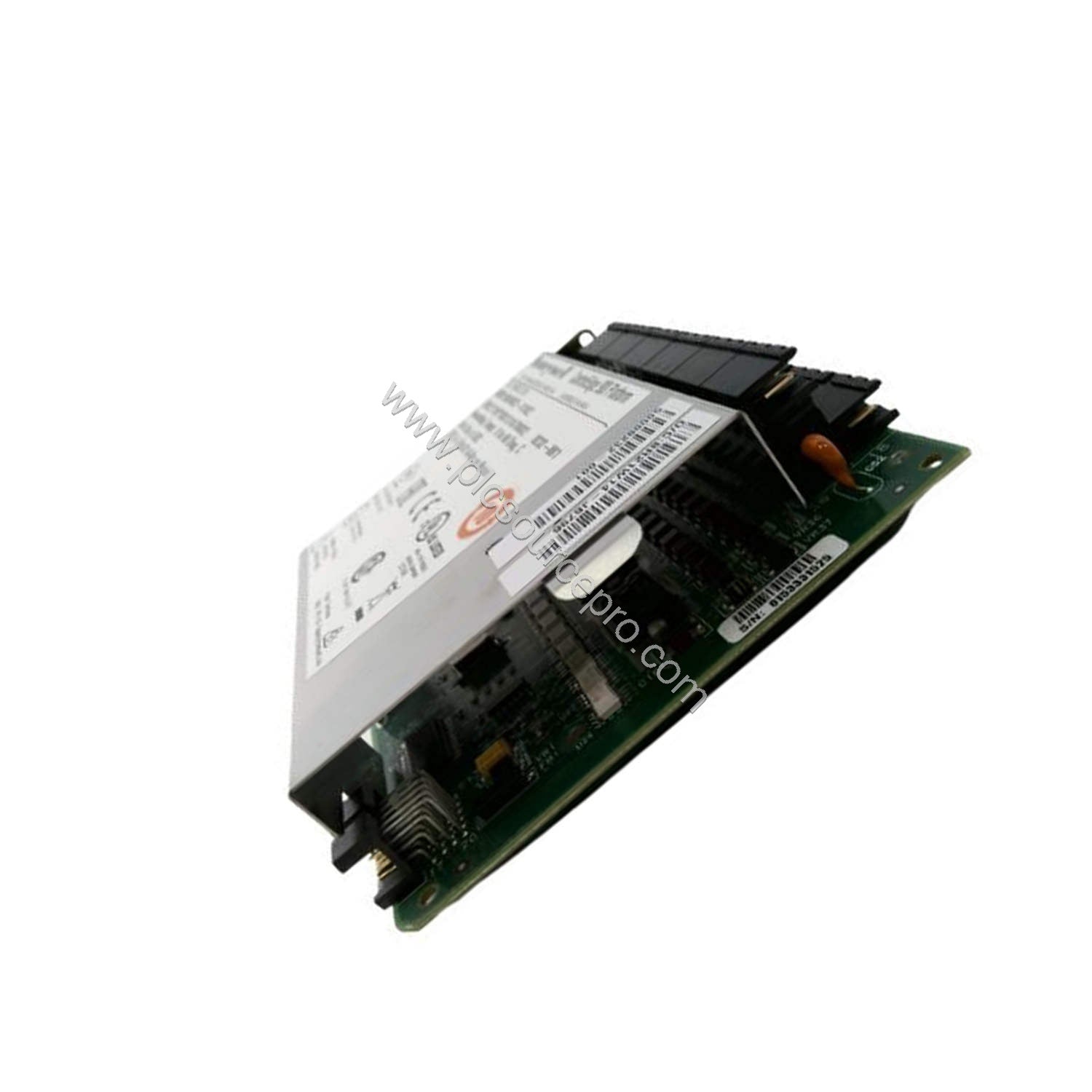

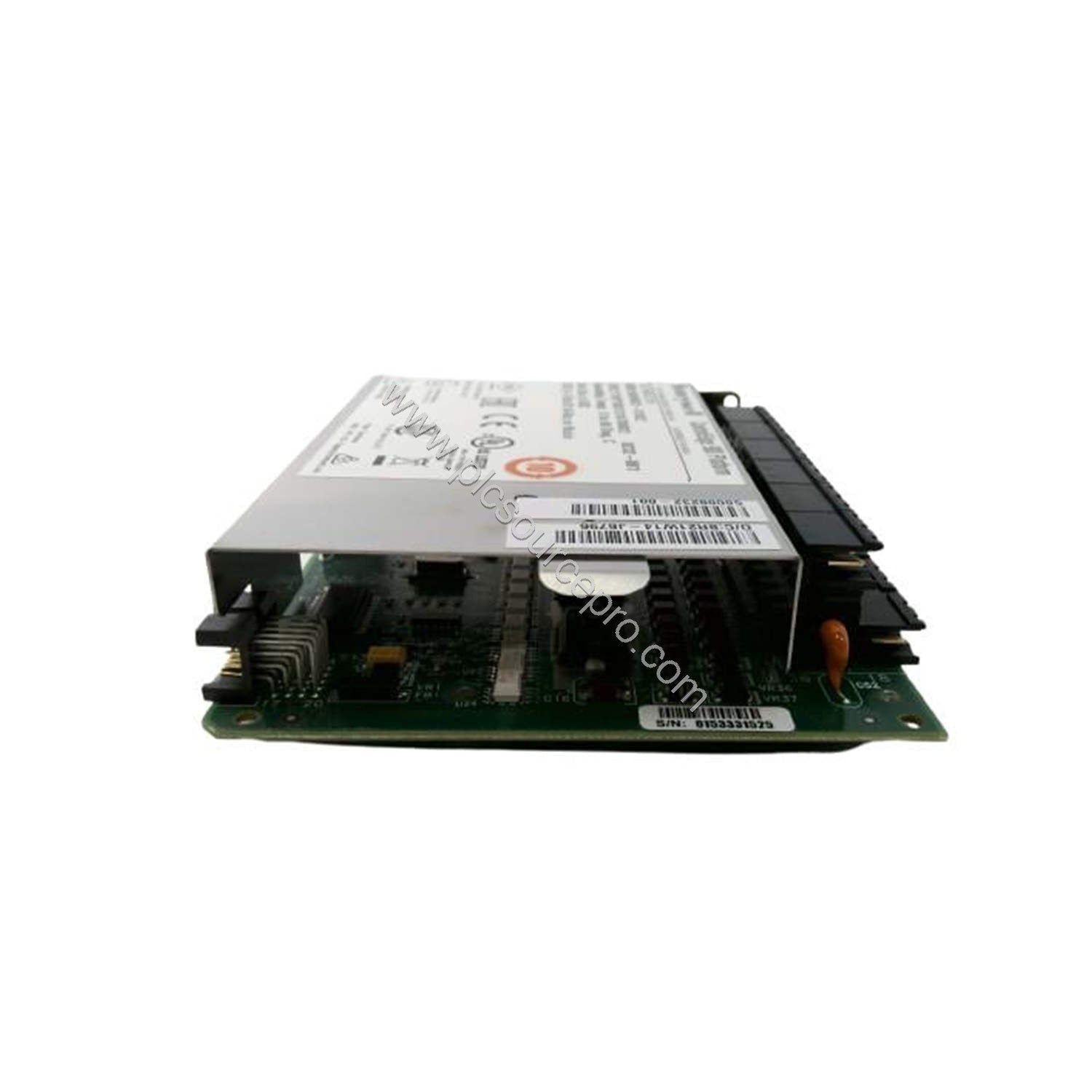

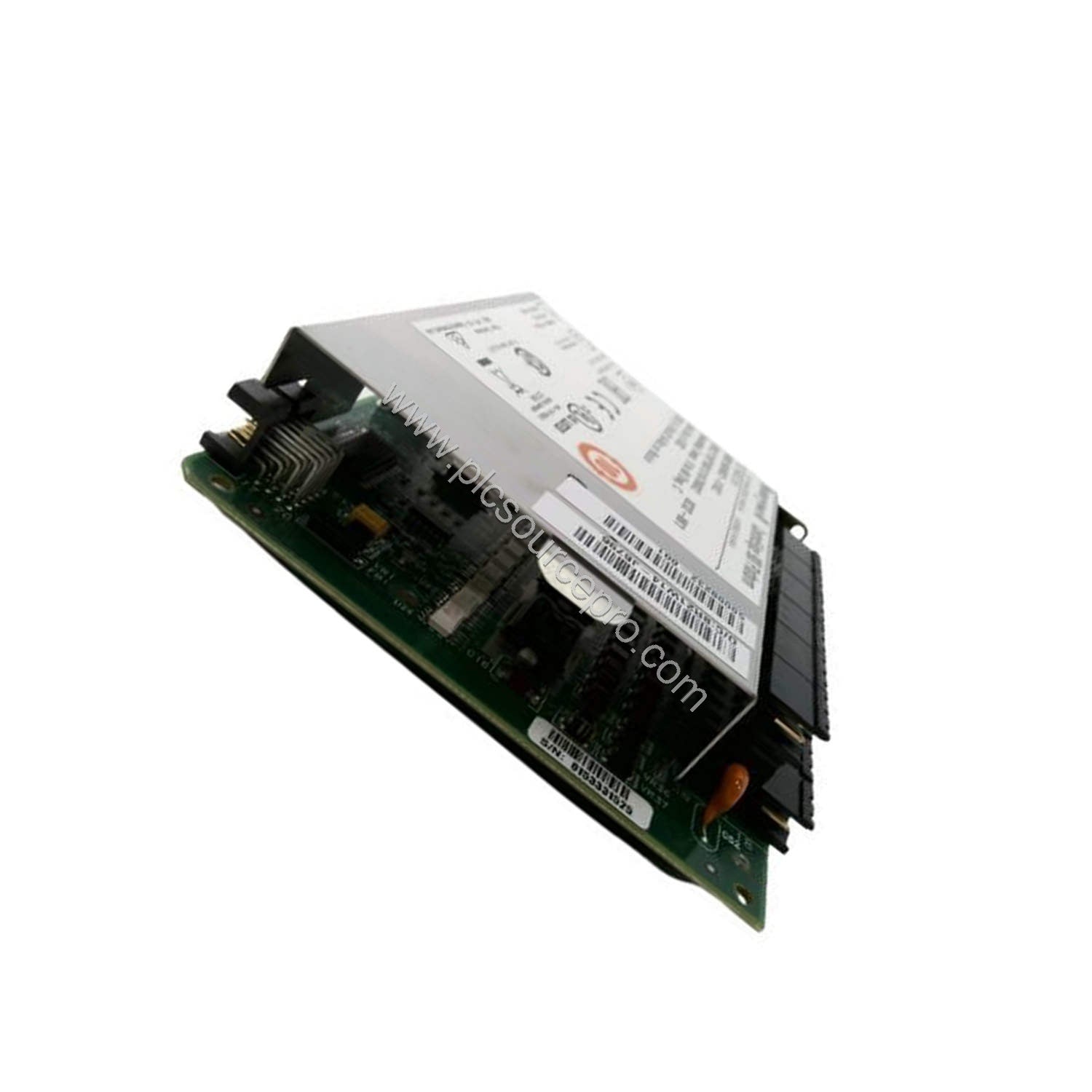

The Honeywell 900H32-0102 Digital Output 24VDC 32 Channel module delivers high-density switching for demanding industrial automation environments. With 32 current-sourcing outputs arranged in two galvanically isolated groups of 16, this module provides reliable control for actuators, relays, and indicator lamps. The 900H32-0102 is engineered for applications requiring robust output performance and built-in protection.
Technical Specifications
Key parameters of the Honeywell 900H32-0102 include:
| Specification |
Value |
| Outputs per module |
32 (current sourcing, high side) |
| Galvanic Isolation |
2 groups of 16 outputs |
| Operating Voltage |
10.5 to 32 VDC |
| Output Type |
High side driver |
| Peak Voltage |
32 VDC |
| ON Voltage Drop |
0.15 VDC @ 0.5 A load |
| Overload Protection |
Active Current Limiting (4 groups of 8 channels) |
| Maximum Load Current |
0.5 A per point, 6 A max per group, 12 A per module (resistive); 0.25 A per point incandescent lamp (5 mH max) |
| Dimensions |
137 mm H x 35.6 mm W (5.4" x 1.4") |
| Weight |
0.18 kg |
Note: Outputs 17 through 32 are not suitable for TPO, PPO, or TPSC output types.
Industry Applications
The Honeywell 900H32-0102 suits a wide range of industrial sectors:
-
Manufacturing Lines: Control solenoid valves and motor starters with high current capacity per channel.
-
Process Automation: Drive indicator banks and alarm annunciators in refineries and chemical plants.
-
Material Handling: Operate conveyor zone controls and sorting actuators with reliable 0.5 A per point.
By integrating the 900H32-0102, facilities reduce wiring complexity and improve system uptime.
Installation & Setup Guidance
Mount the Honeywell 900H32-0102 on a standard DIN rail (35.6 mm width fits compact enclosures). Ensure supply voltage remains within 10.5–32 VDC. Connect output groups respecting galvanic isolation: group 1 covers outputs 1–16, group 2 covers 17–32. For high-current loads, verify total group current does not exceed 6 A. Use appropriate fusing per output group as needed.
Maintenance & Reliability
The Honeywell 900H32-0102 integrates active current limiting per 8-channel group, eliminating the need for power cycling after a fault. This feature reduces downtime and extends module life. Periodic inspection of connections and load wiring ensures sustained performance. In environments with high vibration, verify that DIN rail clips are secure. The compact 137 mm height and light weight simplify replacement.
Selection Guide & Purchasing Advice
When ordering the Honeywell 900H32-0102, confirm your system voltage matches 24VDC nominal (10.5–32 VDC range). Verify that your controller supports high-side sourcing outputs. For TPO/PPO/TPSC applications, use only outputs 1–16. UBEST Automation supplies genuine Honeywell 900H32-0102 modules with fast shipping. For technical inquiries or bulk pricing, contact our team.
