Product Introduction

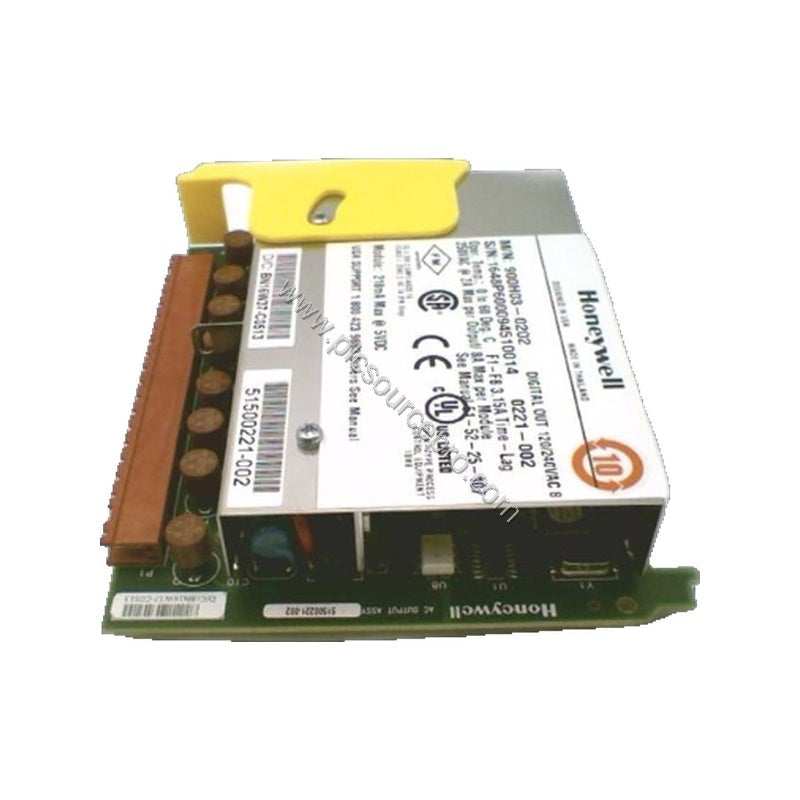

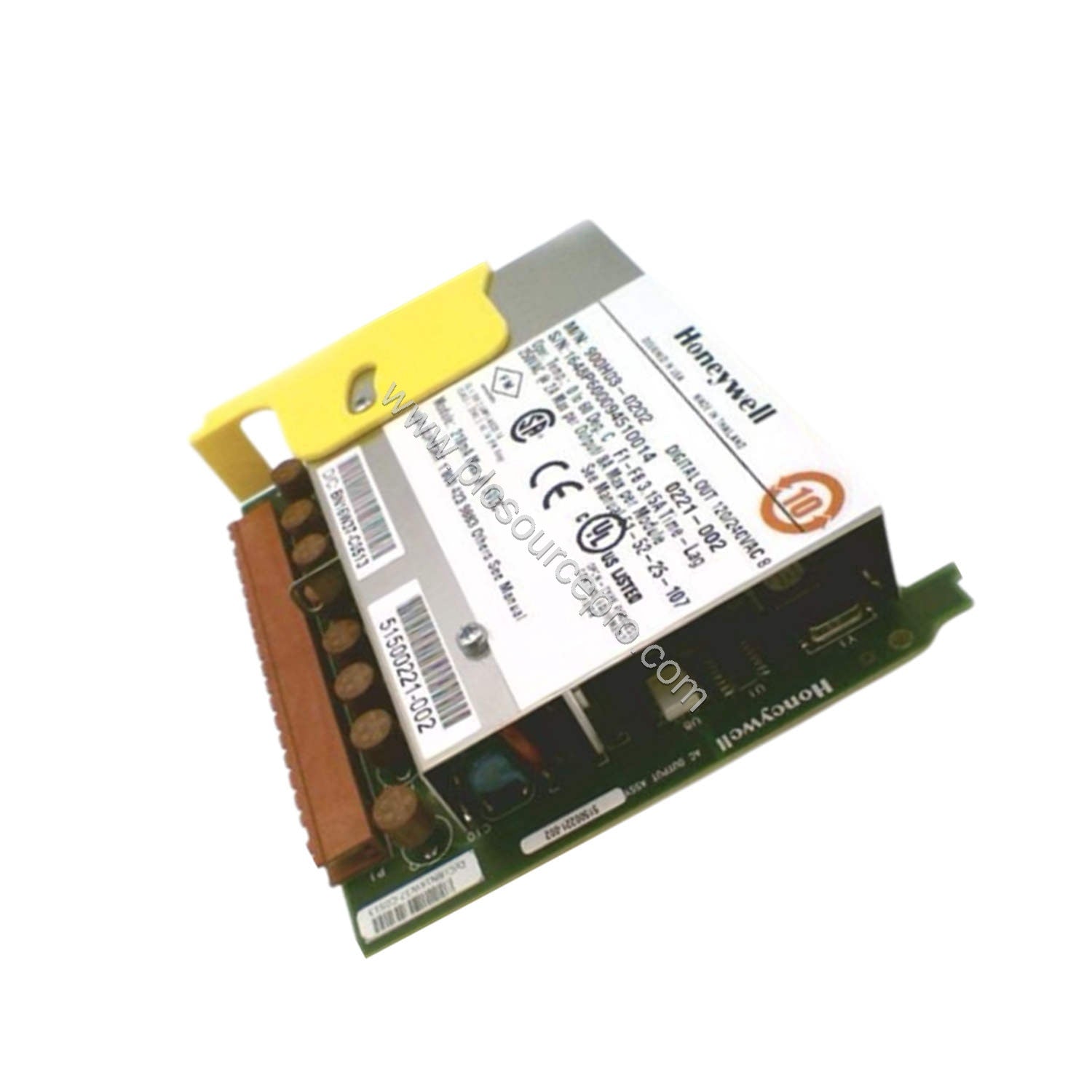

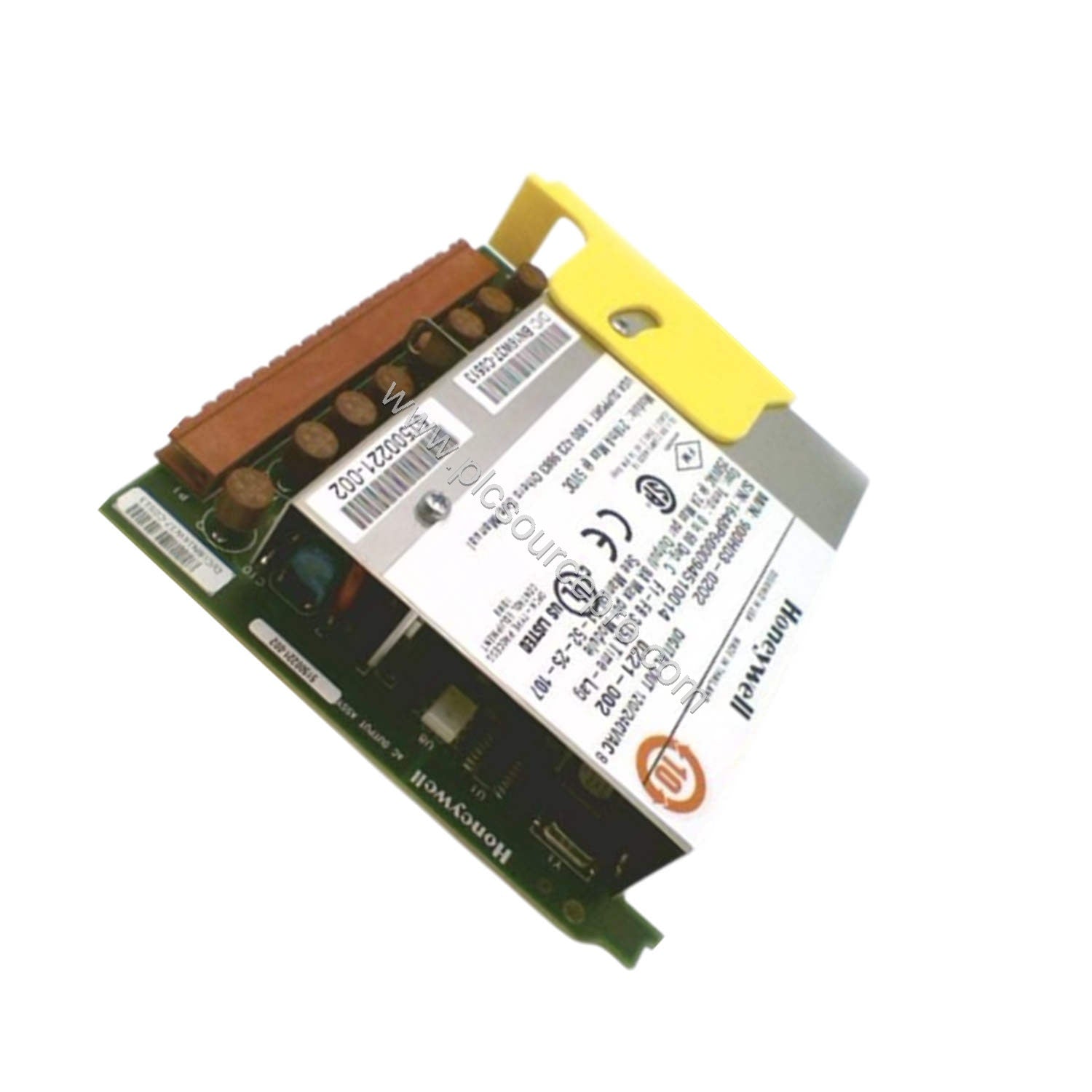

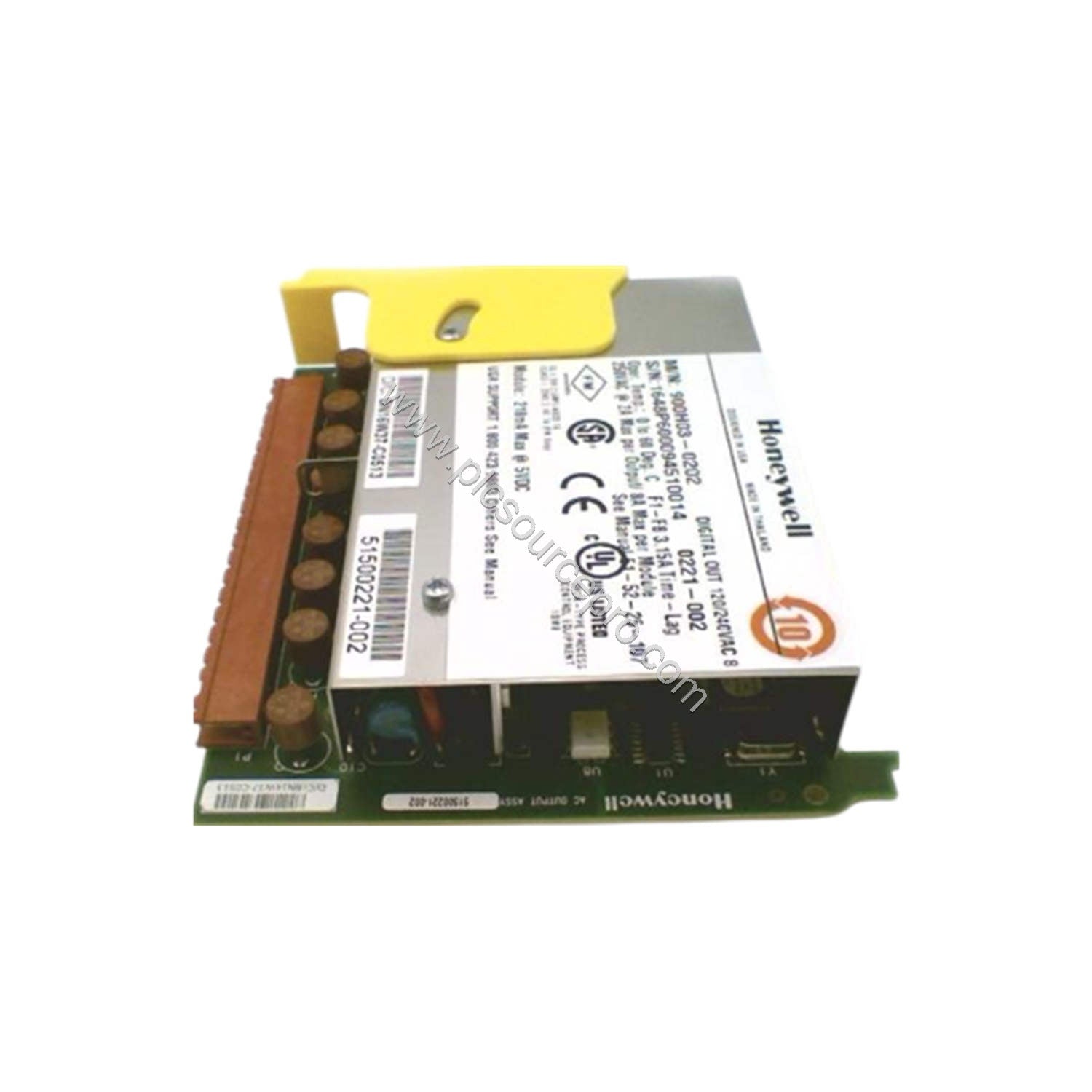

When transient overvoltages and output failures threaten system uptime, the Honeywell 900H03-0202 digital output module provides robust protection and diagnostics. This 8-channel isolated Triac output module operates at 85‑240 VAC and is designed for reliable switching in industrial environments. Each output incorporates a MOV for transient suppression and a field-replaceable fuse, while green/red LEDs indicate channel state and module health. A shorting comb (900J02‑0001/900J10‑0001) is available for use with barrier-type terminal blocks to simplify connections to a common voltage source for all outputs.
Technical Specifications Breakdown
The Honeywell 900H03-0202 delivers precise performance for demanding applications. Key parameters include:
| Specification |
Value |
| Outputs per Module |
8 |
| Galvanic Isolation |
Per output to output, output to logic |
| Operating Voltage |
85 VAC to 240 VAC |
| Output Type |
Triac (zero switching voltage) |
| Peak Voltage |
250 VAC |
| AC Frequency |
47 Hz to 63 Hz |
| ON Voltage Drop |
<2.0 VAC (>0.1 A), <3.0 VAC (<0.1 A) |
| Transient Overvoltage Protection |
MOV |
| Maximum Load Current |
2 A per point, 8 A max. per module, resistive load |
| Maximum Leakage Current |
4 mA (240 VAC, 60 Hz), 1.2 mA (100 VAC, 60 Hz), 0.9 mA (100 VAC, 50 Hz) |
| Maximum Inrush Current |
15 A for 10 ms |
| Minimum Load |
50 mA |
| OFF to ON Response Time |
3 ms + 0.5-line cycle max |
| ON to OFF Response Time |
3 ms + 0.5-line cycle max |
| Fail Safe State Configuration |
Yes (Hold Last State / Failsafe State) |
| Fuses |
1 per output, 3.15 A Time-lag (Replacement: Littelfuse 37413150410) |
Industry Applications
In manufacturing lines and process control systems, the Honeywell 900H03-0202 reliably switches solenoid valves, contactors, and indicator lights. Its galvanic isolation prevents ground loops, while the MOV clamps transients from motor starts and inductive loads. For building automation, the module controls HVAC dampers and pumps where zero‑switching Triacs minimize electrical noise. Field-replaceable fuses allow quick restoration without replacing the entire module.
Troubleshooting & Common Issues
Typical problems include blown fuses due to short circuits or overcurrent. The Honeywell 900H03-0202 provides a red status LED when diagnostics exist; a green blinking LED indicates scanning. If a channel fails, check the fuse (3.15 A Time‑lag) and replace with Littelfuse 37413150410. MOVs degrade after repeated surges; if module begins failing transient protection, consider adding external surge suppressors. For erratic switching, verify that the load exceeds the 50 mA minimum and that the AC frequency is within 47‑63 Hz.
Maintenance & Reliability
Regular inspection of LED indicators helps catch early faults. Blown fuses are easily identified and replaced, reducing downtime. The MOV ratings are designed for industrial surge environments; periodic testing of output channels under load ensures consistent performance. Operate the module within 0‑60 °C ambient and avoid condensation. Field-replaceable fuses and the fail‑safe configuration (Hold Last State or Failsafe State) enhance system reliability and reduce total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 900H03-0202, verify your system voltage (85‑240 VAC) and total load per module (8 A max). If you need to common a voltage source for all outputs, order the shorting comb (900J02‑0001/900J10‑0001). Ensure your controller supports the module’s fail‑safe mode. For reliable sourcing, UBEST Automation (available at ubest101) supplies genuine Honeywell modules and accessories. Confirm that your backplane is compatible and that you have sufficient slots for the 8‑channel module.
