Product Overview

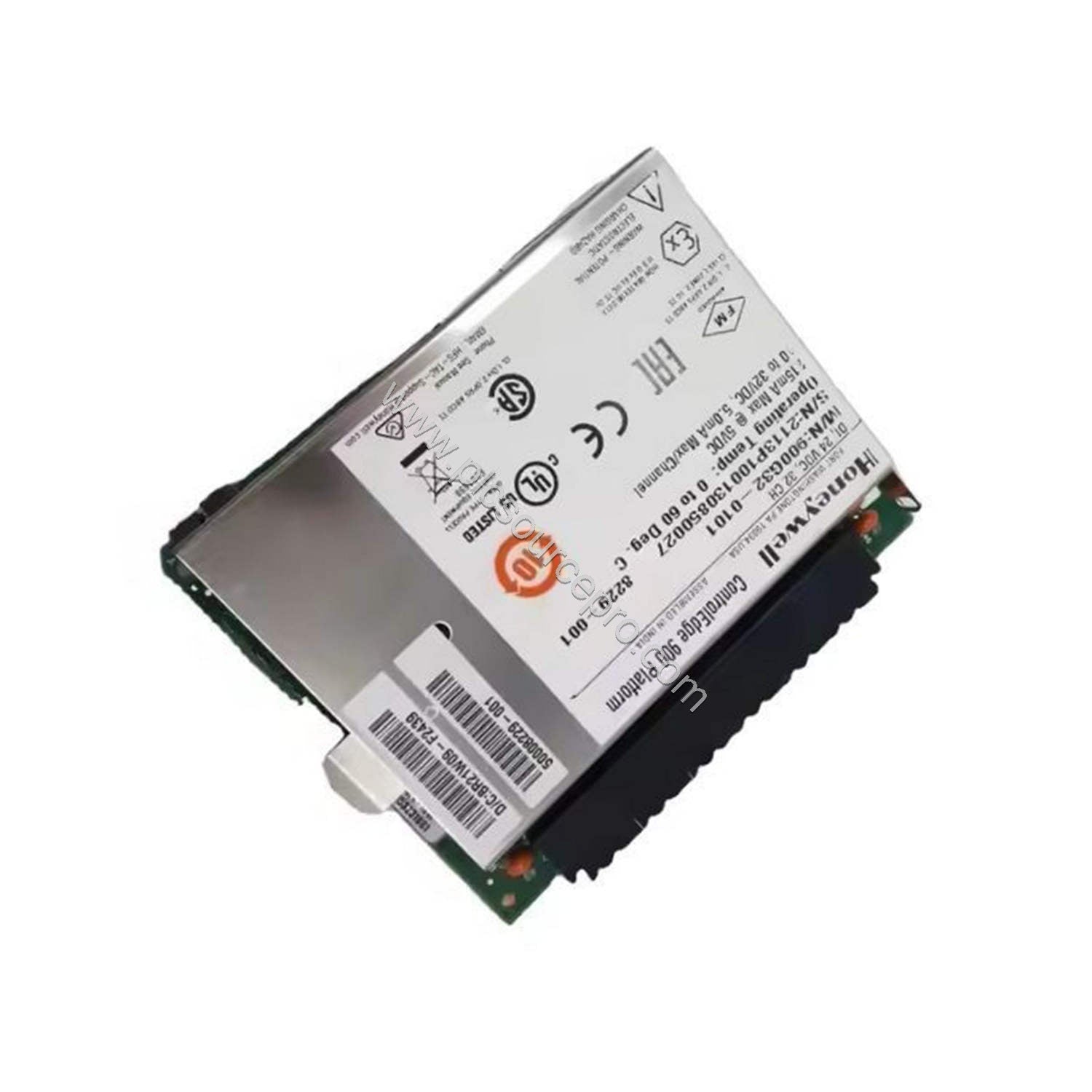

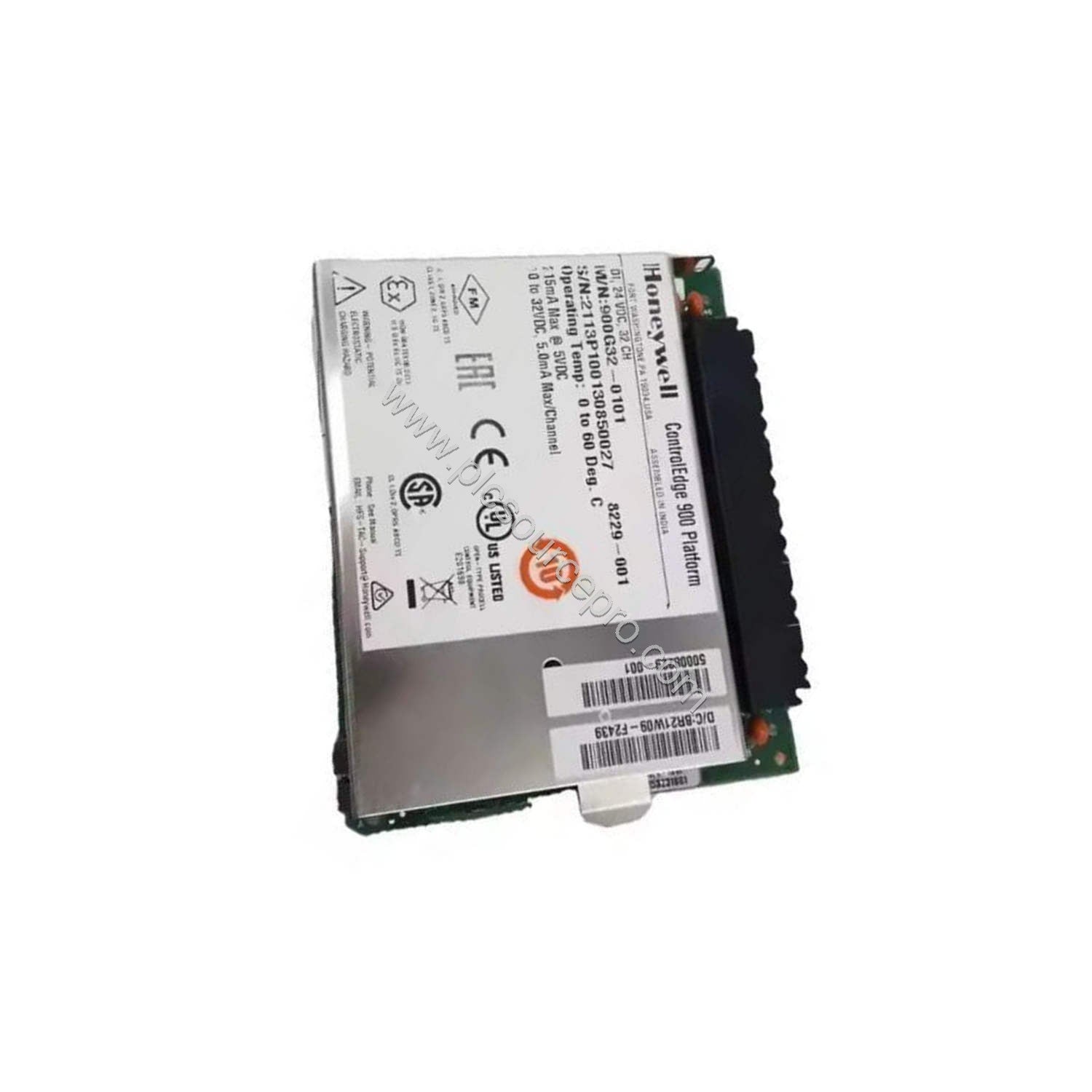

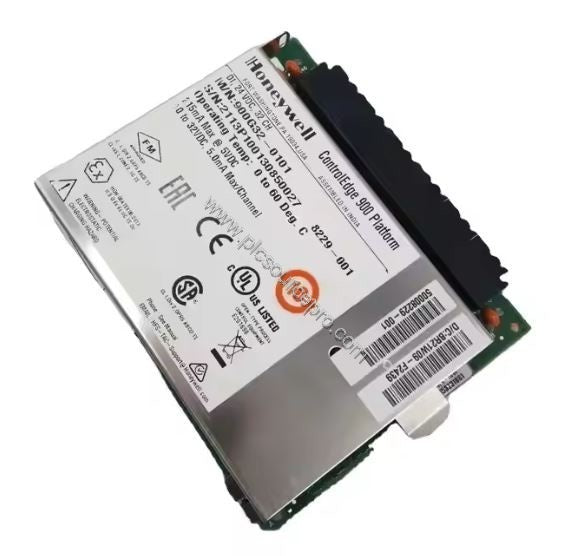

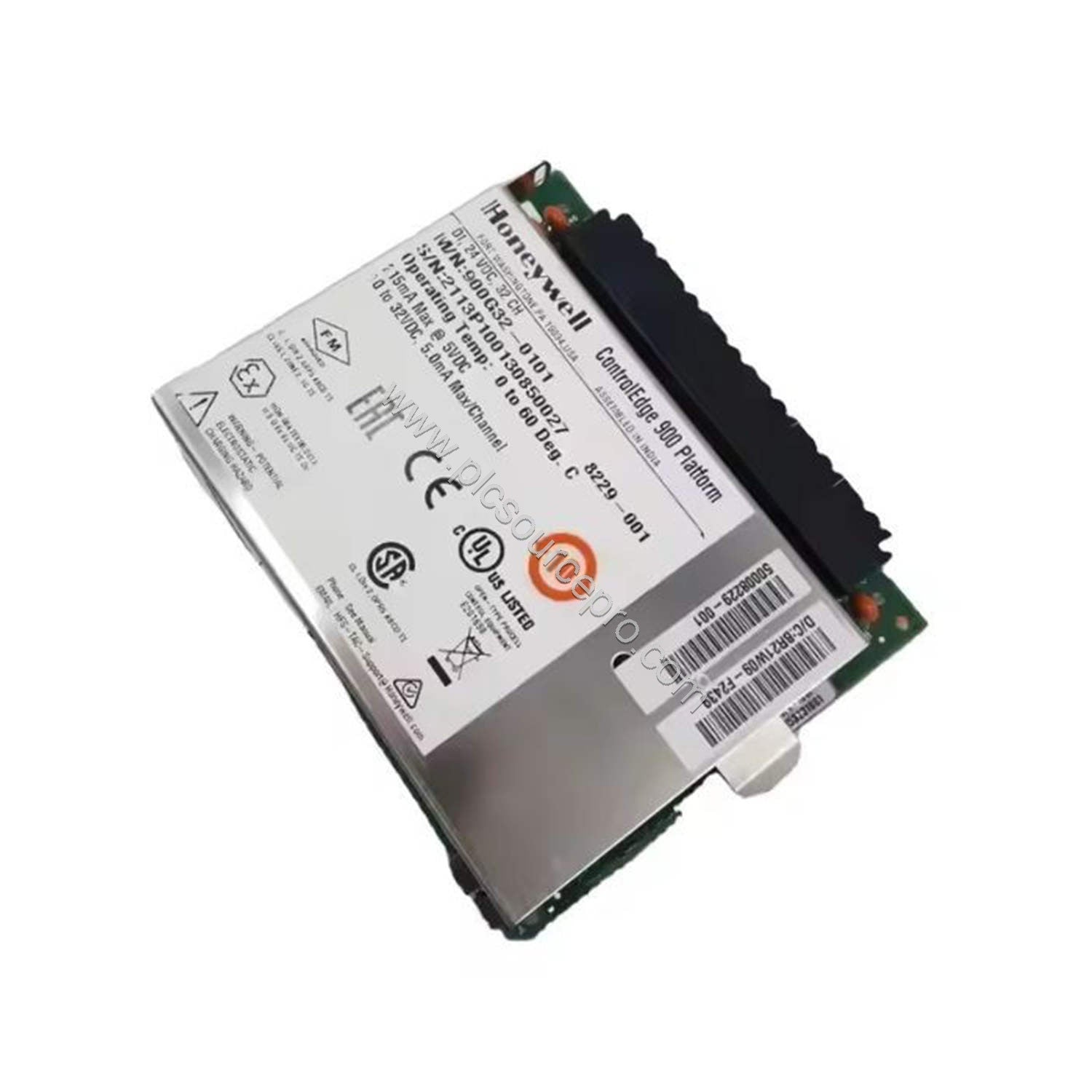

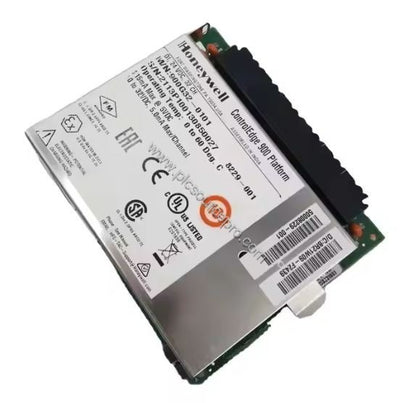

The Honeywell 900G32-0301 is a digital input module designed for 24 VDC applications. It offers 32 sinking inputs organized into two isolated groups of 16 channels each. Each group features a dedicated pair of screw terminals for common connections. When DC power is applied between the common terminal and an input, the input turns ON, indicated by a green LED per channel. A blinking green status LED shows scanning activity, and a red LED alerts module diagnostics. This module requires a Euro-style 36-terminal terminal block for wiring.
Technical Specifications
Detailed specifications for the Honeywell 900G32-0301 are available from the manufacturer or upon request from UBEST Automation. The module accepts input voltages between 10 and 32 VDC, with an ON voltage threshold of 9.5 VDC minimum and OFF voltage of 3.5 VDC maximum. Input impedance is rated at 6.9 kΩ nominal. Switching response times (OFF→ON and ON→OFF) are both 5 ms maximum, excluding controller scan and backplane transmission delays. The module operates in temperatures from -40°C to 70°C and can be stored in -40°C to 85°C conditions.
Industry Applications
The Honeywell 900G32-0301 is widely used in manufacturing lines, process control systems, and discrete automation. For example, in a packaging plant, it can monitor multiple proximity sensors to detect product presence. In a water treatment facility, it reads level switch signals for tank monitoring. The module's galvanic isolation (two groups of 16 inputs) protects against ground loops, making it suitable for harsh industrial environments.
Installation & Setup Guidance
Install the Honeywell 900G32-0301 into the designated backplane slot. Secure the Euro-style terminal block by aligning it with the module's connector and tightening the screws. Wire each input channel to the corresponding terminal; use a common terminal for each group (16 inputs per common). Ensure the DC power supply is within 10–32 VDC and observe polarity. After wiring, power on the system; the green scanning LED should blink. If the red diagnostic LED illuminates, check for wiring faults or input overvoltage.
Troubleshooting & Common Issues
If an input fails to register, verify the ON voltage exceeds 9.5 VDC and the current exceeds 1.0 mA. For false ON states, check that OFF voltage is below 3.5 VDC and OFF current is below 0.7 mA. Intermittent scanning errors may be due to loose terminal block connections—ensure the Euro-style block is fully seated. The module's LEDs provide quick diagnostics: green per channel for input status, blinking green for scanning, red for module fault. For persistent issues, consult the full troubleshooting guide from UBEST Automation.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 900G32-0301, verify compatibility with your PLC backplane and power supply requirements. The module requires 24 VDC nominal input and uses a 36-pin Euro-style terminal block (not included). Ensure your system's operating temperature range matches the module's -40°C to 70°C limit. For large-scale upgrades, consider ordering multiple units to maintain consistency. UBEST Automation stocks genuine Honeywell 900G32-0301 modules and offers support for integration. Contact us for bulk pricing and technical datasheets.
