Introduction

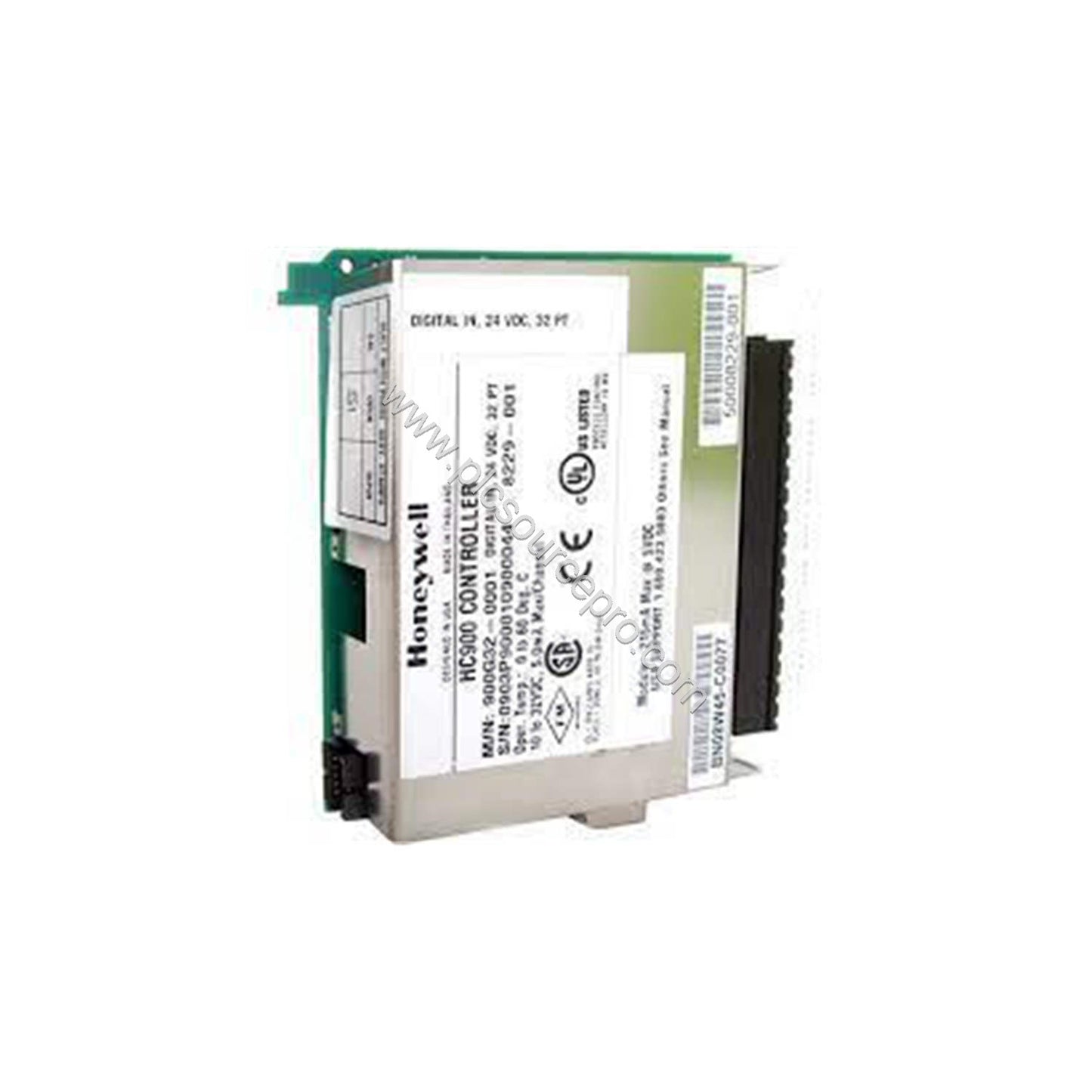

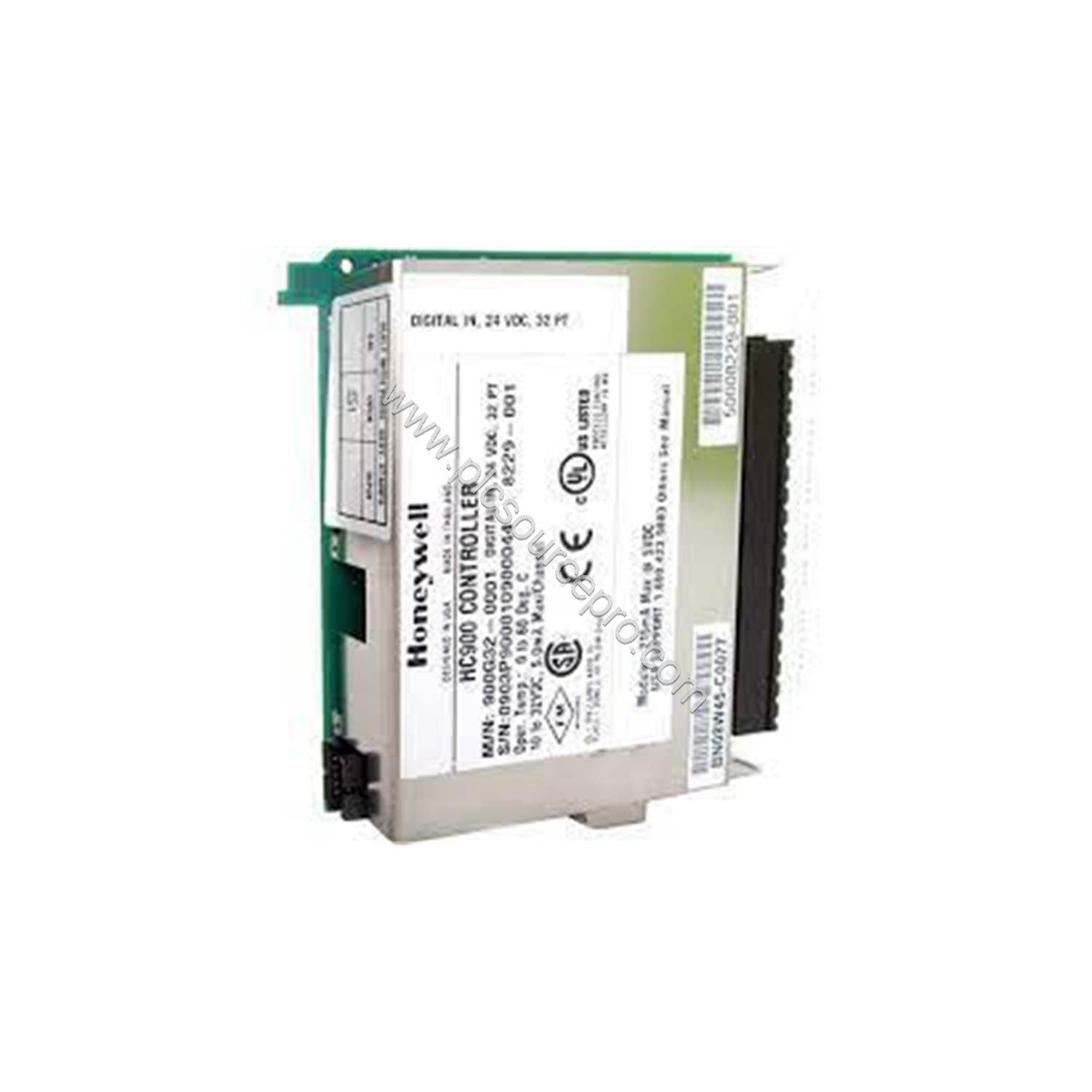

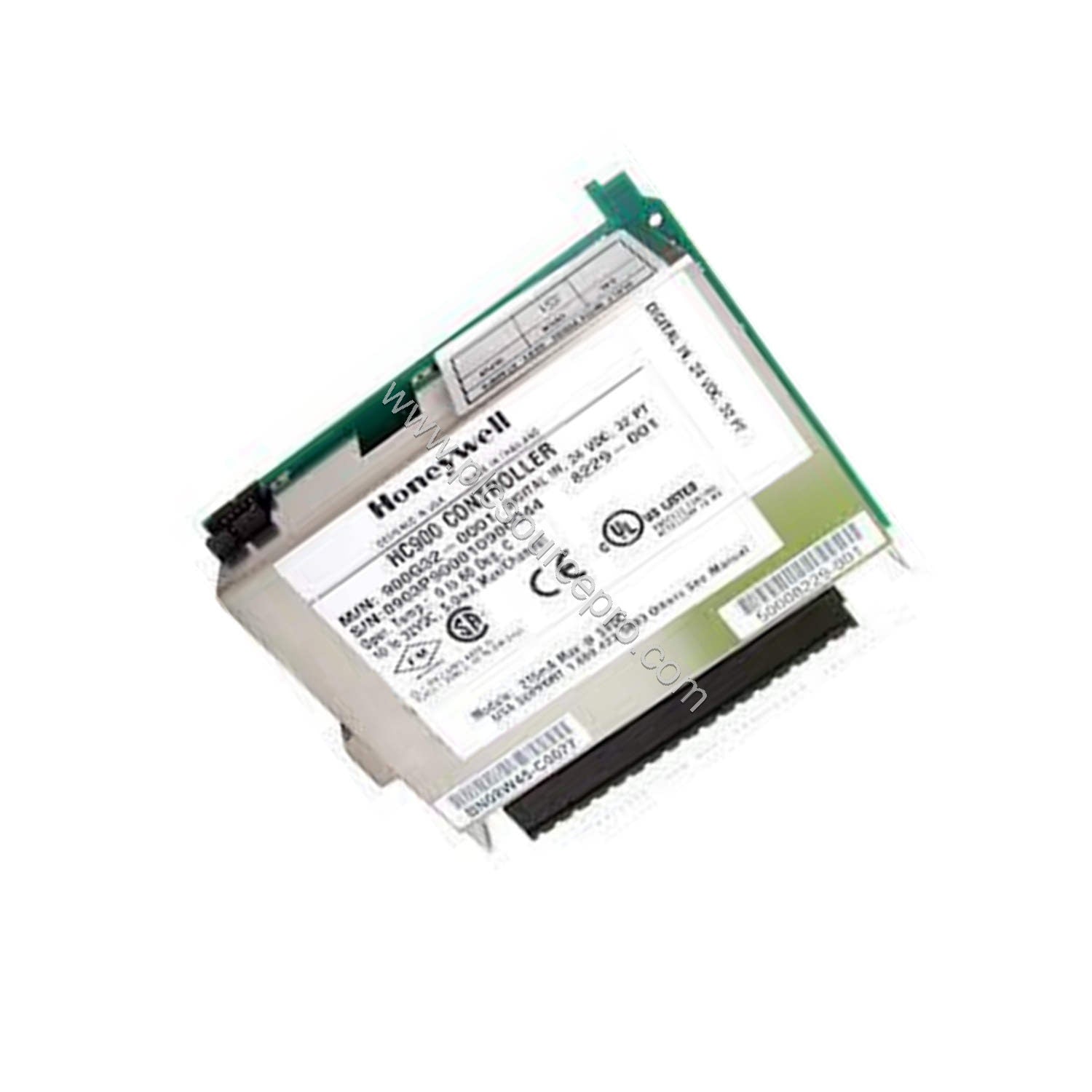

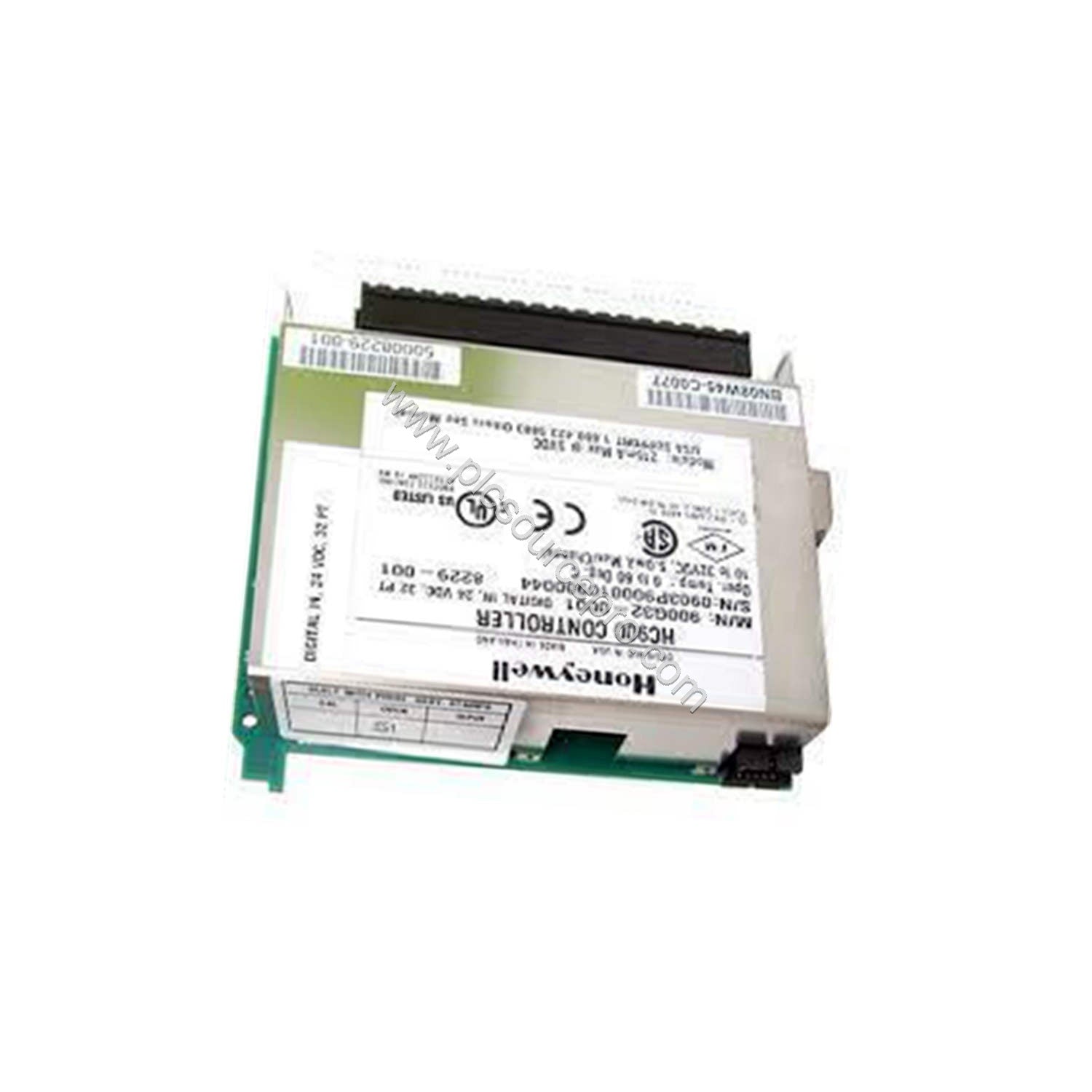

The Honeywell 900G32-0101 is a 32-channel digital input module designed for 24VDC sinking input applications. With an input voltage range of 10 VDC to 32 VDC and a peak rating of 32 VDC, it provides robust signal detection in industrial control systems. The module features galvanic isolation in two groups of 16 inputs, ensuring noise immunity and safety up to 30VDC.
Technical Specifications
| Parameter |
Value |
| Inputs per module |
32 (sinking) |
| Input Voltage Range |
10 VDC to 32 VDC |
| Peak Voltage |
32 VDC |
| ON Voltage Level |
9.5 VDC minimum |
| OFF Voltage Level |
3.5 VDC maximum |
| Input Impedance |
6.9 K ohms nominal |
| Input Current @12VDC |
1.7 mA |
| Input Current @24VDC |
3.5 mA nominal |
| Minimum ON Current |
1.0 mA |
| Maximum OFF Current |
0.7 mA |
| OFF to ON response time |
5 ms max |
| ON to OFF response time |
5 ms max |
| Power Supply Loading |
5V: 215mA max, 24V: 0mA |
| Galvanic Isolation |
2 groups of 16 inputs (30VDC max) |
| Dimensions |
137mm H x 35.6mm W (5.4” H x 1.4” W) |
| Weight |
0.175 kg |
Industry Applications
The Honeywell 900G32-0101 is ideal for monitoring discrete sensors such as limit switches, proximity sensors, and pushbuttons in manufacturing lines. Its 5ms response time enables rapid detection in safety interlock systems. The 32-channel density reduces cabinet space, while galvanic isolation prevents ground loops in harsh environments.
Installation Guidance
Mount the Honeywell 900G32-0101 on a DIN rail within the control panel. Wire sinking inputs by connecting the common to 24VDC and each input to the device's negative terminal. Ensure proper grouping per isolation groups (first 16 inputs share one common, next 16 share another). Verify input voltage does not exceed 32 VDC peak.
Maintenance Tips
Periodically inspect connections for tightness and check input voltage levels at the module terminals. Monitor LED indicators for proper channel status. Clean the enclosure with a dry cloth; avoid solvents. The module's solid-state design requires minimal maintenance, reducing total cost of ownership.
Selection Guide
When ordering, verify that your system’s backplane supports this module. The Honeywell 900G32-0101 is a reliable choice for expanding digital input capacity. For genuine parts and expert support, contact UBEST Automation (ubest101). Ensure compatibility with your controller’s I/O bus before purchase.
