Product Introduction

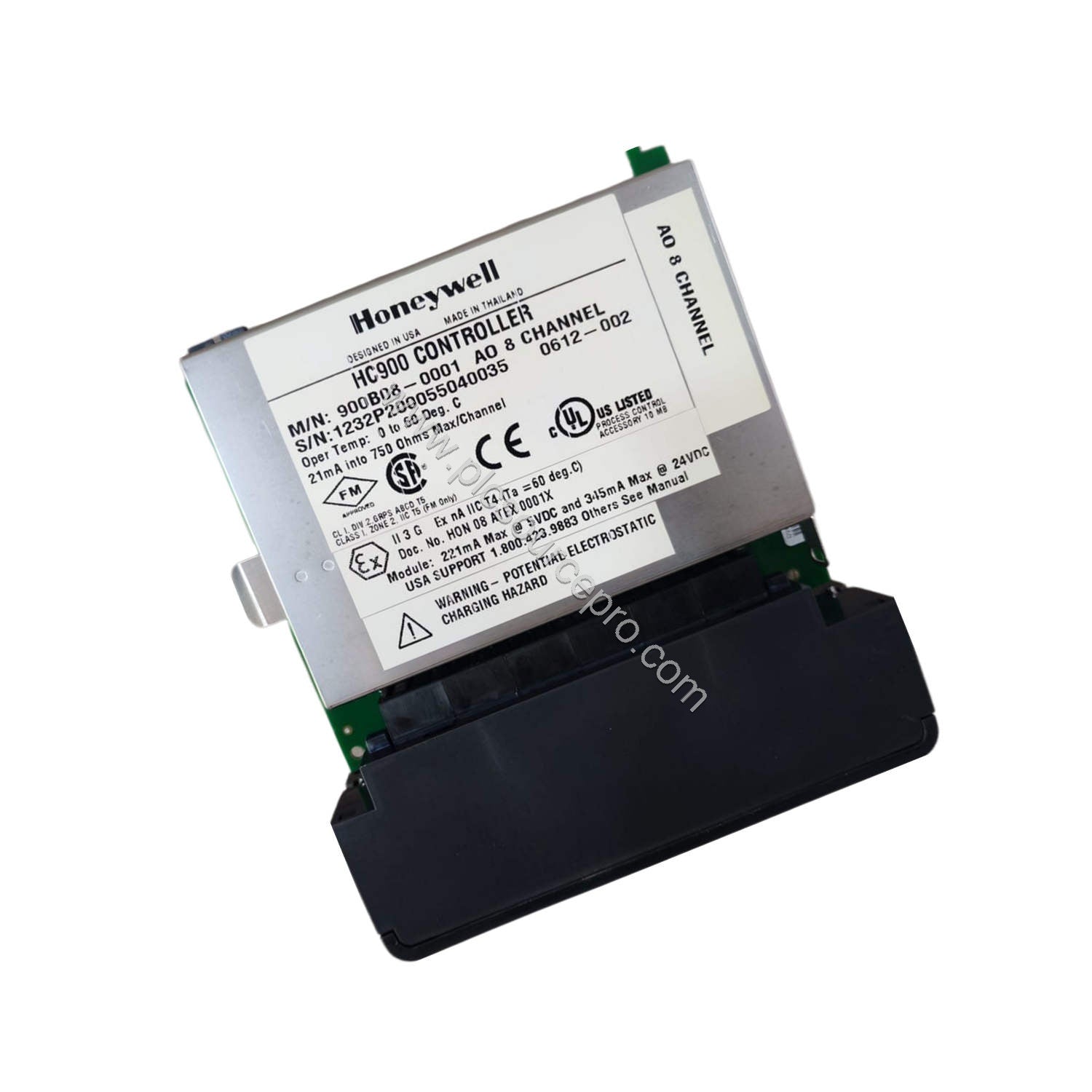

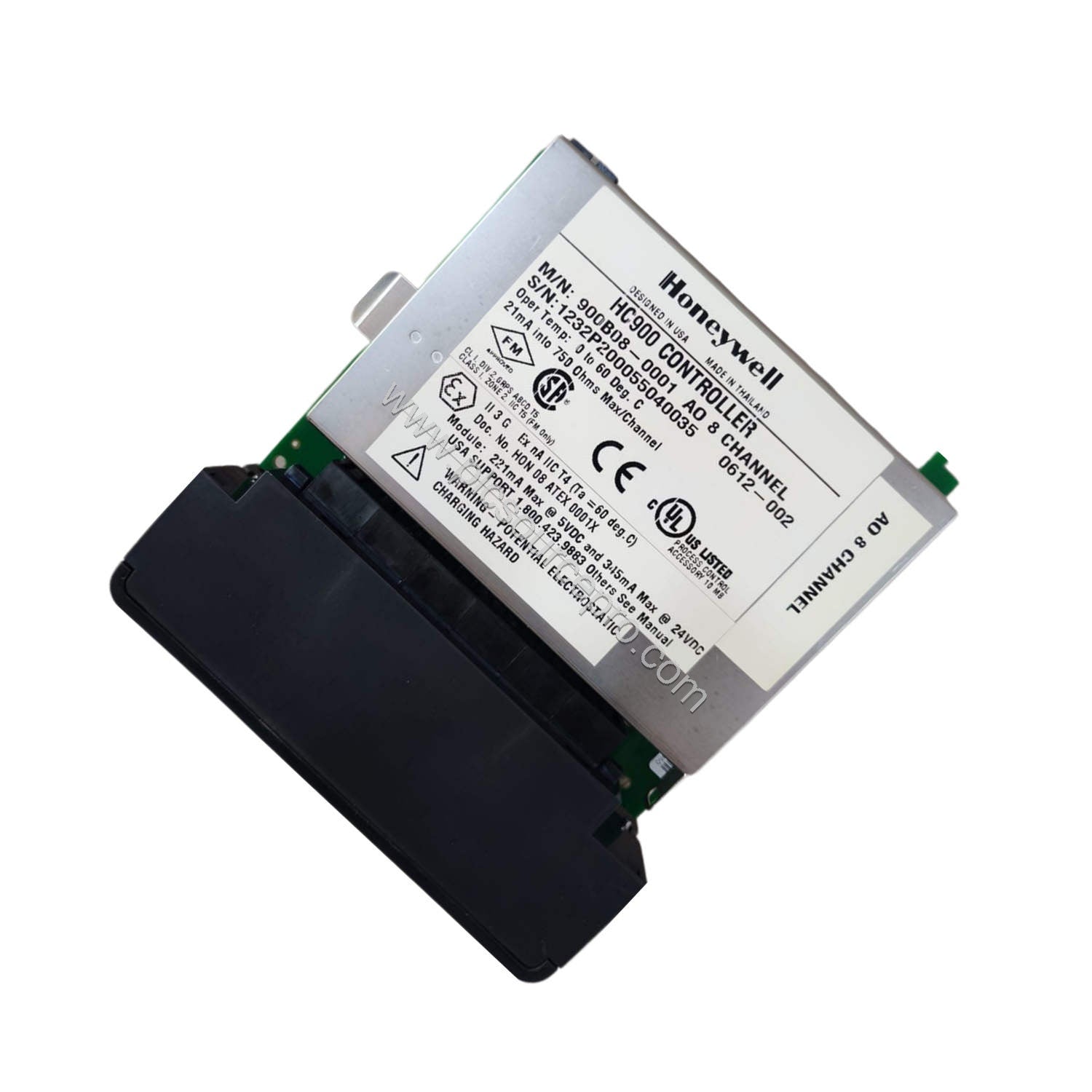

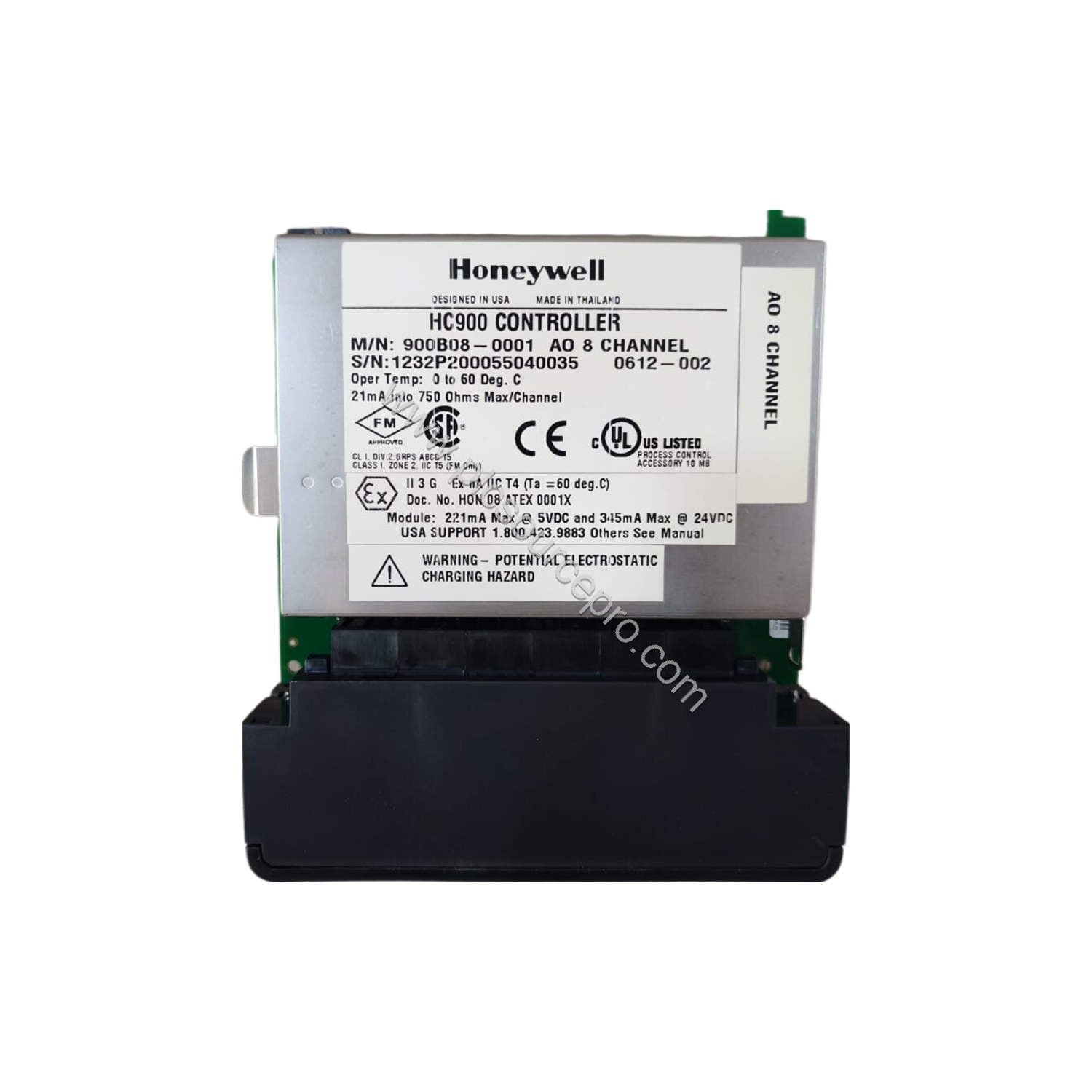

The Honeywell 900B08-0202 analog output module delivers eight independently scalable 0 to 21.0 mA outputs. Each channel supports user-defined spans, with outputs isolated in groups of four (channels 1-4 and 5-8) and full galvanic isolation from controller logic. A green blinking LED indicates normal scanning; a red LED alerts module or channel diagnostics. Built-in fail-safe values ensure predictable operation if communication with the controller is interrupted. Outputs update synchronously with control execution, and a slew rate function block limits rate of change per channel. This module requires a Euro-style 36-terminal terminal block (not included).
Real-World Applications
In process control environments, the 900B08-0202 handles valve positioning, actuator control, and analog signal generation. For example, in a chemical plant, the module can drive I/P transducers with precise 4-20 mA signals, while the diagnostics monitor for open loops. In a water treatment facility, its 0-21 mA range allows fine-tuned chemical dosing. The fail-safe function is critical in safety systems: if the controller loses communication, the 900B08-0202 holds the last value or applies a preset failsafe value, preventing erratic valve movements. With 8 isolated outputs, it reduces wiring complexity by grouping common grounds in sets of four.
Integration & Compatibility
The 900B08-0202 mounts in a Honeywell rack and is powered via 24 VDC backplane power. When using internal backplane power, the system supports up to 5 modules per rack; with external 24V backplane power, up to 10 modules. The module communicates with the controller via the backplane, and outputs are updated in sync with the control cycle. The slew rate function block is user-configured per output, allowing gradual changes to avoid process disturbances. The module also provides output verification feedback to the controller, ensuring the commanded current is actually flowing.
Maintenance & Reliability
Routine inspection should focus on the terminal block connections and the status LEDs. The module stores calibration data in non-volatile memory, including redundant factory calibrations with automatic rejection of bad versions. Diagnostics monitor the factory calibration, configuration, and the +24 VDC supply. Because the 900B08-0202 detects conditions like open circuits (via minimum current sensing >0.5 mA per output), operators can identify issues early. The galvanic isolation (500 VDC between groups and from logic) protects against ground loops and transient voltages, extending service life. Regular cleaning of the rack and ensuring adequate airflow around the module will maintain reliable operation in harsh environments.
Troubleshooting Common Issues
If a red LED appears on the 900B08-0202, check for channel diagnostics. Common causes include a broken field wire (output current below 0.5 mA), a short circuit (exceeding 750 ohms load resistance), or a configuration error. The module’s output verification feedback will show if the actual current matches the commanded value. For persistently incorrect outputs, recalibrate using the factory-stored calibration data. If communication is lost, the fail-safe state (Hold Last Value or Failsafe Value) engages automatically. Verify the +24 VDC backplane supply; if external power is used, ensure it meets the 24 VDC requirement. The slew rate block can be adjusted to prevent oscillation in fast-changing processes.
Buying Guide
Before purchasing the Honeywell 900B08-0202, confirm you have the required Euro-style 36-terminal terminal block. Also verify your rack’s backplane power capacity and whether you need external 24V power for more than 5 modules per rack. For installations where isolation between all channels is critical, note that outputs are isolated in groups of four. UBEST Automation stocks this exact module along with compatible terminal blocks and rack accessories. Contact us for assistance in system integration or to confirm stock availability.
