Product Overview

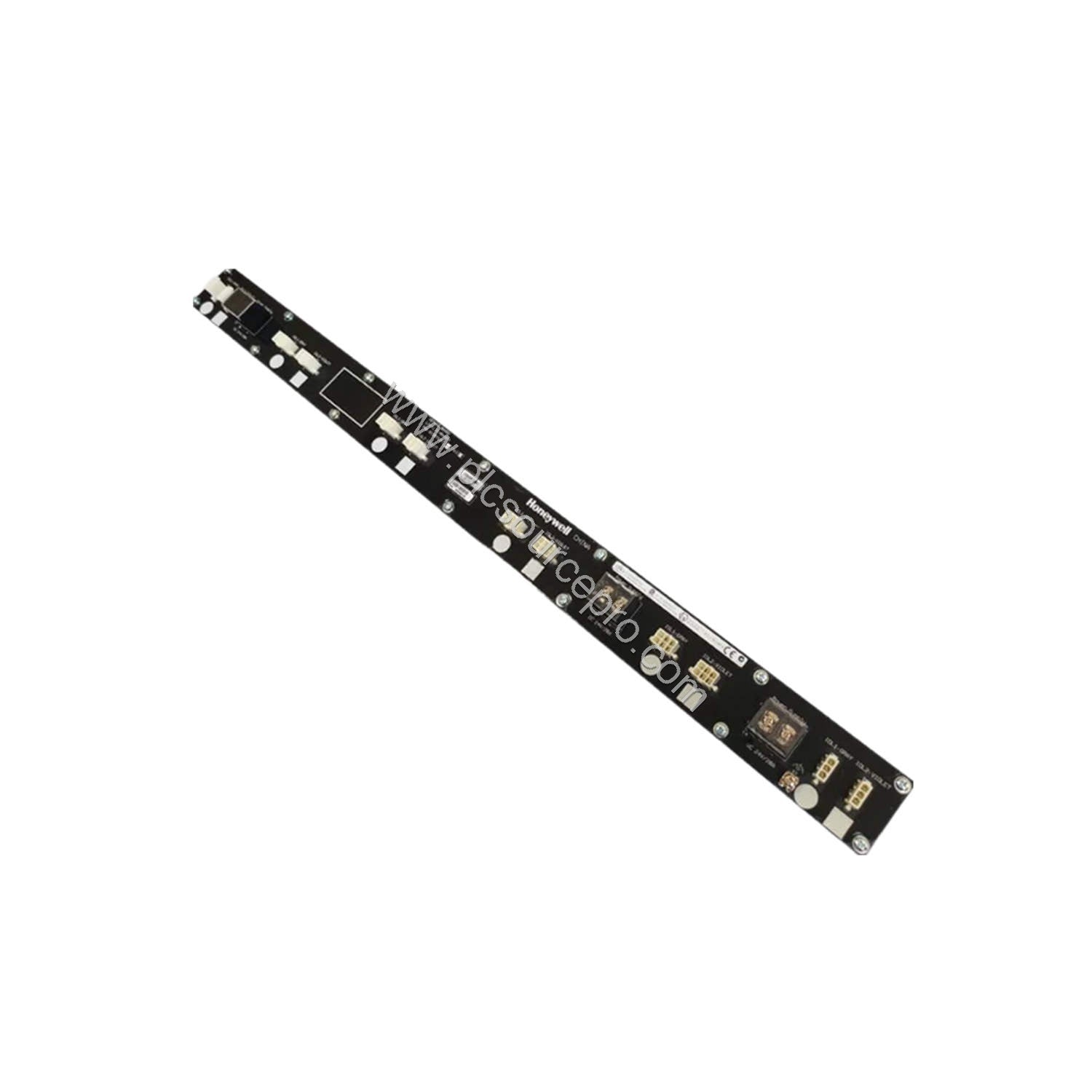

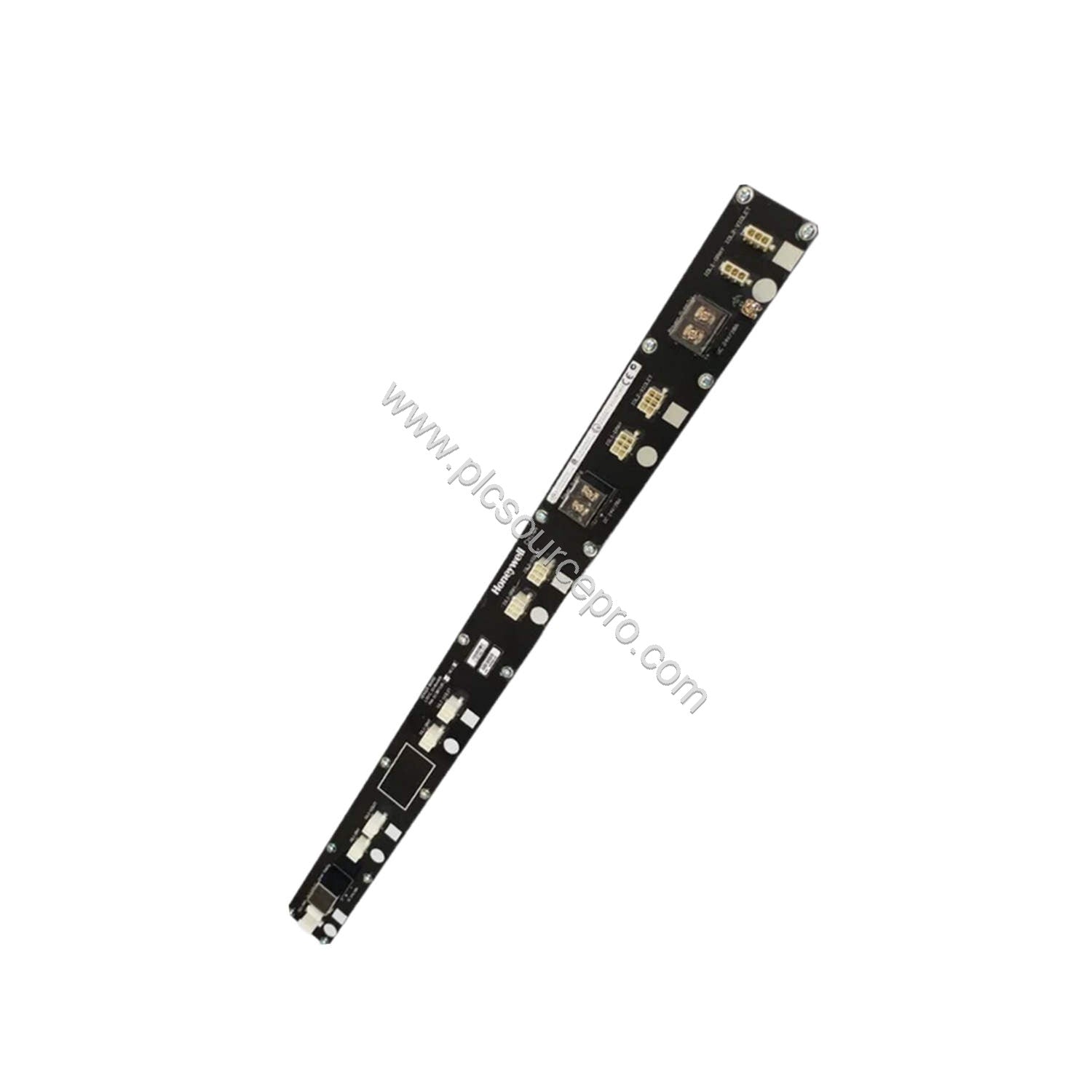

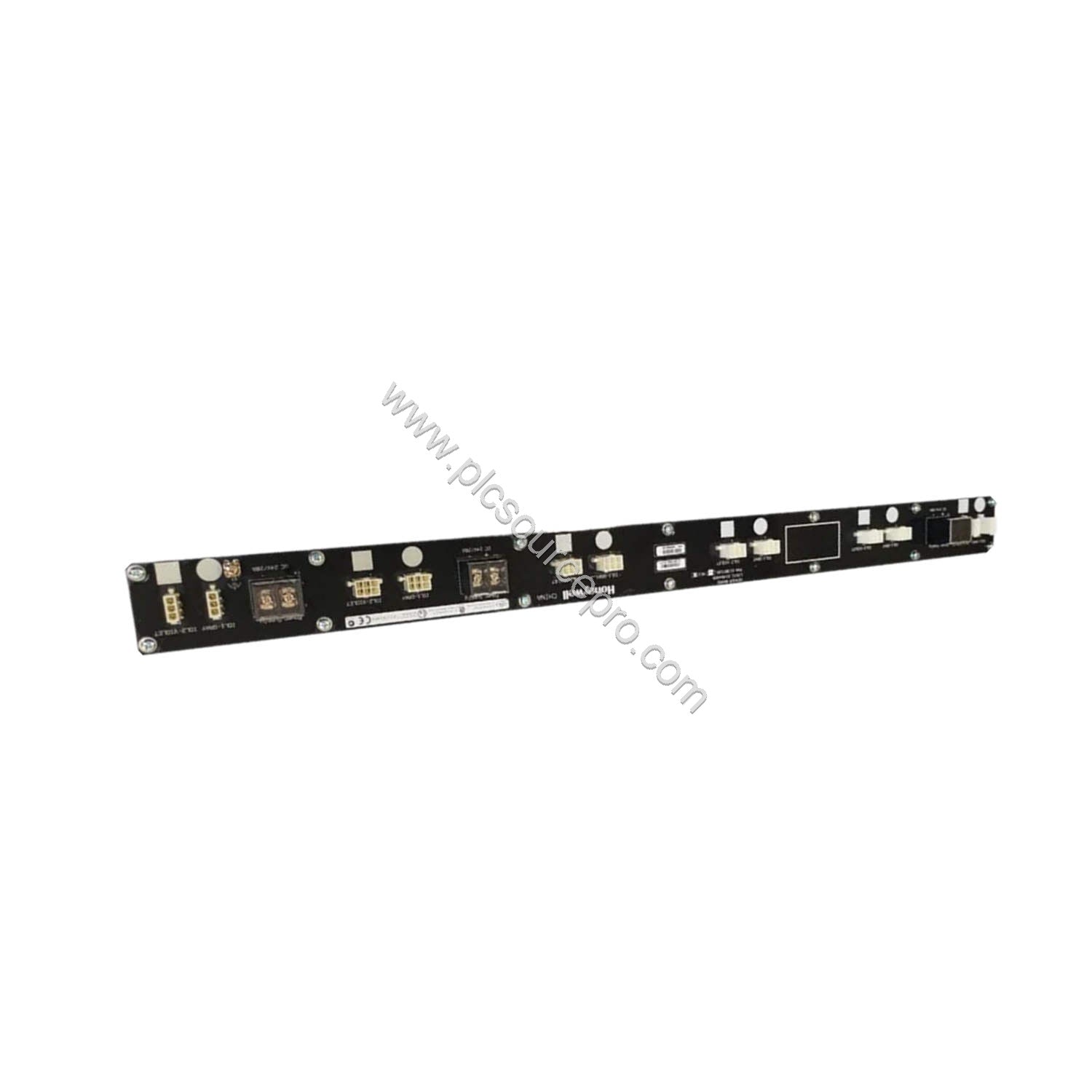

The Honeywell 8C-SHEDA1 Series 8 Header Board is designed to distribute power and IOLink communication throughout industrial automation cabinets. This header board ensures reliable operation by providing redundant power paths and communication links, minimizing downtime in critical processes.
As part of the Series 8 family, the 8C-SHEDA1 integrates seamlessly with IOTA modules and other IO devices. It distributes power from a central power system to one or more columns of mounting plates, supporting both sides of the cabinet. The redundant architecture of the Honeywell 8C-SHEDA1 enhances system availability, making it ideal for applications where uninterrupted operation is essential.
Key Features
- Redundant power distribution and IOLink communication for high reliability
- Ability to extend power and IOLink to adjacent cabinets via dedicated connectors
- Four combination power/IOLink cable connectors for IO module connectivity
- Daisy-chain design: disconnecting one module does not affect others
Real-World Applications
The Honeywell 8C-SHEDA1 is suited for continuous process industries such as oil & gas, petrochemical, and power generation, where redundant power and communication are critical. It is also used in large distributed control systems (DCS) where cabinet space is at a premium and modular expansion is required.
Installation & Setup Guidance
When installing the 8C-SHEDA1, ensure proper mounting on the cabinet backplate using the provided slots. Connect the power input from the system power supply, then attach the combination power/IOLink cables to the four connectors. For redundant configurations, use two header boards in parallel. The daisy-chain cabling simplifies wiring; always verify cable orientation to maintain signal integrity.
Compatibility & Integration
The Honeywell 8C-SHEDA1 works with IOTA modules and other Series 8 IO components. It supports IOLink communication for seamless data exchange with sensors and actuators. The header board can be linked to adjacent cabinets using the IOLink extension connectors, allowing system expansion without additional power supplies.
Selection Guide & Purchasing Advice
Before purchasing the Honeywell 8C-SHEDA1, verify your cabinet layout and the number of mounting plates. Ensure your system includes a compatible power supply (24 VDC) and IOLink master. For redundancy, order two boards. UBEST Automation offers genuine Honeywell 8C-SHEDA1 boards with fast shipping. Contact our team for assistance with multi-cabinet configurations or custom requirements.
