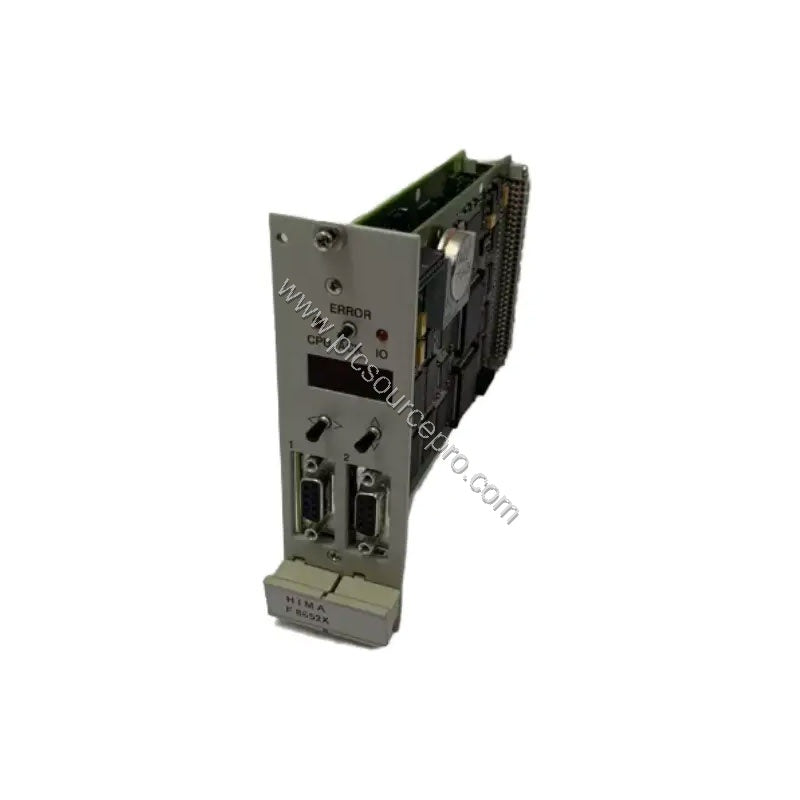

Product Introduction
In safety-critical industrial environments, a single failure can escalate into a costly shutdown or hazardous condition. The HIMA F8652X safety-related CPU module is engineered to prevent such scenarios. Part of HIMA's proven safety controller family, this module delivers dual-redundant processing with fail-safe watchdog supervision, ensuring that system faults are detected and contained before they compromise operations.
The HIMA F8652X features two independent INTEL 386EX microprocessors operating at 25 MHz, each with dedicated memory for operating system, user program, and data storage. This architecture provides the deterministic behavior required for SIL-rated applications. A 4-digit alphanumeric diagnostic display with requestable information gives operators real-time insight into module status, while the fail-safe watchdog output (24 V DC, 500 mA, short-circuit proof) provides a safe shutdown signal if an error occurs.
Technical Specifications Breakdown
The HIMA F8652X is built on a robust hardware platform. Key parameters include:
-
Microprocessor: Dual INTEL 386EX, 32-bit, clock frequency 25 MHz – ensures high-speed, deterministic processing for safety logic.
-
Memory per microprocessor: Operating system Flash-EPROM 1 MByte, user program Flash-EPROM 512 kByte, data store sRAM 256 kByte – provides ample space for complex safety applications.
-
Interfaces: 2 serial RS-485 ports – enable communication with I/O modules and other controllers in a multi-drop network.
-

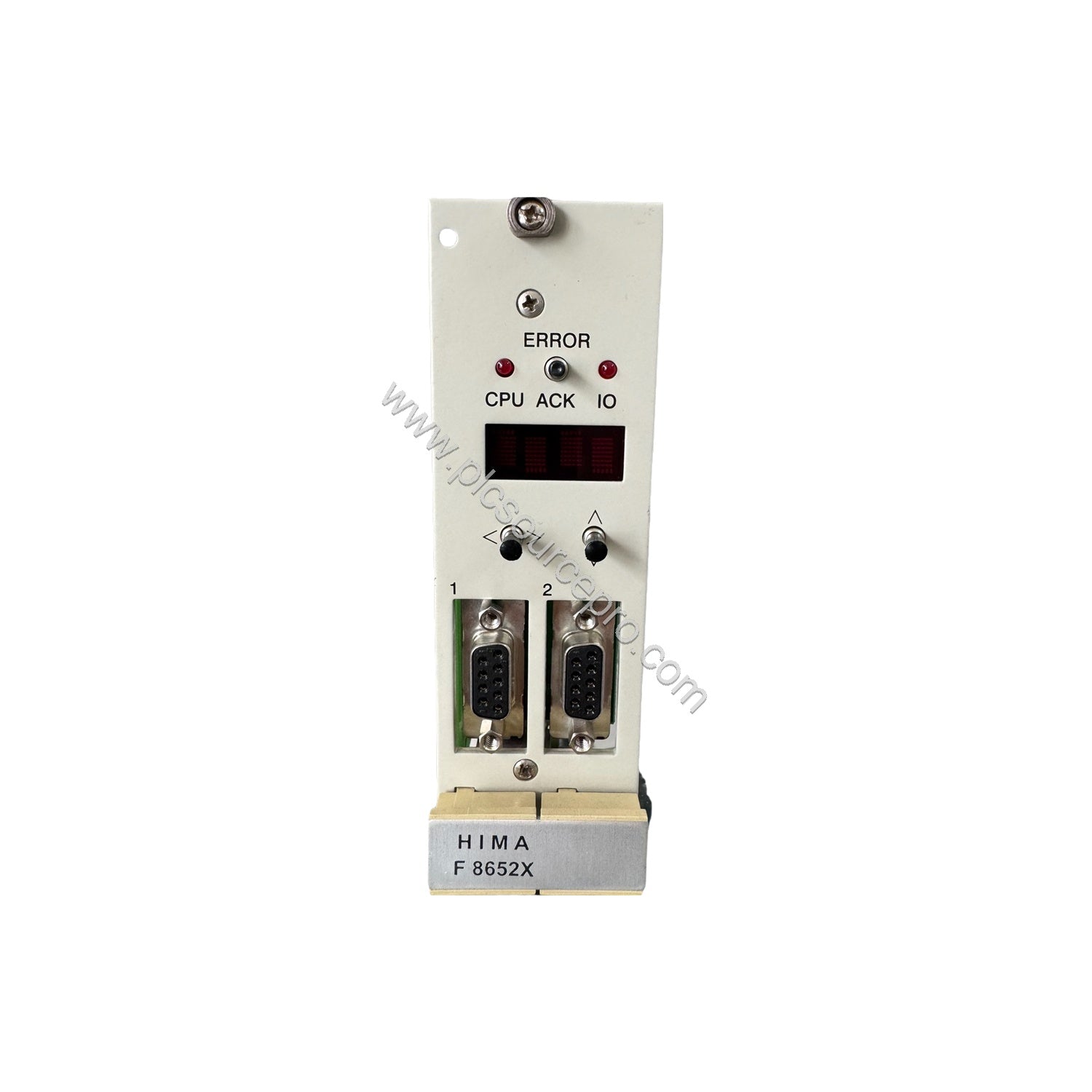

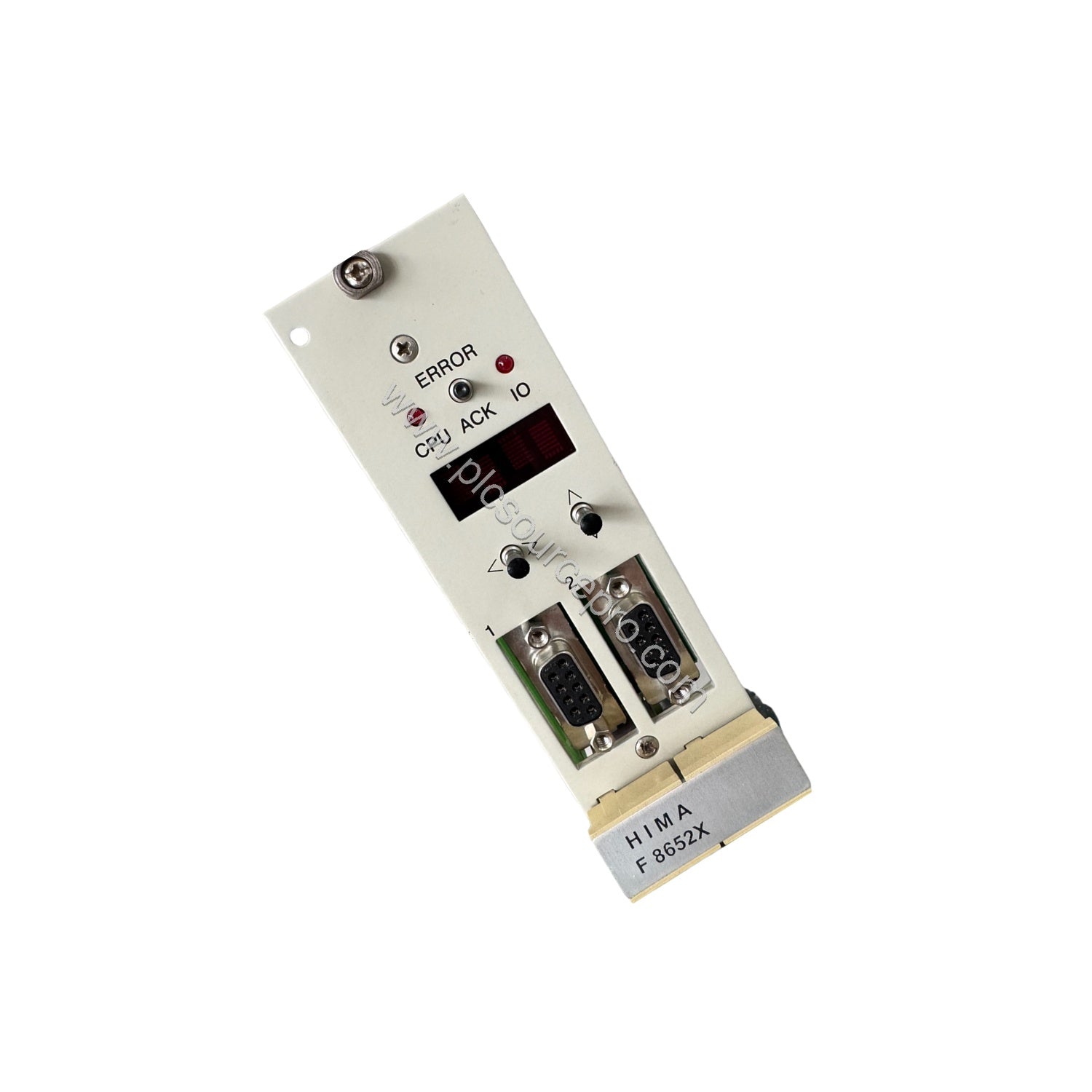

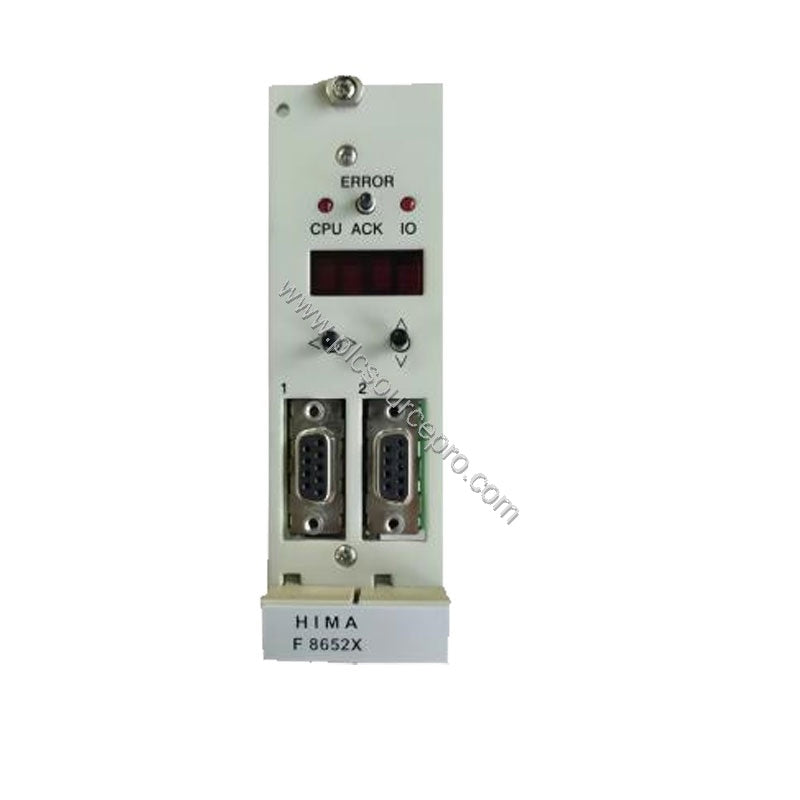

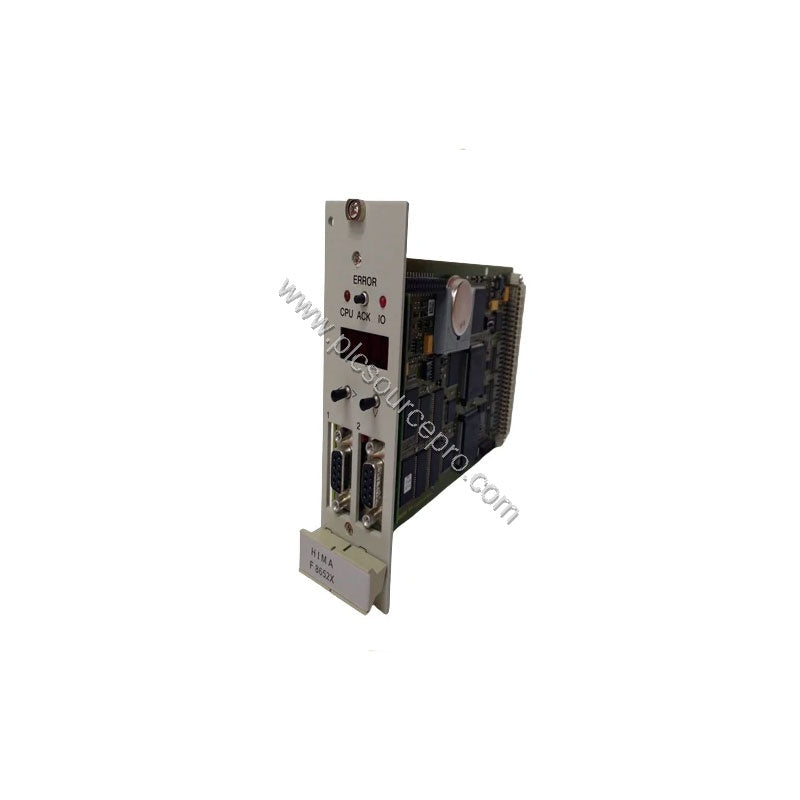

Diagnostic display: 4-digit matrix display with pushbuttons (<, >, ACK) – allows operators to view and acknowledge error conditions without additional tools.
-
Error switch-off: Fail-safe watchdog with 24 V DC output, loadable up to 500 mA, short-circuit proof – ensures a guaranteed safe state upon failure.
-

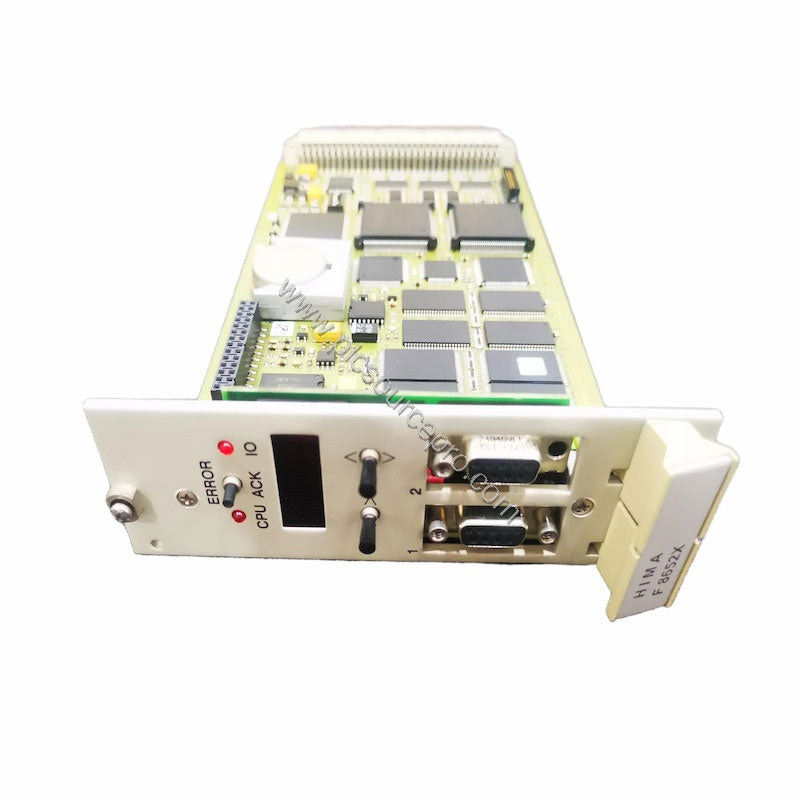

Construction: 2 PCBs in European standard plus 1 PCB for the diagnostic display – rugged design for industrial environments.
-
Space requirements: 8 TE – compact form factor fits standard 19-inch subracks.
-
Operating data: 5 V DC at 2000 mA – low power consumption for reduced thermal load.
Application Scenarios
The HIMA F8652X is ideal for applications where fail-safe control is mandatory. Typical use cases include:
-
Emergency shutdown systems (ESD) in oil and gas terminals – the dual CPU architecture and watchdog ensure that no single failure leads to a dangerous event.
-
Burner management systems in power plants – the diagnostic display allows operators to quickly identify and reset errors, minimizing downtime.
-
Safety interlock systems for chemical processing – the RS-485 interfaces integrate with remote I/O to monitor critical sensors and actuators.
In each scenario, the HIMA F8652X provides the reliability needed to achieve high safety integrity levels while maintaining operational efficiency.
Installation & Setup Guidance
When installing the HIMA F8652X, follow these guidelines:
-
Mounting: Insert the module into an appropriate 8 TE slot in a 19-inch subrack. Ensure proper grounding and ventilation.
-
Connect serial interfaces: Use shielded twisted-pair cables for the two RS-485 ports. Verify correct bus termination and station address settings via switch S1 on the module.
-
Power supply: Provide a stable 5 V DC supply capable of delivering 2000 mA. Ensure the 24 V DC watchdog output is connected to the appropriate safety relay or actuator.
-
Battery: The module includes a lithium buffer battery (type CR 2477N, HIMA part no. 44 0000018). Check the battery status during commissioning; replace every 4 years for reliable data retention.
-
Initial setup: With power off, set the bus station number and transmission rate using S1. Power up and verify the diagnostic display shows correct start-up sequence.
Maintenance & Reliability
To maximize uptime with the HIMA F8652X, adhere to these maintenance practices:
-
Battery replacement: Change the buffer battery every 4 years. Without voltage supply, the battery retains data for 2500 days at 25 °C and 100 days at 60 °C.
-
Diagnostic checks: Use the 4-digit display and the two LEDs (CPU/IO) to monitor error status. Press the ACK button to reset error indications after resolving the fault.
-
Watchdog test: Periodically verify the fail-safe watchdog output by simulating a fault condition (e.g., remove power from one CPU). Confirm that the output switches to safe state.
-
Environmental conditions: Operate within specified temperature range. Avoid condensation and excessive vibration.
Regular inspection of these points helps prevent unexpected failures and extends module service life, directly reducing total cost of ownership.
Troubleshooting & Common Issues
Common problems encountered with safety CPUs like the HIMA F8652X include:
-
Failure to start: Check the 5 V DC supply and ensure the module is properly seated in the subrack. Verify that S1 settings match the system configuration.
-
Watchdog triggers repeatedly: This may indicate a hardware fault in one of the CPUs. Use the diagnostic display to request detailed error information. Replace the module if the fault persists.
-
No communication on RS-485: Confirm wiring polarity, termination resistors, and bus address. Test with a known-good cable.
-
Battery low warning: Replace the lithium battery immediately to avoid loss of program data. Use only approved type CR 2477N.
If these steps do not resolve the issue, contact technical support with the error code shown on the diagnostic display.
