Product Introduction

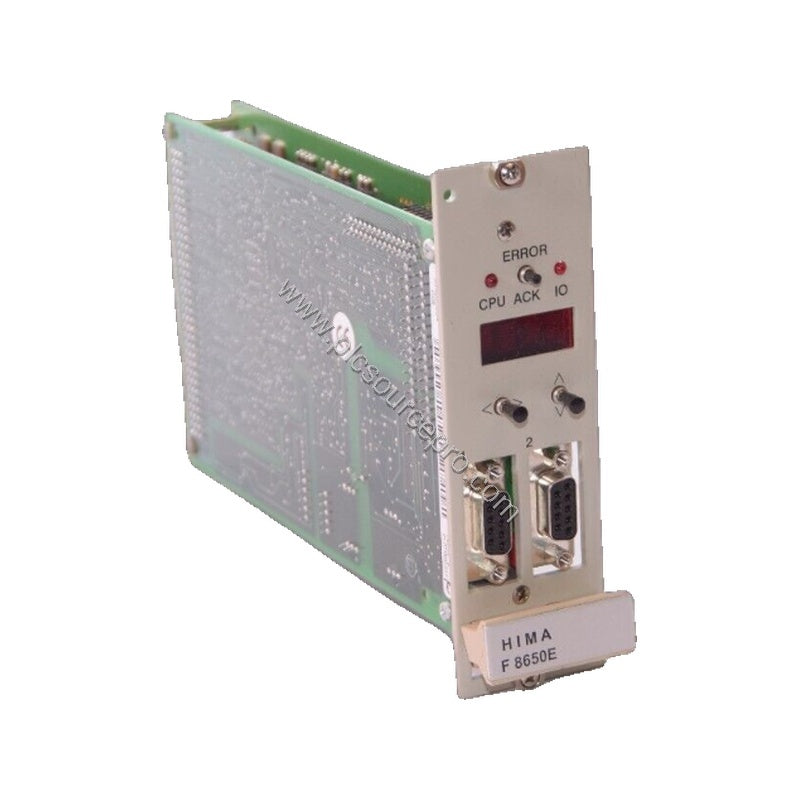

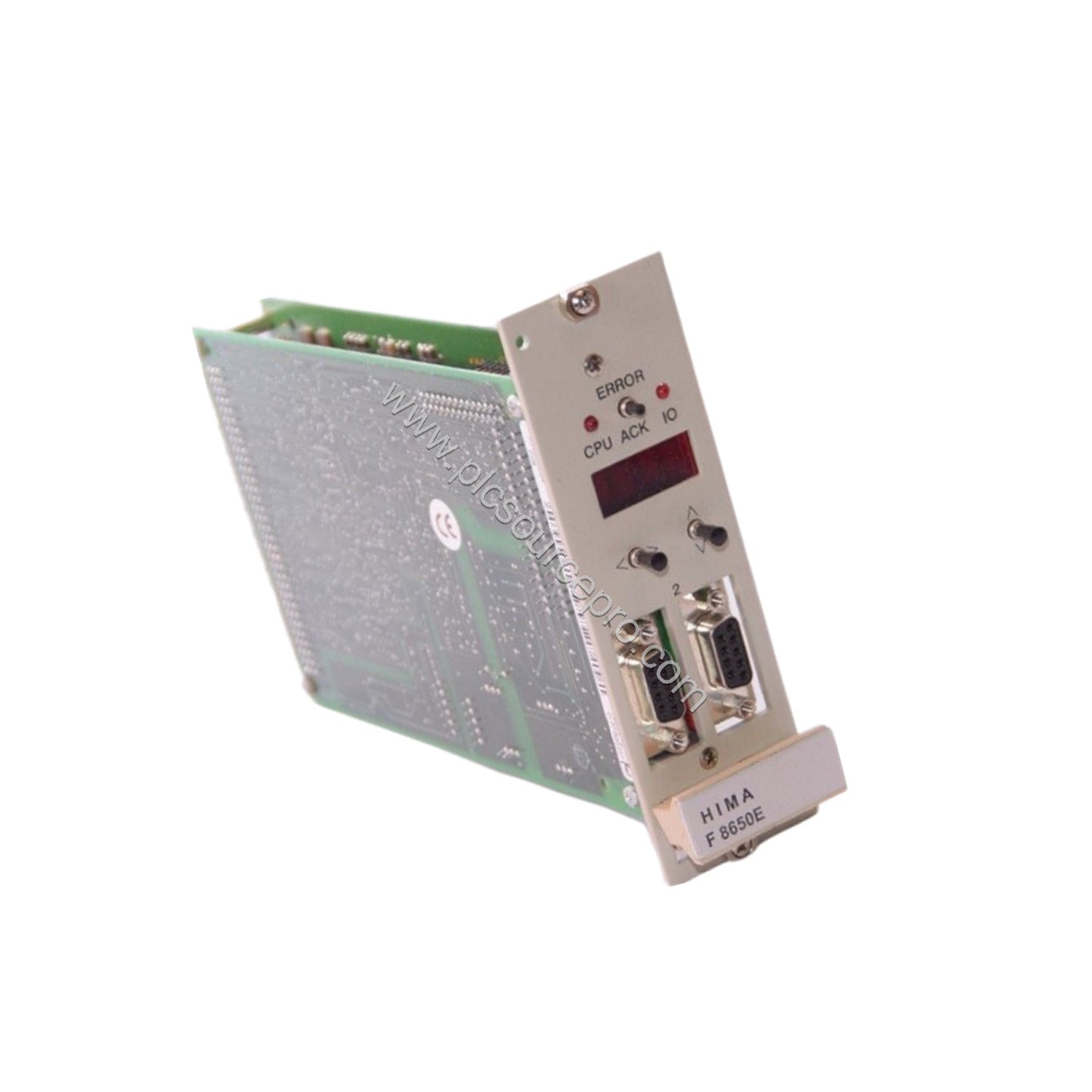

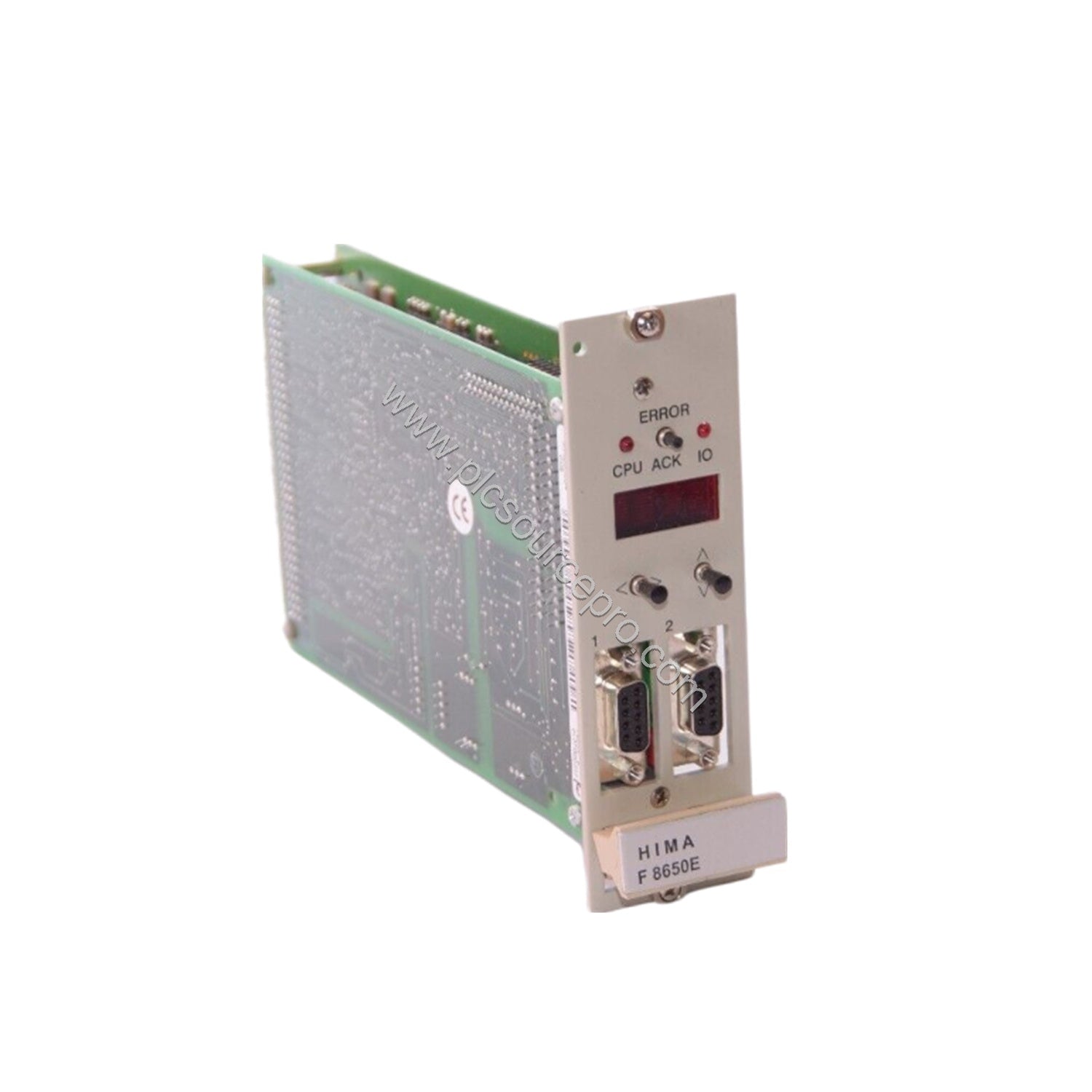

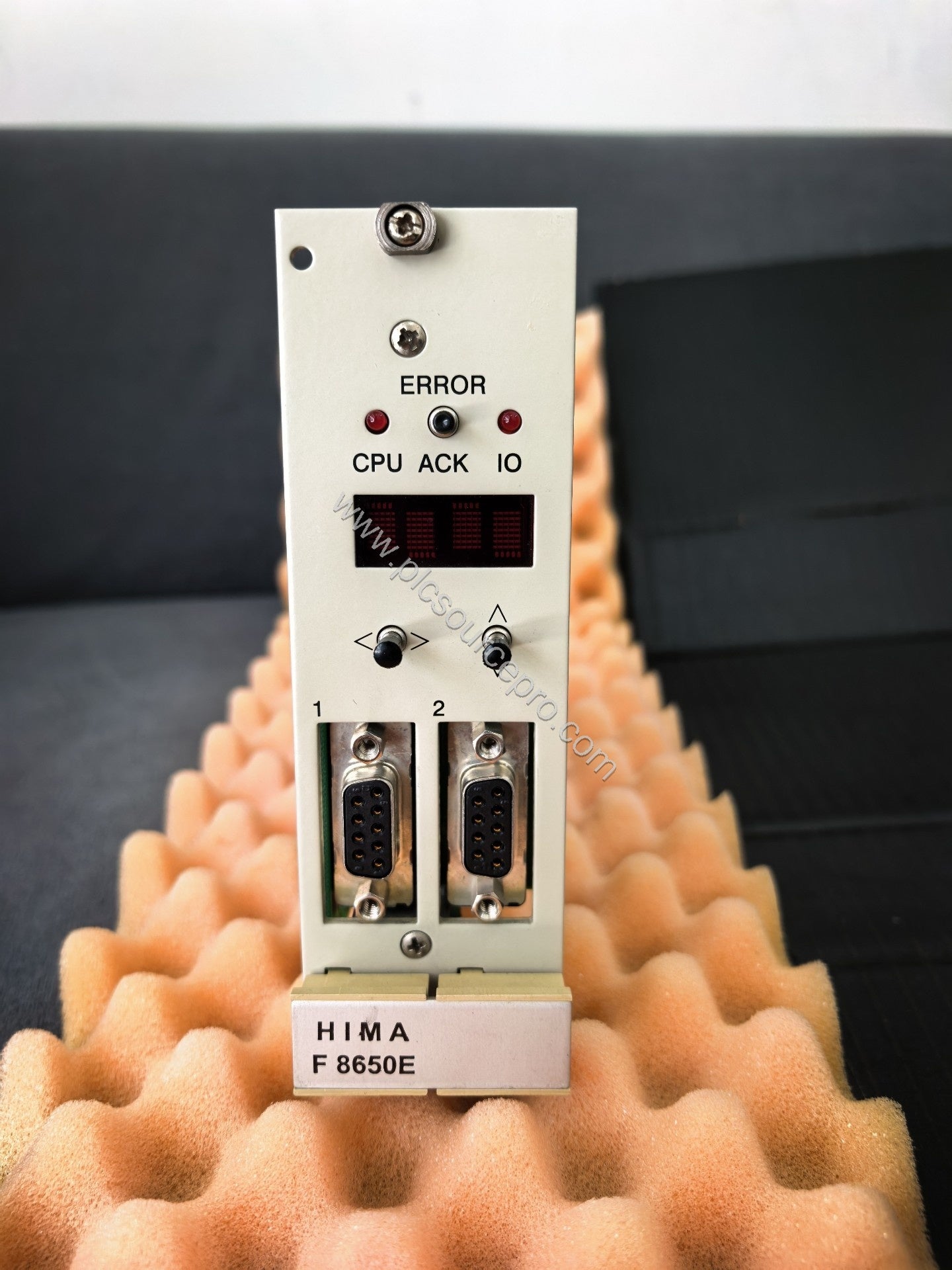

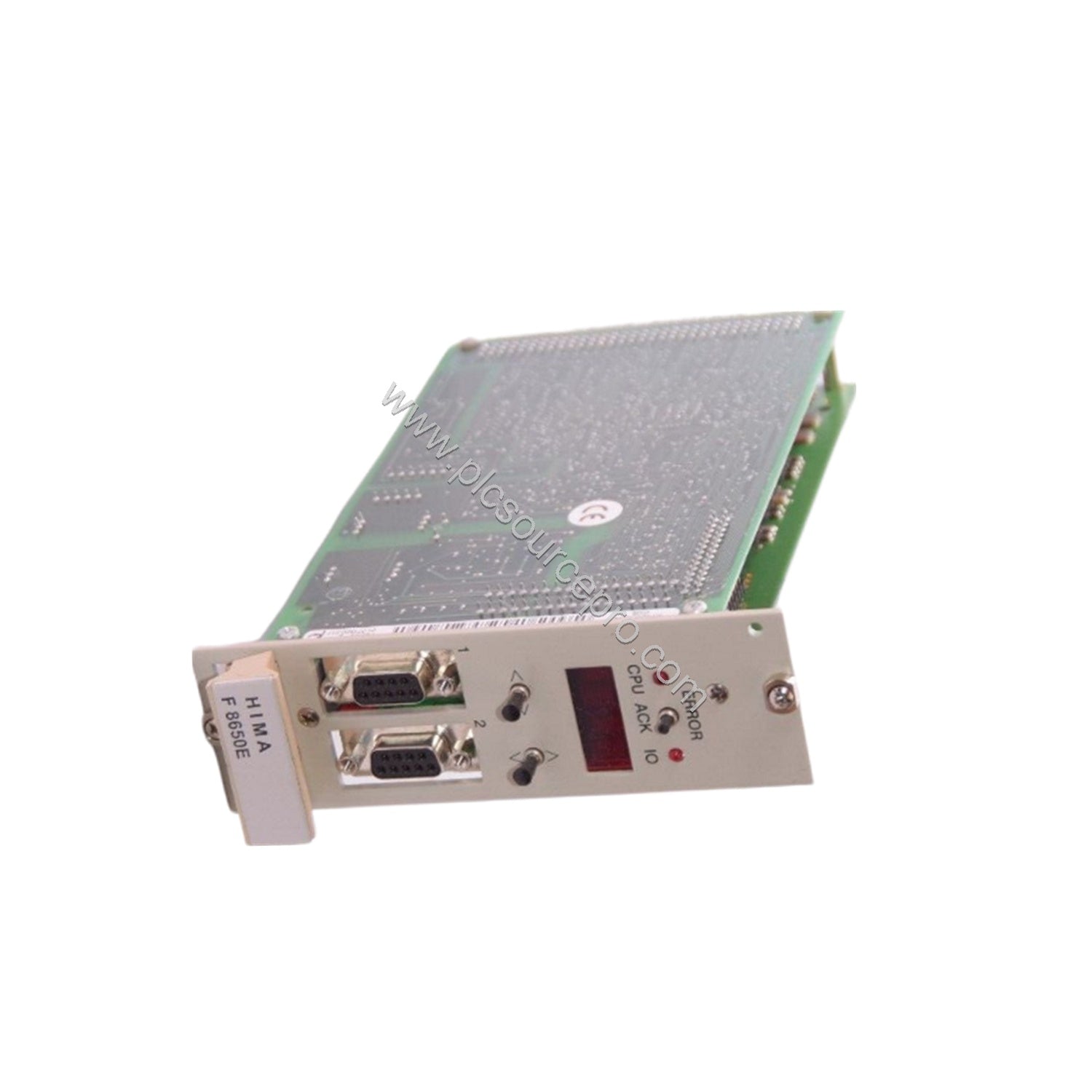

The HIMA F8650E is a high-integrity safety system module designed for critical industrial automation applications. This central module features two clock-synchronized microprocessors to ensure fail-safe operation in process control and emergency shutdown systems. With a robust design built around Intel 386EX processors, the module delivers deterministic performance for safety loops.
Technical Specifications Breakdown
Although detailed manufacturer specifications are not provided in a formal datasheet, the following technical parameters are extracted from the product documentation:
-
Processor: Two Intel 386EX 32-bit microprocessors, clocked at 25 MHz
-
Memory per microprocessor: 1 MB Flash-EPROM for OS, 1 MB Flash-EPROM for user program, 1 MB SRAM for data
-
Interfaces: Two electrically isolated RS-485 serial interfaces
-
Diagnostic display: Four-digit matrix display with selectable information
-
Shutdown on fault: Safety-related watchdog with 24 V output, loadable up to 500 mA, short-circuit proof
-
Construction: Two European standard PCBs plus one for the diagnostic display; space requirement 8 SU
-
Operating data: 5 V DC, 2 A (20 W)
For complete and certified specifications, we recommend contacting PLC Source PRO directly.
Installation & Setup Guidance
When installing the HIMA F8650E, ensure the module is mounted in a clean, dry enclosure with proper grounding. The module occupies 8 SU (standard units) on a DIN rail. Connect the two RS-485 interfaces using shielded twisted-pair cables to minimize electromagnetic interference. The diagnostic display provides real-time status; use the selectable information feature to verify communication and processor health during commissioning. Always adhere to the system’s safety integrity level (SIL) requirements when wiring the watchdog output.
Maintenance & Reliability
To maintain the fail-safe reliability of the HIMA F8650E, perform periodic visual inspections of the diagnostic display and check for any alarm codes. The dual-microprocessor architecture automatically compares outputs; if a discrepancy occurs, the module enters a safe state via the watchdog. Regularly test the watchdog output circuit to ensure it can drive the rated 500 mA load. Environmental conditions should be kept within standard industrial ranges (0–60°C, non-condensing humidity).
Troubleshooting & Common Issues
Common issues with the HIMA F8650E include loss of communication on the RS-485 bus. Verify correct termination resistors and cable polarity. If the diagnostic display shows an error code, reference the HIMA system manual for specific fault meanings. A failed watchdog output may indicate a short circuit or overload; confirm the load does not exceed 500 mA. In case of a microprocessor mismatch, the module will shut down automatically – cycle power after resolving the root cause.
Selection Guide & Purchasing Advice
When selecting the HIMA F8650E, confirm that your system’s backplane and power supply support 5 V DC at 2 A. Ensure that your application requires safety-rated modules with dual processing. As a reliable supplier, PLC Source PRO (accessible via ubest101.myshopify.com) offers genuine HIMA modules with verified authenticity. Before purchasing, verify compatibility with your existing HIMA safety controller or remote I/O network.
