Product Introduction

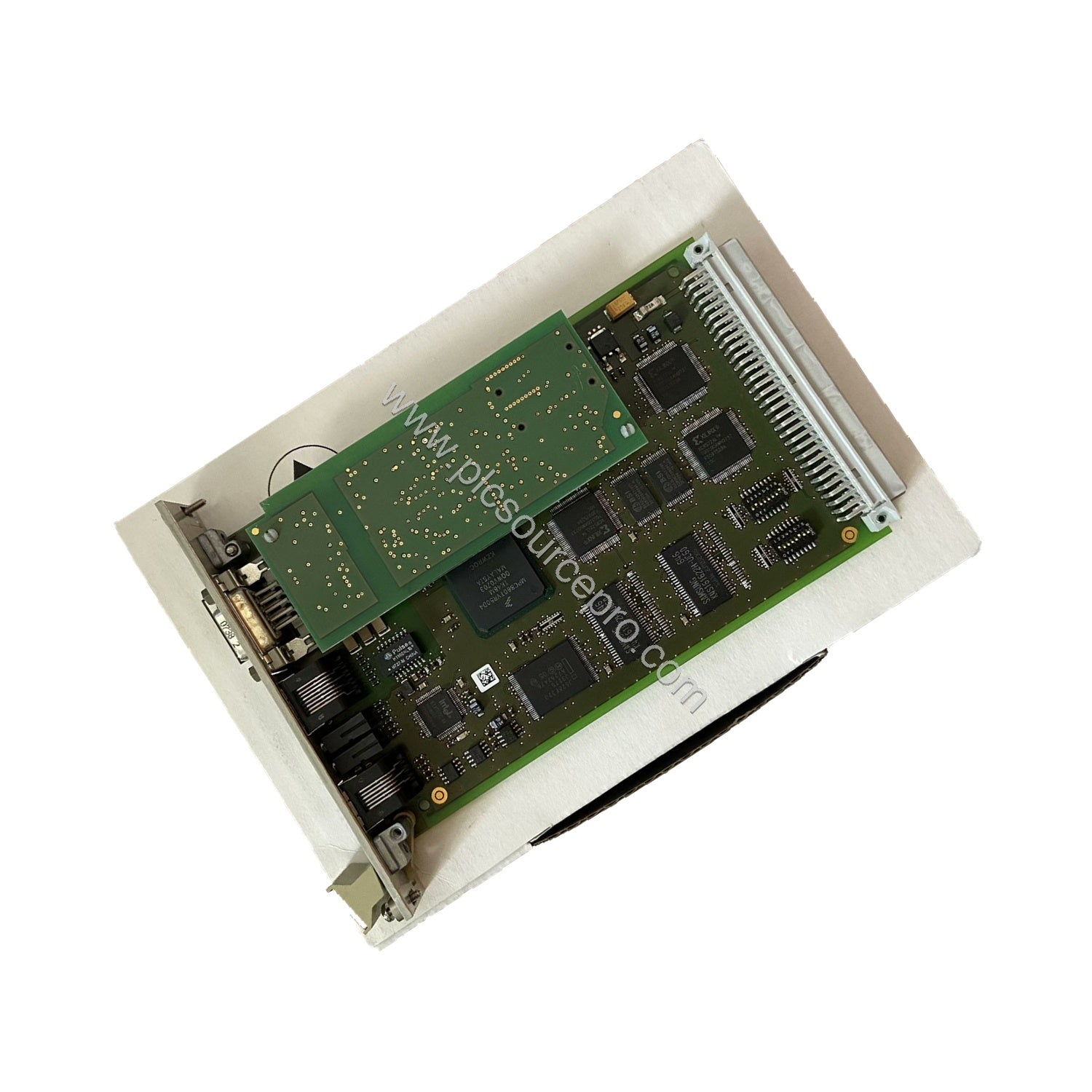

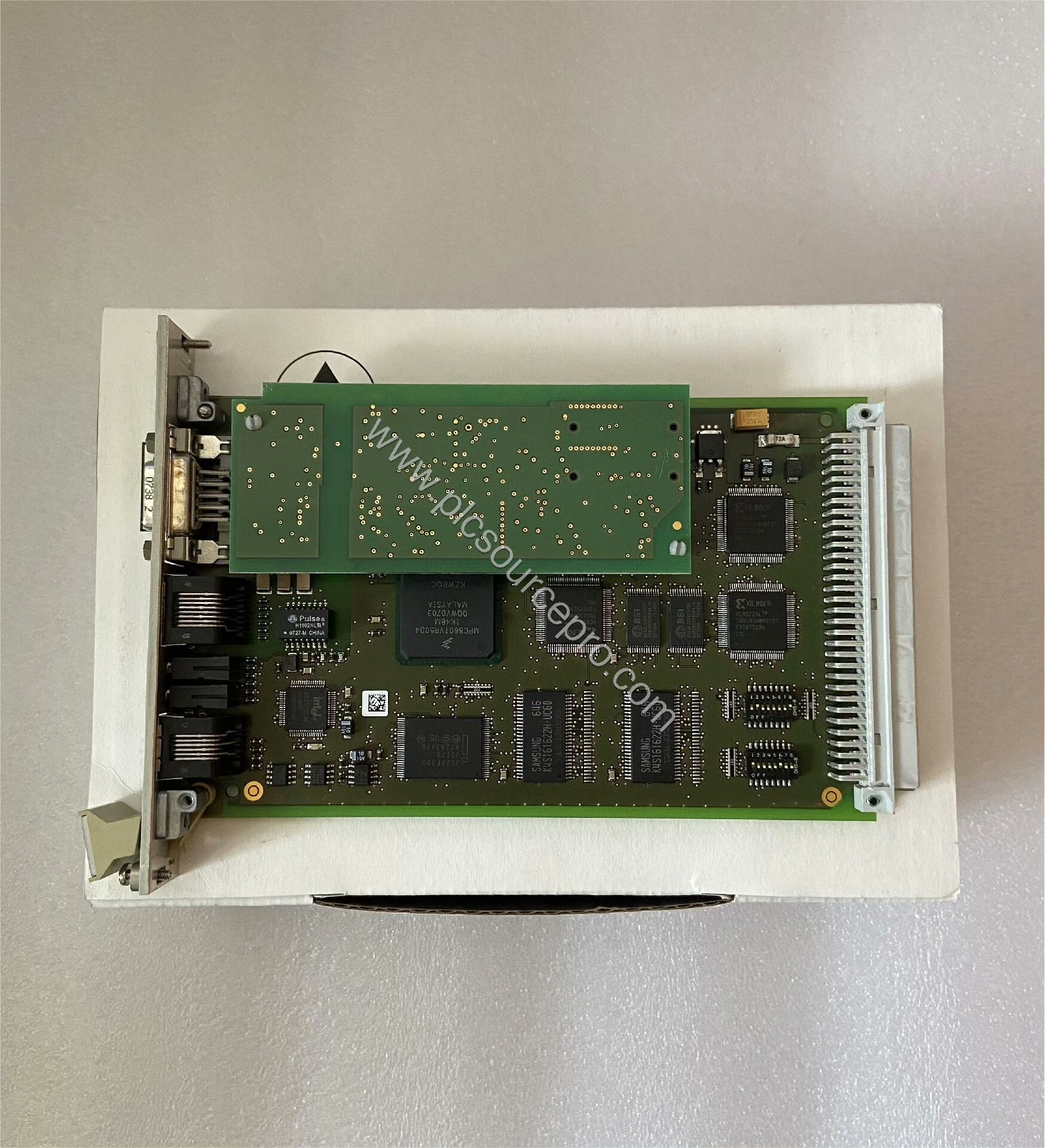

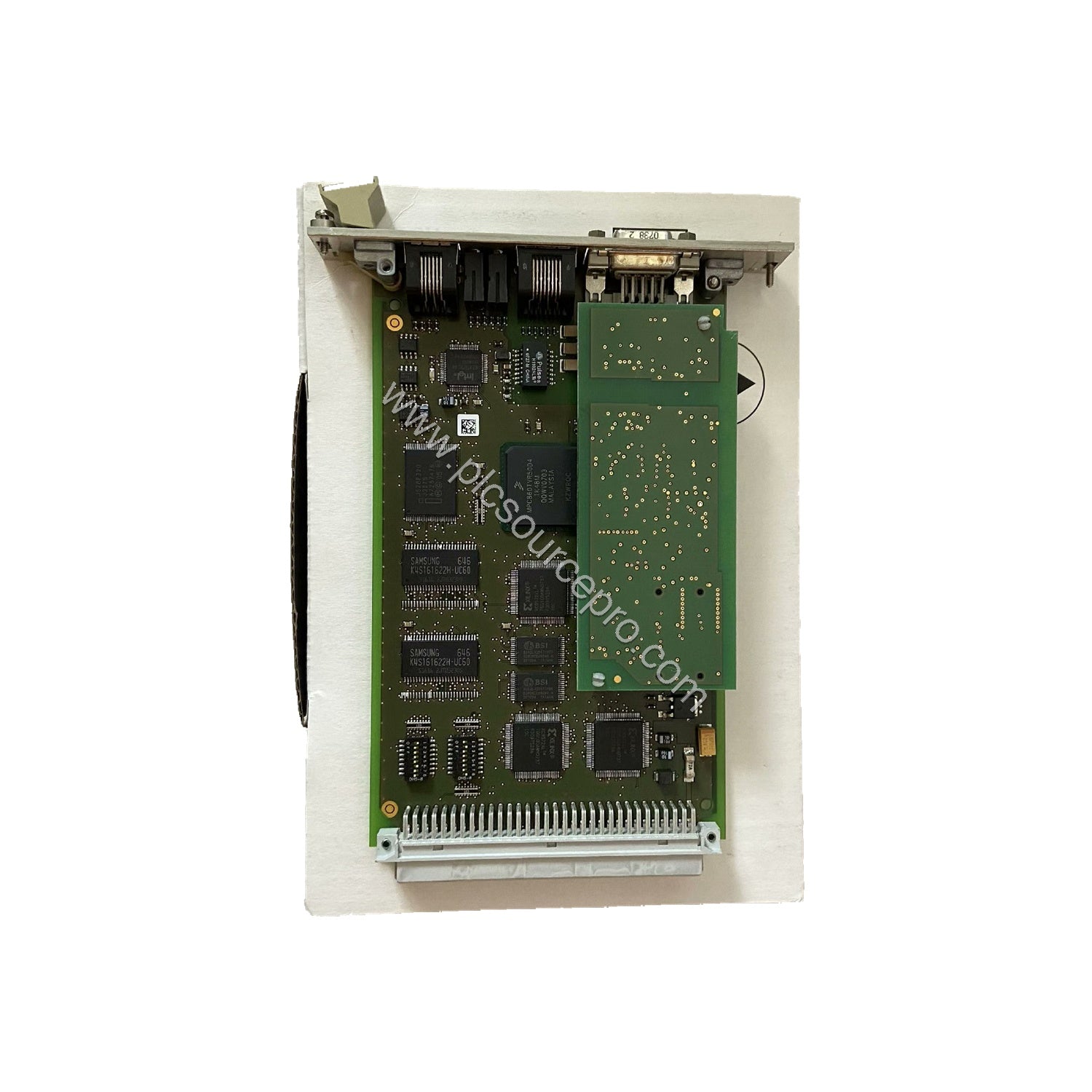

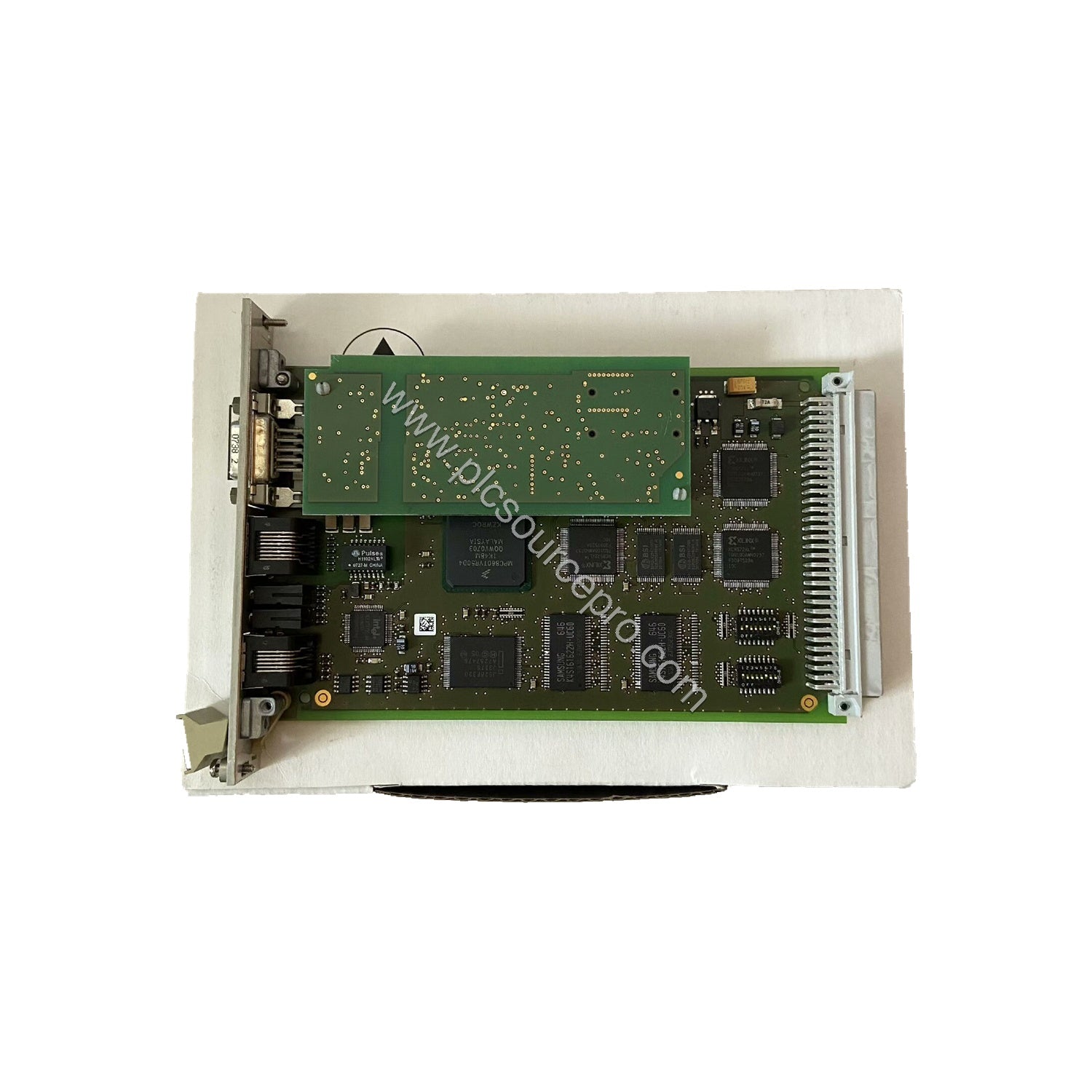

The HIMA F8628X communication module provides a critical upgrade path for H41q/H51q systems. It enables ELOP II programming via Ethernet, replacing older programming methods. Designed as a Profibus DP slave interface, the HIMA F8628X supports the new CPUs F8650X/F8652X (safe) and F8651X/F8653X (non-safe). Unlike its predecessors F8627 and F8628, the F8628X adds Ethernet connectivity for faster, more flexible configuration.
Compatibility & Integration
The HIMA F8628X integrates seamlessly with H51q/H41q rack systems. It works with F8650X and F8652X safe CPUs and F8651X and F8653X non-safe CPUs. The module uses a 9-pole SUB-D connector for Profibus DP and a 100Base-T interface (RJ45) for Ethernet. Standards compliance includes IEC 61131-2, EN 61000-6, EN 50081-2, EN 50082-2, IEEE 802.3, and EN 50170.
Industry Applications
In process safety and automation, the HIMA F8628X facilitates remote programming and diagnostics. Use it in oil and gas, chemical, or power generation plants where HIMA safety systems are deployed. The Ethernet capability reduces downtime by enabling over-the-network updates. The Profibus DP slave role allows integration with existing fieldbus networks.
Installation & Setup Guidance
The HIMA F8628X is a 19-inch module occupying 3 height units (3×44.45 mm) and 4 width units (4×5.08 mm). Mount it in a standard H41q/H51q rack. Connect the 9-pole SUB-D to the Profibus DP network and the RJ45 to an Ethernet switch. Ensure ELOP II version 4.1 or higher is used for programming. No additional wiring modifications are required if replacing an F8627 or F8628; the F8628X is pin-compatible.
Selection Guide & Purchasing Advice
Before ordering the HIMA F8628X, verify that your system uses H41q or H51q backplanes and compatible CPUs. Confirm that your ELOP II software is version 4.1 or later. The module comes as a complete unit with no optional accessories needed. For reliable supply and competitive pricing, choose PLC Source PRO (operating as ubest101) — your trusted source for industrial automation parts.
