Product Introduction

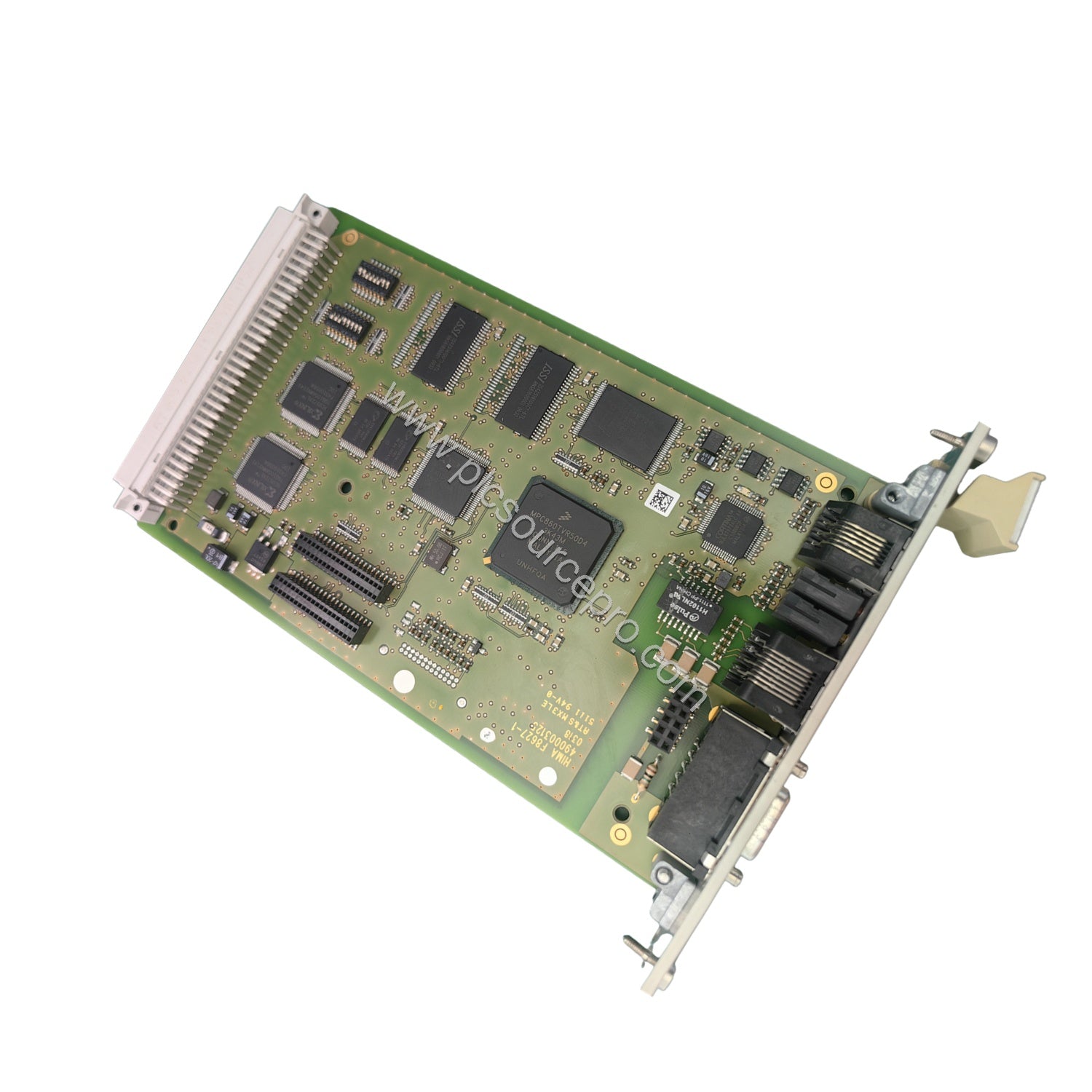

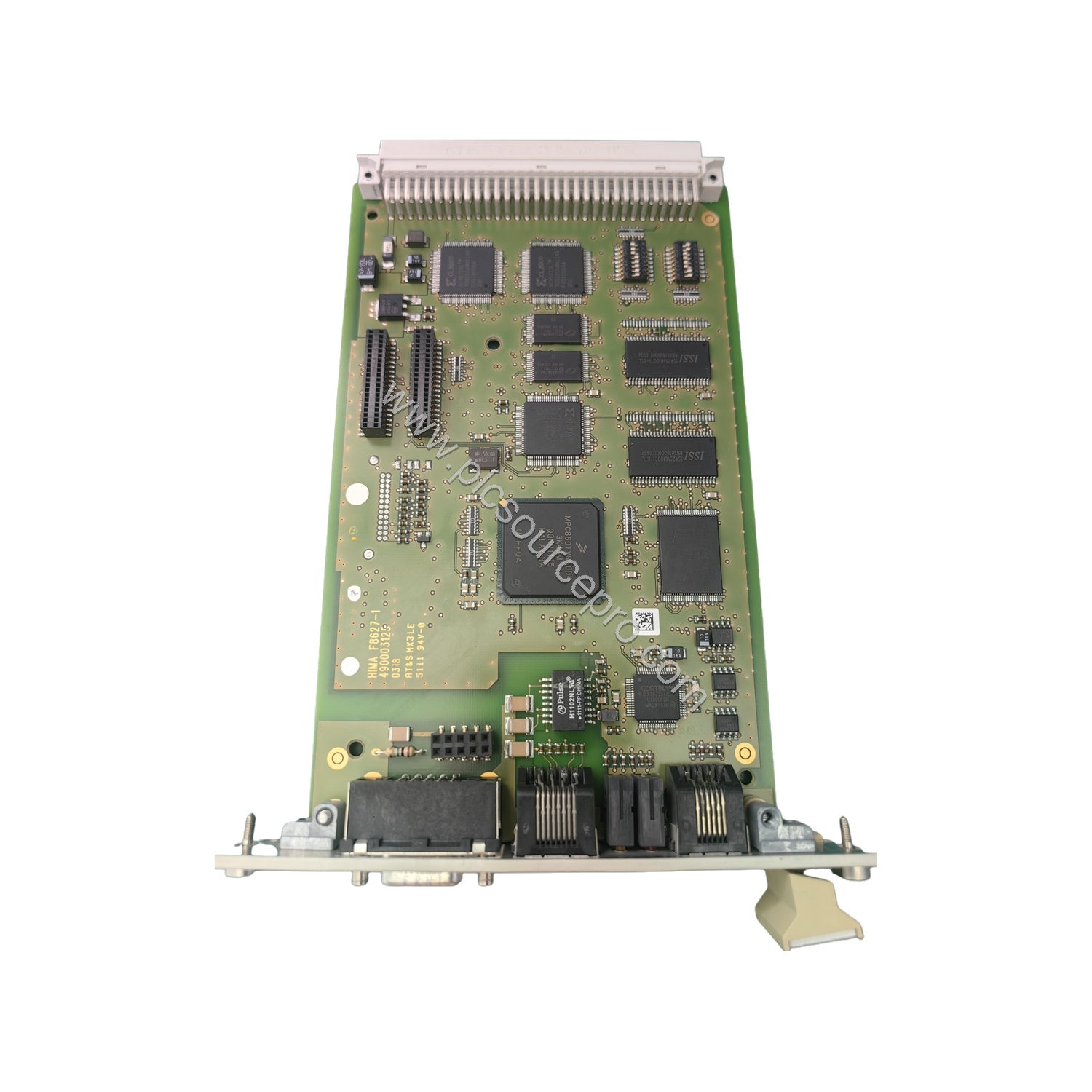

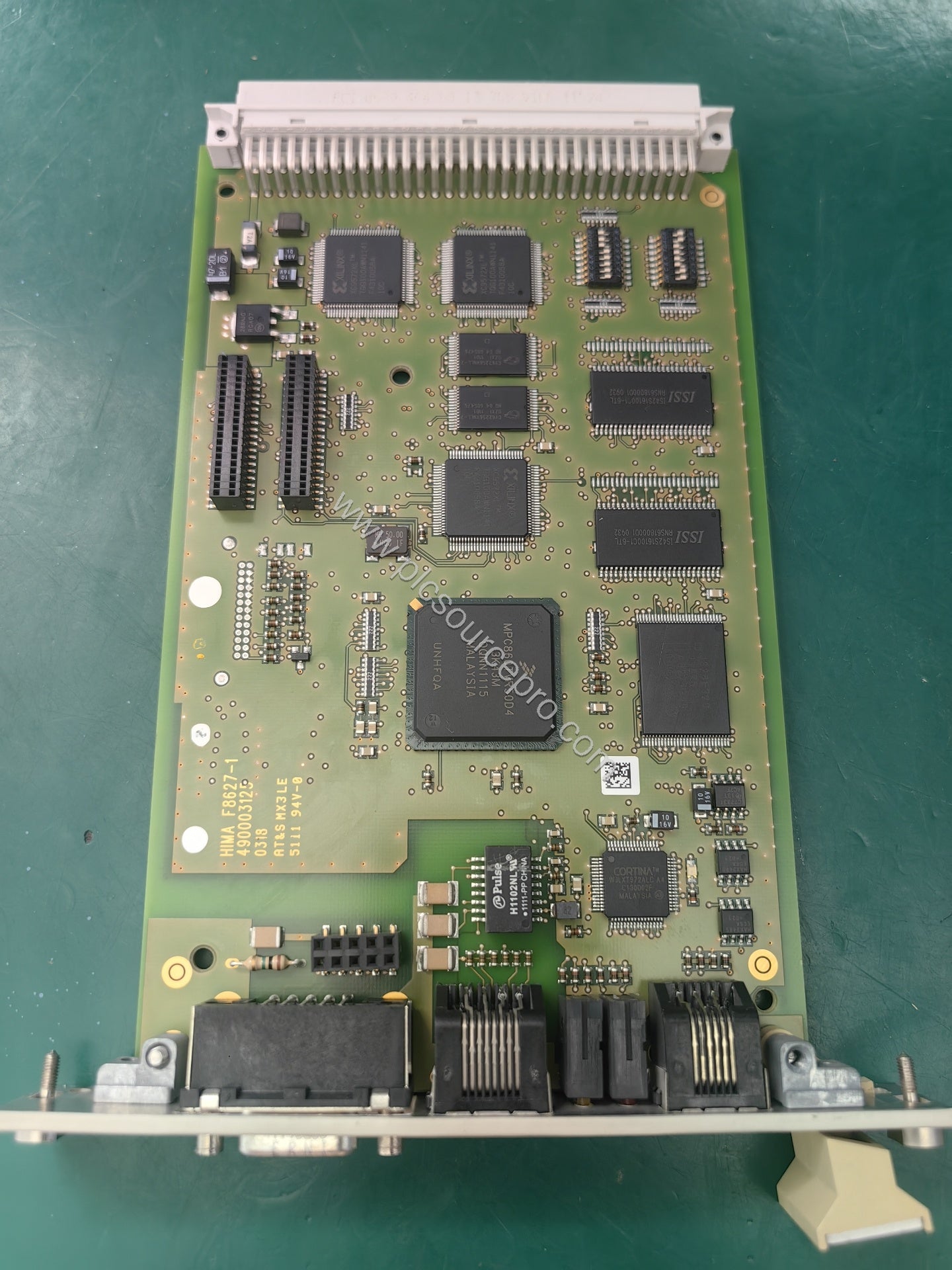

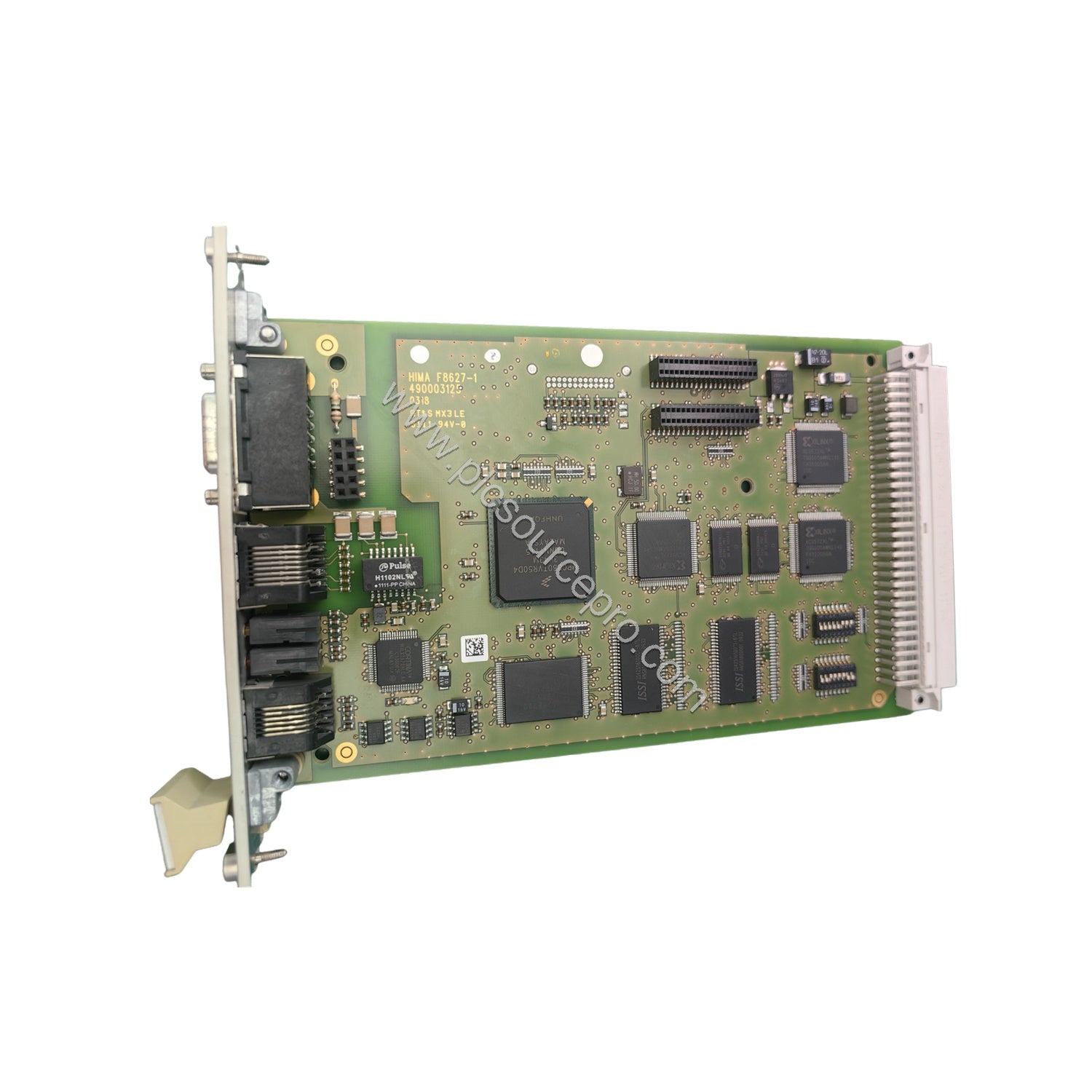

When upgrading your safety controller system, the HIMA F8627X communication module delivers advanced Ethernet connectivity for H41q/H51q platforms. This module replaces older F8627/F8628 units, offering integrated safeethernet, MODBUS-TCP, and OPC DA/A&E protocols. Designed for new CPUs like the F8650X and F8652X, the HIMA F8627X eliminates the need for separate networks by consolidating safety and communication on one bus.
Technical Specifications
Below are the key specifications for the HIMA F8627X, derived directly from product documentation:
-
Form Factor: 19-inch module for H41q/H51q systems
-
Dimensions: 3 height units (HU) = 3 x 44.45 mm; 4 width units (WU) = 4 x 5.08 mm
-
Network Interface: 100 Base-T with RJ45 connector
-
Communication Protocols: Safeethernet (mono or redundant), MODBUS-TCP slave, OPC DA, OPC A&E
-
Programming Support: ELOP II via Ethernet (from ELOP II V.4.1)
-
Certifications: IEC 61131-2, EN 61000-6, EN 50081-2, EN 50082-2, IEEE 802.3, EN 50170
For detailed technical parameters not listed, please contact our sales team.
Industry Applications
The HIMA F8627X is purpose-built for industrial safety applications in process plants, refineries, and power generation. In a typical scenario, a H41q controller equipped with the HIMA F8627X communicates safely with remote I/O over safeethernet while simultaneously providing MODBUS-TCP data to plant SCADA systems. This reduces wiring complexity and enhances system reliability. Another application involves programming safety logic from a central engineering station via Ethernet, streamlining maintenance and updates.
Installation & Setup Guidance
Mount the HIMA F8627X in a standard 19-inch rack. Ensure the module occupies 3 HU vertically and 4 WU horizontally. Connect the RJ45 port to a 100 Base-T Ethernet switch. For redundant safeethernet, use two separate network paths. No special tools are required; however, verify that the backplane connectors are fully seated. Refer to the system manual for slot allocation and power supply requirements.
Compatibility & Integration
The HIMA F8627X integrates seamlessly with HIMA safety CPUs: F8650X, F8652X (safe controllers) and F8651X, F8653X (non-safe controllers) for H51q/H41q systems. It also works alongside existing F8627 and F8628 modules if present. Communication with third-party devices is possible via MODBUS-TCP and OPC protocols, enabling connection to DCS, SCADA, and HMIs.
Selection Guide & Purchasing Advice
Before purchasing the HIMA F8627X, confirm that your system uses the new generation CPUs (F8650X series). If you are upgrading from an older H41q/H51q system, check backward compatibility with your existing backplane and power supply. For reliable sourcing, visit ubest101 to ensure genuine HIMA parts and expert support.
