Product Introduction

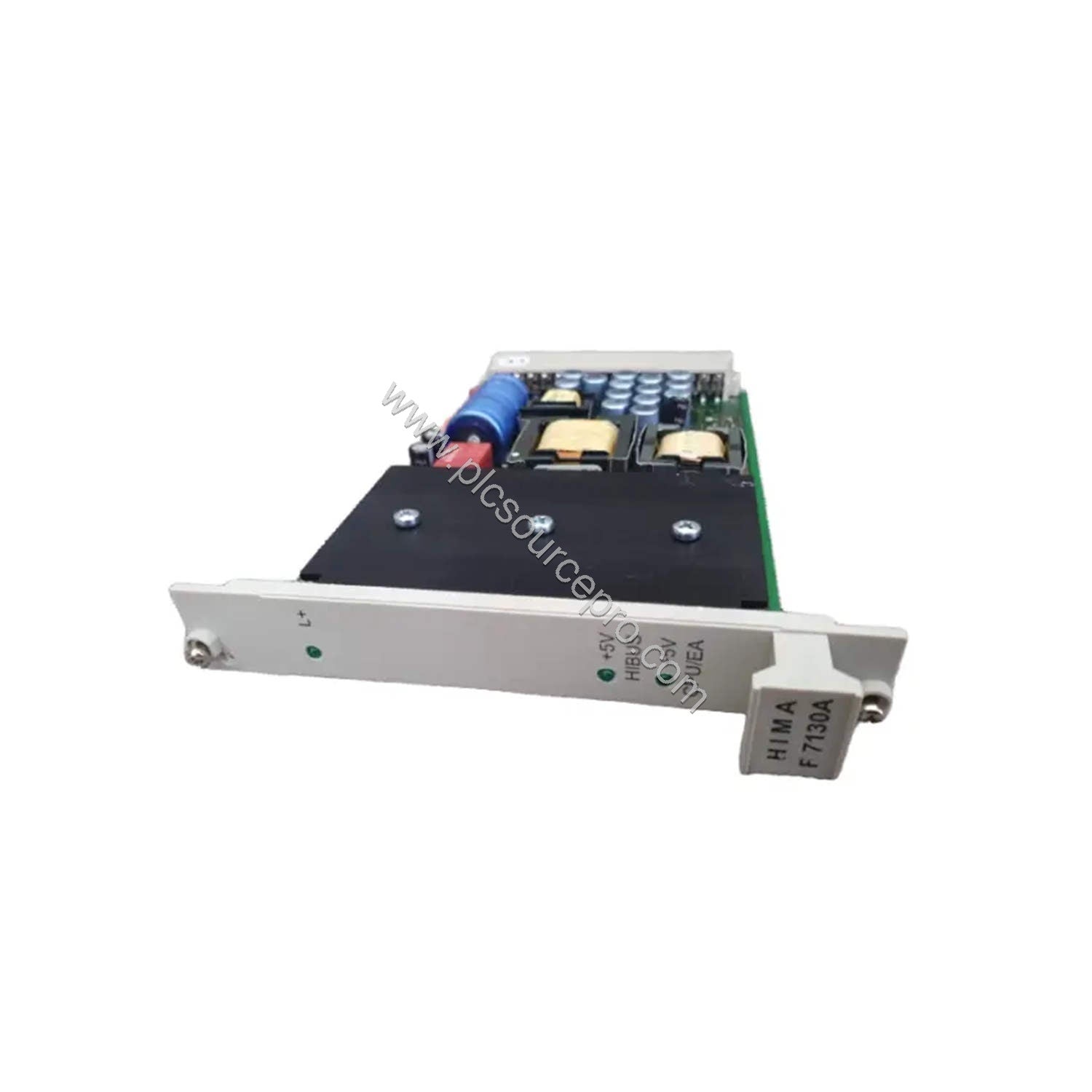

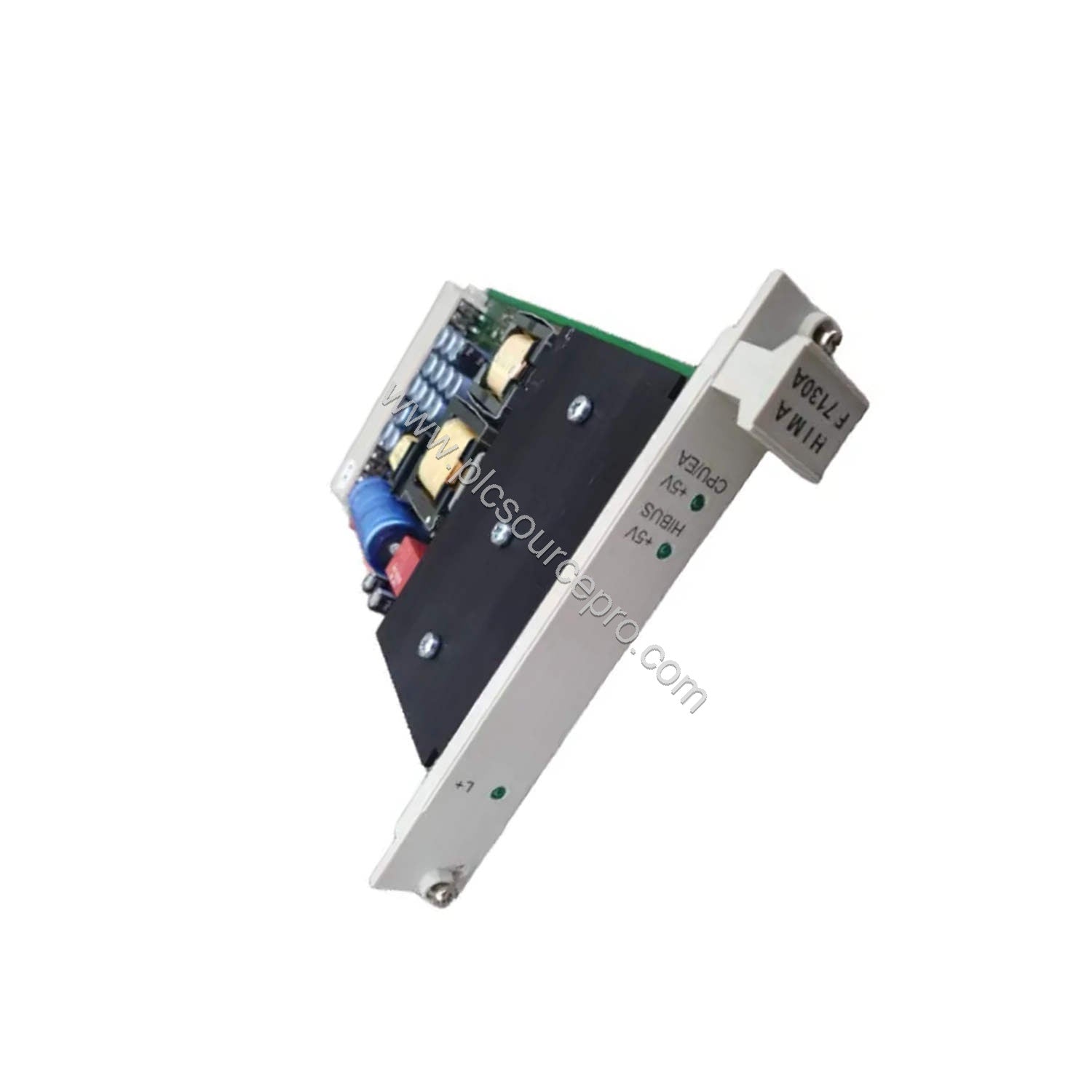

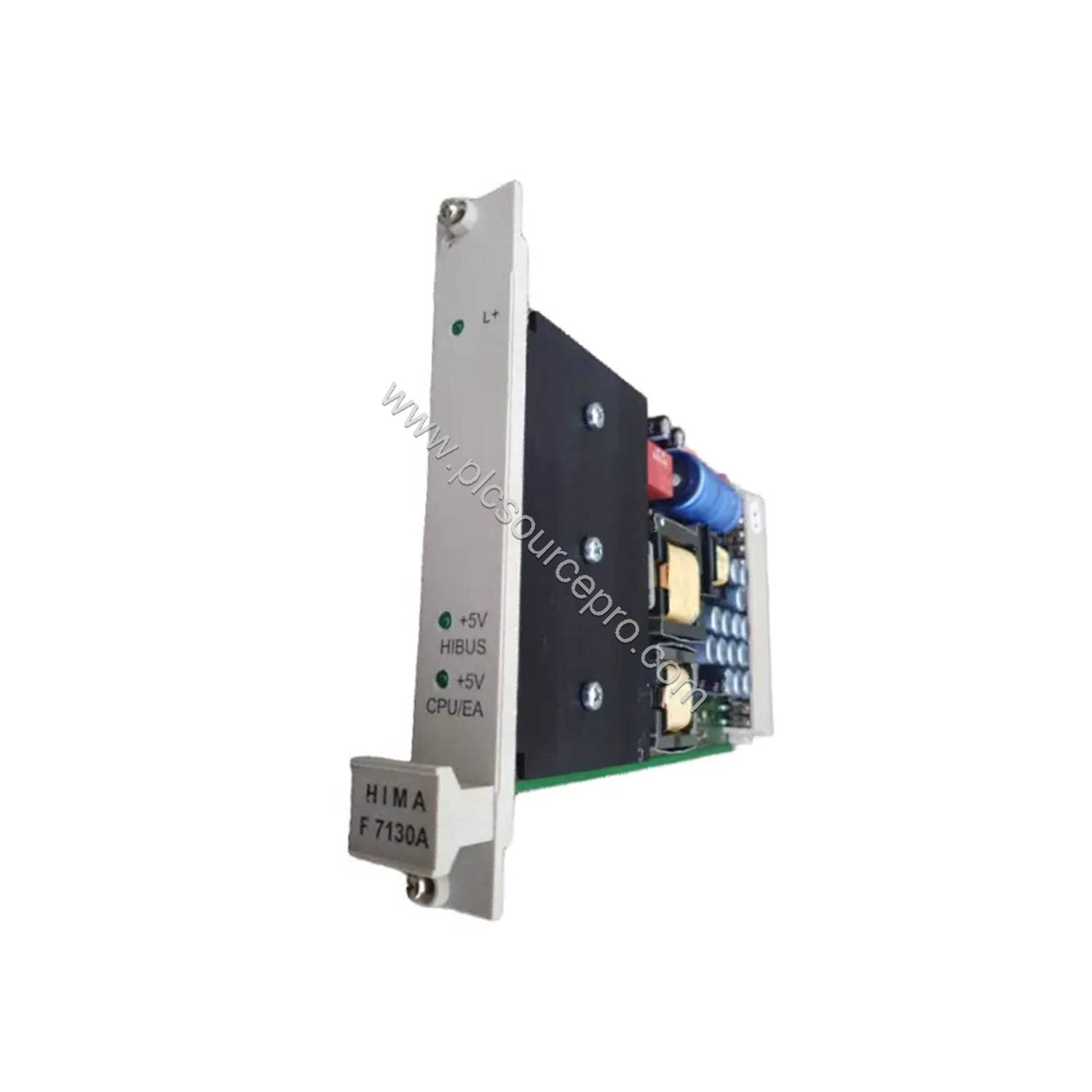

When power supply failures disrupt critical automation processes, the HIMA F7130A industrial automation module delivers reliable DC/DC conversion with electrical isolation. Designed for the PES H41q safety system, this power supply module converts a 24 VDC main supply into a stable 5 VDC output, ensuring uninterrupted operation of central devices, I/O modules, and the HIBUS interface.
Technical Specifications
The HIMA F7130A offers precision-engineered parameters based on actual operating data:
-
Input Voltage: 24 VDC, -15%/+20%, ripple pp < 15%
-
Primary Fuse: 5A gL
-
Output for Central Device / I/O Modules: 5 VDC, +0.25 V / 10 A
-
Output for HIBUS: 5 VDC, +0.25 V / 1 A
-
Efficiency Rate: ≥70%
-
Space Requirement: 4 SU
These specifications ensure the HIMA F7130A handles load variations while maintaining output stability. The separate supply connection for central device monitoring via pin z16 (NG) adds an extra layer of reliability.
Installation & Setup Guidance
Mount the HIMA F7130A in a suitable cabinet within the PES H41q rack. Ensure the input voltage (24 VDC) meets the tolerance range of -15% to +20%. Connect the primary fuse (5A gL) inline with the input supply. The output terminals are clearly marked for central device/I/O modules and HIBUS. Use the LED indicators on the front plate to verify operation: the 5 V CPU/EA LED may illuminate weakly under proper operation. For monitoring the central device, connect pin z16 (NG) separately as per the system manual.
Maintenance & Reliability
Regularly inspect the HIMA F7130A for any LED anomalies or physical damage. The module’s overvoltage protection and current limitation reduce common failure modes in industrial power supplies. Check the primary fuse condition periodically; replacement should match the 5A gL specification. Clean the front panel and ventilation slots to avoid dust accumulation. Because the module is short-circuit proof on all outputs, it minimizes downtime caused by output faults—a key benefit for continuous processes.
Selection Guide & Purchasing Advice
Before purchasing a HIMA F7130A, verify compatibility with your PES H41q system revision. Confirm that the input voltage source can deliver at least 10 A at 24 VDC (for full central device load) plus 1 A for HIBUS. For genuine industrial automation spares, trust PLC Source PRO (available at ubest101.myshopify.com) for reliable inventory and fast shipping. Ensure your order includes the correct fuse type if replacement is needed.
