In safety-critical industrial environments, undetected sensor faults can lead to system failures or hazardous conditions. The HIMA F3237 8-fold input module addresses this challenge by continuously monitoring lines for short-circuits and wire breaks, ensuring reliable operation even in demanding applications.
Product Overview

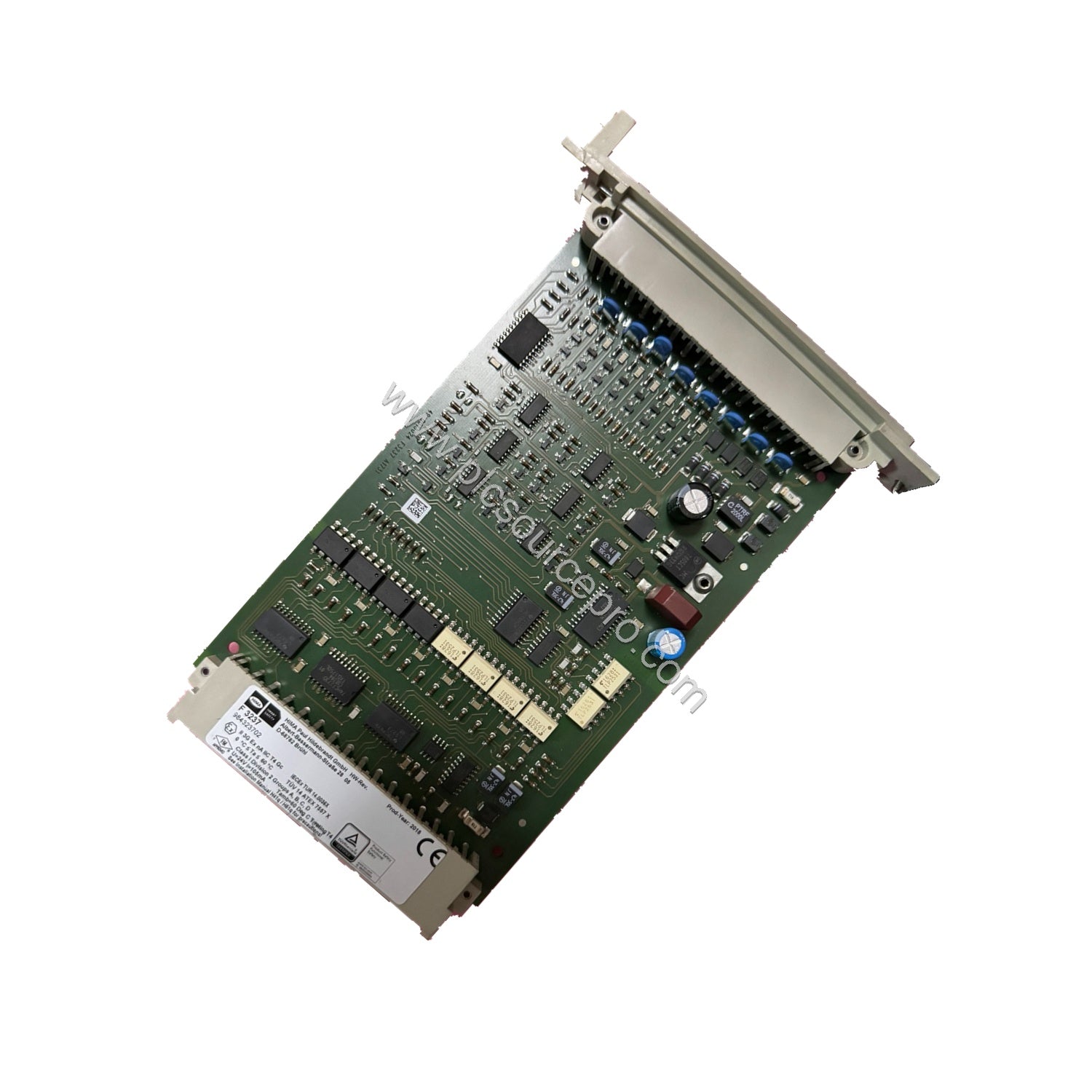

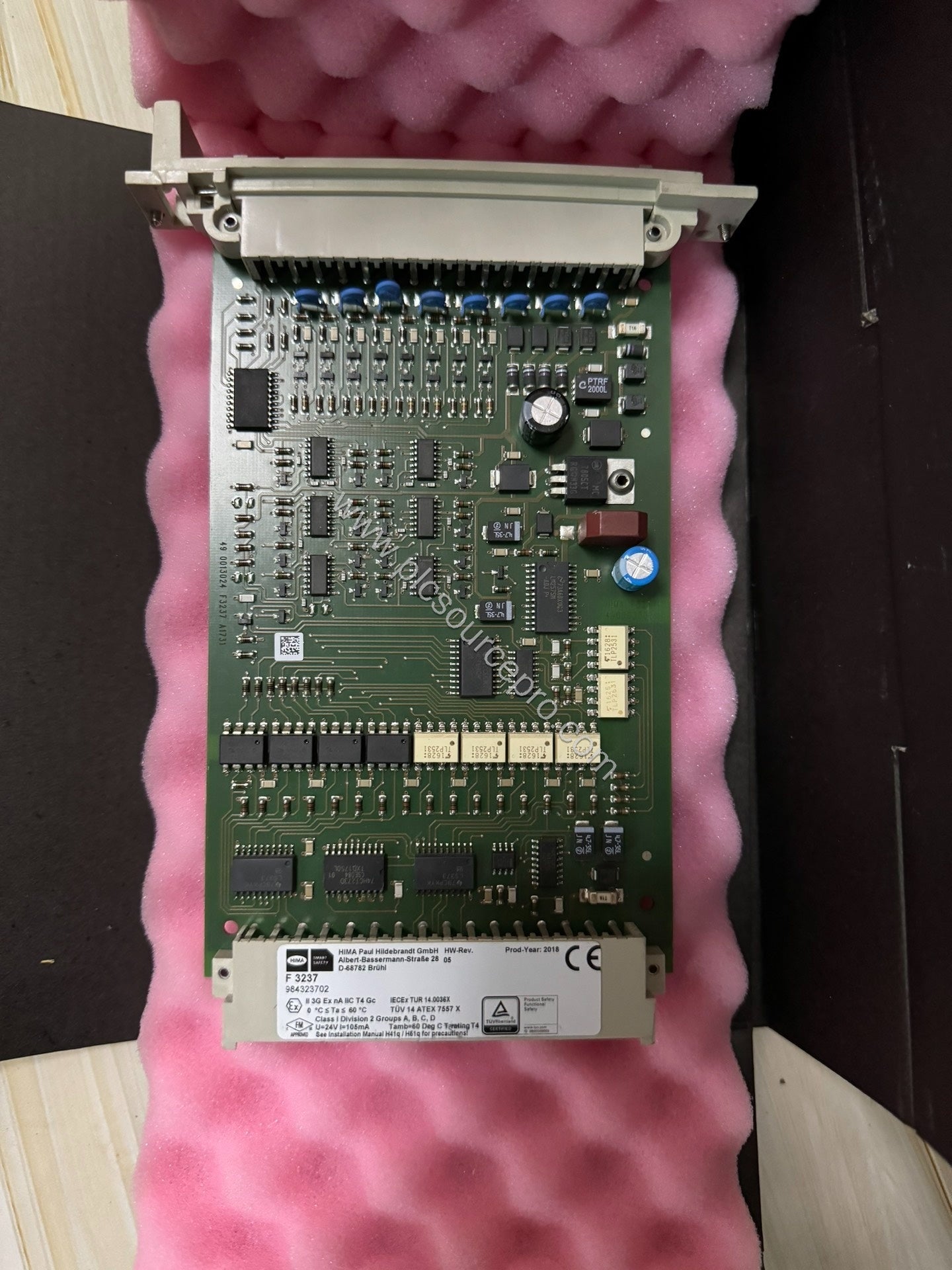

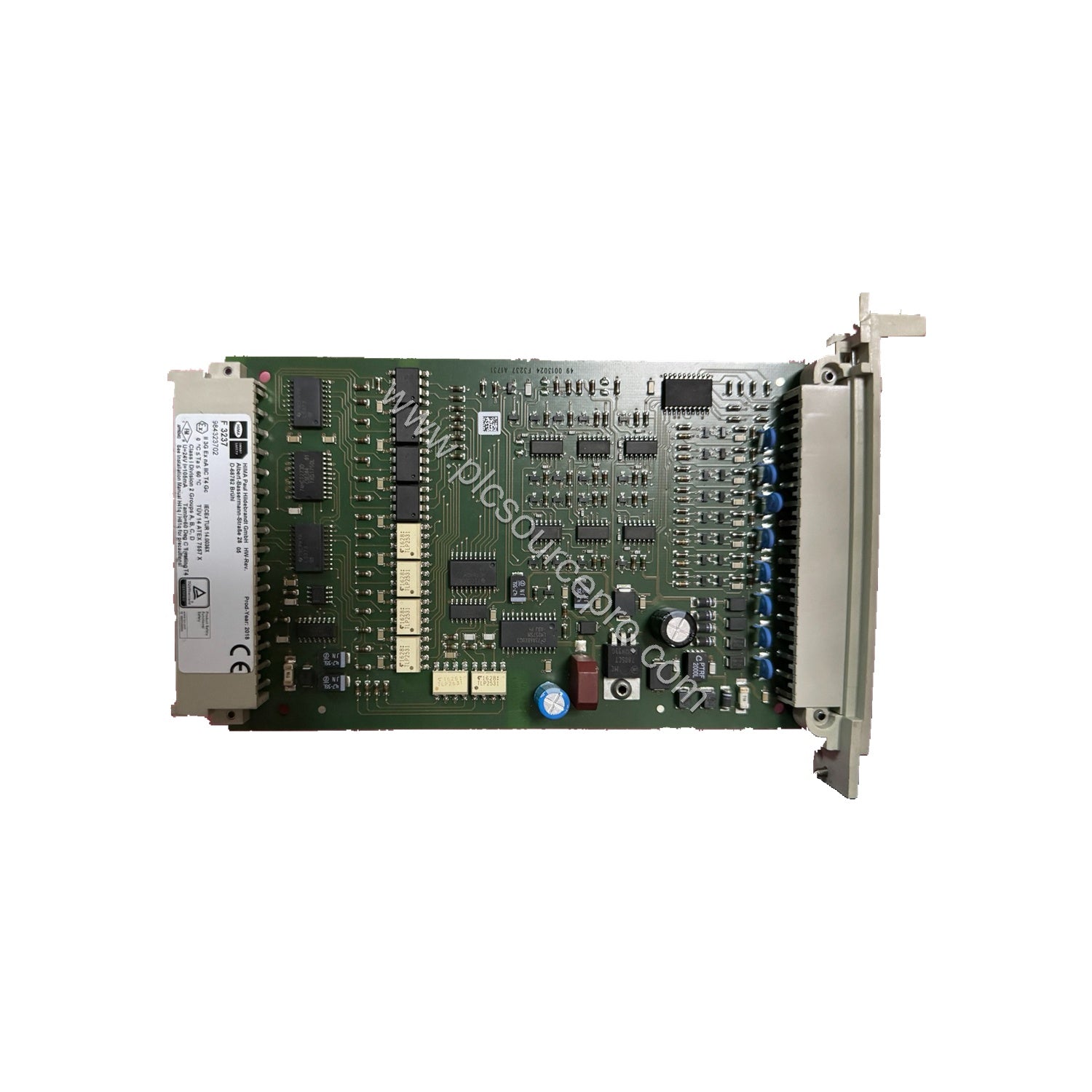

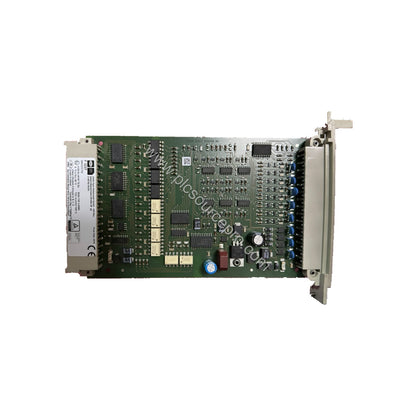

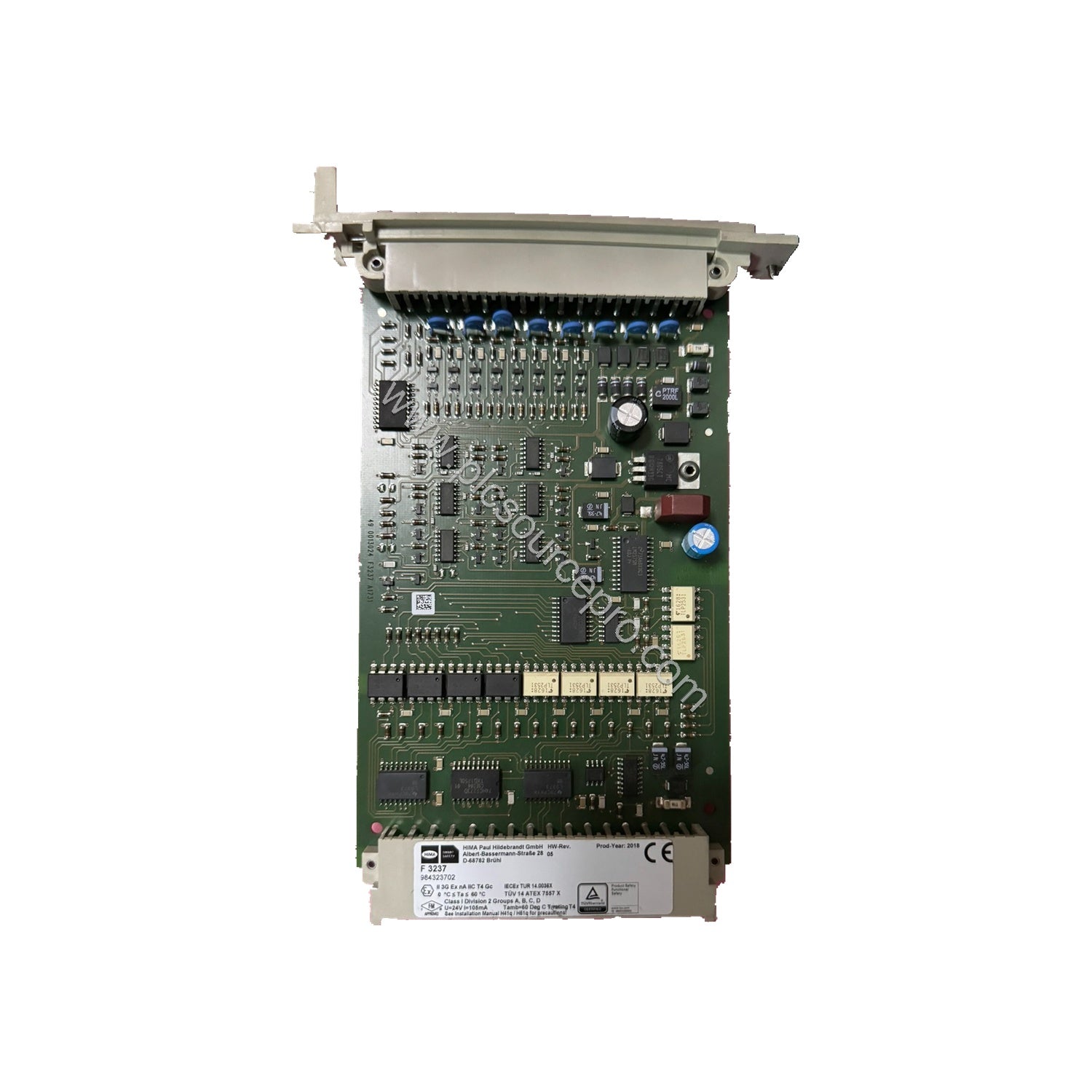

The HIMA F3237 is a safety-related input module designed for connecting proximity switches per DIN 19234 (NAMUR) and resistor-wired sensors. It supports requirement classes AK 1 to 6, making it suitable for a wide range of safety functions. The module performs automatic self-tests during operation, including switch-on/off capability, crosstalk detection via walking-0 test, input filter verification, and correct module function. A typical switching time of approximately 10 ms ensures fast response.
Technical Specifications
| Parameter |
Value |
| Supply Voltage US |
8.2 V |
| Operating Data (5 V) |
90 mA |
| Operating Data (24 V) |
170 mA |
| Switching Time |
approx. 10 ms |
| 0 Signal Current (IE) |
0.35 ≤ IE ≤ 1.2 mA |
| 1 Signal Current (IE) |
2.1 ≤ IE ≤ 6.0 mA |
| Wire Break Threshold |
≤ 0.28 mA |
| Short Circuit Threshold |
≥ 6.5 mA |
| Line Impedance |
≤ 50 Ohm (per DIN 19234) |
| Max Line Length |
1000 m (0.5 mm² conductor) |
| Shunt Resistor R* |
681 Ohm ±1%, 0.25 W (R17…R24, part no. 00 0751681) |
| Space Requirement |
4 TE |
Failure Mode Analysis and Self-Diagnostics
A unique advantage of the HIMA F3237 is its comprehensive on-board testing. The module automatically checks for:
- Short circuits and wire breaks on sensor lines
- Crosstalk between input circuits via a walking-0 pattern
- Proper function of input filters and overall module integrity
This proactive fault detection minimizes unexpected downtime and enhances safety system reliability. Operators can trust the F3237 to report issues immediately, enabling swift corrective action.
Installation and Setup Guidance
Mount the HIMA F3237 on a standard DIN rail. Connect sensors using twisted-pair cable with a maximum length of 1000 m (0.5 mm²). Ensure the shunt resistors (681 Ohm) are correctly installed per part number 00 0751681. For non-standard proximity switches, such as the NJ 5-30GK-S1N from P&F, a parallel 47 kΩ resistor may be needed to raise the non-damped current to 170 µA for proper line break detection. Verify all wiring before powering the module.
Maintenance and Reliability
Routine inspection should focus on sensor cable integrity and connector tightness. Since the F3237 self-tests continuously, manual checks are minimal. However, note that LED functions are not tested by the module. Environmental conditions should remain within standard industrial ranges. The module's automatic diagnostics reduce maintenance workload and extend service life.
Troubleshooting Common Issues
-
False wire break alarm: Check if 0-signal current drops below 0.28 mA. With non-standard sensors, add the parallel resistor as described.
-
No communication: Verify supply voltage (8.2 V) and that the shunt resistors are present and correct.
-
Intermittent faults: Inspect line impedance (≤50 Ohm) and ensure no cable damage exceeding the maximum length.
Selection Guide and Purchasing Advice
Before purchasing the HIMA F3237, confirm it meets your system's safety integrity level requirement (AK 1–6). Compatible with HIMA safety controllers and most PLC systems. For optimal performance, use NAMUR-compliant sensors. Contact PLC Source PRO (ubest101) for genuine spare parts and technical support.
