Product Introduction

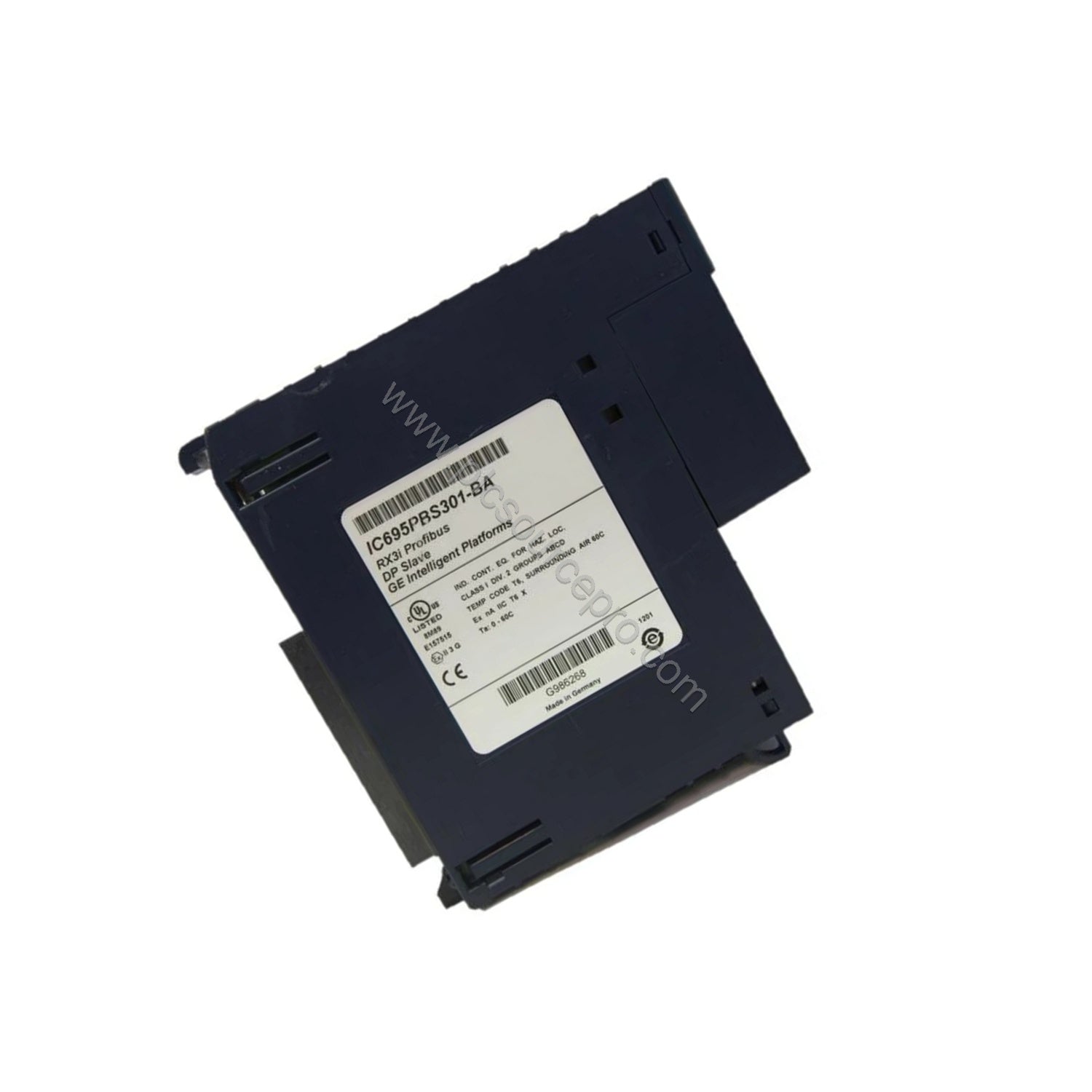

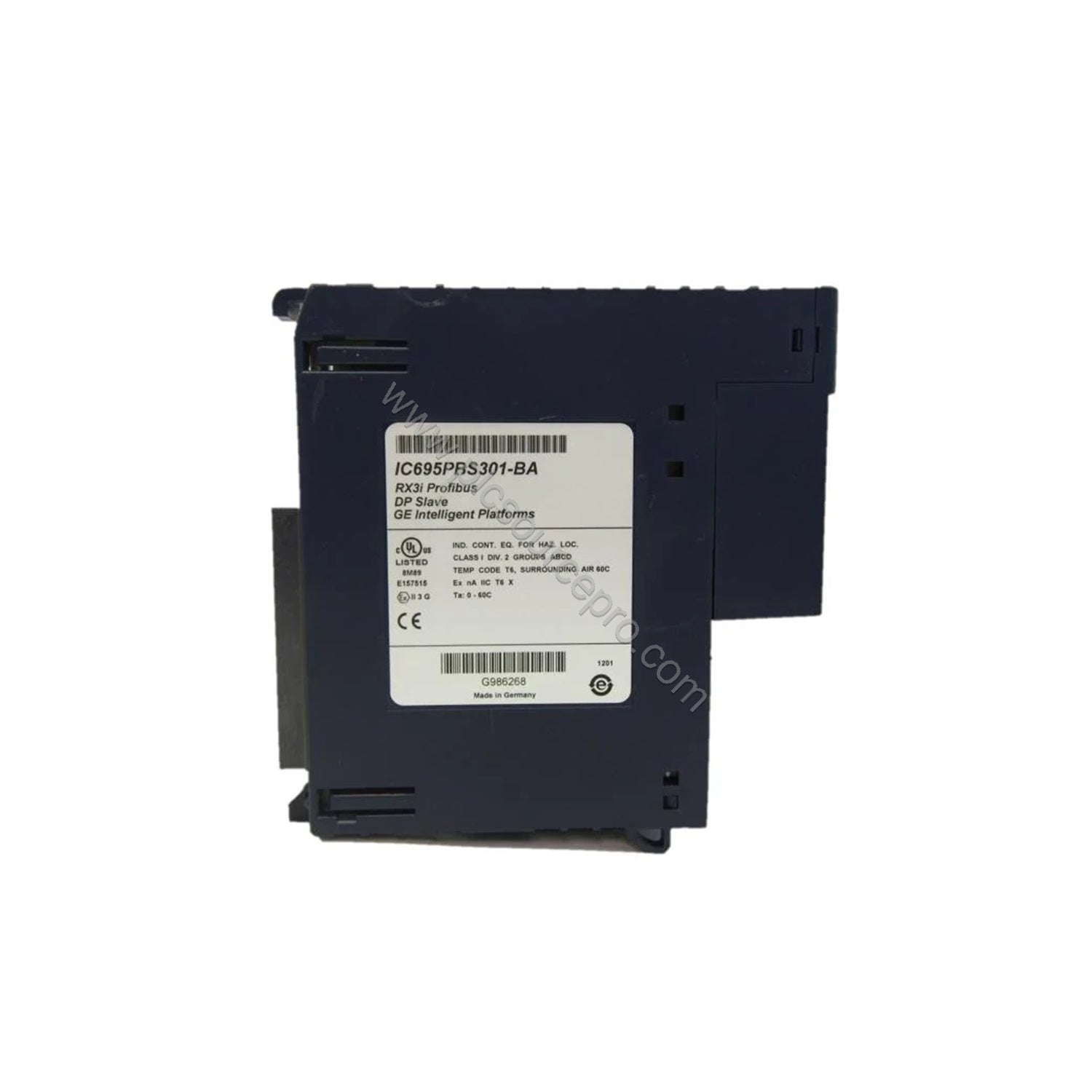

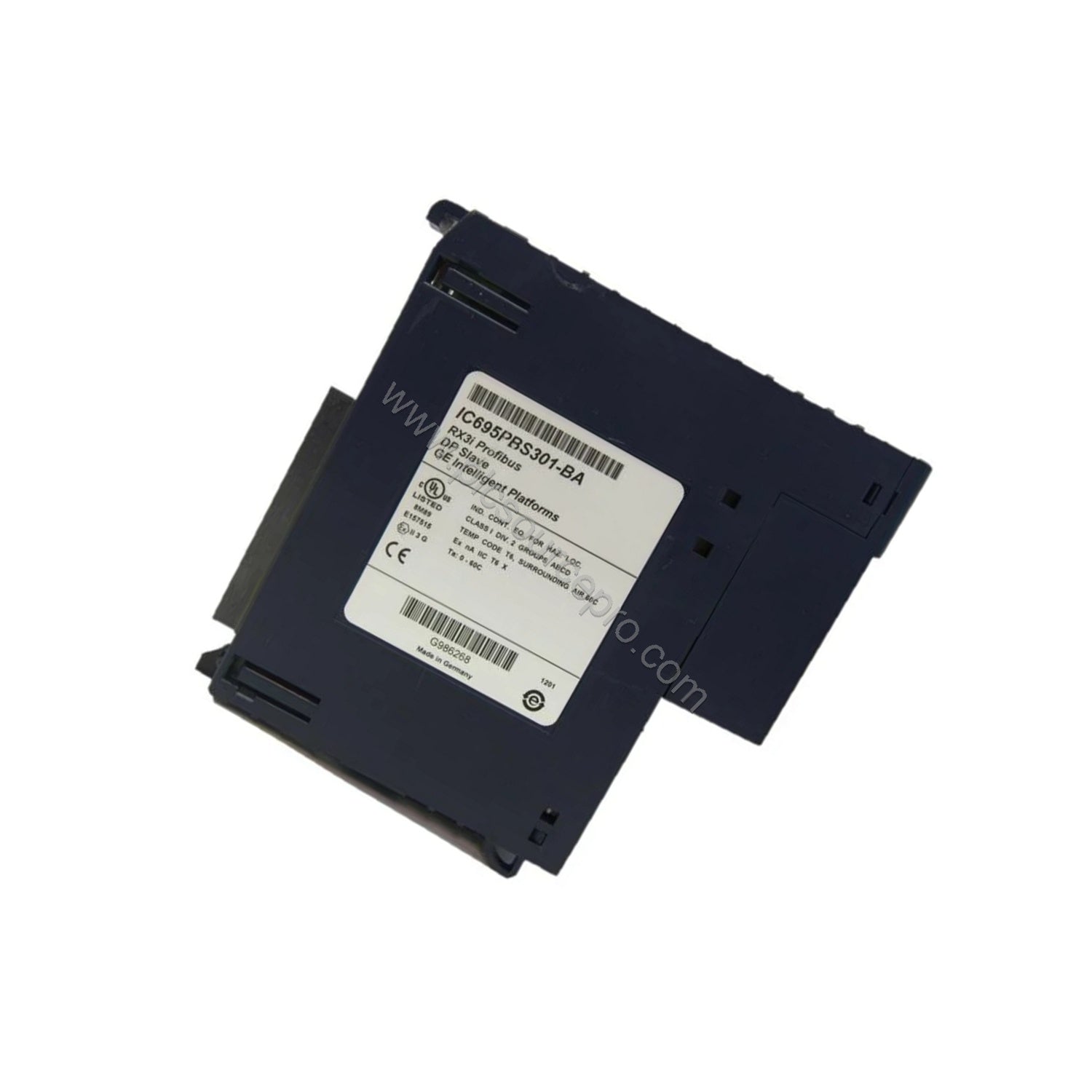

When a PROFIBUS DP network requires a reliable slave interface, the GE IC695PBS301 PROFIBUS Slave Module delivers robust communication within the RX3i PacSystems series. This module exchanges data with the master device automatically, acknowledging messages and transmitting only upon request. Integrated LED indicators for module status, PROFIBUS status, and network status enable quick diagnostics.
Technical Specifications
The GE IC695PBS301 module is part of the RX3i PacSystem line by GE Intelligent Platforms. Key specifications derived from the official product description include:
| Parameter |
Value |
| Brand |
GE Intelligent Platforms |
| Series |
RX3i PacSystem |
| Part Number |
IC695PBS301 |
| Product Type |
PROFIBUS Slave Module |
| Backplane Support |
Universal |
| LED Indicators |
PROFIBUS OK, NETWORK, MOD STATUS |
| Number of Slots |
1 (single slot) |
| Ports |
9-pin connector |
| Power Consumption at 3.3 V DC |
440 mA |
| Storage Temperature |
-40 to 85 degrees Celsius |
| Operating Temperature |
0 to 60 degrees Celsius |
| Backplane Compatibility |
RX3i PCI |
Industry Applications
The GE IC695PBS301 PROFIBUS Slave Module excels in manufacturing environments where real-time data exchange is critical. For example, in a packaging line, the module reads up to 244 bytes of input data from the PROFIBUS network and transmits up to 244 bytes of output data, supporting all standard data rates and DP-V1 messages. Its wide operating temperature range (0 to 60°C) suits factory floors with moderate heat. The module also handles alarms reliably, reducing unplanned downtime.
Compatibility & Integration
The GE IC695PBS301 mounts in a single slot of an RX3i backplane and supports universal backplane architecture. It communicates over the PROFIBUS DP network at standard data rates. The module updates firmware indirectly through the host controller CPU via WinLoader software, ensuring seamless integration with existing RX3i PacSystems. The 9-pin connector provides a standard PROFIBUS interface.
Troubleshooting & Common Issues
LED indicators on the GE IC695PBS301 assist in identifying communication issues. The green 'PROFIBUS OK' LED confirms power and backplane reset. The yellow bicolor 'NETWORK' LED indicates telegram transmission; red signals critical communication problems. The bicolor 'MOD STATUS' LED shows the module's operating status. If the network LED turns red, check cabling and master configuration. For persistent faults, verify firmware updates via WinLoader.
Selection Guide & Purchasing Advice
Before purchasing the GE IC695PBS301, verify backplane compatibility with your RX3i rack and ensure your PROFIBUS master supports slave modes. The module works with all standard data rates, so confirm network settings. For reliable supply, source from UBEST Automation (ubest101), a trusted industrial automation parts distributor. The compact single-slot design fits easily into existing systems.
