Product Introduction

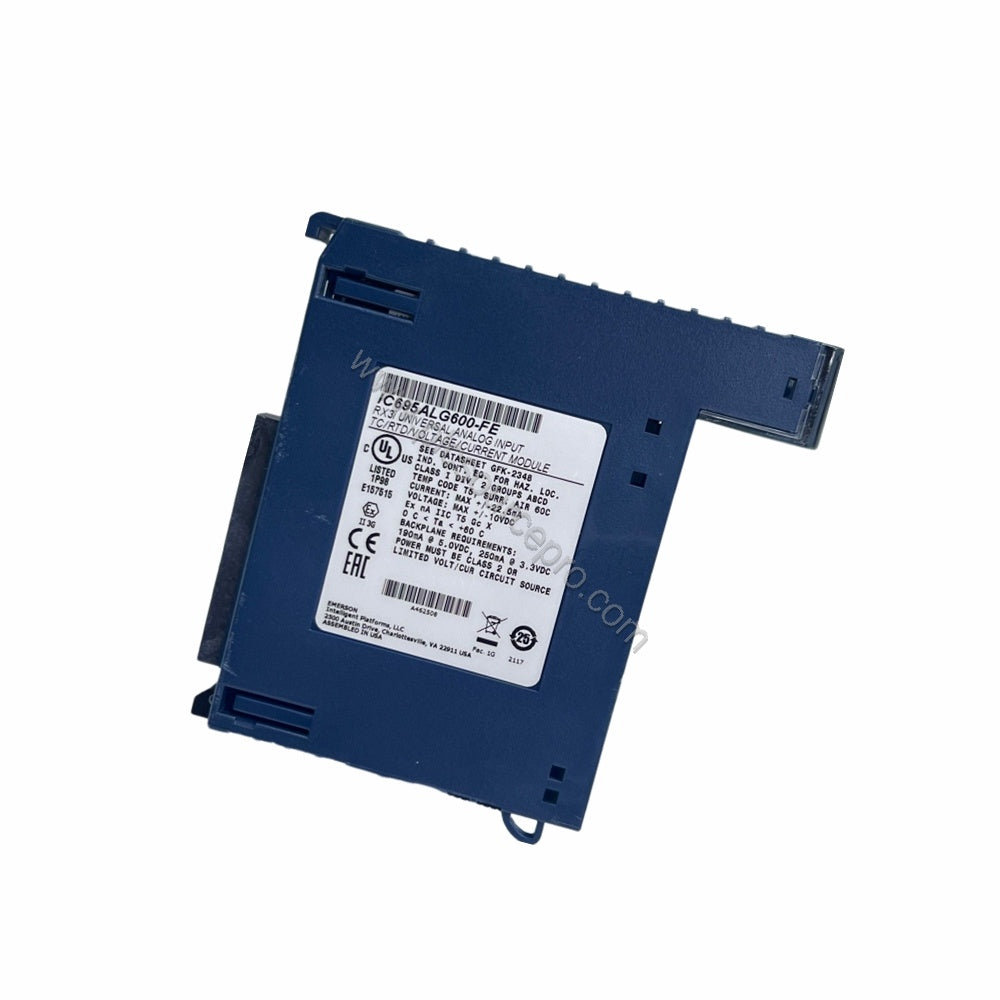

When your control system requires a single module to handle multiple analog signal types, the GE IC695ALG600 delivers unmatched flexibility. Part of the PACSystems RX3i family, this universal analog input module from GE IC695ALG600 (now under Emerson Automation) accepts voltage, current, resistance, thermocouple, and RTD inputs. With eight general-purpose channels and two cold junction compensation channels, it reduces the need for multiple dedicated modules, cutting both inventory costs and installation complexity. This cost-benefit advantage makes the IC695ALG600 a smart investment for system expansions and upgrades.
Industry Applications
In process industries such as chemical refining and power generation, the GE IC695ALG600 simplifies wiring by combining temperature, pressure, and flow signal acquisition into one module. For example, a turbine monitoring system can use its thermocouple inputs for exhaust gas temperature and its RTD inputs for bearing oil temperature, all from a single unit. This consolidation directly reduces panel space and termination costs. Similarly, in water treatment plants, the module's 4‑20 mA current and 0‑10 V voltage channels handle multiple sensor types, lowering spare part requirements and improving ROI.
Installation & Setup Guidance
Install the IC695ALG600 into an RX3i universal backplane. It requires firmware version 2.80 or later and configuration via Proficy Machine Edition (PME) version 5.0 SP1A LD‑PLC Hotfix 1 or newer. Use either a Box‑style (IC694TBB032), Extended Box‑style (IC694TBB132), Spring‑style (IC694TBS032), or Extended Spring‑style (IC694TBS132) terminal block. Extended blocks are recommended when using wires with thick insulation or shield wires. The module does not support remote or expansion backplanes – ensure it is placed in the main rack. Status LEDs (Module OK, Field Status, Terminal Block) provide quick diagnostic feedback.
Maintenance & Reliability
The GE IC695ALG600 operates reliably from 0 to 60 °C and stores from -40 to 85 °C. Its flash memory allows future firmware upgrades without hardware changes. Power dissipation is only 5.4 W maximum, reducing thermal stress in crowded cabinets. The module uses 350 mA at 3.3 V and 400 mA at 5 V, drawing minimal power. With no moving parts and LED status indicators, periodic visual inspection is sufficient. For long-term reliability, keep the terminal blocks clean and ensure proper ventilation.
Selection Guide & Purchasing Advice
Before ordering, verify that your existing PME version supports the IC695ALG600 and that you have the correct terminal block for your wire gauge. If upgrading from older GE analog modules, the universal input capability often eliminates the need for separate thermocouple, RTD, and current modules. For guaranteed genuine spares and competitive pricing, choose UBEST Automation as your supplier. We stock the IC695ALG600 and all compatible accessories to minimize your downtime. Visit ubest101.myshopify.com for quick ordering and support.
