Product Introduction

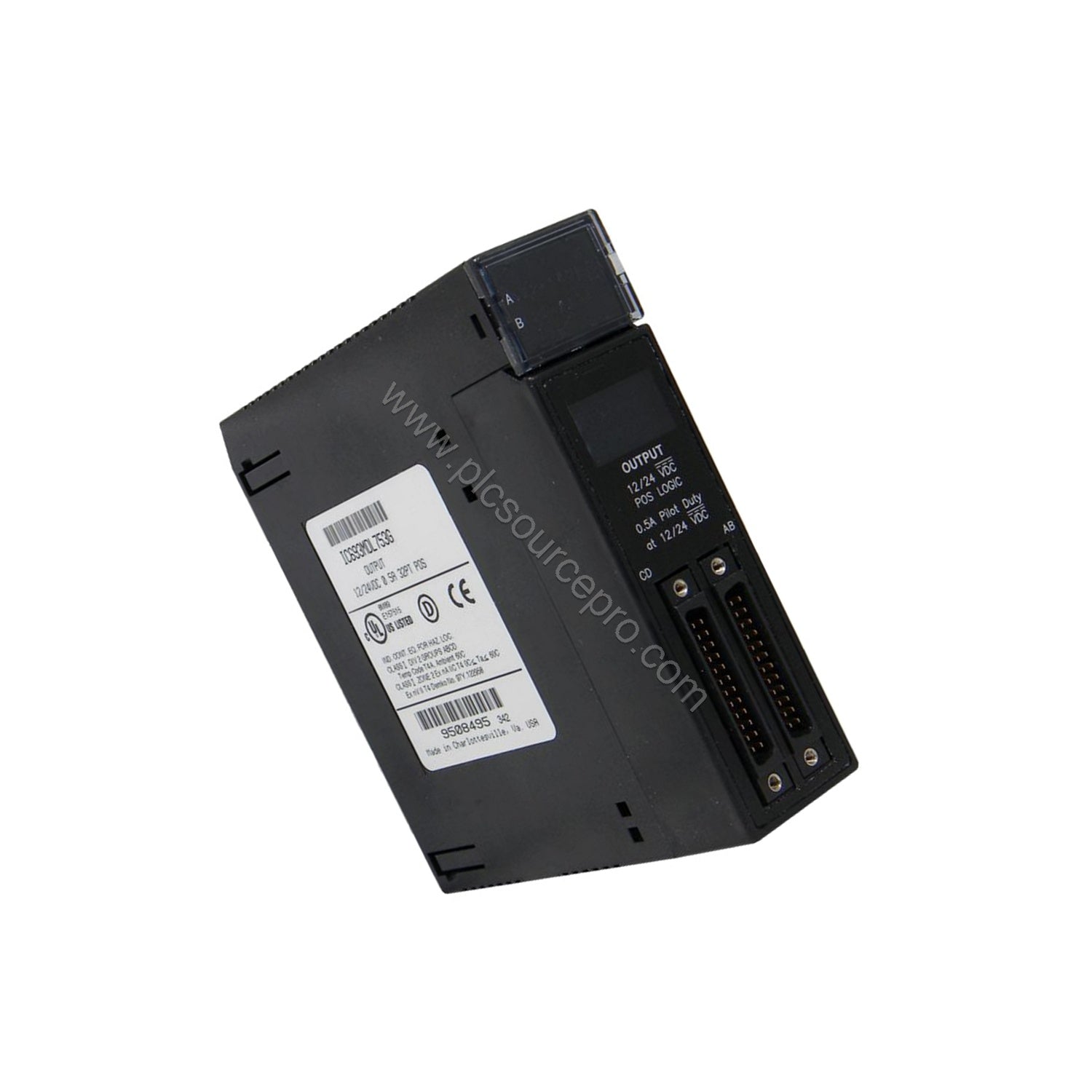

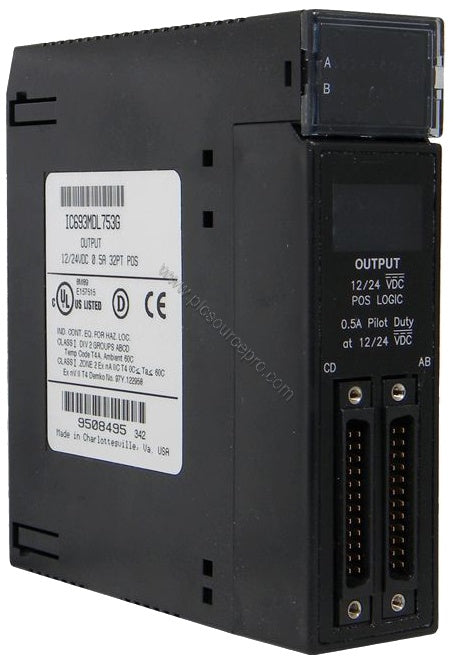

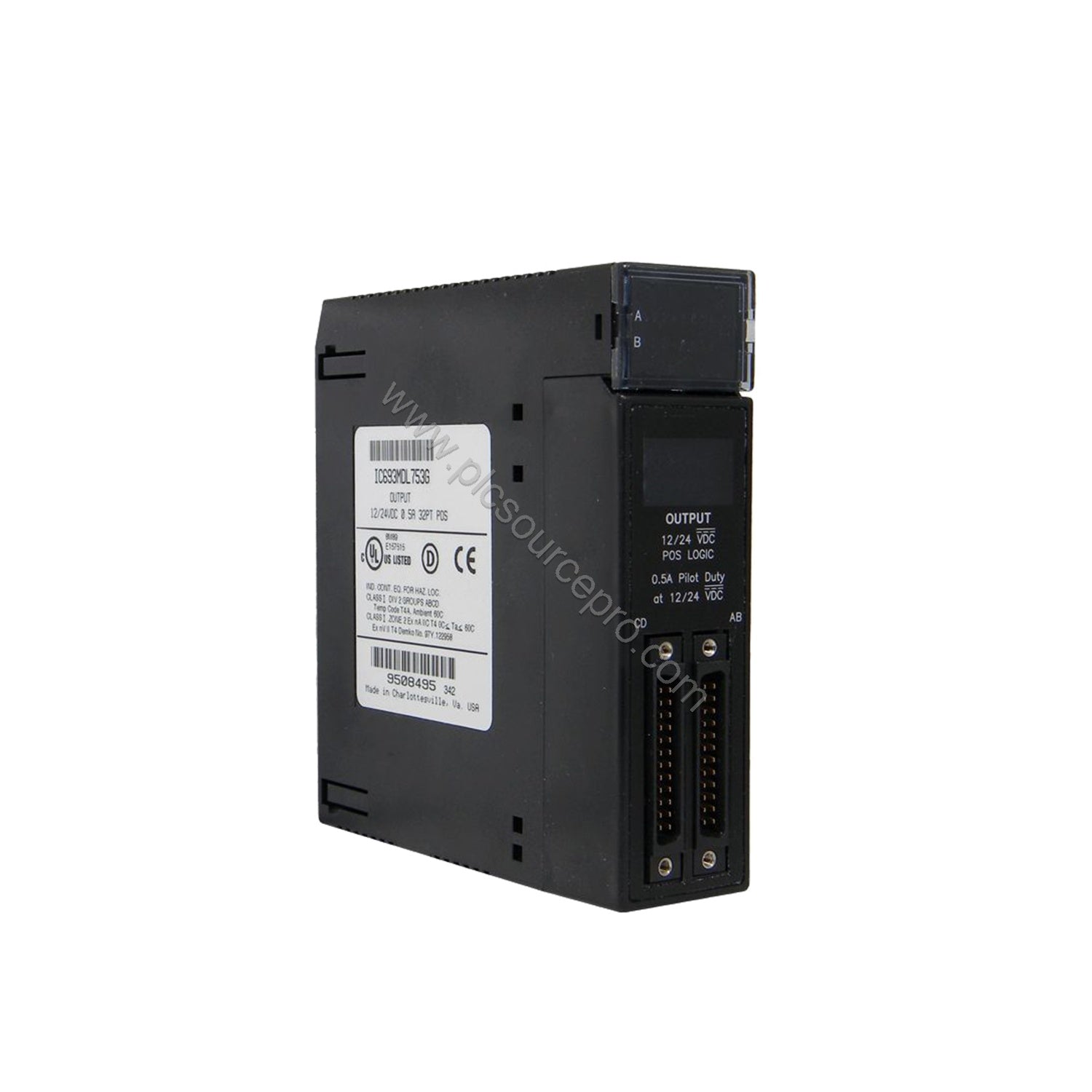

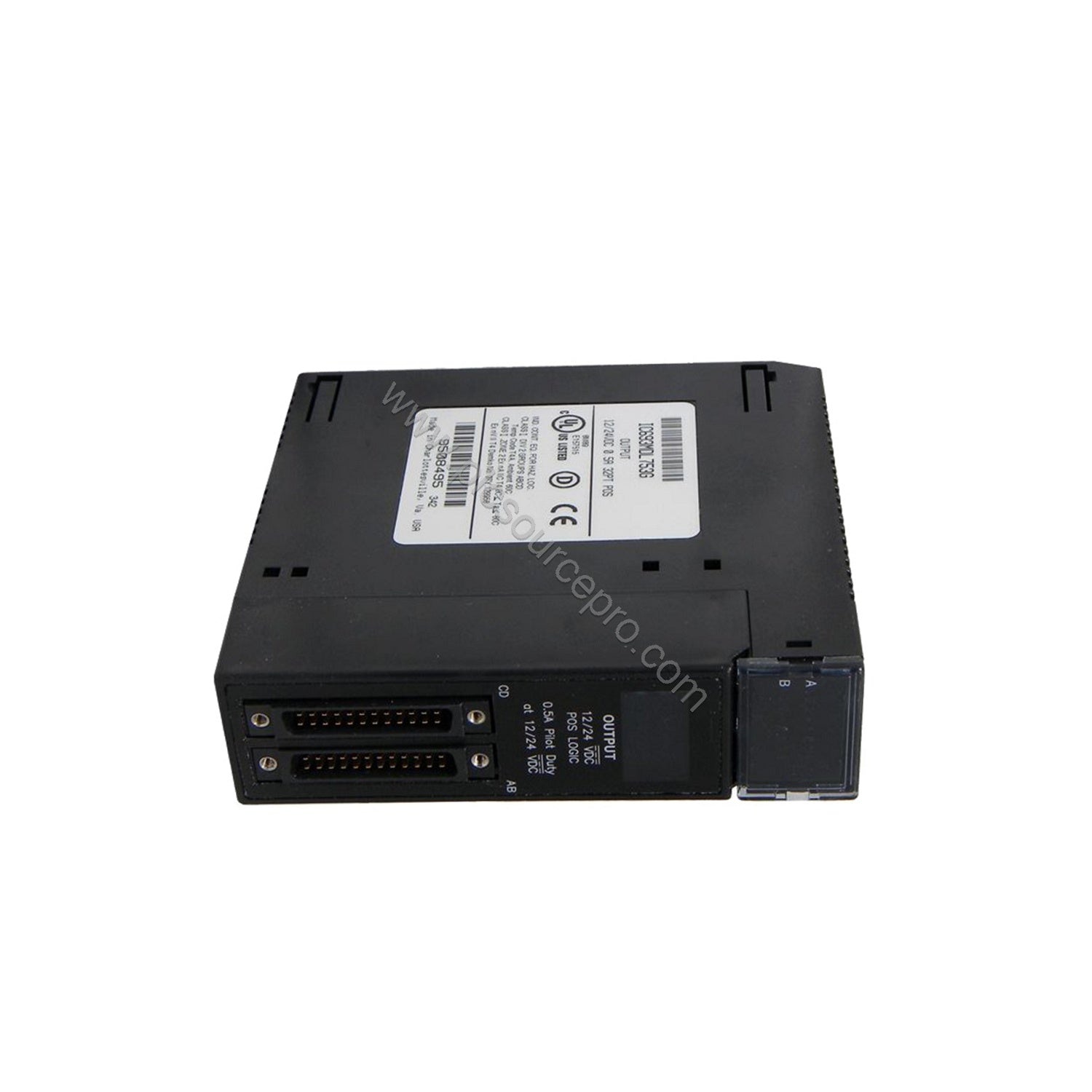

When your existing PLC I/O fails or becomes obsolete, the GE IC693MDL753 provides a reliable replacement for Series 90-30 systems. This discontinued module, originally from GE Fanuc and now supported by Emerson Automation, delivers 32 discrete output channels in four groups of eight. Each channel handles 12-24 VDC at 0.5 A, making it suitable for driving solenoids, relays, and indicator lights.
Technical Specifications Breakdown
The IC693MDL753 operates with a nominal input voltage of 12/24 VDC and an output voltage range of 10.2-28.8 VDC. Its module current draw from the 5 VDC backplane is 260 mA. Key specifications include:
- Output current: 0.5 A per point, 4 A per module, 3 A per group common pin
- Inrush current: 5.4 A for 20 ms
- On/Off response time: 0.5 ms maximum
- Isolation: 1500 V between field and logic; 250 V between groups
These parameters ensure fast, protected switching for industrial loads.
Industry Applications
In a packaging line, the IC693MDL753 controls actuator banks with its 32 outputs grouped to manage different zones. For material handling, each group can drive conveyor solenoids, while the module's 0.5 ms response time supports high-speed sorting. Use it in retrofit projects where an older GE Fanuc 90-30 system needs expanded I/O without replacing the entire controller.
Installation & Setup Guidance
Install the IC693MDL753 in any available slot of a Series 90-30 chassis except CPU, adapter, or specialty slots. It occupies one slot and connects via two 24-pin male connectors on the front. Use recommended cable assembly IC693CBL315 for wiring loads. Ensure proper group isolation (250 V between groups) when connecting different power supplies.
Compatibility & Integration
This module works with all GE Fanuc 90-30 PLCs as local or distributed I/O. It is compatible with existing 90-30 backplanes and power supplies. When the CPU stops, all outputs force off. Integrate easily into legacy systems or upgrade projects without changing the control architecture.
Selection Guide & Purchasing Advice
Before purchasing the GE IC693MDL753, verify your PLC chassis slot availability and power budget (260 mA from 5 V backplane). Although discontinued, this module remains in demand for maintenance and repair. UBEST Automation stocks this part and can help you source compatible accessories. Contact us for stock availability and pricing.
