Product Introduction

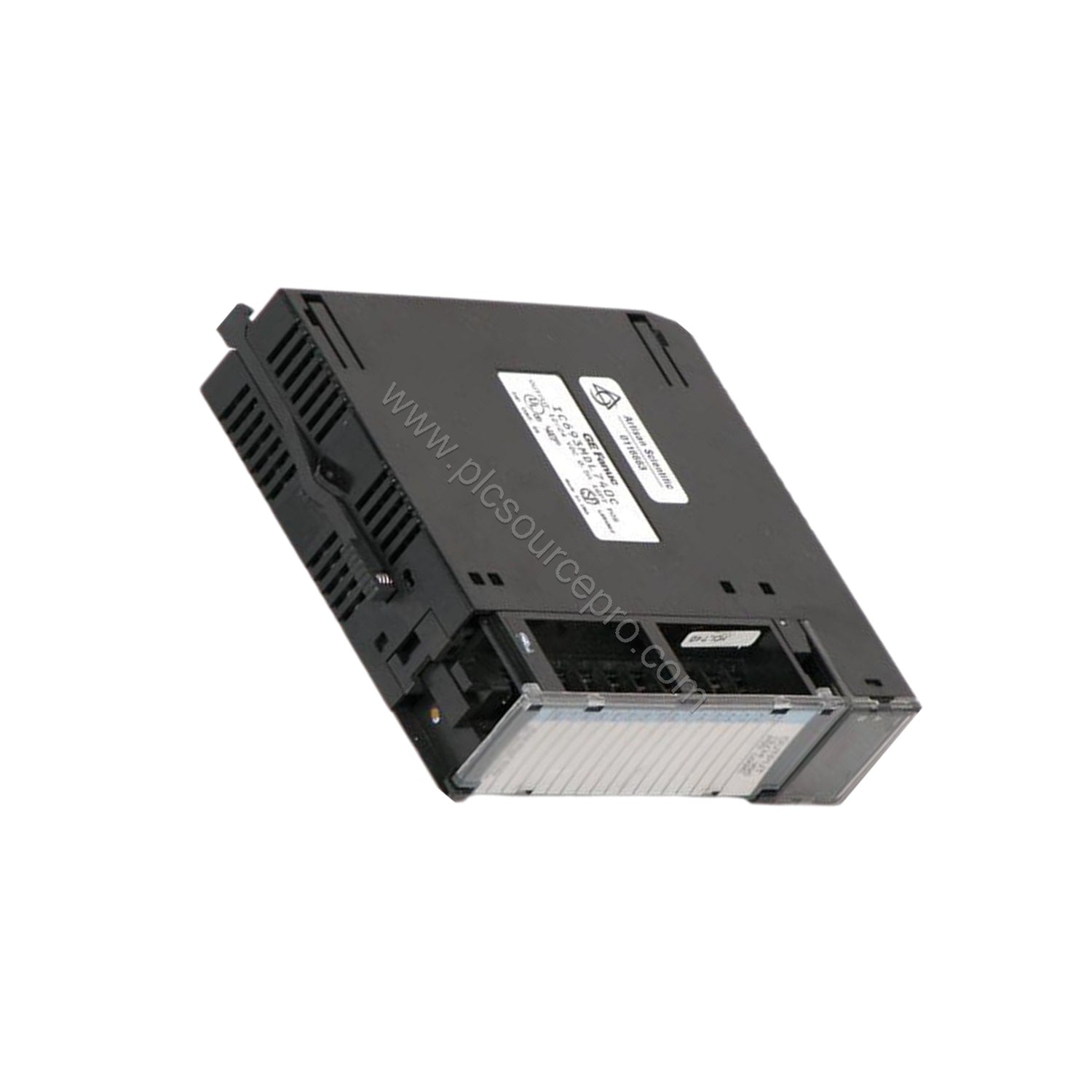

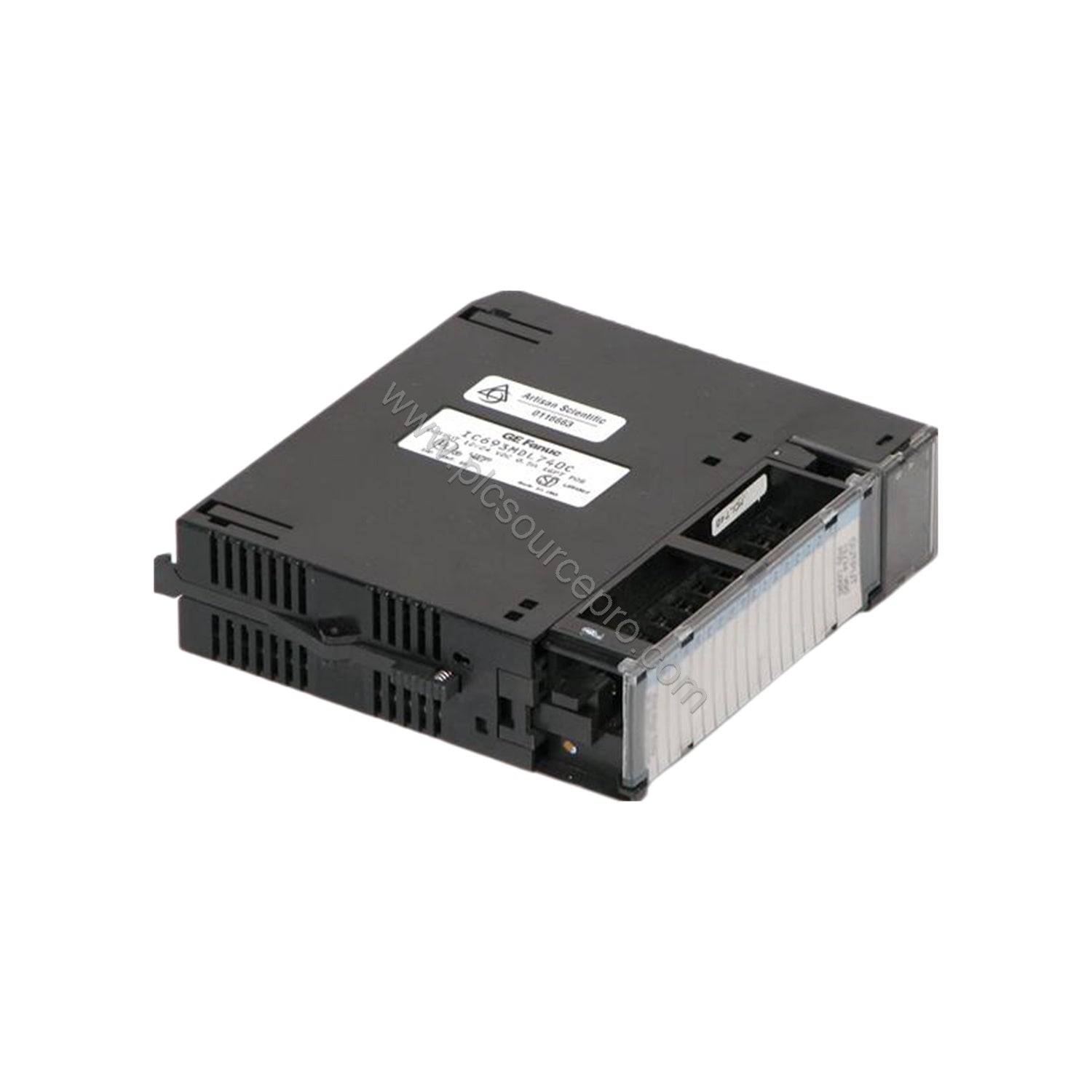

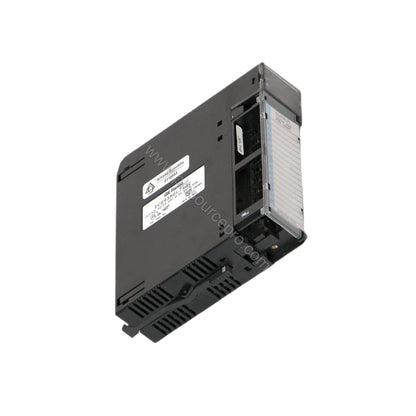

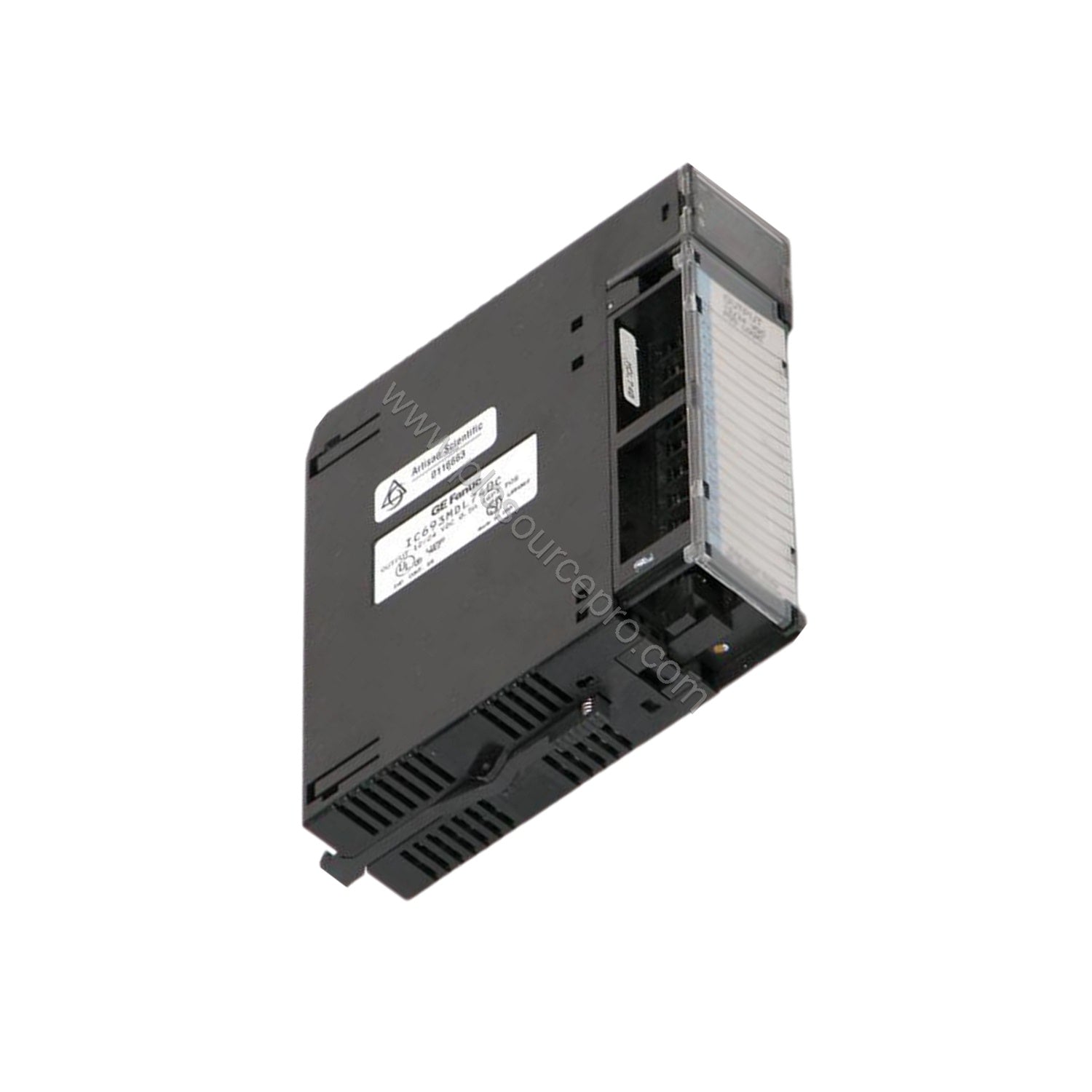

When upgrading or maintaining a GE Fanuc Series 90-30 PLC system, the IC693MDL740 is a critical component. This Digital I/O module provides positive logic sourcing output with sixteen channels. Designed to drive loads such as relays, contactors, and pilot lamps, it offers reliable control in industrial automation. As a discontinued item, sourcing a genuine GE IC693MDL740 ensures compatibility and performance.
Technical Specifications
While detailed specifications are not available in a structured format, the GE IC693MDL740 includes the following key parameters based on product documentation:
- Output Type: Positive Logic Sourcing
- Number of Channels: 16 (two groups of eight)
- Output Voltage Range: 12 to 24 VDC (+20%, –15%)
- Output Current per Channel: 0.5 A
- Output Current per Common: 2 A for 10 ms
- Inrush Current: 4.78 A for 10 ms
- Response Time (ON/OFF): 2 ms max
- Module Peak Current Draw: 110 mA from 5 V bus
- Operating Temperature: 0 to 60 °C
- Storage Temperature: -40 to 85 °C
- Relative Humidity: 5 to 95%
For exact specifications, please contact UBEST Automation using the details on our site.
Industry Applications
The IC693MDL740 is ideal for applications requiring multiple discrete outputs with moderate current. Common uses include:
- Controlling solenoid valves in packaging lines
- Actuating motor starters in conveyor systems
- Energizing indicator lamps in control panels
In replacement projects, swapping an older module with a GE IC693MDL740 maintains system integrity without redesign.
Installation & Setup Guidance
Mount the IC693MDL740 into any available slot of a Series 90-30 5-slot or 10-slot baseplate. Ensure the PLC memory supports the additional 16 output points. The module features front panel LEDs for channel status. Use external fusing for protection as the module lacks internal fuses. Wire loads between the output terminal and negative power bus.
Compatibility & Integration
The GE IC693MDL740 is specifically designed for the GE Fanuc Series 90-30 PLC family. It works with all CPU models in that series. No special software configuration is required for basic operation; the module is recognized automatically by the backplane.
Selection Guide & Purchasing Advice
Before purchasing a IC693MDL740, verify that your system is a Series 90-30 and that you have an available slot. Consider the total current draw from the 5 V backplane bus. Since this product is discontinued, rely on trusted suppliers like UBEST Automation for genuine, tested units. We stock a wide range of GE automation spares to support your upgrades and replacements.
