Product Introduction

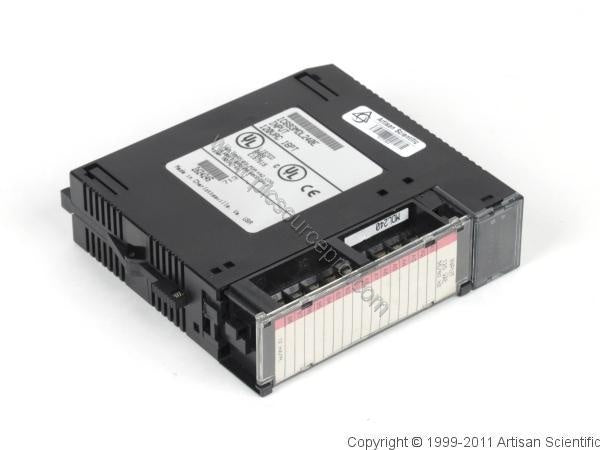

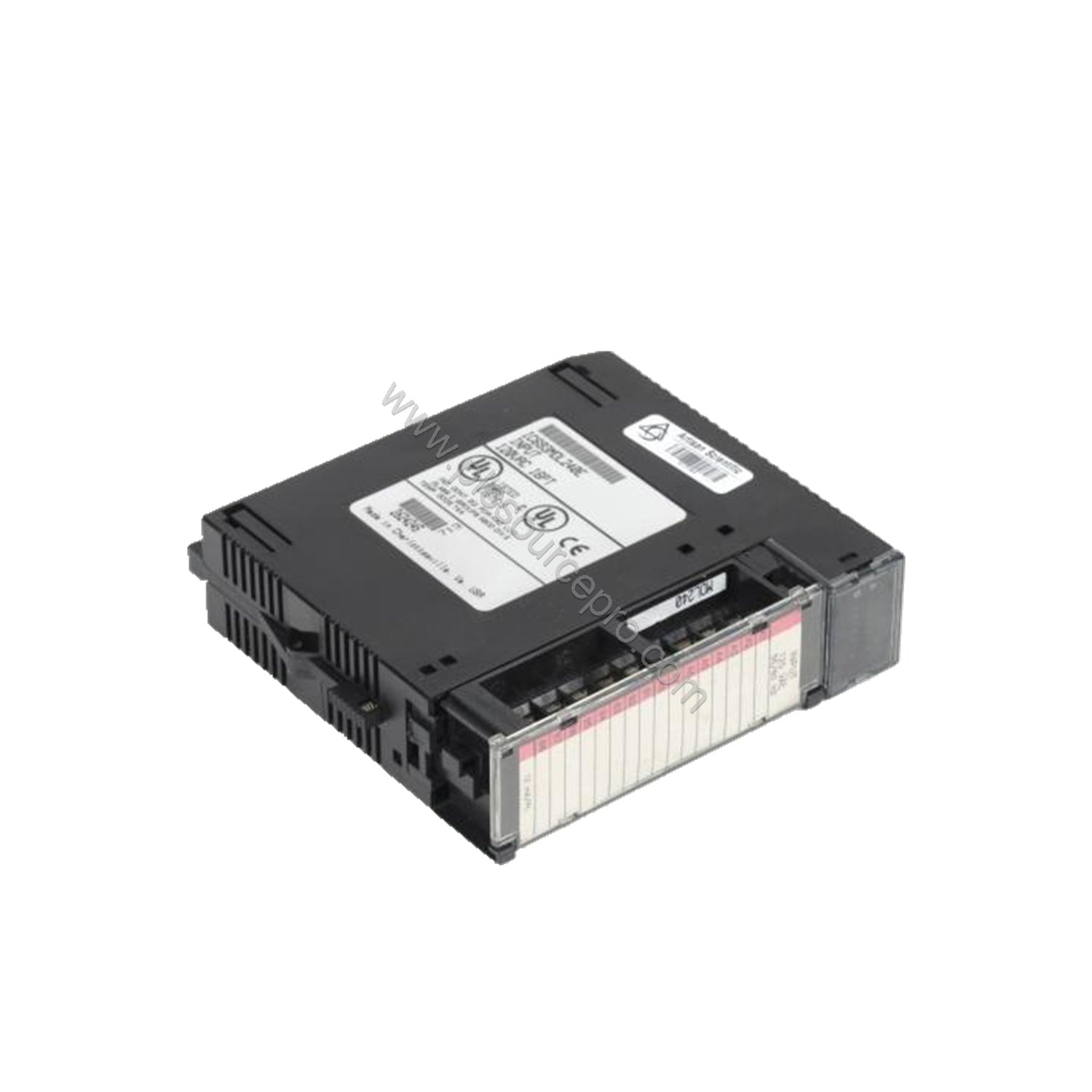

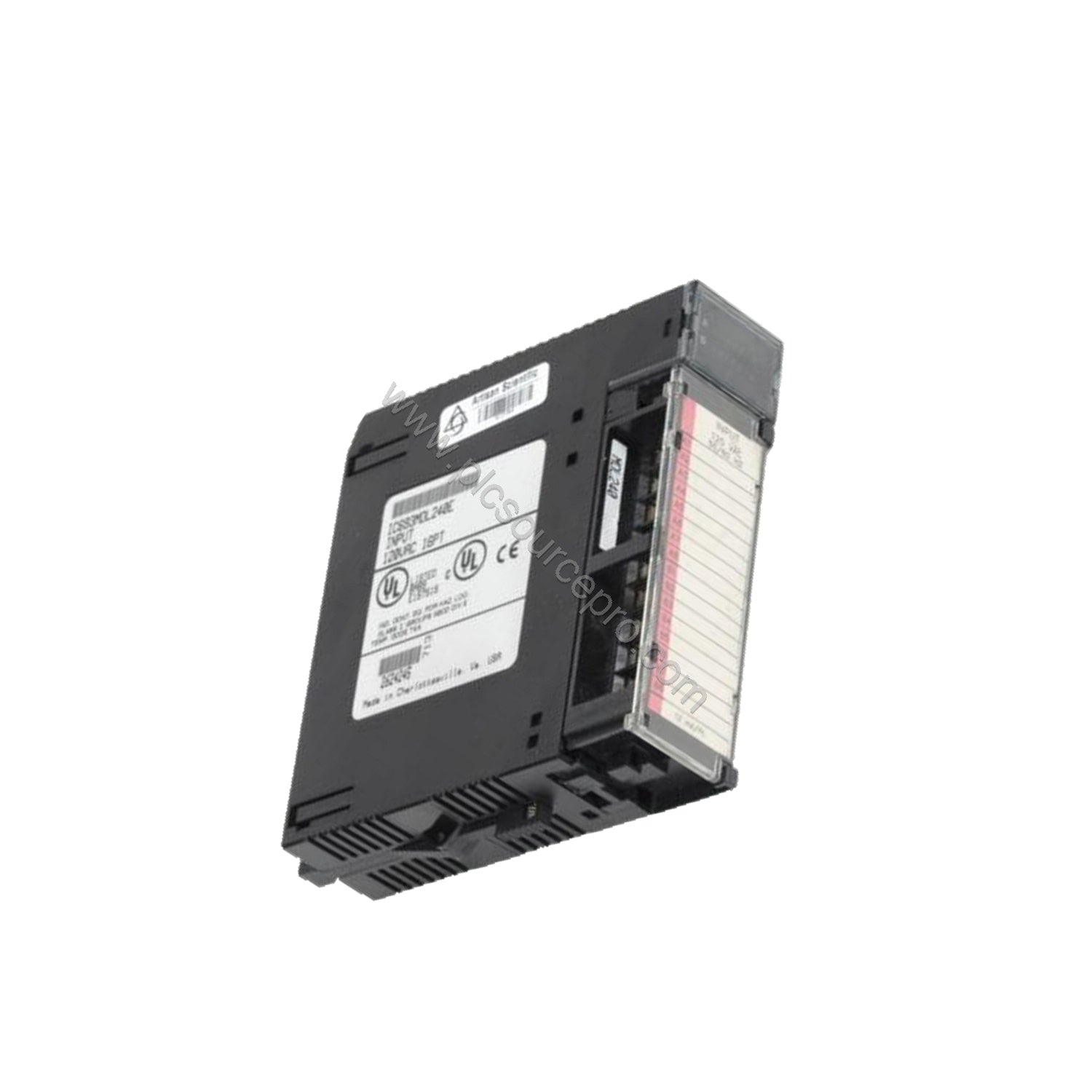

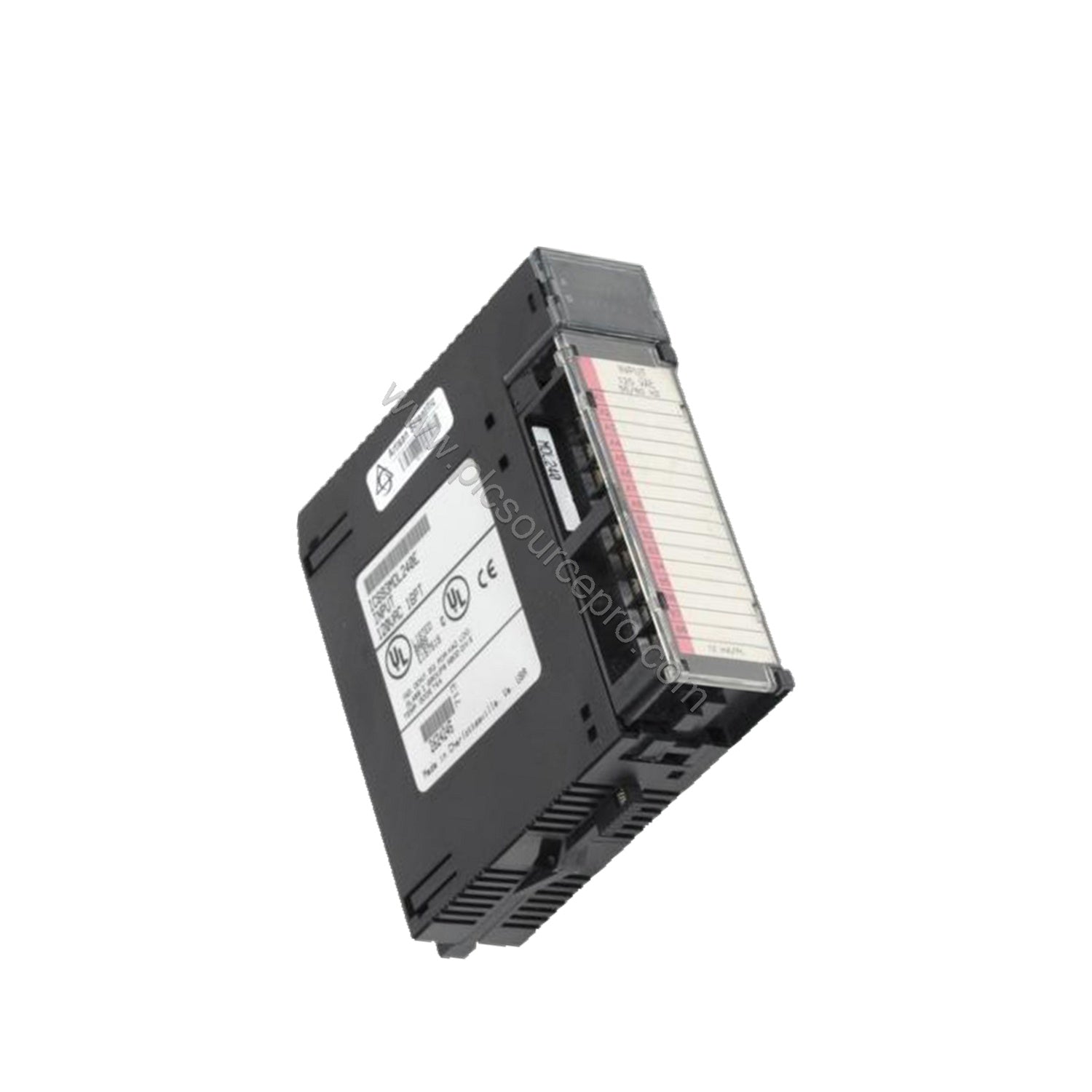

The GE IC693MDL240 is a discrete input module from the Series 90-30 family, originally manufactured by GE Fanuc and now supported under Emerson Automation. This module provides sixteen (16) 120 VAC input channels in a single group, making it ideal for monitoring binary field devices such as switches, pushbuttons, and auxiliary contacts. With an input voltage range of 0-132 VAC and an input current of 12 mA per channel, the GE IC693MDL240 offers reliable detection of on/off states in industrial automation environments.
Technical Specifications
| Parameter |
Value |
| Number of Channels |
16 |
| Input Signal Range |
0-132 VAC |
| Nominal Input Voltage |
0-120 VAC |
| Input Frequency |
47-63 Hz |
| Input Current per Channel |
12 mA |
| On-State Voltage Range |
74-132 VAC |
| Off-State Voltage Range |
0-20 VAC |
| On-State Current |
6 mA |
| Off-State Current |
2.2 mA |
| Isolation (Field to Logic) |
1500 V RMS |
| On Response Time (typical) |
30 ms |
| On Response Time (maximum) |
45 ms |
| Backplane Current Draw |
90 mA |
| LED Indicators |
16 (one per channel) |
| AC Power Required |
Yes |
| DC Power |
No |
| Product Lifecycle |
Discontinued/Obsolete |
Industry Applications
The GE IC693MDL240 excels in monitoring limit switches on packaging lines, detecting pushbutton inputs in conveyor systems, and sensing auxiliary contacts in motor control centers. Its 120 VAC input range and 30 ms typical response time suit high-speed discrete sensing tasks. The module's isolation rating of 1500 V RMS ensures safe operation in electrically noisy environments.
Installation & Setup Guidance
Install the GE IC693MDL240 in any single I/O slot of a Series 90-30 CPU, I/O expansion, or remote I/O baseplate (compatible with 5-slot and 10-slot racks). Ensure the AC supply voltage stays within 0-132 VAC. Connect field devices to the terminal block following the wiring diagram inside the hinged door. The door insert provides circuit identification for easy maintenance.
Compatibility & Integration
The GE IC693MDL240 integrates seamlessly with all GE Series 90-30 PLC systems. It works with CPU baseplates, expansion baseplates, and remote I/O baseplates. Use LogicMaster 90-30, VersaPro, or Proficy Machine Edition software for configuration. The module occupies one I/O slot and can be installed in unlimited quantities, limited only by the host controller's I/O capacity and baseplate support.
Selection Guide & Purchasing Advice
For maintaining legacy Series 90-30 systems, the GE IC693MDL240 provides a reliable replacement or addition. Verify your host controller's firmware version and I/O capacity before purchase. Since this module is classified as discontinued, source from reputable suppliers such as UBEST Automation (ubest101) to guarantee quality and availability. Ensure your application's voltage and frequency match the module's 47-63 Hz range.
