Product Introduction

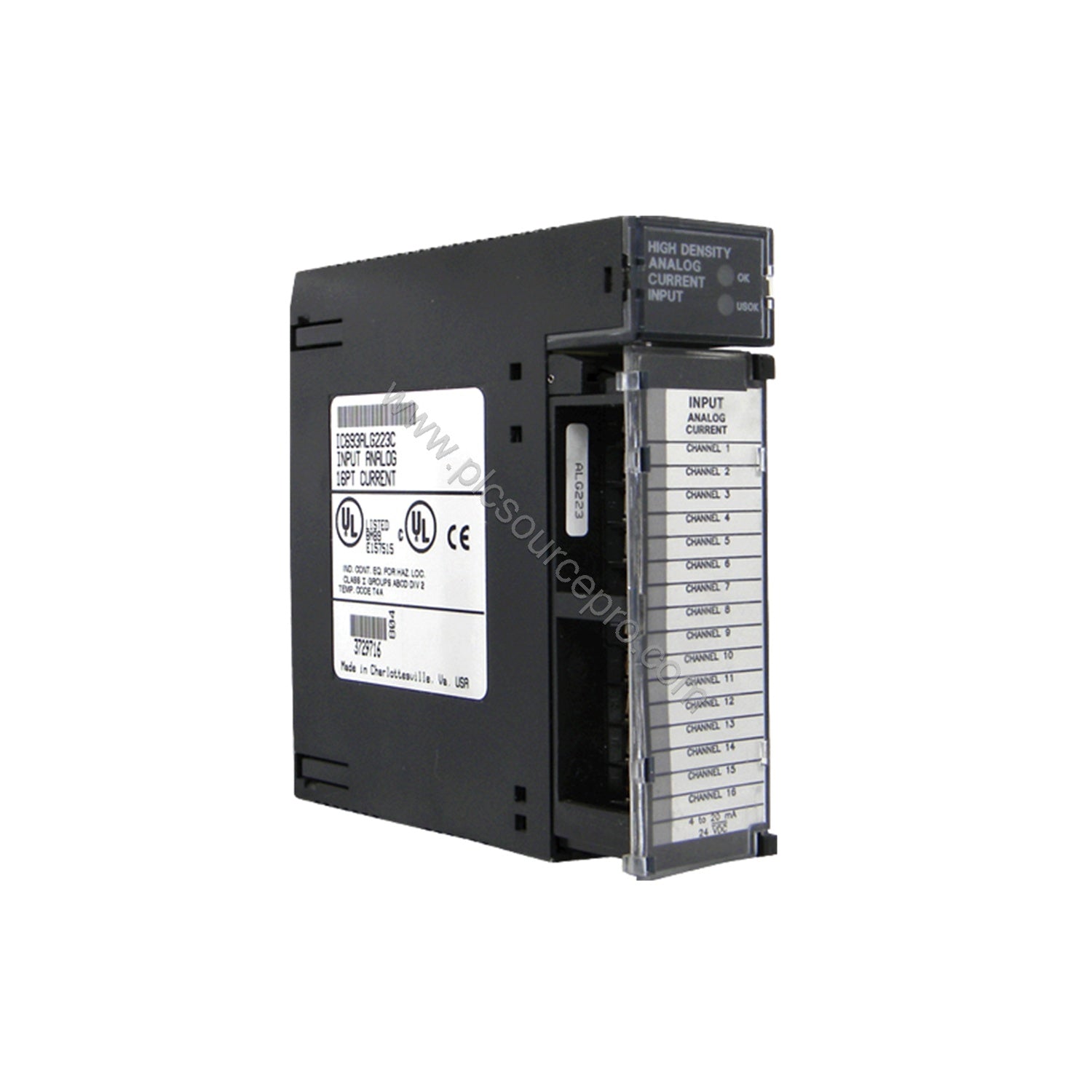

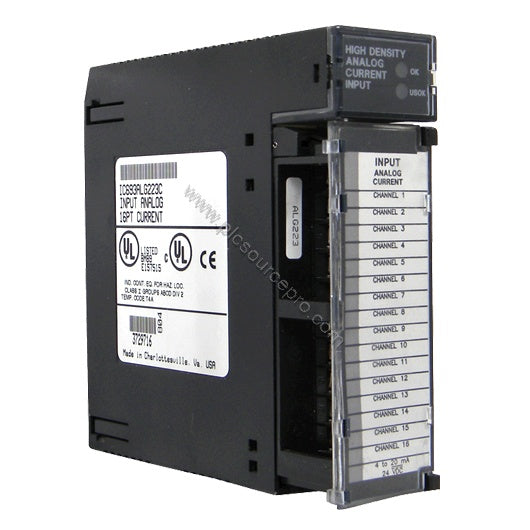

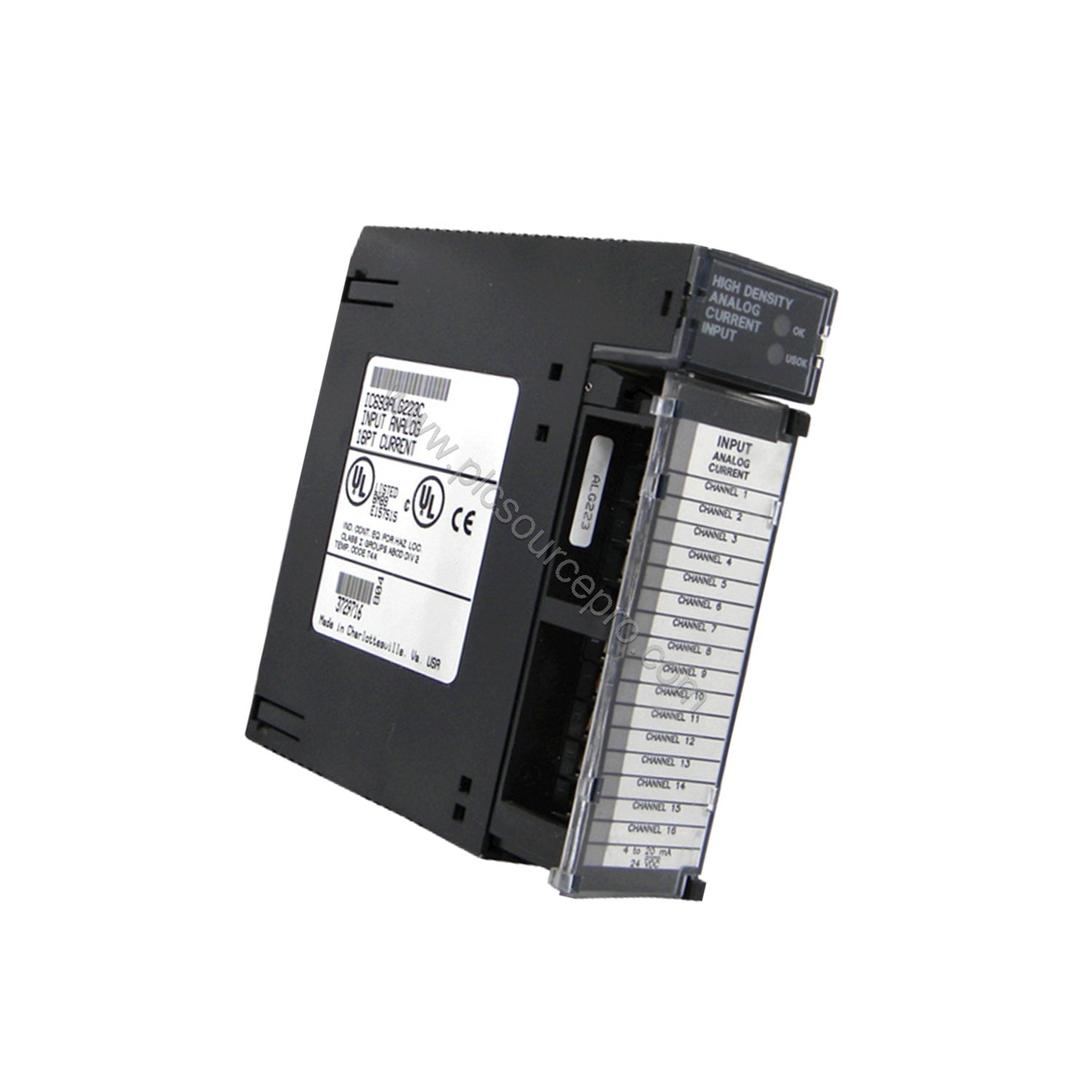

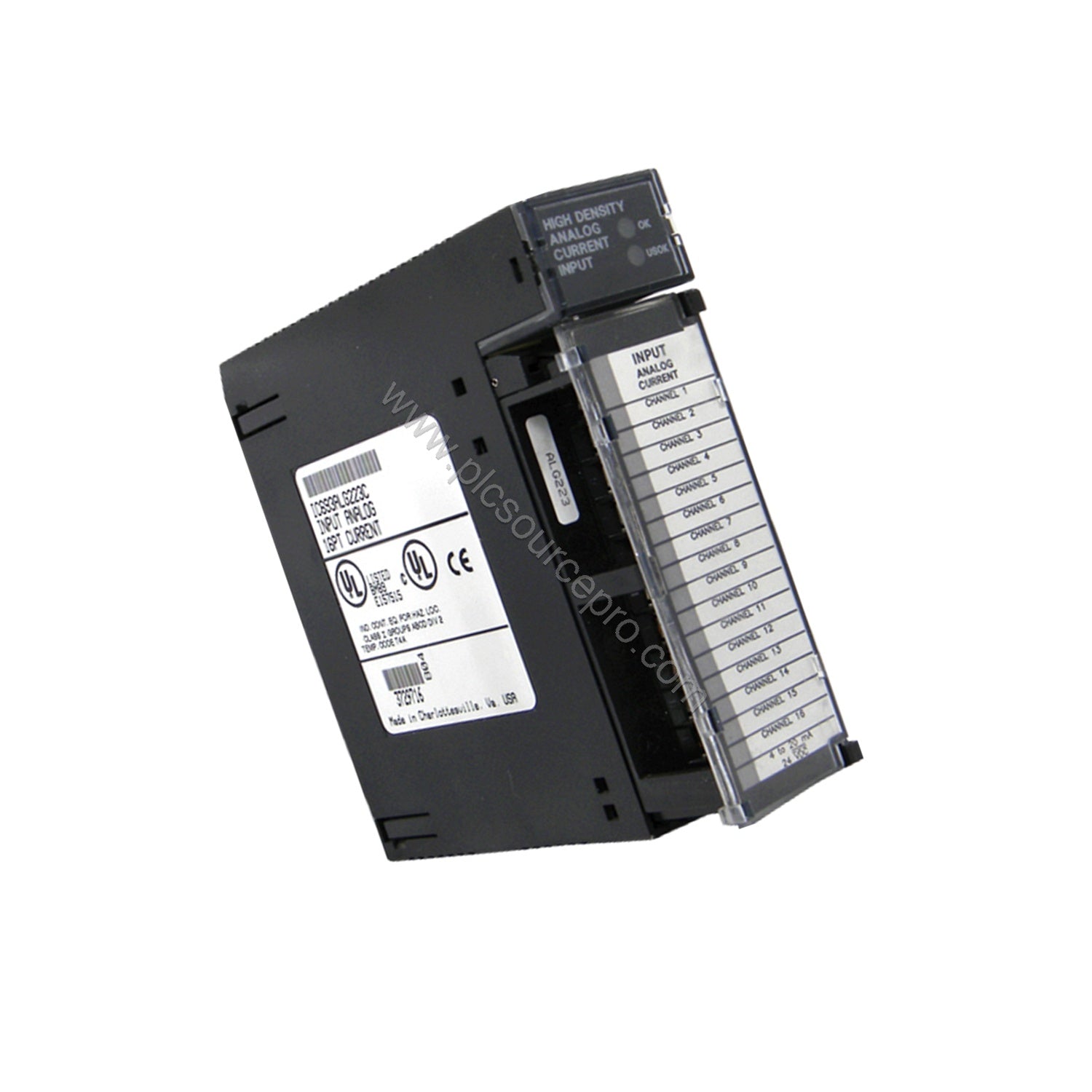

When signal integrity is critical to your process, the GE Fanuc IC693ALG223 delivers reliable analog current input acquisition. This Series 90-30 module accepts sixteen single-ended channels with support for 0-20 mA, 4-20 mA, and 4-20 mA enhanced signals. Designed for demanding industrial environments, the IC693ALG223 ensures accurate measurement of process variables from transmitters, VFD speed feedback, and data loggers.
With 12-bit resolution and high isolation (1500 V RMS field to logic), this module minimizes noise interference common in long cable runs. The IC693ALG223 installs in any slot of a 5-slot or 10-slot baseplate, making it a flexible upgrade for existing GE Fanuc PLC systems.
Technical Specifications Breakdown
Key parameters of the IC693ALG223 are engineered to maintain signal accuracy under varying conditions:
-
Input Ranges: 0-20 mA, 4-20 mA, 4-20 mA enhanced
-
Resolution: 12-bit; 4 µA at 4-20 mA, 5 µA at 0-20 mA and enhanced ranges
-
Accuracy: ±0.25% of full scale at 25°C; ±0.5% over operating temperature range
-
Isolation: 1500 V RMS field to logic side
-
Update Rate: 13 ms for all 16 channels
-
Input Impedance: 250 ohms
-
Input Filter Response: 200 Hz
-
Power Consumption: 120 mA at 5 VDC internal, plus 65 mA user-supplied 24 VDC
These specs make the IC693ALG223 ideal for applications requiring high noise immunity and stable readings across multiple channels.
Industry Applications
The GE IC693ALG223 thrives in scenarios where analog signal quality is paramount. Typical uses include:
-
Process Control: Monitor level, flow, and temperature via 4-20 mA transmitters in chemical plants and refineries.
-
Variable Frequency Drive Feedback: Capture VFD speed signals accurately with the 12-bit resolution and 13 ms update rate.
-
Data Acquisition Systems: Interface with panel meters and data loggers that output 0-20 mA signals, ensuring reliable data transfer even in electrically noisy environments.
The 1500 V isolation prevents ground loops and protects the logic side, reducing costly downtime.
Installation & Setup Guidance
Installing the IC693ALG223 requires careful attention to wiring and power. Follow these steps for reliable operation:
- Mount the module in any available slot on a 5-slot or 10-slot Series 90-30 baseplate.
- Connect field devices using shielded twisted-pair cable to minimize electromagnetic interference. Ground the shield at one end.
- Provide an external 24 VDC power supply (20-30 VDC range, ripple less than 10%).
- Configure channel ranges (0-20 mA or 4-20 mA) via the PLC software; each channel is independently configurable.
- Verify that the total number of IC693ALG223 modules does not exceed the CPU limit: 4 modules for CPUs 311/313/323, 8 for CPU 331, and 12 for CPUs 340/341/351/352.
Proper grounding and isolation practices will maximize the module's noise rejection capabilities.
Maintenance & Reliability
The IC693ALG223 is built for long-term field operation. Routine maintenance includes:
- Inspect wiring connections annually for corrosion or looseness.
- Check external 24 VDC supply voltage and ripple; out-of-range supply can degrade accuracy.
- Clean module vents and baseplate to prevent dust buildup that could impair heat dissipation.
- Verify update rate and accuracy during scheduled system audits, using a known current source to confirm readings.
With proper care, the module's 12-bit resolution and isolation remain stable over years of service, reducing total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing the IC693ALG223, confirm that your system supports the module count and baseplate type. Ensure you have a compatible GE Fanuc Series 90-30 CPU and an external 24 VDC supply. UBEST Automation (ubest101) stocks genuine IC693ALG223 modules with fast shipping and technical support. Verify your order part number matches IC693ALG223 exactly to avoid compatibility issues.
