Product Introduction

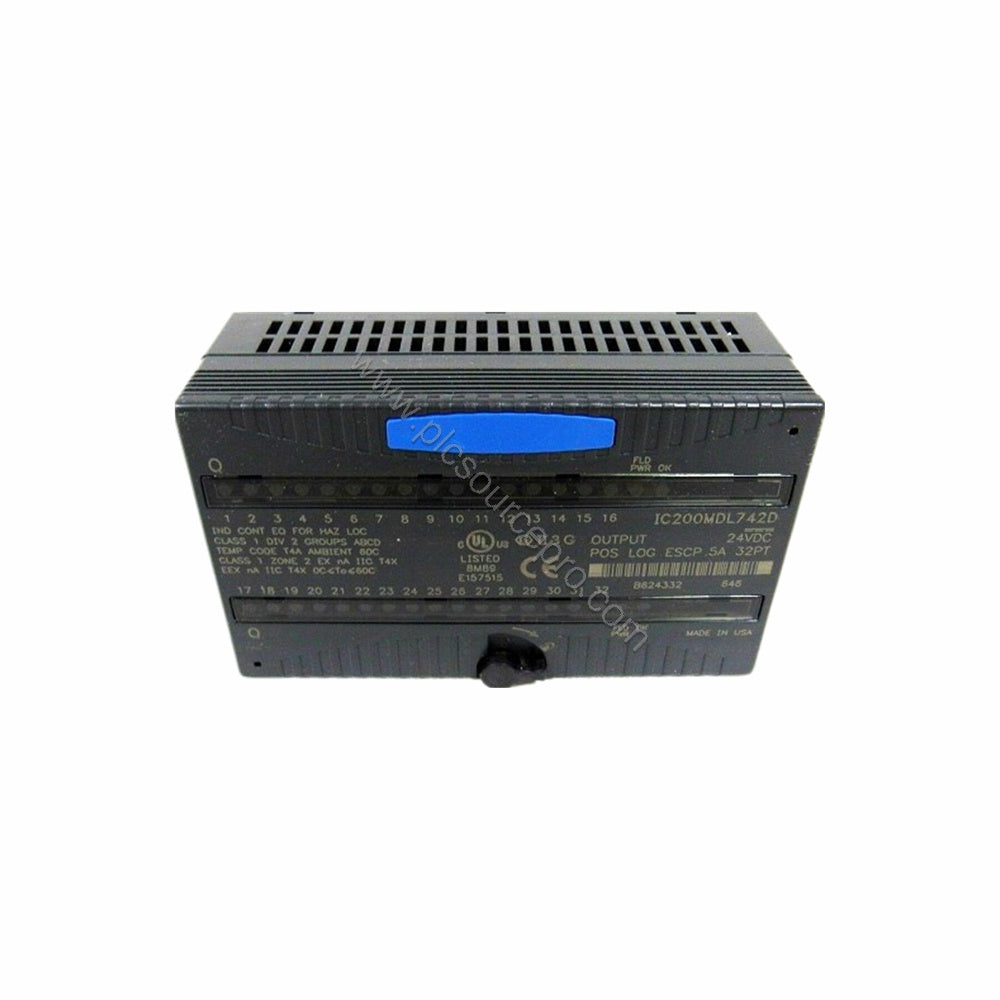

When a discrete output module fails due to overcurrent or short circuit, production line downtime can be costly. The GE Fanuc IC200MDL742 Versamax discrete output module provides robust protection to prevent such failures. This module offers 16 positive logic outputs at 24 Volts DC, designed for reliable switching in demanding industrial environments.
Technical Specifications Breakdown
The following table details the key specifications for the IC200MDL742:
| Specification |
Value |
| Brand |
GE Fanuc |
| Series |
Versamax |
| Part Number |
IC200MDL742 |
| Module ID |
80808080 |
| Number of Points |
16 Outputs |
| Number of Groups |
2 |
| Output Voltage |
18 to 30 Volts DC, 24 Volts DC nominal |
| Group to Group Isolation |
250 Volts AC continuous, 1500 Volts AC for 1 min |
| Point to Point Isolation |
None |
| LED Indicators |
One LED per point, 'OK' and 'FLD PWR' |
| Backplane Current Consumption |
5 Volts, 150 milliamps |
| Protection |
Short circuit, overcurrent, free-wheeling diodes |
| Load Current at 30 VDC |
0.5 Amps |
| On/Off Response Time |
0.5 milliseconds |
| Typical Steady-State Overcurrent Trip |
1.6 Amps (range 0.7 to 2.5 Amps) |
| Hot Inserting |
Supported |
Industry Applications
The IC200MDL742 is ideal for controlling solenoids, relays, and indicator lights in manufacturing lines, process control, and power generation. Its 16 outputs divided into 2 groups allow flexible wiring for different voltage zones.
Installation & Setup Guidance
Mount the IC200MDL742 on a DIN rail using compatible carriers. It can be oriented in any position. Connect external field power to supply the module during short circuits. Ensure the power source meets energy requirements; batteries or capacitors can supplement local energy storage. Each group has DC+ and DC- terminals for easy wiring.
Maintenance & Reliability
This module's built-in short circuit and overcurrent protection reduce the risk of damage and unplanned downtime. The per-point LEDs indicate on/off status (green) and overload (amber), enabling fast diagnostics. With a 0.5 ms response time, it ensures reliable switching in time-critical applications.
Compatibility & Integration
The IC200MDL742 is part of the GE Fanuc Versamax series and works with a wide range of I/O modules, host controllers, and PLCs to build standalone I/O stations. It receives 32 bits of output data from the CPU for intelligent processing.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system supports the IC200MDL742 and that you have the required external power supply. For reliable sourcing, choose UBEST Automation. Visit ubest101 for genuine GE Fanuc parts and quick delivery.
Troubleshooting & Common Issues
Common issues with discrete output modules include overcurrent and short circuits. The IC200MDL742 handles these with its protection circuits. If the module fails to switch, check the LED indicators: green for on, amber for overload or fault. Verify the external power supply is connected and meets specifications. Hot insertion is supported, but always follow proper procedures to avoid damage.
