Product Overview

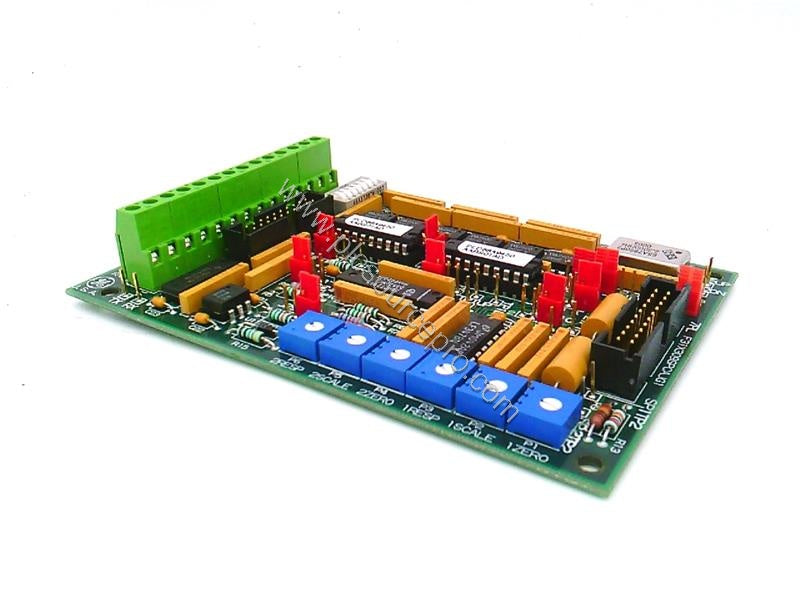

The GE 531X309SPCAJG1 is a Digital Signal Process Board from the 531X series, designed as a replacement board for a range of GE drives. It serves as a signal processor card for the DC2000 Digital Adjustable Speed Drive family, working in conjunction with the SDCC Drive Control Card. Key functions include local area network (LAN) control board and drive control board I/O processing. The 531X309SPCAJG1 interfaces with encoders and tachometers, providing speed feedback to the drive's control board. It converts three current reference signals and a voltage level signal into voltage reference signals for command execution. Additionally, it processes RS-422 serial signals and sends them to the motor control processor. The board features configurable switches, jumpers, and potentiometers for adjusting signal filtering and gains.
Real-World Applications
The GE 531X309SPCAJG1 is ideal for industrial environments where precise speed control and signal processing are critical. Typical applications include:
- Replacing failed signal processor boards in existing GE DC2000 drive systems to restore full I/O functionality.
- Upgrading older drive systems to improve signal integrity and reduce noise through configurable filtering.
- Integrating with encoders and tachometers in applications such as conveyors, hoists, and extruders where accurate speed feedback is essential.
By using the 531X309SPCAJG1, facilities can maintain reliable drive performance and minimize downtime.
Installation & Setup Guidance
When installing the GE 531X309SPCAJG1, always follow the manufacturer's guidelines provided in the device manual and datasheet. The card includes screw terminals and an RS-422 serial connector for wiring. Ensure that all installation parameters are met to avoid accidents or damage. Only qualified personnel trained in handling electronic boards should perform the installation. Before powering up, verify that all switches and jumpers are set according to your system requirements. Proper grounding and shielding of signal cables is recommended to prevent interference.
Selection Guide & Purchasing Advice
Before purchasing the GE 531X309SPCAJG1, confirm that your system uses the DC2000 Digital Adjustable Speed Drive family and SDCC Drive Control Card. Verify that the board revision matches your existing hardware. For technical specifications not listed here, please contact PLC Source PRO directly for detailed information. PLC Source PRO provides reliable industrial automation parts and can assist with compatibility questions. We recommend buying from a trusted source to guarantee genuine components.
Troubleshooting & Common Issues
Common issues with signal processor boards include improper configuration of switches and potentiometers, which can lead to incorrect signal gain or filtering. If the drive does not respond correctly, check all jumper settings against the manual. Poor connections at the screw terminals or RS-422 connector can cause intermittent faults. Ensure that all cables are securely fastened and undamaged. If speed feedback is erratic, verify the encoder or tachometer wiring and replace if necessary. For persistent problems, consult the GE service documentation or contact technical support.
