Product Overview

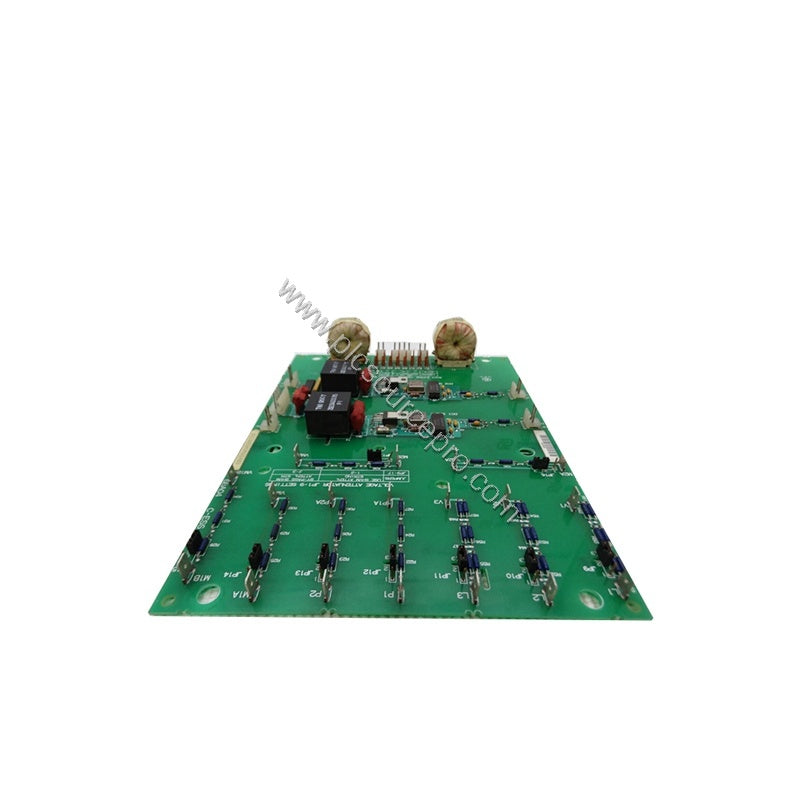

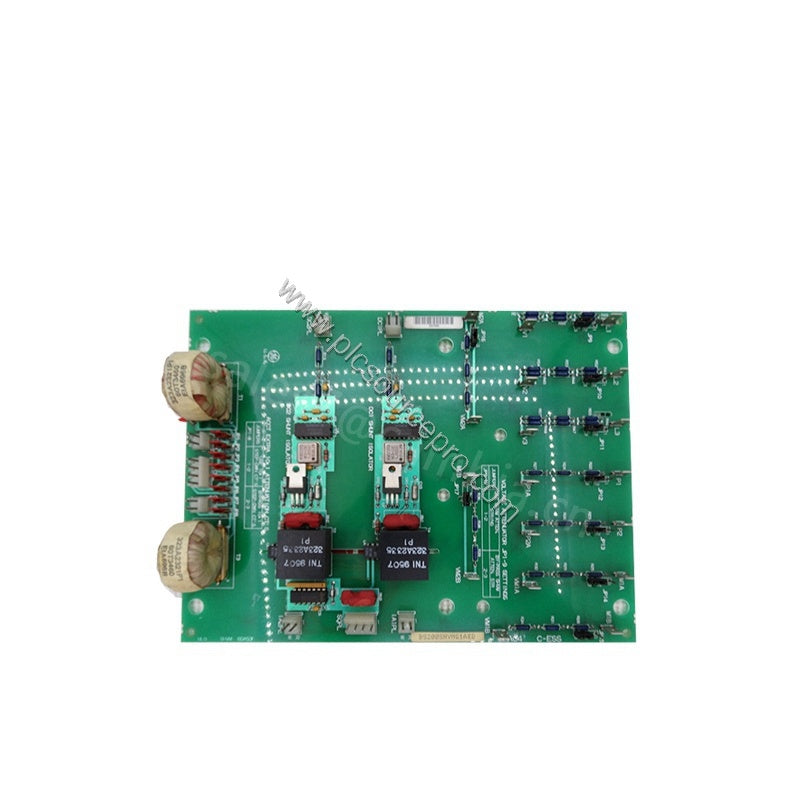

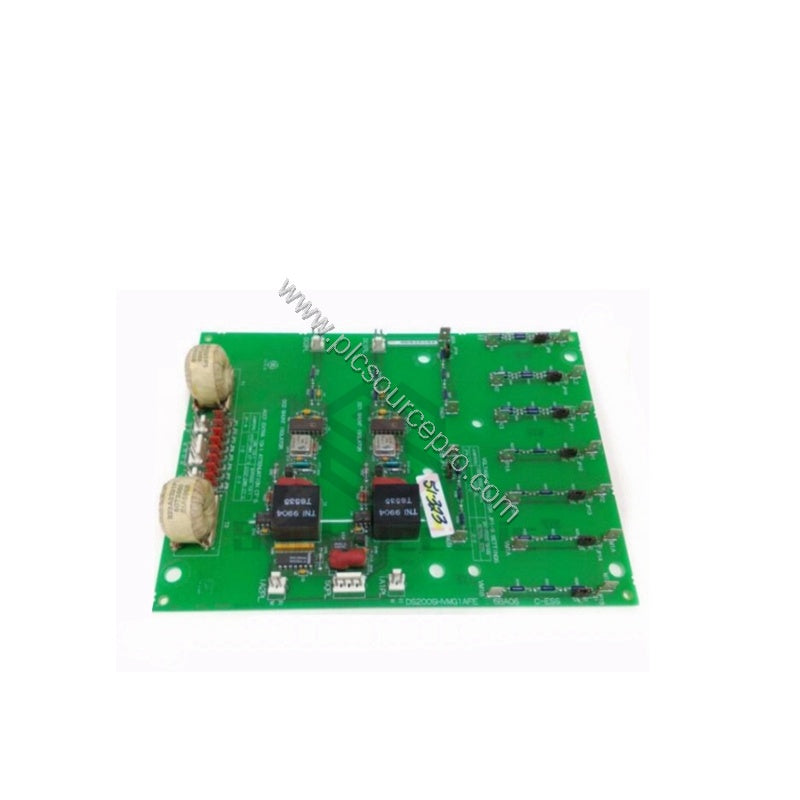

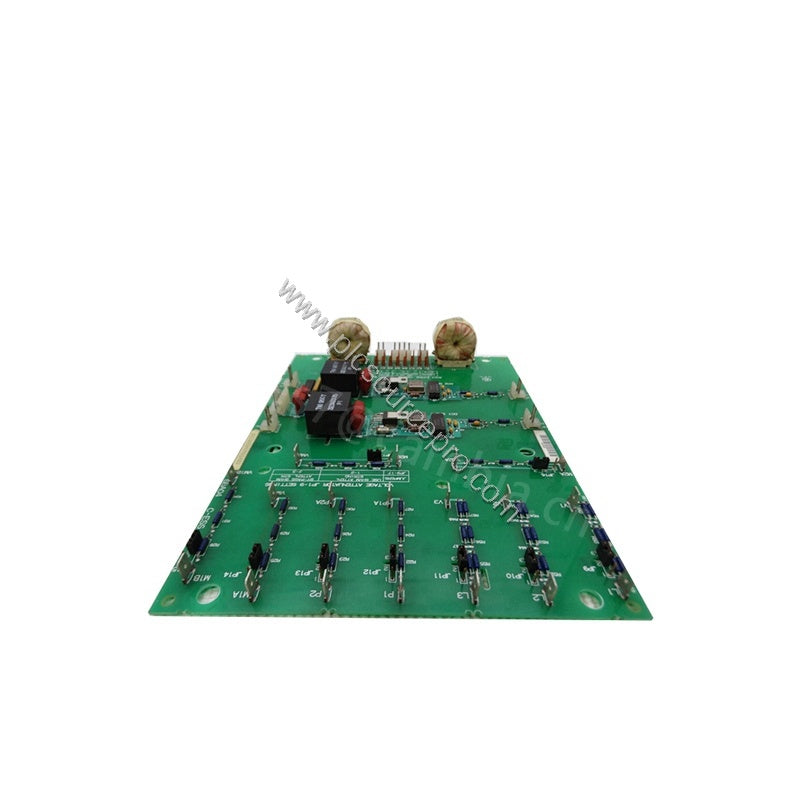

The GE 531X111PSHAPG2 is a Terminal Board Relay Card designed as a replacement board for drive control systems in the 531X series. It supplies 5 VDC, 15 VDC, and 24 VDC current to the drive and includes an integrated pulse transformer for motor field circuitry. This board is intended for installation only by qualified personnel due to high-voltage and moving parts.
Technical Specifications
-
Supply Voltages: 5 VDC, 15 VDC, 24 VDC
-
Pulse Transformer: For motor field circuitry
-
Relay Points: 3 onboard relays
-
Potentiometers: 3 for current and feedback regulation
-
Jumpers: 5 for calibration of current and feedback signals
-
Series: 531X Boards (G3 version, MOVs for AC line not installed on board)
Applications
The GE 531X111PSHAPG2 is used in drive control systems where reliable power supply and motor field control are critical. Typical applications include replacing faulty terminal boards in industrial drives for conveyors, pumps, and fans. It ensures stable operation of motor field circuits with its dedicated pulse transformer.
Installation Guidance
Before installing the GE 531X111PSHAPG2, inspect the area for moisture and trip hazards. Use only grounded extension cords; replace two-wire cords with three-wire. Ensure emergency shut-off is accessible. Always have a second person trained in emergency procedures nearby. The board is a high-voltage device; only experienced technicians should perform installation.
Maintenance Tips
Regularly check the GE 531X111PSHAPG2 for signs of wear on relays and potentiometers. Keep the board free of dust and moisture. The MOVs for AC line are not on the board, so external protection may be needed. Periodically verify voltage outputs (5, 15, 24 VDC) with a multimeter to ensure proper drive operation.
Selection Guide
When selecting the GE 531X111PSHAPG2, verify it matches your drive model in the 531X series. Check that the existing cables and connectors are compatible. For OEM replacement, confirm the part number matches exactly. UBEST Automation offers this original GE module with fast shipping. Visit ubest101 for ordering details.
