Product Overview

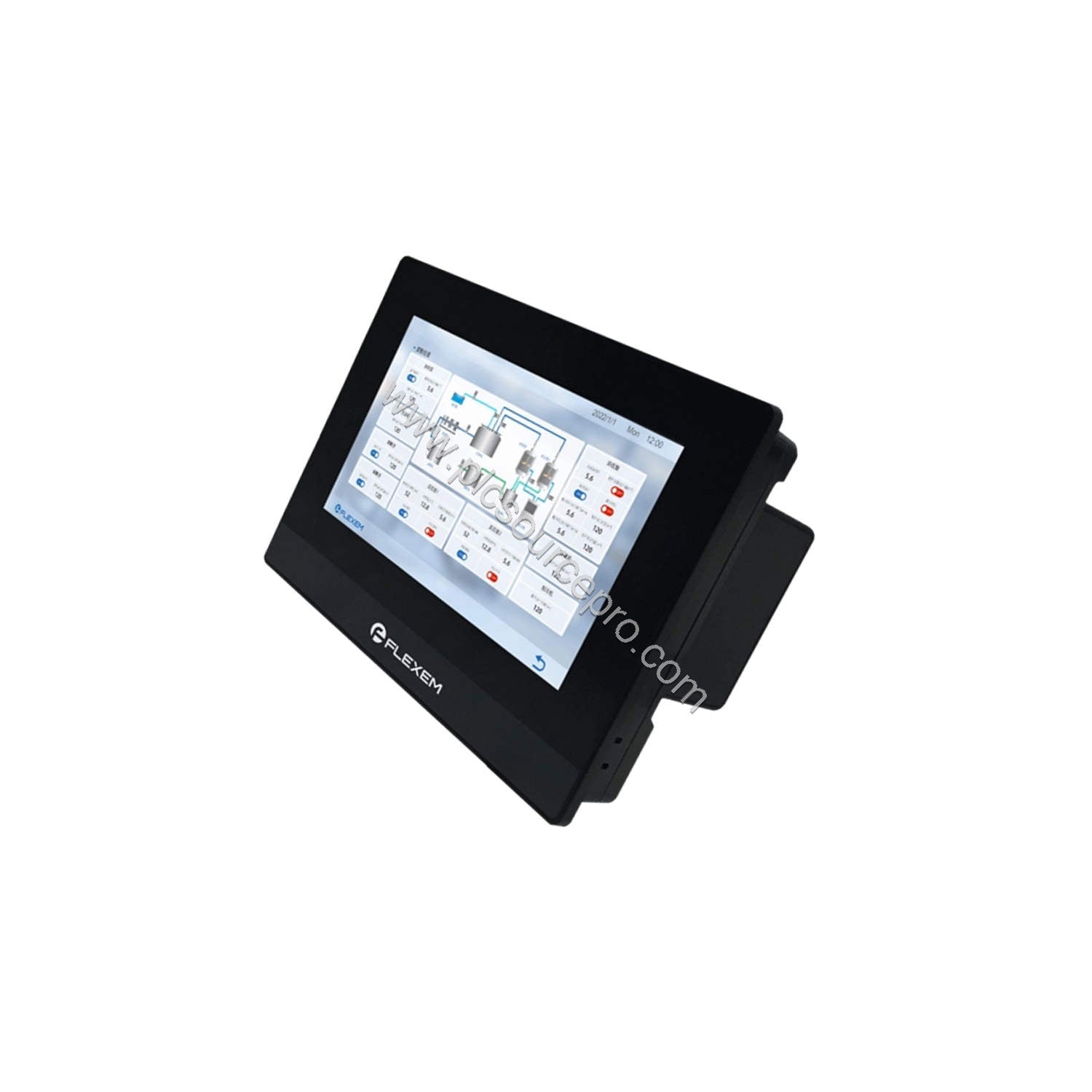

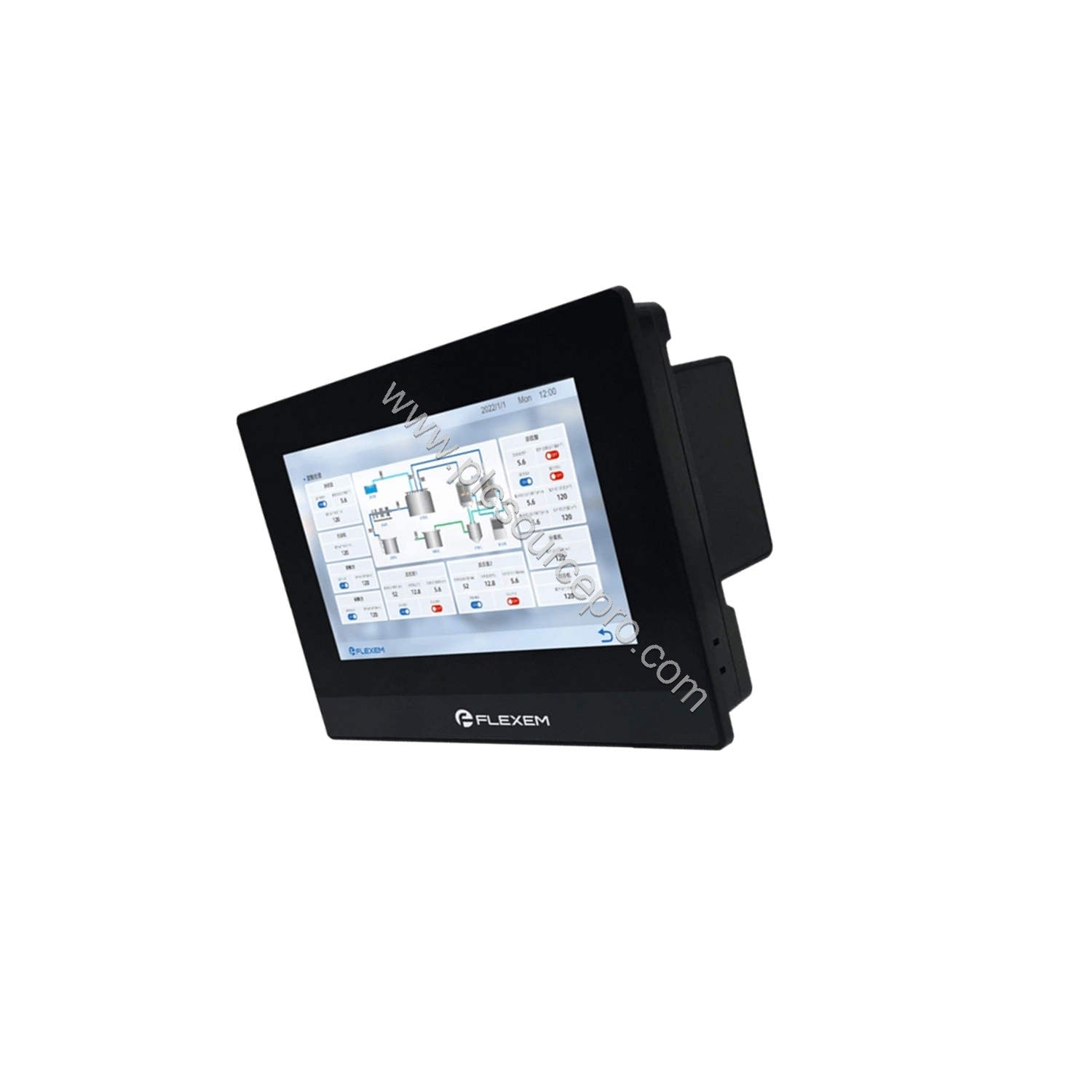

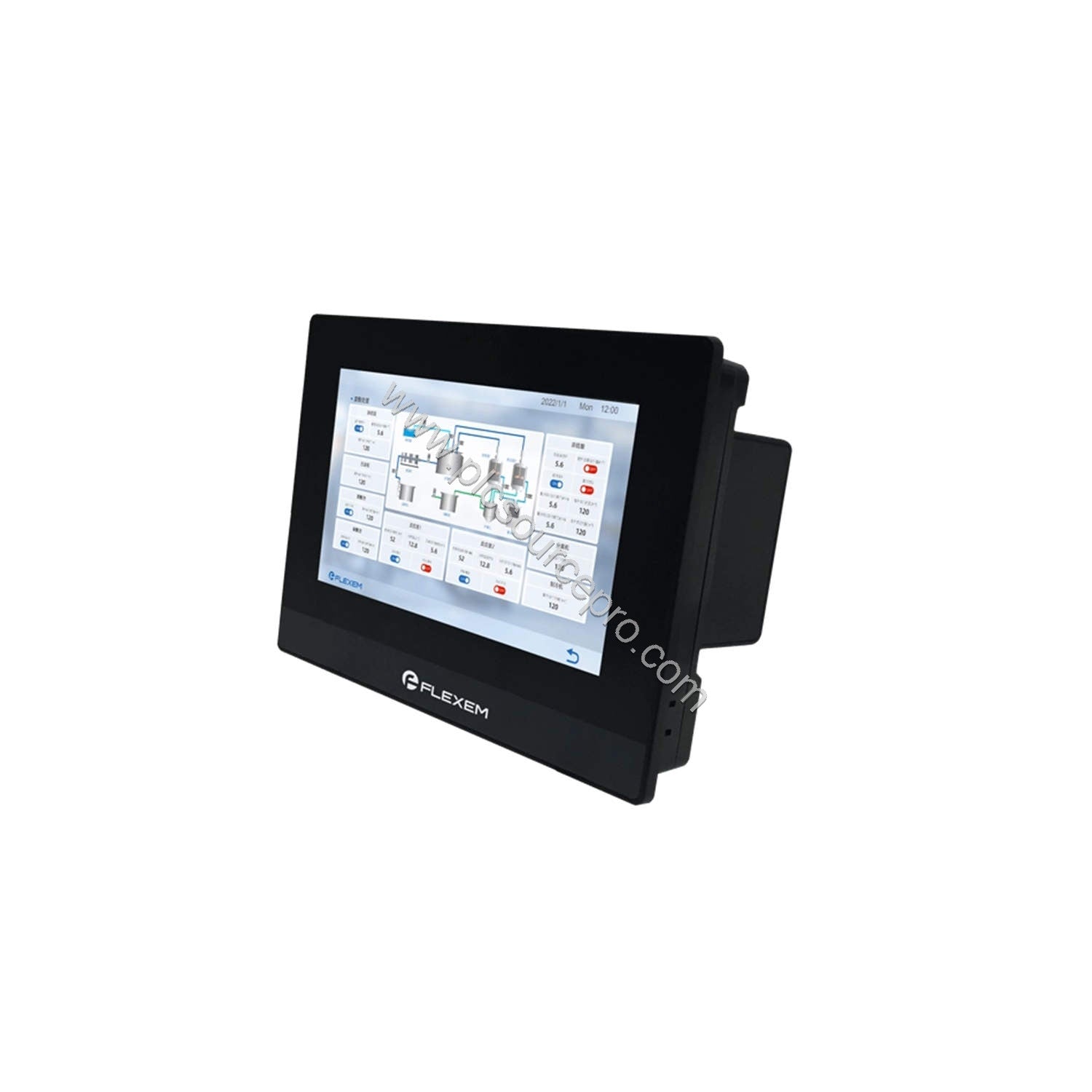

The Flexem FE6070H is a new-generation IIoT human-machine interface from the HMI 6000 Series. It combines a high-quality, cost-effective touch screen with an industrial ABS plastic shell, delivering low cost and high reliability. By selecting the optional Flink IIoT module, you can upgrade the FE6070H to a full IIoT HMI immediately, gaining access to a complete and convenient industrial cloud platform service.
Technical Specifications
| Parameter |
Value |
| Display |
7" 16:9 TFT LCD |
| Resolution |
1024 × 600 |
| Colors |
24-bit |
| Brightness |
350 cd/m² |
| Touch Panel |
4-wire industrial resistive touchscreen |
| CPU (V2) |
600 MHz ARM Cortex-A8 |
| CPU (V3) |
1.2 GHz ARM Cortex-A7 |
| Memory (V2) |
128 MB Flash + 128 MB DDR3 |
| Memory (V3) |
4 GB eMMC + 256 MB DDR3 |
| Ethernet Port |
1× 10/100 M (V2) or 2× 10/100 M (V3) |
| USB Port |
1× USB Slave 2.0; 1× USB Host 2.0 |
| Serial Ports |
COM1: RS232/RS485/RS422; COM2: RS485; COM3: RS232 |
| Rated Power |
< 10 W |
| Input Voltage |
DC 24 V (working range DC 9 V~28 V) |
| Power Protection |
Lightning surge protection |
| Power Interruption Tolerance |
< 5 mS |
| Certification |
CE, RoHS |
| Operating Temperature |
0~50 °C |
| Storage Temperature |
-20~60 °C |
| Environmental Humidity |
10~90 %RH (Non-condensing) |
| Vibration Endurance |
10~25 Hz (X, Y, Z direction 2G/30min) |
| Protection Level |
Front: IP65 (NEMA panel), Rear: IP20 |
| Enclosure Material |
Engineering plastic |
| Cutout Dimensions |
192 × 138 mm |
| Dimensions |
204 × 145 × 33.8 mm |
| Weight |
About 560 g |
Industry Applications
The Flexem FE6070H excels in environments where reliable visualization and control are essential. In packaging lines, operators use the 7-inch touch screen to monitor machine status and adjust parameters in real time. In HVAC systems, the FE6070H serves as a central interface for temperature and airflow control, thanks to its wide operating temperature range and IP65 front panel. For remote monitoring applications, the FE6070H integrates seamlessly with the Flink IIoT module, enabling cloud-based data collection and system management.
Installation & Setup
Mount the FE6070H into a panel cutout of 192 × 138 mm and secure it using the provided clamps. Ensure the front bezel seals properly to maintain IP65 protection. Connect DC power (24 V nominal, 9~28 V range) to the designated terminals. Use the USB Slave port or an Ethernet connection for program download. For serial communication, wire COM1, COM2, or COM3 according to your device requirements. Always verify wiring before powering up to avoid damage.
Maintenance & Reliability
The FE6070H requires minimal routine maintenance. Periodically clean the touch screen with a soft, dry cloth to remove dust and fingerprints. Inspect the panel seal for signs of wear, especially in high-vibration environments. The unit's lightning surge protection and power interruption tolerance of less than 5 mS help prevent unexpected failures. Its industrial-grade components are designed for long service life, reducing downtime and total cost of ownership.
Compatibility & Integration
The FE6070H supports multiple communication interfaces, including Ethernet (10/100 M), USB 2.0, and three serial ports (RS232/RS485/RS422). This versatility allows integration with a wide range of PLCs, drives, and sensors. When paired with the Flink IIoT module, the FE6070H becomes a gateway to cloud-based monitoring and analytics, enabling predictive maintenance and remote diagnostics.
Buying Guide
Before purchasing, verify the exact CPU and memory configuration (V2 or V3) to match your application's processing needs. Confirm the required Ethernet port count (1 or 2). Choose the Flink IIoT module if you need cloud connectivity. PLC Source PRO is your reliable supplier for genuine Flexem FE6070H units and accessories. Contact us to ensure you select the correct model for your system.
