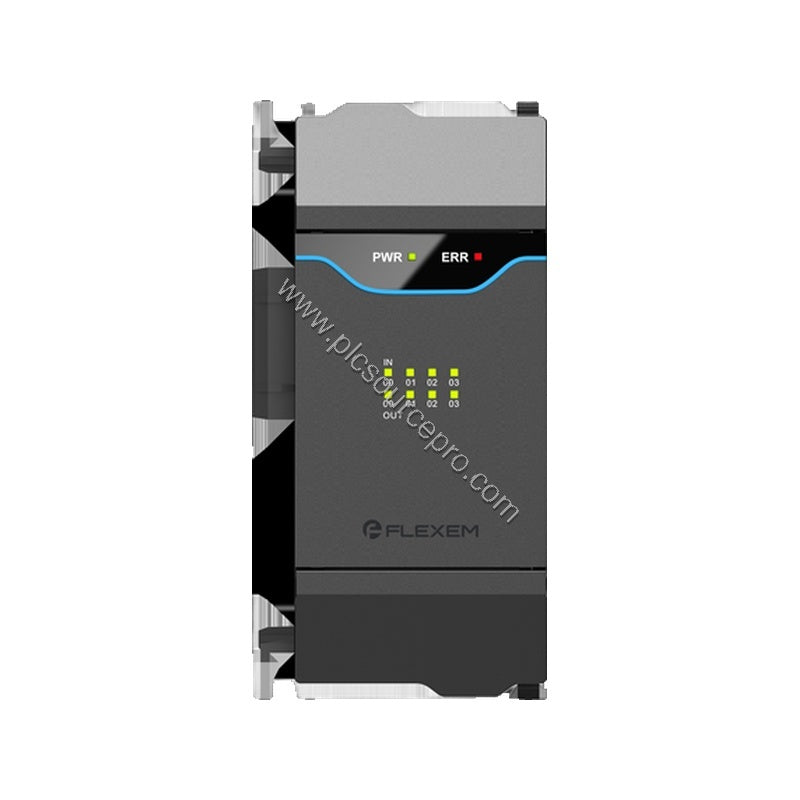

Product Overview
The Flexem F5-MA0800A is an 8-input analog expansion module designed for industrial control systems that demand precise signal acquisition and reliable operation. As a key component in the Flexem F5 series, this module expands your PLC's analog input capacity, allowing you to monitor voltage and current signals from sensors, transmitters, and other field devices. With 16-bit resolution and a full-scale accuracy of ±0.2%, the F5-MA0800A ensures that your process data is captured with exceptional fidelity, reducing measurement errors and improving overall system performance.
In today's fast-paced manufacturing environments, downtime is costly. The F5-MA0800A addresses this by offering robust specifications and a straightforward installation process, helping you maintain continuous operations. Whether you are upgrading an existing line or building a new control panel, this module integrates seamlessly, delivering the reliability you expect from a leading automation brand.
Key Technical Specifications
The following table summarizes the core technical parameters of the Flexem F5-MA0800A, all verified from the manufacturer's data:
| Parameter |
Value |
| Number of Inputs |
8 |
| Resolution |
16-bit |
| Input Signal Range (Voltage) |
-10V to +10V |
| Input Signal Range (Current) |
0 to 20mA |
| Output Signal Range (Voltage) |
0V to 10V |
| Output Signal Range (Current) |
0 to 20mA |
| Full Range Value |
Customizable (-30000 to 30000) |
| Conversion Accuracy (Full Scale) |
±0.2% |
| Maximum Input Signal (Voltage) |
30V |
| Maximum Input Signal (Current) |
30mA |
| Input Impedance (Voltage) |
>200 kΩ |
| Input Impedance (Current) |
<250 Ω +5% |
| Power Supply |
24VDC -15%/+20%, 3.2W max (internally supplied by main unit) |
| Wiring Structure |
Removable terminal block |
| Working Temperature |
-10 to 60°C |
| Storage Temperature |
-20 to 70°C |
| Environment Humidity |
5% to 95% RH (Non-condensing) |
| Installation |
DIN rail (35mm) or screw fixing |
These specifications make the F5-MA0800A a versatile choice for various analog signal conditioning tasks. The 16-bit resolution ensures fine granularity, while the wide input ranges accommodate both standard voltage and current loops. The customizable full-scale value allows you to scale the module to your specific engineering units, simplifying data interpretation.
Industry Applications
The Flexem F5-MA0800A excels in applications where precise analog measurement is critical. Here are three common use cases:
-
Process Monitoring: In chemical or pharmaceutical plants, the module reads temperature, pressure, and flow transmitters (4-20mA or 0-10V), enabling accurate process control and alarm management.
-
Machine Automation: For packaging or assembly machinery, the F5-MA0800A captures position feedback from linear sensors or load cells, ensuring precise motion control and quality inspection.
-
Energy Management: In utility monitoring systems, the module measures voltage and current from power transducers, helping facilities track energy consumption and optimize efficiency.
Because the F5-MA0800A supports both voltage and current inputs, it adapts to a wide range of sensors without requiring additional signal conditioners, simplifying system design and reducing component count.
Installation & Setup Guidance
Proper installation ensures optimal performance and longevity of the F5-MA0800A. Follow these guidelines:
-
Mounting: The module can be mounted directly on a 35mm DIN rail (DIN46277) or fixed with screws. Ensure the rail is grounded and the module is securely latched.
-
Wiring: Use the removable terminal block for all signal and power connections. Strip wires to the recommended length and tighten screws to the specified torque. For current inputs, ensure the loop is properly terminated; for voltage inputs, use shielded twisted-pair cables to minimize noise.
-
Power: The F5-MA0800A receives 24VDC power internally from the main unit. No external power supply is needed, but verify that the main unit's power capacity is sufficient to handle the module's 3.2W maximum draw.
-
Configuration: Before power-up, set the full-scale range via the host controller software to match your application (e.g., -30000 to 30000). Calibrate the module if required by your system's accuracy demands.
Always power down the system before making or changing wiring connections to avoid damage to the module or connected devices.
Maintenance & Reliability
Routine maintenance of the F5-MA0800A is minimal but essential for long-term reliability. We recommend the following practices:
-
Periodic Inspection: Every 6-12 months, check the terminal block for loose connections and signs of corrosion. Tighten any screws that may have loosened due to thermal cycling.
-
Environmental Monitoring: Keep the module within the specified operating temperature (-10 to 60°C) and humidity (5-95% RH non-condensing). Avoid exposure to condensing moisture, which can cause short circuits.
-
Signal Integrity: Verify that input signals remain within the maximum allowed values (30V or 30mA) to prevent damage. Use surge protectors if the module is installed in an environment with high electrical noise.
By adhering to these simple steps, you extend the service life of the F5-MA0800A and minimize unplanned downtime, maximizing your return on investment.
Compatibility & Integration
The Flexem F5-MA0800A is designed to work seamlessly with Flexem F5 series PLC main units. It expands the analog I/O capacity of your existing control system without requiring complex configuration. The module communicates with the main unit via the backplane bus, and all signal scaling is handled by the host controller. For new installations, verify that your main unit supports the number of expansion modules you plan to add, and allocate sufficient memory for the additional I/O points.
If you are integrating the F5-MA0800A into a system with third-party devices, ensure that the signal types (voltage/current) and ranges match the specifications of your sensors or actuators. The module's customizable full-scale value allows you to map raw counts to engineering units, simplifying data processing in your PLC program.
Selection Guide & Purchasing Advice
Before purchasing the Flexem F5-MA0800A, consider the following:
-
Number of Inputs: Confirm that 8 analog inputs meet your current and future needs. If you require more, consider purchasing additional modules.
-
Signal Types: Ensure your sensors output signals within the module's input ranges (-10V~10V or 0~20mA). If you use 4-20mA transmitters, they are compatible.
-
Power Requirements: Verify that your main unit can supply the 24VDC power needed by the module (3.2W max). If you are unsure, consult your system documentation.
-
Environmental Conditions: Check that the installation site's temperature and humidity fall within the specified limits.
PLC Source PRO is a reliable supplier of industrial automation parts, offering genuine Flexem F5-MA0800A modules with fast shipping and competitive pricing. Contact our team for assistance with compatibility or to place your order.
