Product Overview

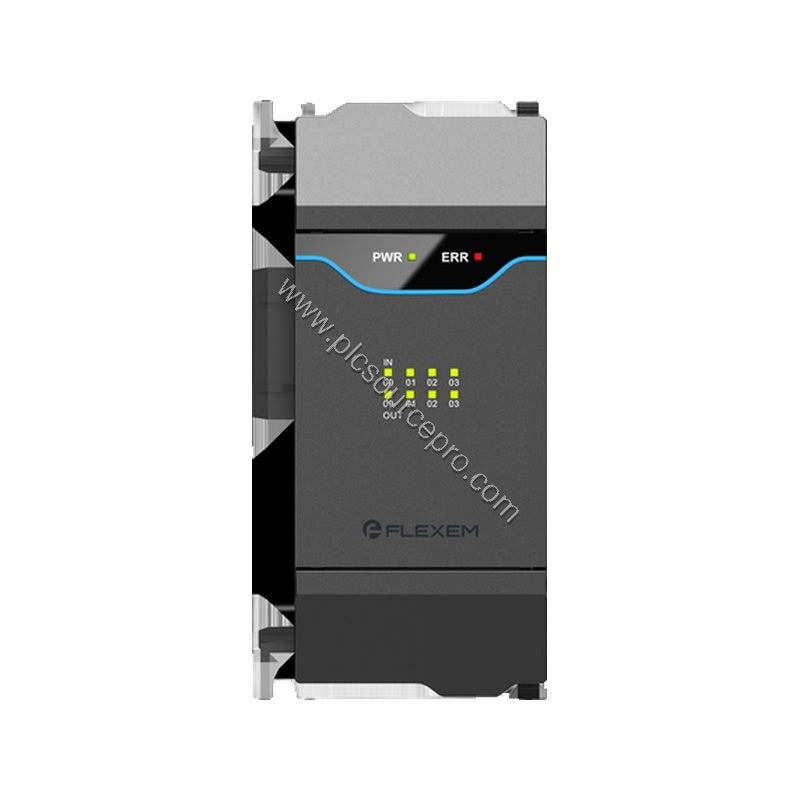

The Flexem F5-MA0402A is a high-performance analog expansion module designed for demanding industrial automation environments. With 4 analog inputs and 4/2 configurable outputs, this module delivers precise signal conversion and flexible I/O configuration. The F5-MA0402A supports both voltage and current signals, making it a versatile choice for a wide range of process control applications.
Key Features
-
4 Analog Inputs and 4/2 Analog Outputs for flexible signal handling
-
16-bit Resolution ensures accurate signal conversion
- Input signals: Voltage -10V~10V, Current 0~20mA
- Output signals: Voltage 0V~10V, Current 0~20mA
- Customizable full-scale range from -30000 to 30000
- High conversion precision: Input ±0.2%, Output ±0.5% of full scale
- Robust power supply: 24VDC -15%/+20%, max 3.2W
- Removable terminal block for easy wiring
- Wide operating temperature: -10 to 60°C
Technical Specifications
| Parameter |
Value |
| Inputs |
4 |
| Outputs |
4/2 |
| Resolution |
16-bit |
| Input Signal |
Voltage: -10V~10V; Current: 0~20mA |
| Output Signal |
Voltage: 0V~10V; Current: 0~20mA |
| Full Range Value |
Customized (-30000~30000) |
| Conversion Precision (Full Scale) |
Input: ±0.2%; Output: ±0.5% |
| Maximum Input Signal Allowed |
Voltage: 30V; Current: 30mA |
| Input Impedance |
Voltage: >200Kohms; Current: <250ohms+5% |
| Output Load Range Allowed |
Voltage: >2k ohms; Current: <500 ohms |
| Power Supply |
24VDC -15%/+20%, 3.2W max. Internally provided by main unit |
| Wiring Structure |
Removable terminal block |
| Working Temperature |
-10~60ºC |
| Storage Temperature |
-20~70ºC |
| Environment Humidity |
5%~95%RH (Non-condensing) |
| Installation |
DIN46277 (35mm width) guide rail or screw mounting |
Industry Applications
The Flexem F5-MA0402A excels in applications requiring precise analog signal processing, such as:
-
Process Control: Monitor and control temperature, pressure, or flow with high accuracy.
-
Machine Automation: Integrate into PLC systems to handle analog sensors and actuators.
-
Data Acquisition: Capture analog signals for monitoring and analysis in industrial settings.
Installation & Setup
Mount the F5-MA0402A directly onto a standard 35mm DIN rail or secure it with screws. Connect the removable terminal block for wiring. Ensure the power supply is within the specified range (24VDC -15%/+20%) and that the module is properly grounded. Configure the input/output ranges according to your application needs using the main controller.
Maintenance & Reliability
Regularly inspect the terminal connections for tightness and check for any signs of environmental stress, such as moisture or excessive heat. The module's wide operating temperature range (-10 to 60°C) and non-condensing humidity tolerance (5%~95%RH) ensure reliable performance in most industrial environments. Periodic cleaning of the enclosure and ensuring proper ventilation will extend service life.
Selection Guide
When selecting the F5-MA0402A, verify your system's compatibility with the signal types and power supply. Ensure the input/output ranges match your process requirements. For a reliable supply of genuine Flexem modules, consider PLC Source PRO as your trusted partner.
