Product Overview

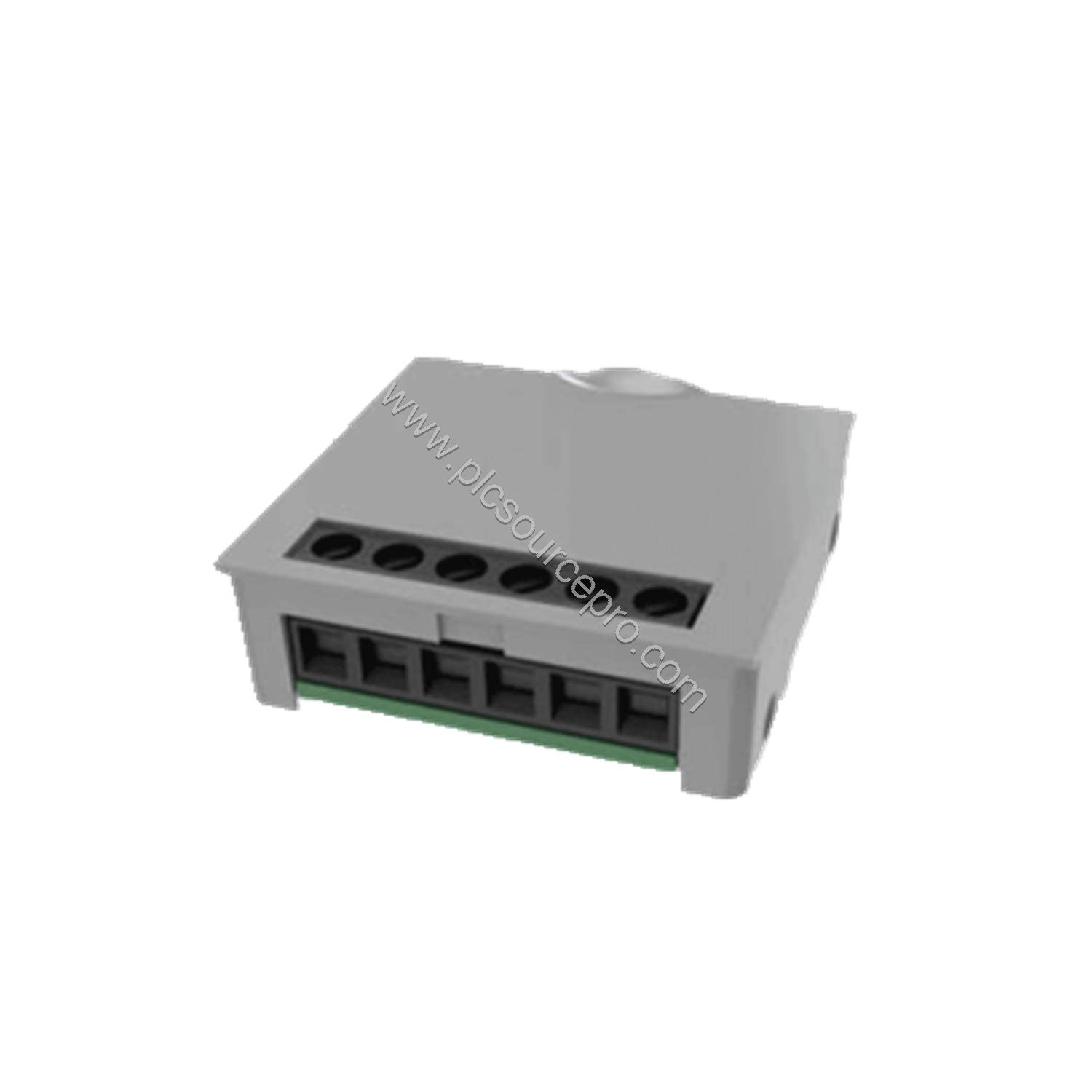

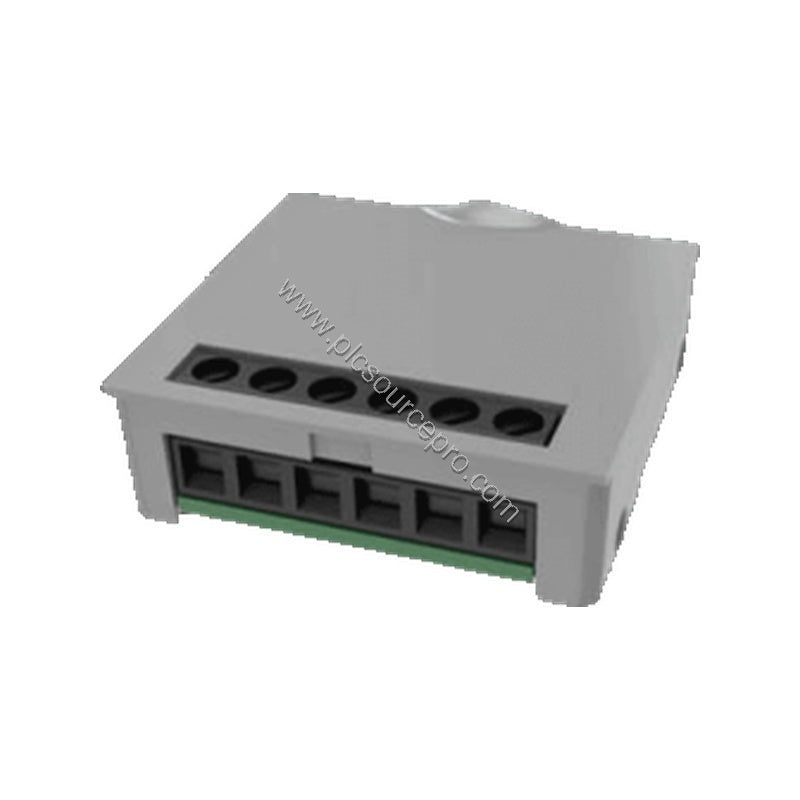

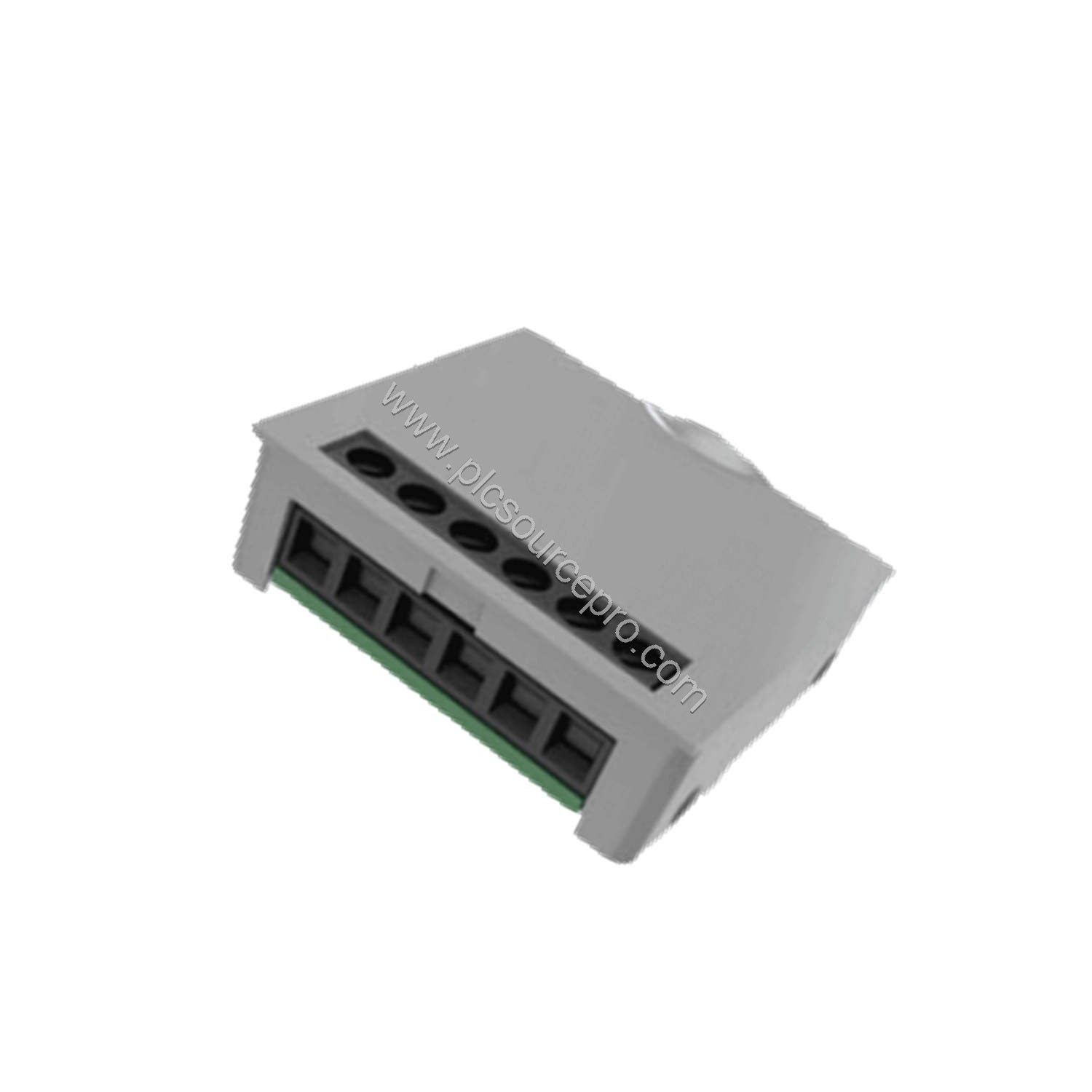

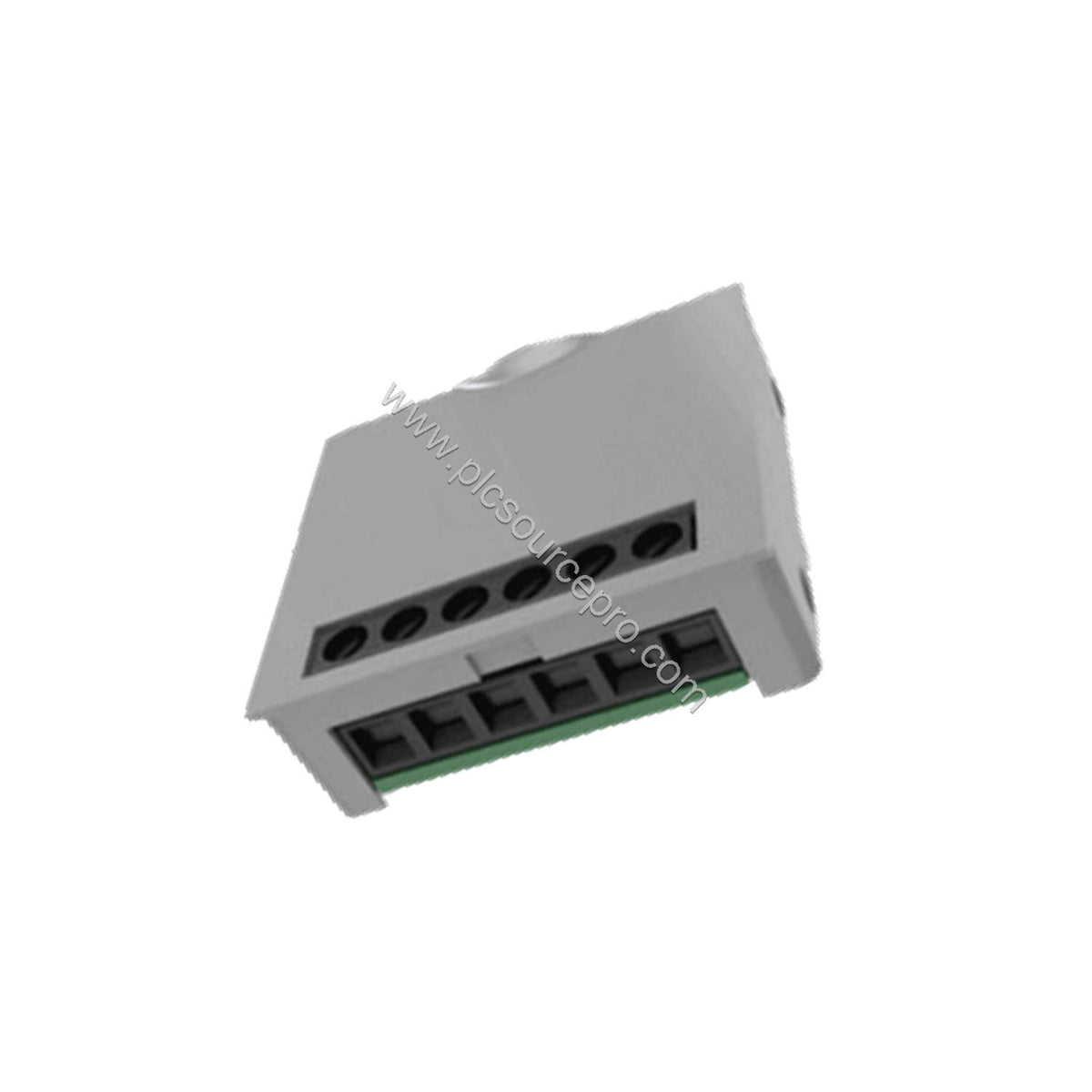

The Flexem F5-BSC01 Expansion Board Control PLC is a dedicated serial port expansion board engineered to extend the communication capabilities of your Flexem PLC system. In modern industrial environments, reliable serial communication is essential for connecting sensors, drives, and remote I/O devices. The F5-BSC01 delivers a straightforward, cost-effective solution by adding one RS485/RS232 channel to your controller, ensuring seamless data exchange without unnecessary complexity.
Designed for direct installation into the CPU front expansion board slot, this module integrates effortlessly into existing Flexem control systems. Its compact footprint (38mm x 40mm x 18mm) makes it ideal for space-constrained cabinets, while its robust operating temperature range (-10 to 60°C) ensures dependable performance in demanding factory conditions.
Technical Specifications
The following table outlines the key parameters of the Flexem F5-BSC01. These values are directly from the manufacturer's datasheet and guarantee accurate system design.
| Parameter |
Value |
| Channels |
1 |
| Isolation |
Non-isolation |
| Ports |
RS485/RS232 |
| Protocol |
RS485/232, baud rate: 4800-115200 bps |
| Power Supply |
5VDC -15%/+20%, 3.2W max. Supplied internally by the main unit; no external input required. |
| Wiring Structure |
Non-removable terminal block |
| Working Temperature |
-10 to 60°C |
| Storage Temperature |
-20 to 70°C |
| Environment Humidity |
10-90% RH (non-condensing) |
| Installation |
CPU front expansion board slot |
| Dimensions |
38mm x 40mm x 18mm |
Real-World Applications
The F5-BSC01 is versatile enough for a wide range of industrial automation tasks. Here are three practical scenarios where this expansion board proves its value:
-
Machine Control Systems: In a packaging machine, the F5-BSC01 enables the PLC to communicate with variable frequency drives and sensors over RS485, allowing precise speed and position control.
-
Building Automation: For HVAC systems, the expansion board connects to temperature and humidity sensors, feeding real-time data to the central controller for efficient climate management.
-
Process Monitoring: In a chemical plant, the F5-BSC01 links to flow meters and pressure transmitters, facilitating continuous data logging and alarm generation—critical for safety and quality.
Installation & Setup
Installing the F5-BSC01 is straightforward. Follow these steps for a trouble-free setup:
- Power down the PLC system completely.
- Locate the CPU front expansion board slot on your Flexem controller.
- Align the F5-BSC01 with the slot and gently push it into place until it locks securely.
- Connect your RS485 or RS232 devices to the non-removable terminal block, observing correct wiring polarity.
- Power up the system and configure the baud rate (4800-115200 bps) via your PLC programming software.
Because the module receives its power internally from the main unit (5VDC, 3.2W max), no external power supply is needed, simplifying installation and reducing wiring errors.
Maintenance & Reliability
Regular maintenance ensures long-term reliability. The F5-BSC01 has no moving parts, but periodic checks are recommended:
- Inspect terminal block connections quarterly to prevent loose wiring.
- Keep the module free from dust and moisture, especially in humid environments (10-90% RH).
- Verify that the operating temperature remains within -10 to 60°C; install additional cooling if necessary.
With proper care, the F5-BSC01 will provide years of dependable service, minimizing downtime and reducing total cost of ownership.
Compatibility & Integration
The F5-BSC01 is specifically designed for Flexem PLC systems, ensuring seamless integration. It supports both RS485 and RS232 protocols, making it compatible with a broad range of industrial devices such as HMIs, drives, barcode scanners, and third-party sensors. The non-isolated design is suitable for short-distance, same-ground applications; for long-distance or noisy environments, consider using isolated converters.
Selection Guide & Purchasing Advice
Before purchasing the F5-BSC01, verify the following:
- Confirm that your Flexem PLC has an available front expansion slot.
- Check that your devices use RS485 or RS232 and that the baud rate range (4800-115200 bps) meets your needs.
- Ensure your application does not require isolation; if it does, an isolated serial module may be more appropriate.
When you are ready to upgrade your control system, PLC Source PRO offers genuine Flexem F5-BSC01 modules with fast shipping and responsive support. Trust our expertise to keep your automation running smoothly.
