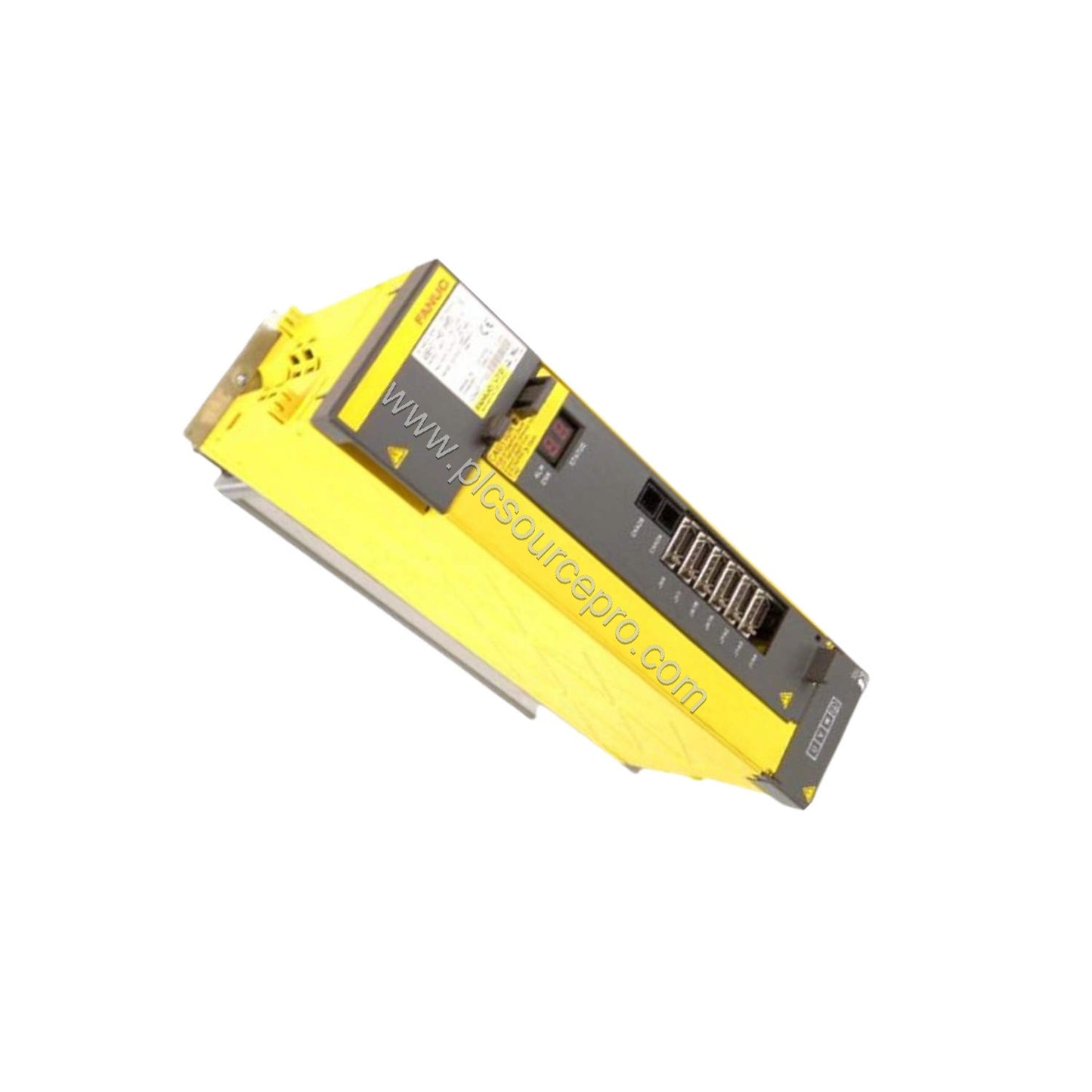

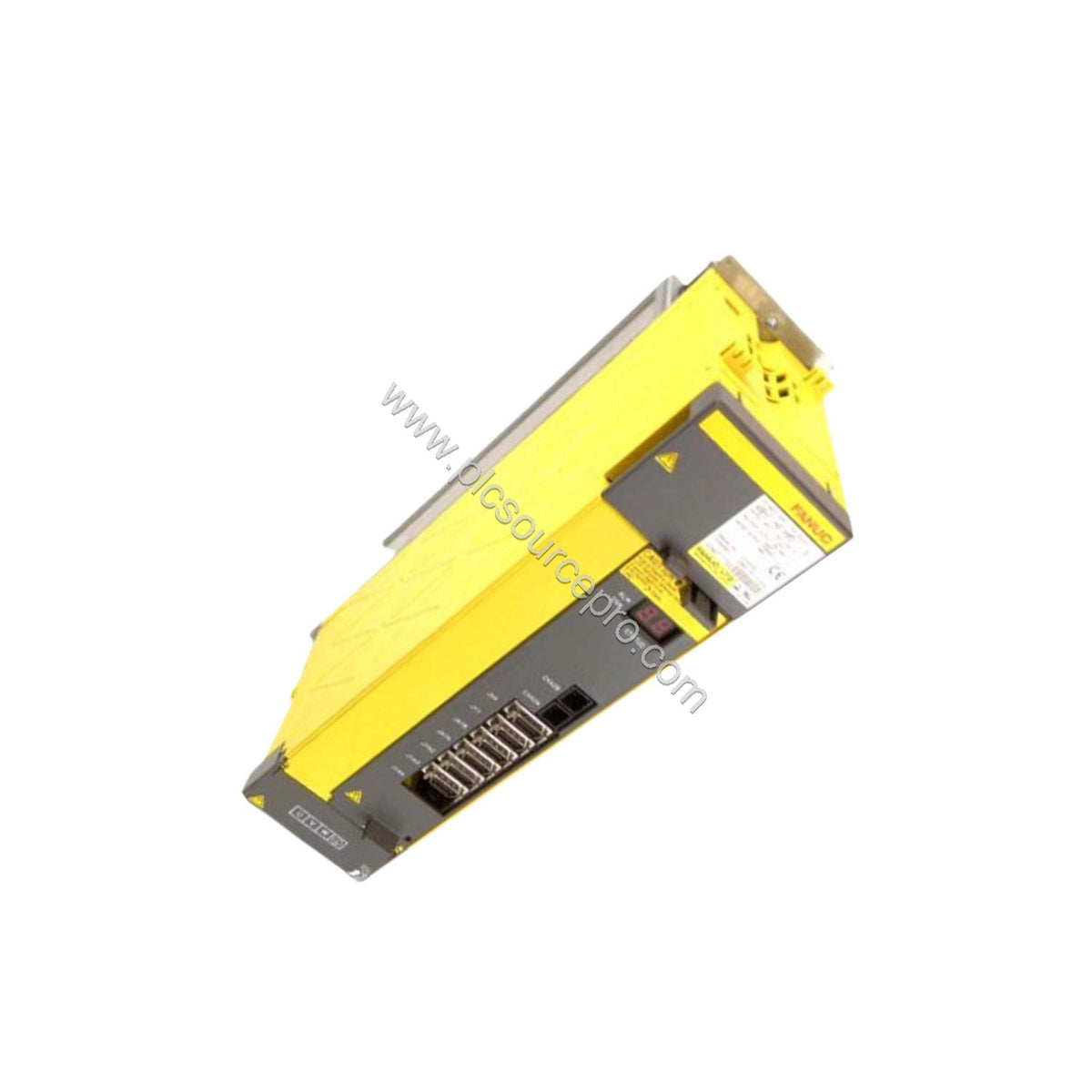

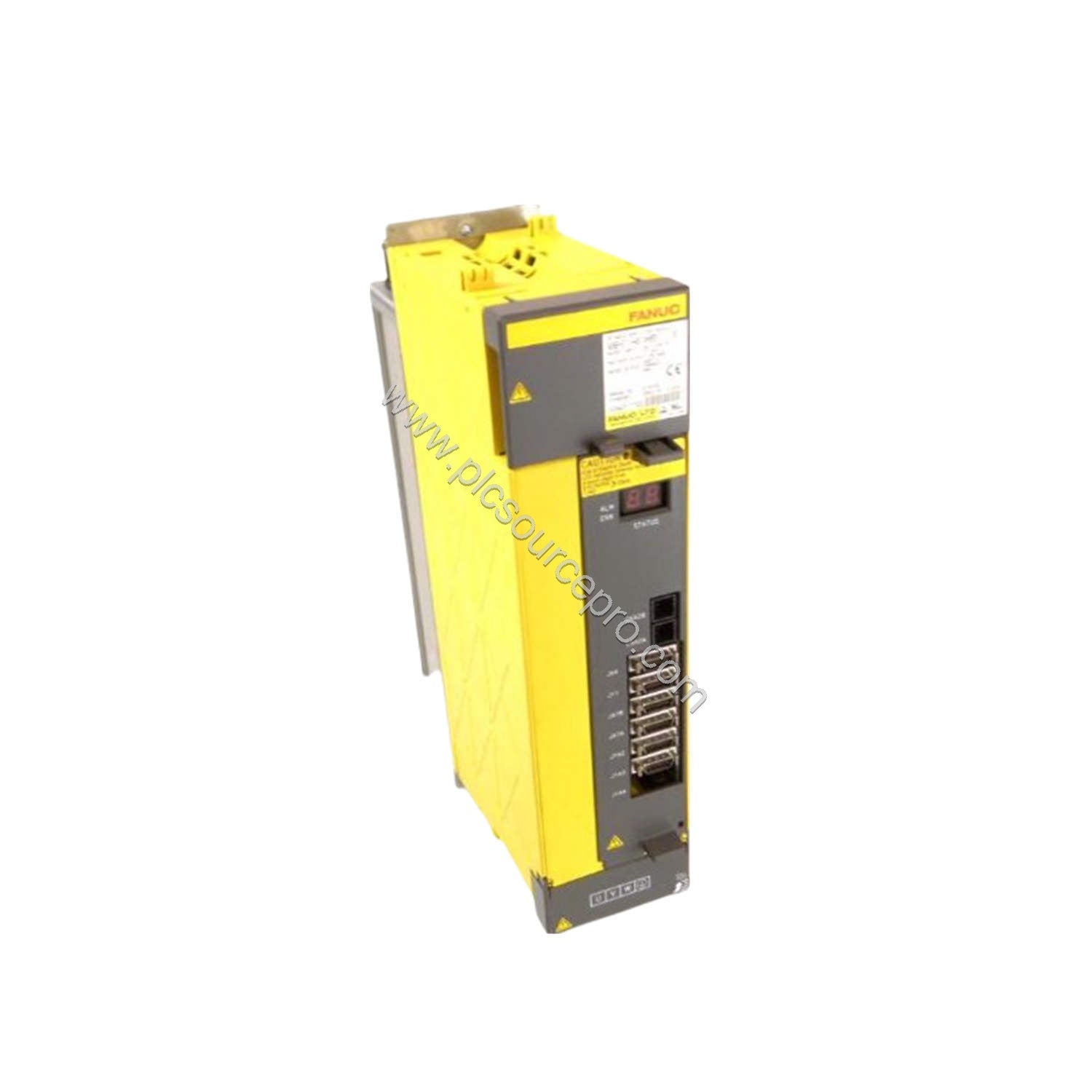

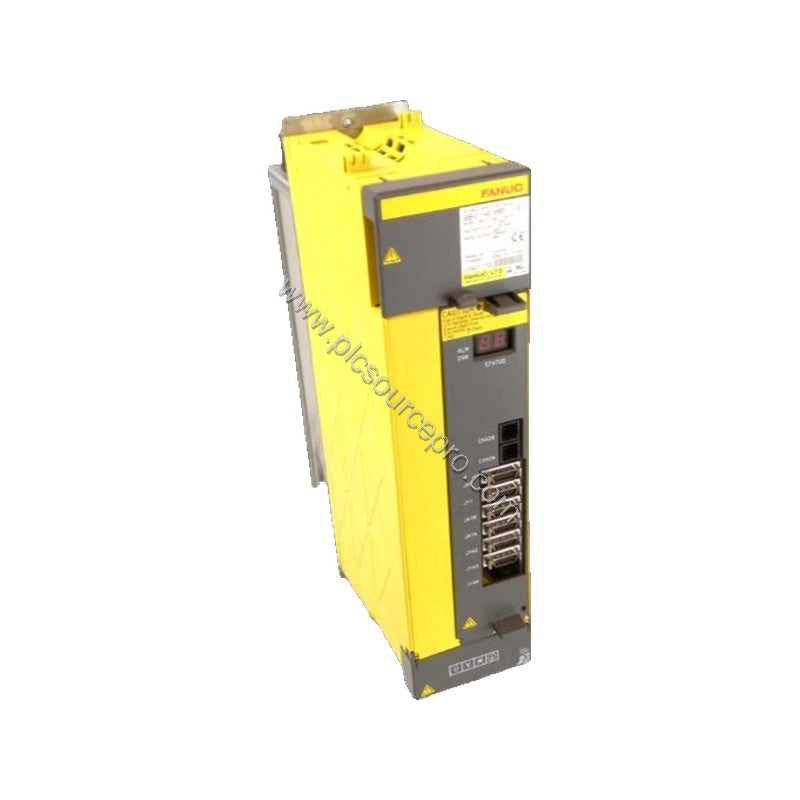

Product Overview
The FANUC A06B-6150-H030 is a robust power supply module engineered for high-demand industrial environments. It converts 3-phase AC input into stable DC power, ensuring your automation systems run without interruption. With a rated output power of 35 kW, this module handles heavy loads efficiently.
Technical Specifications
Below are the exact specifications for the A06B-6150-H030:
| Parameter |
Value |
| Manufacturer |
FANUC |
| Product Line |
A06B |
| Part Number |
A06B-6150-H030 |
| Weight |
25.00 lbs (11.34 kg) |
| Input Voltage |
400-480 VAC |
| Input Current |
63A at 400V |
| Input Frequency |
50/60 Hz |
| Number of Phases |
3-Phase |
| Output Voltage |
565-679 VDC |
| Rated Output Power |
35 kW |
| Ambient Operating Temperature |
0°C to 55°C |
| Ambient Humidity |
90% RH or less (No condensation) |
| Ambient Storage Temperature |
-20 to 60°C |
Key Specifications Breakdown
The A06B-6150-H030 accepts a wide input voltage range of 400-480 VAC, making it compatible with various global power grids. It draws 63A at 400V, ensuring sufficient current for heavy machinery. The output voltage of 565-679 VDC provides a stable DC bus for connected drives and controllers. Its 35 kW rated power supports multiple axes or high-power spindle drives, boosting overall system performance.
Industry Applications
-
CNC Machining Centers: Powers servo drives and spindle motors in milling, turning, and grinding machines, ensuring precise and continuous operation.
-
Robotic Workcells: Provides reliable DC power to robot controllers and peripheral equipment, reducing unplanned downtime.
-
Automated Assembly Lines: Supports conveyors, indexing tables, and pick-and-place systems, maintaining consistent throughput.
Installation & Setup Guidance
Mount the A06B-6150-H030 in a well-ventilated cabinet, ensuring at least 100 mm clearance around the unit for airflow. Connect the 3-phase input to terminals L1, L2, and L3, and the DC output to the bus bar. Use appropriate cable sizes rated for 63A. Verify the input voltage matches your facility's supply before energizing. Always follow the manufacturer's wiring diagram.
Maintenance & Reliability
Inspect the module every 6 months for dust accumulation on heatsinks and fans. Clean with dry compressed air. Check all electrical connections for tightness and signs of corrosion. Operate within the specified temperature range (0-55°C) and humidity (≤90% RH) to extend service life. Regular maintenance prevents overheating and extends the module's operational life, reducing total cost of ownership.
Selection Guide & Purchasing Advice
Before purchasing, verify that your system's power requirements align with the A06B-6150-H030's output ratings. Ensure your cabinet has adequate cooling. For genuine FANUC parts and reliable supply, PLC Source PRO offers this module with fast shipping and industry expertise.
