Product Overview
The FANUC A06B-6093-H112 is a precision servo amplifier designed for demanding CNC applications. This air-cooled unit operates at 50/60 Hz and offers robust overload and overcurrent protection, ensuring reliable performance in industrial environments. Part of the BETA SERVO UNIT TYPE SVU-20 series, the FANUC A06B-6093-H112 is engineered to deliver smooth motion control through its FSSB interface.
Technical Specifications
Below are the key parameters for the FANUC A06B-6093-H112 servo drive:
| Parameter |
Value |
| Manufacturer |
FANUC |
| Product Type |
Servo Amplifier (Servo Drive) |
| Product Line |
A06B |
| Part Number |
A06B-6093-H112 |
| Weight |
7.00 lbs (3.18 kg) |
| Cooling Method |
Air Cooled |
| Application |
CNC Systems |
| Frequency |
50/60 Hz |
| Mounting |
Vertical / Wall-mounted |
| Protection Features |
Overload, Overcurrent Protection |
| Operating Temperature |
0°C to 55°C |
| Interface Type |
FSSB Interface |
| Servo Unit Type |
BETA SERVO UNIT TYPE SVU-20 |
Industrial Applications
The FANUC A06B-6093-H112 is ideally suited for CNC machining centers, milling machines, and lathes where precise axis control is critical. Its robust protection features minimize downtime caused by overload or overcurrent events, making it a reliable choice for high‑production environments. The air‑cooled design and wide operating temperature range (0°C to 55°C) allow it to perform in demanding factory floor conditions.
Maintenance and Reliability

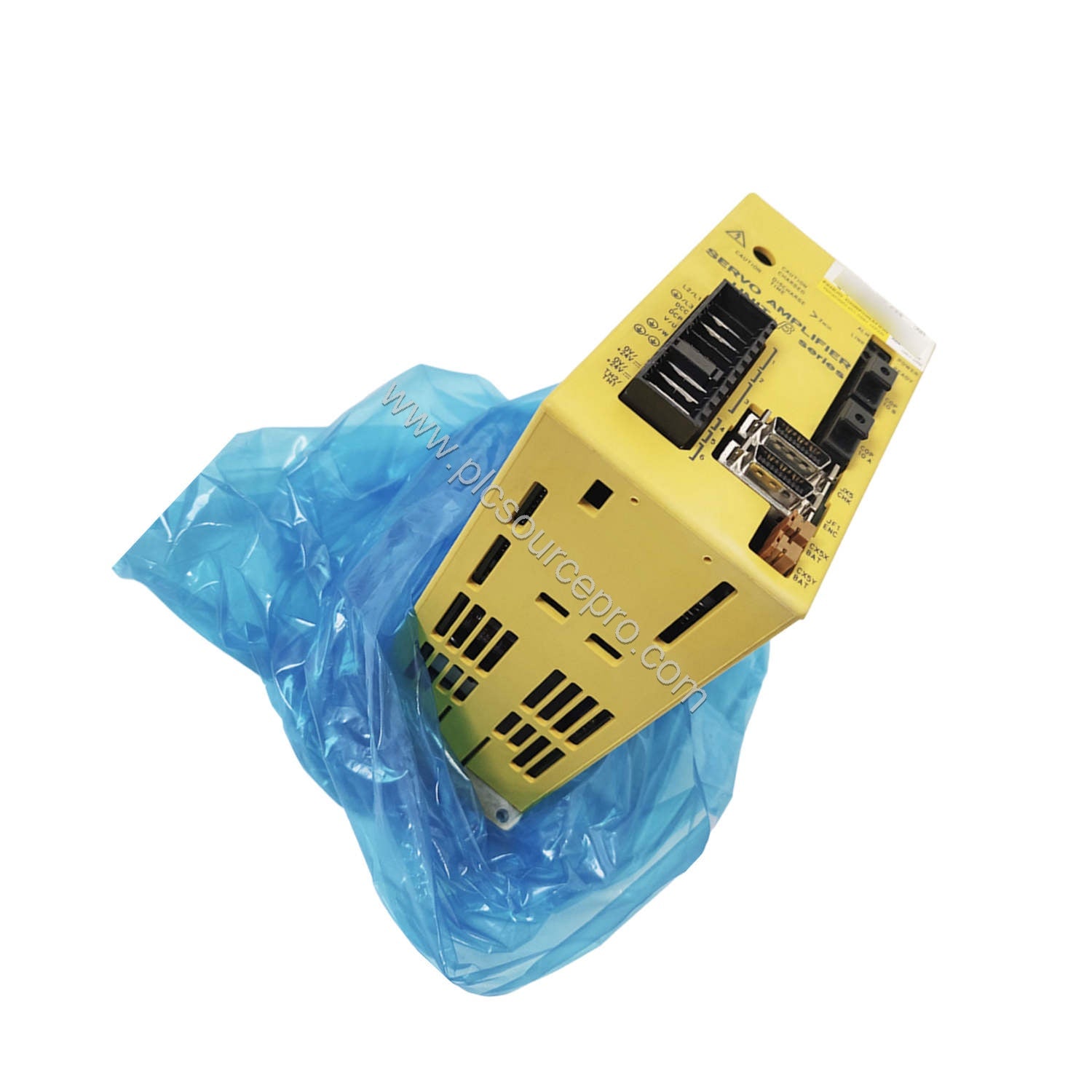

To extend the service life of the FANUC A06B-6093-H112, ensure adequate airflow around the air‑cooled heatsink. Periodic inspection of the mounting bracket and electrical connections is recommended. The built‑in overload and overcurrent protection help prevent damage from sudden load changes, reducing the need for unscheduled maintenance. Operating within the specified temperature range and using proper vertical or wall mounting further enhances long‑term reliability.
Selection Guide
Before purchasing the FANUC A06B-6093-H112, verify that your CNC system supports the FSSB interface. Confirm the required frequency (50/60 Hz) and mounting orientation. For replacement applications, cross‑check the servo unit type (BETA SERVO UNIT TYPE SVU‑20) to ensure compatibility. When sourcing from ubest101, you receive genuine FANUC parts with documented specifications. For further assistance, consult the product datasheet or contact our technical support team.
