Product Introduction

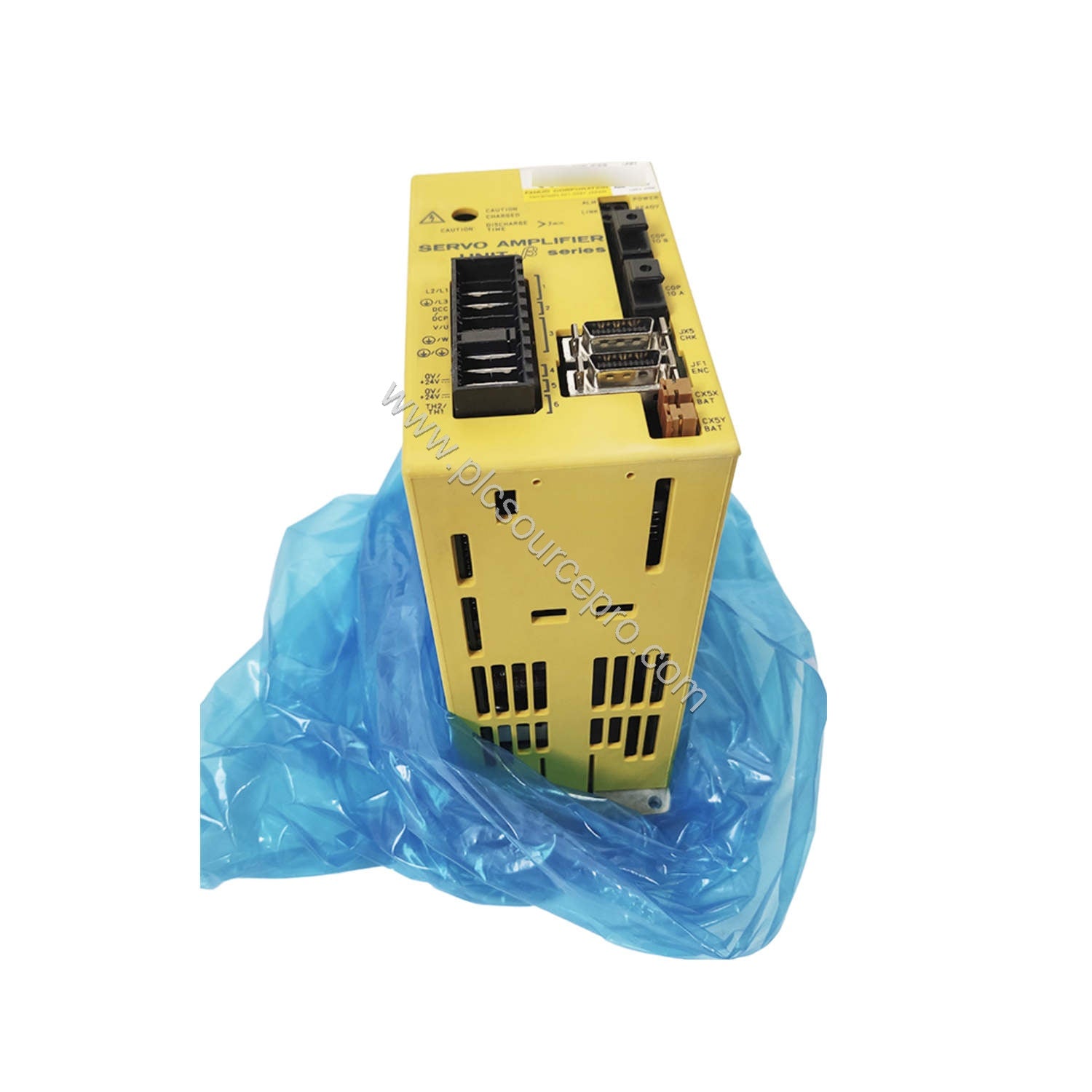

The FANUC A06B-6093-H102 is a high-performance servo amplifier engineered for CNC machines. This unit provides precise motion control, ensuring stable axis operation even under demanding loads. As part of the FANUC servo family, the A06B-6093-H102 integrates overload and overcurrent protection to safeguard your automation system.
Technical Specifications Breakdown
Key parameters of the FANUC A06B-6093-H102 define its capabilities:
-
Input Voltage: 220-240 VAC, suitable for standard industrial power supplies.
-
Frequency: 50/60 Hz, allowing global compatibility.
-
Weight: 7.00 lbs (3.18 kg) – robust yet manageable for panel installation.
-
Operating Temperature: 0°C to 55°C, ensuring reliable performance in typical factory environments.
-
Protection Features: Overload and overcurrent protection prevent motor or drive damage during faults.
-
PWM Interface: BETA PWM Interface for precise control signals.
-
Servo Unit Type: BETA SERVO UNIT TYPE SVU-20.
-
Mounting: Vertical or wall-mounted for flexible installation.
-
Cooling: Air cooled, no additional liquid cooling required.
Industry Applications
The FANUC A06B-6093-H102 is optimized for CNC machining centers, lathes, and milling machines. Its overload protection is especially valuable in high-torque operations where sudden load spikes can occur. The 220-240 VAC input range makes it suitable for retrofit projects in factories using standard three-phase power.
Installation & Setup Guidance
Mount the FANUC A06B-6093-H102 vertically on a panel or wall using the provided brackets. Ensure adequate clearance for air flow. Connect input power wires (L1, L2, L3) to the specified terminals and match the motor output to the CNC axis motor. The BETA PWM interface requires a compatible controller; verify wiring diagrams from FANUC. Use shielded cables for the encoder feedback to avoid noise.
Maintenance & Reliability

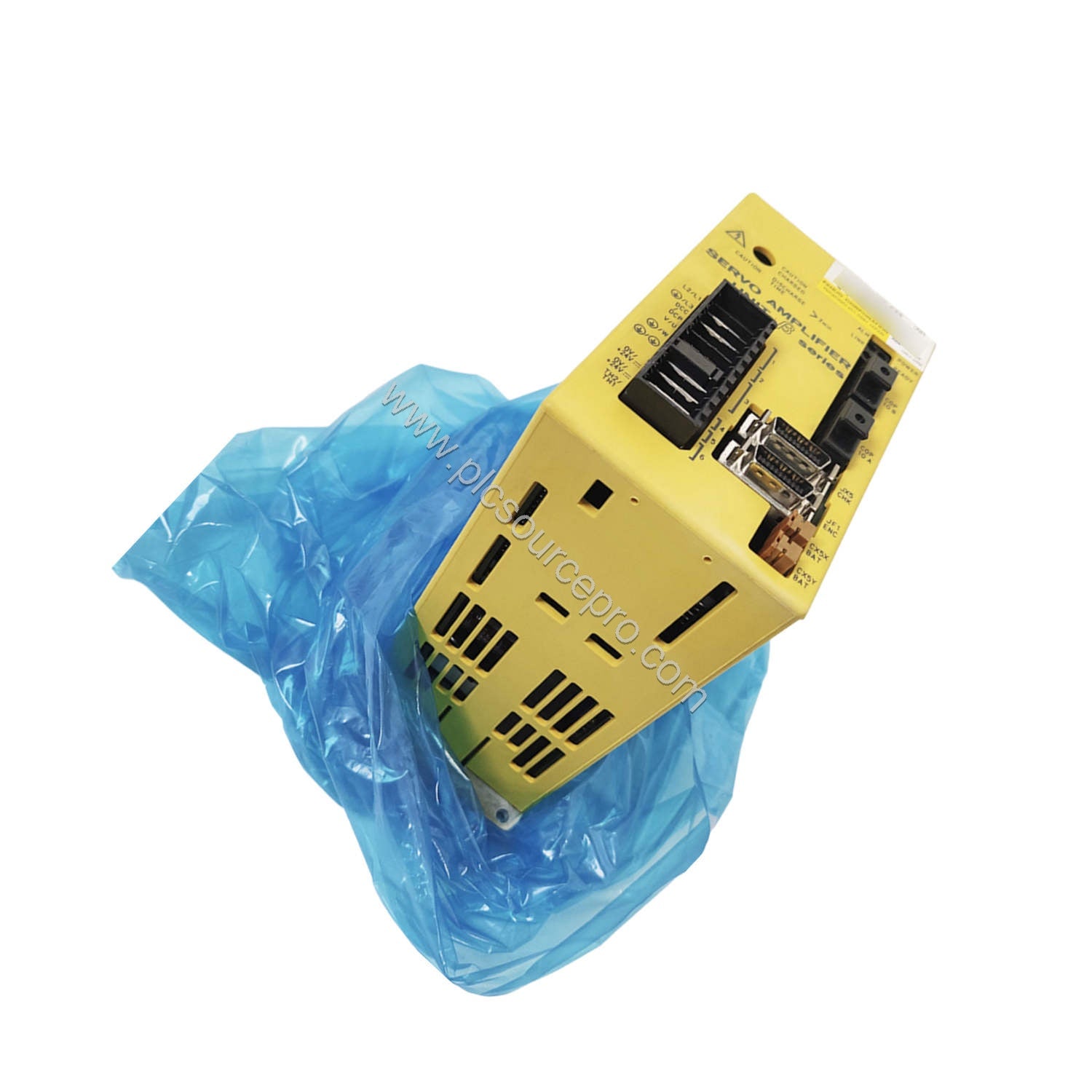

Routine inspection of the air intake filters is recommended every 3 months. In dusty environments, clean fins and fan blades to prevent overheating. Monitor the protection status LEDs – a red light indicates an overload event that may require resetting the drive. The robust design minimizes downtime, but periodic thermal paste renewal on power modules (if accessible) can extend service life.
Selection Guide & Purchasing Advice
Before purchasing, verify that your CNC controller supports the BETA PWM interface. The FANUC A06B-6093-H102 replaces earlier models with similar part numbers; check compatibility with your existing servo motor. For genuine units with warranty, contact us at ubest101. Our technical team can help confirm specifications for your retrofit project.
