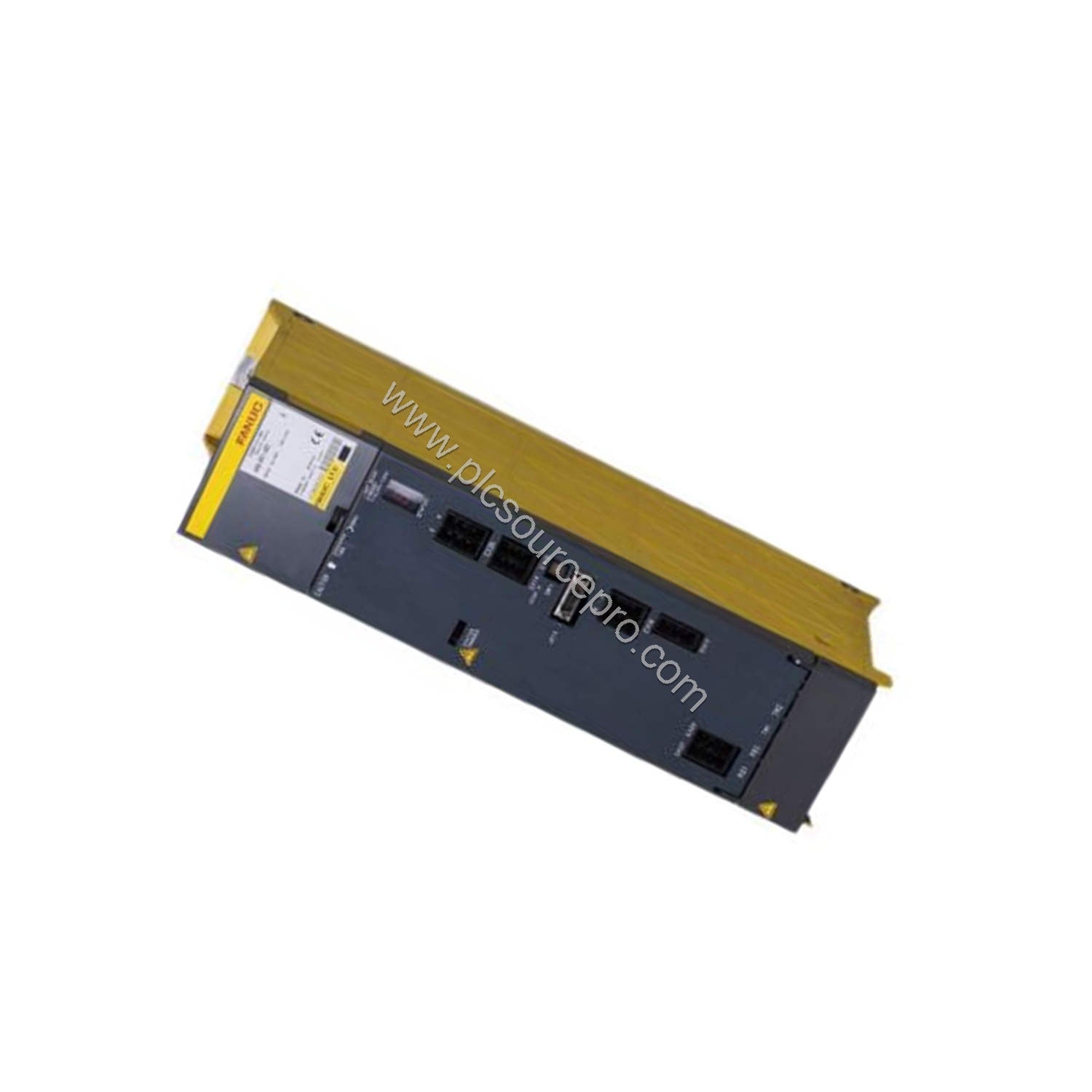

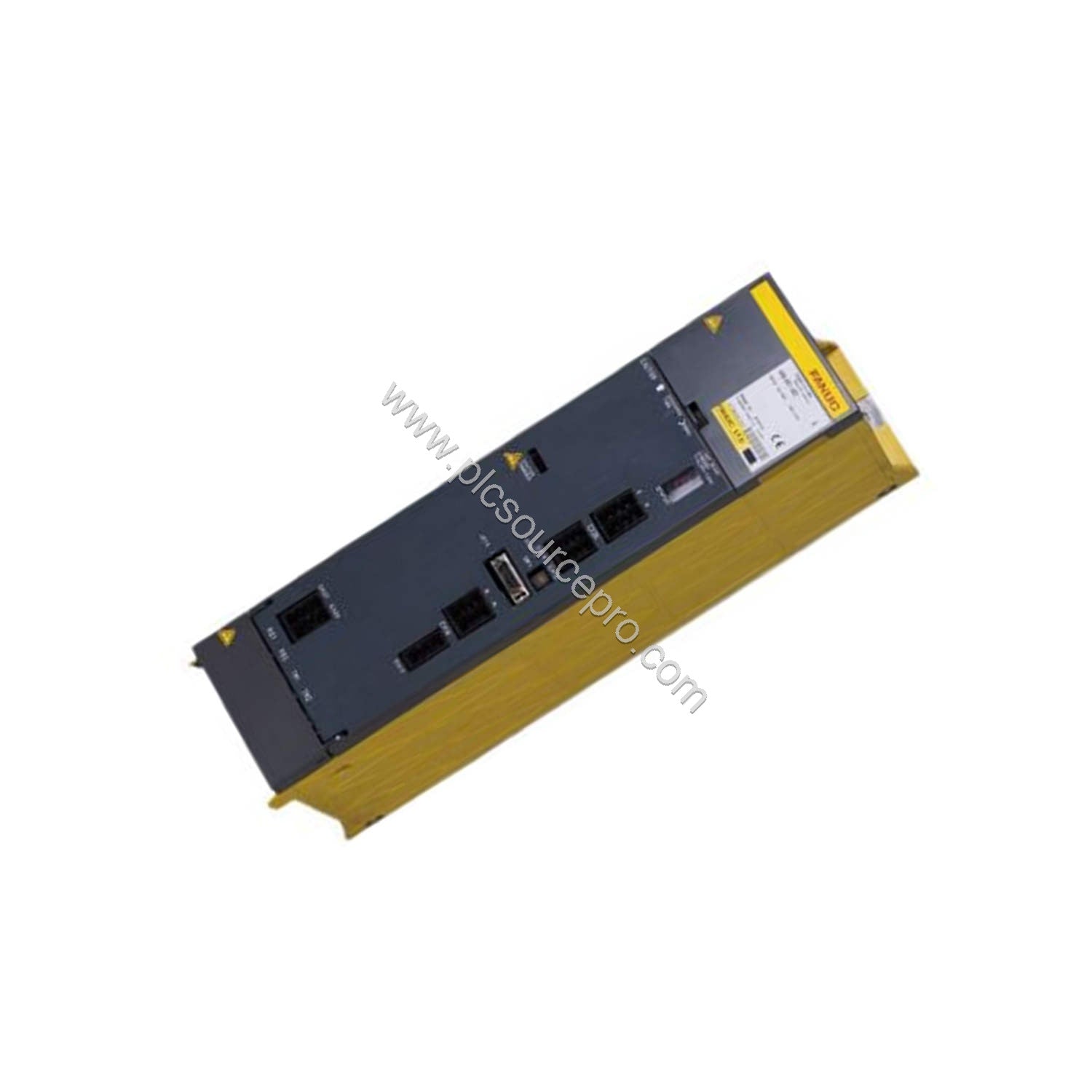

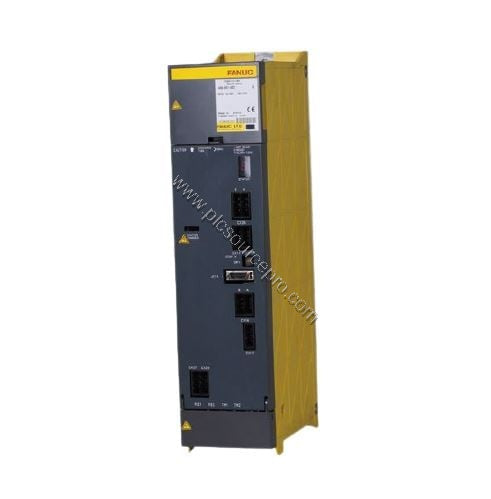

Introduction to the FANUC A06B-6091-H002
Power failures in CNC systems can lead to data loss, tool damage, and costly downtime. The FANUC A06B-6091-H002 power backup module is designed to mitigate these risks by providing reliable backup power. This unit operates at 400 VAC input and supports both 50 Hz and 60 Hz frequencies, ensuring compatibility with diverse industrial power systems. Weighing 4.08 kg (9.00 lbs), it is a compact yet robust solution for critical CNC applications.
Key Technical Specifications
| Parameter |
Value |
| Manufacturer |
FANUC |
| Part Number |
A06B-6091-H002 |
| Product Type |
Power Backup (Power Supply) |
| Weight |
9.00 lbs (4.08 kg) |
| Input Voltage |
400 VAC |
| Frequency |
50/60 Hz |
| Mounting |
Vertical / Wall-mounted |
| Protection Features |
Overload, Overcurrent Protection |
| Cooling Method |
Air Cooled |
| Operating Temperature |
0°C to 55°C |
Real-World Applications in CNC Systems
The FANUC A06B-6091-H002 is specifically tailored for CNC systems. It ensures uninterrupted operation during brief power interruptions, safeguarding critical machining processes. Typical applications include CNC lathes, milling machines, and machining centers where power continuity is essential. By preventing unexpected shutdowns, this module helps maintain production schedules and reduces scrap.
Mounting and Installation Guidelines

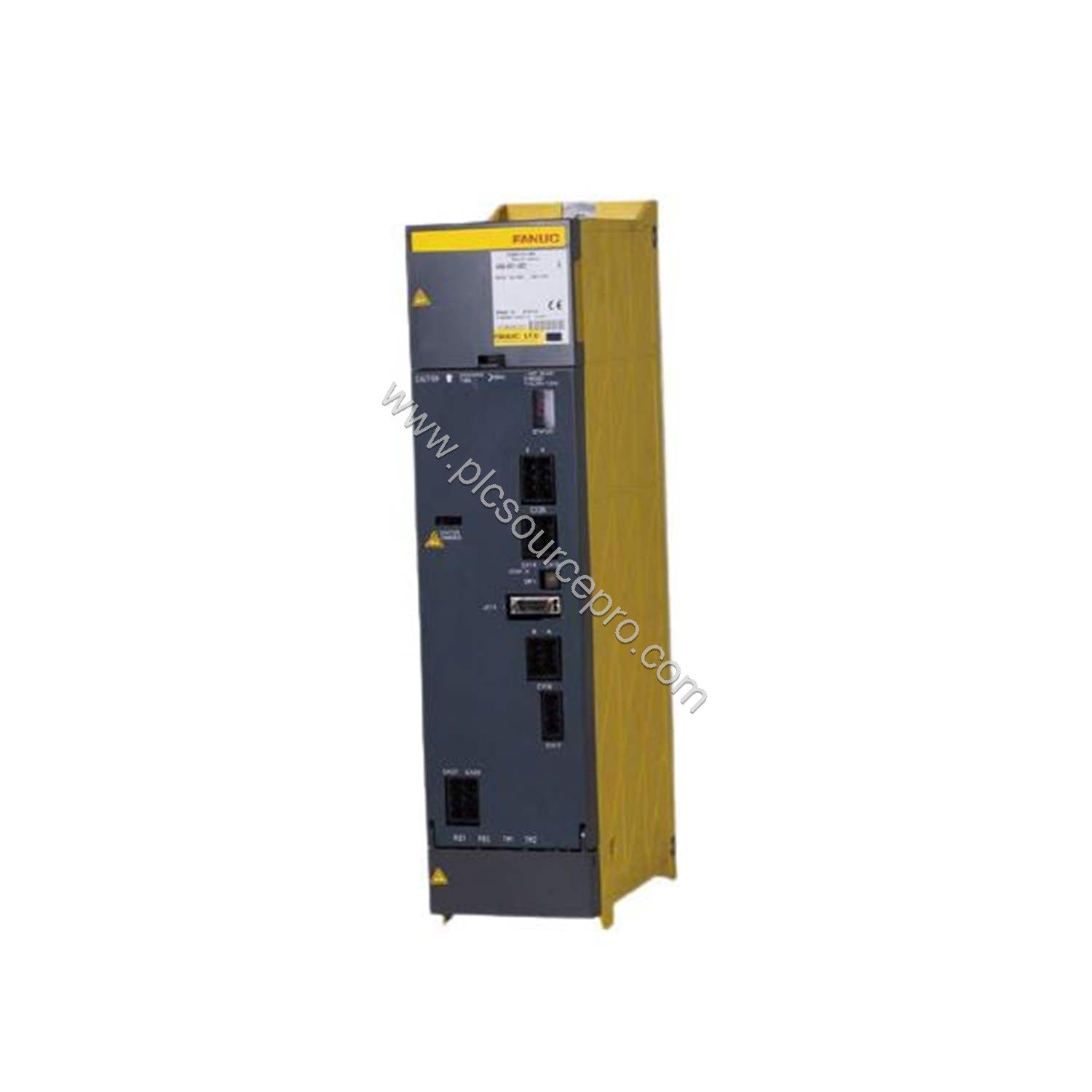

The FANUC A06B-6091-H002 is designed for vertical or wall-mounted installation. Ensure the mounting surface is sturdy and provides adequate clearance for airflow. The unit is air-cooled, so maintain at least 100 mm clearance around the enclosure for proper ventilation. Connect the input power to the designated terminals, observing correct polarity and grounding. Refer to the user manual for detailed wiring diagrams.
Maintenance and Reliability Considerations
Regular maintenance of the FANUC A06B-6091-H002 ensures long-term reliability. Inspect the unit quarterly for dust accumulation on cooling vents and clean with compressed air. Verify that all connections remain tight and free of corrosion. The overload and overcurrent protection features will automatically safeguard the module under fault conditions, but periodic testing of the backup function is recommended.
Selection and Purchasing Advice
When selecting the FANUC A06B-6091-H002, confirm that your CNC system requires a 400 VAC input and 50/60 Hz frequency. Verify the mounting orientation fits your available space. This module is a direct replacement for OEM power backup units in FANUC CNC systems. For guaranteed authenticity and fast delivery, consider purchasing from ubest101.
