Product Introduction
When CNC machinery suffers from erratic axis movement or drive failures, the FANUC A06B-6080-H307 Servo Amplifier provides a robust solution. This industrial automation module is designed as a triple-axis drive for precise motion control in demanding manufacturing environments. With a PWM interface and air-cooled design, the A06B-6080-H307 ensures stable operation under continuous load.
Technical Specifications Breakdown
The FANUC A06B-6080-H307 delivers rated power of 4.35 kW and handles a rated current range of 5.9 to 12.5 A. It operates on a voltage input of 283–325 V and supports frequencies of 50/60 Hz. The unit weighs 19.00 lbs (8.62 kg) and features vertical or wall-mounted installation. Its operating temperature spans 0°C to 55°C, making it suitable for typical industrial environments.
| Specification |
Value |
| Manufacturer |
FANUC |
| Product Type |
Servo Amplifier (Servo Drive) |
| Part Number |
A06B-6080-H307 |
| Rated Power |
4.35 kW |
| Rated Current |
5.9–12.5 A |
| Voltage Input |
283–325 V |
| Frequency |
50/60 Hz |
| Cooling Method |
Air Cooled |
| Control Type |
PWM Interface |
| Weight |
19.00 lbs (8.62 kg) |
| Operating Temperature |
0°C to 55°C |
| Protection Features |
Overload, Overcurrent, Overvoltage |
Installation & Setup Guidance

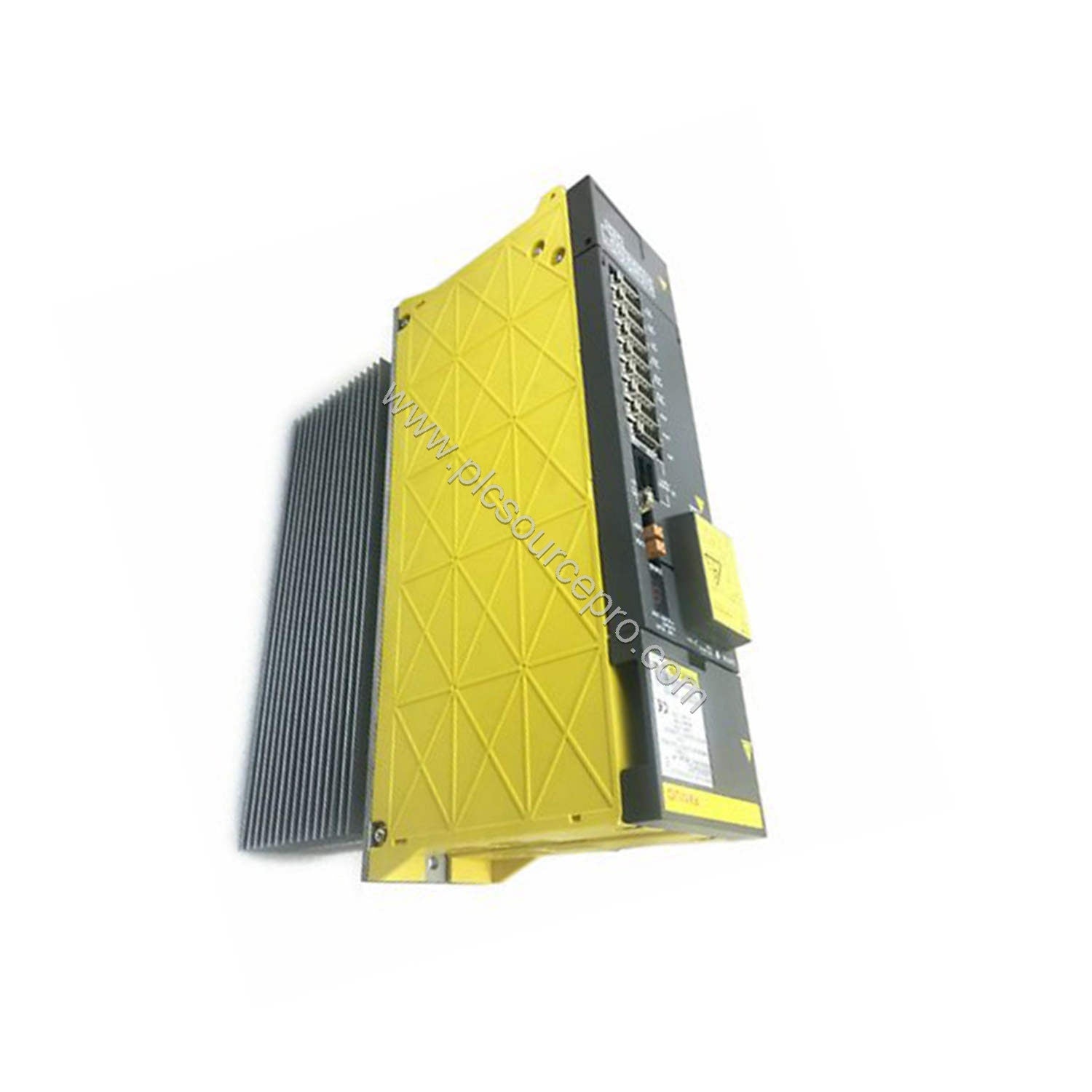

Mount the FANUC A06B-6080-H307 vertically or on a wall to optimize space. Ensure adequate airflow around the unit for the air-cooling system. Connect the PWM interface to the CNC controller following the manufacturer's wiring diagram. Verify that the input voltage is within 283–325 V and the frequency matches 50/60 Hz. Use proper fusing for overcurrent protection. The triple-axis drive requires balanced load connections to avoid premature wear.
Maintenance & Reliability
Inspect the A06B-6080-H307 every six months for dust buildup on cooling fins. Clean with compressed air to maintain thermal efficiency. Check for loose connections or signs of overheating. The built-in overload, overcurrent, and overvoltage protection extend the service life of both amplifier and connected CNC system. Operate within the 0°C to 55°C range to ensure reliable performance. Regular monitoring of the operating current (5.9–12.5 A) and power output (4.35 kW) helps detect early signs of drive degradation.
Selection Guide & Purchasing Advice
Before purchasing the FANUC A06B-6080-H307, verify that your CNC system requires a triple-axis servo amplifier with PWM control. Confirm input voltage compatibility (283–325 V) and mounting orientation. For bulk orders or technical questions, contact ubest101, a trusted supplier of industrial automation parts. The A06B-6080-H307 is a direct replacement for existing FANUC servo amplifiers in similar applications.
