Product Overview

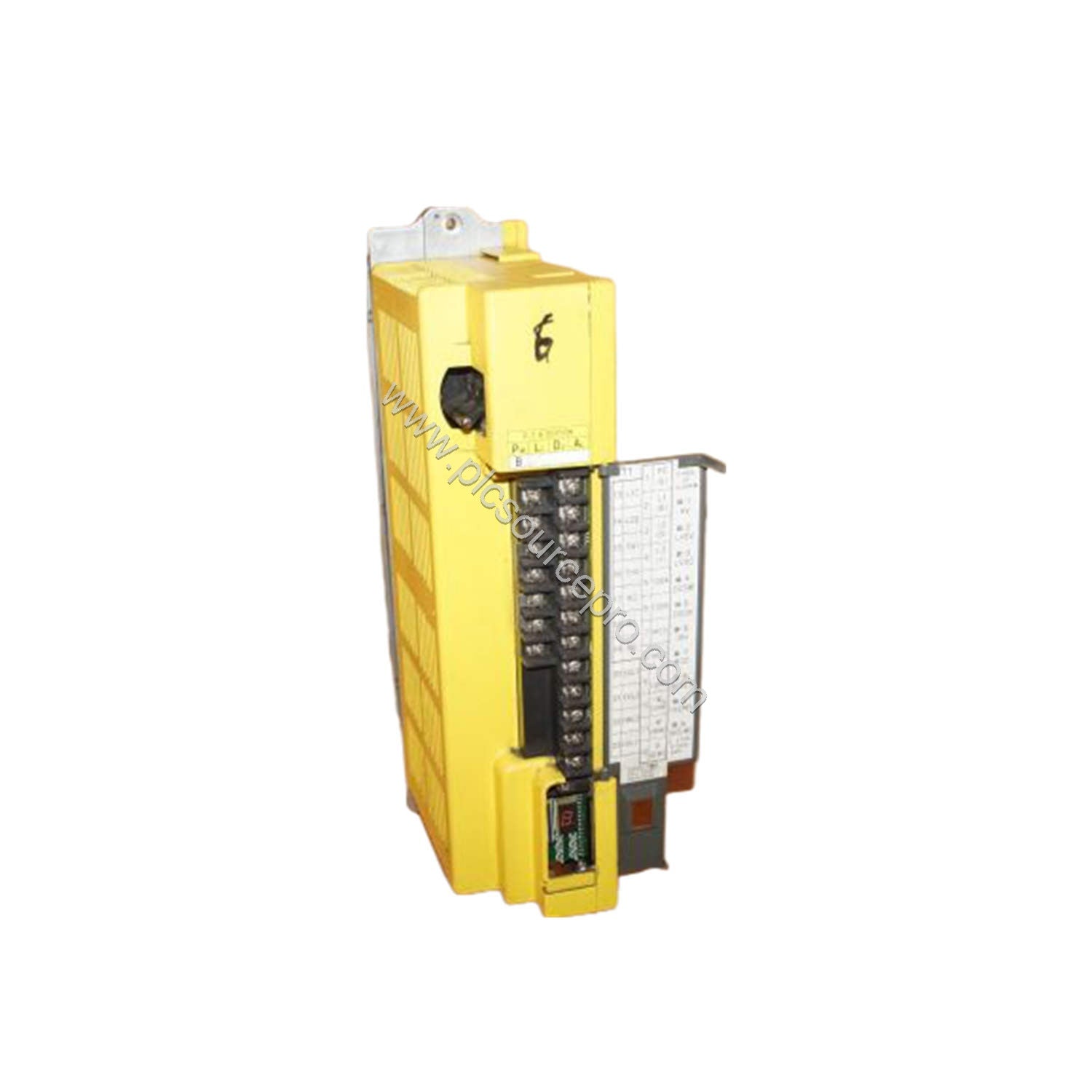

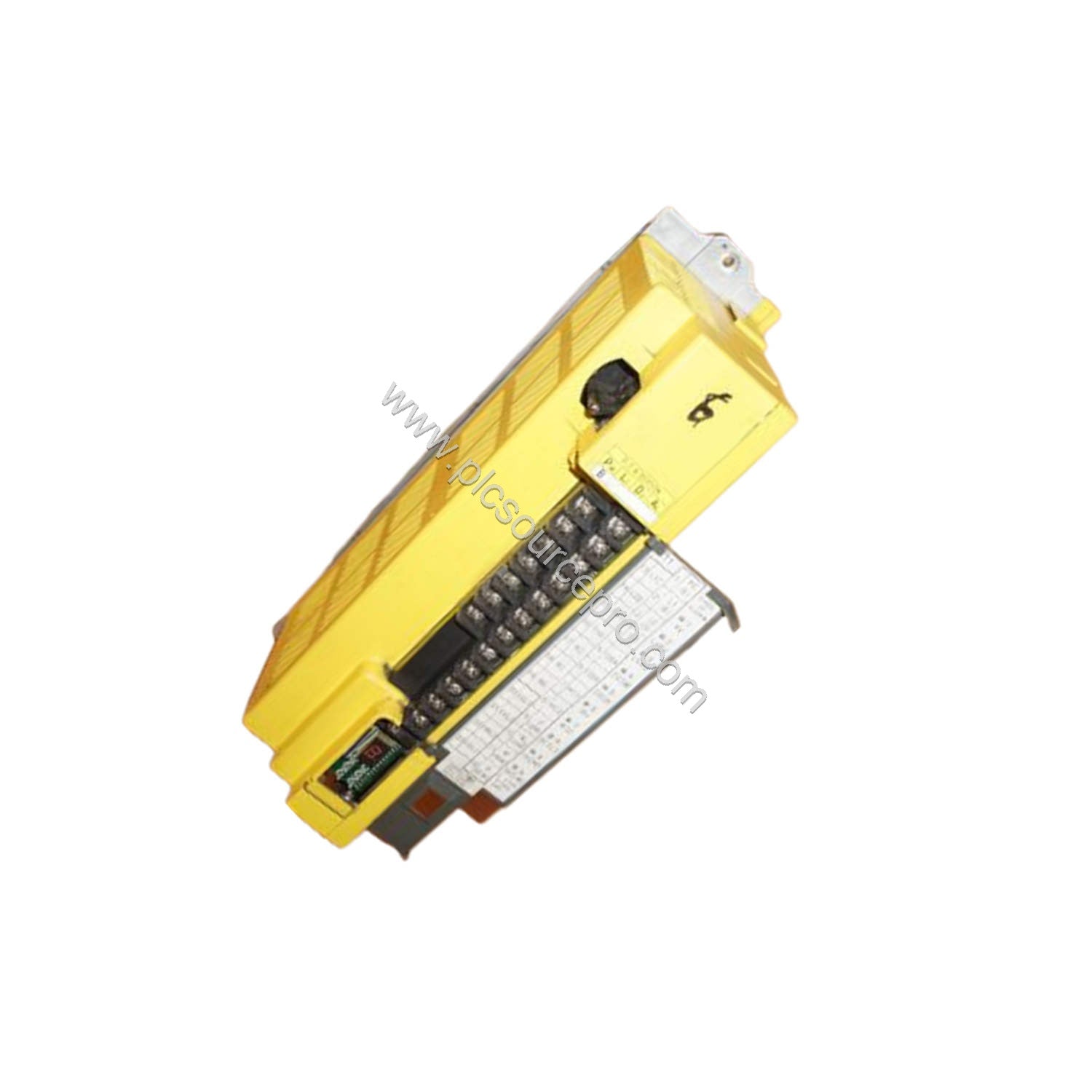

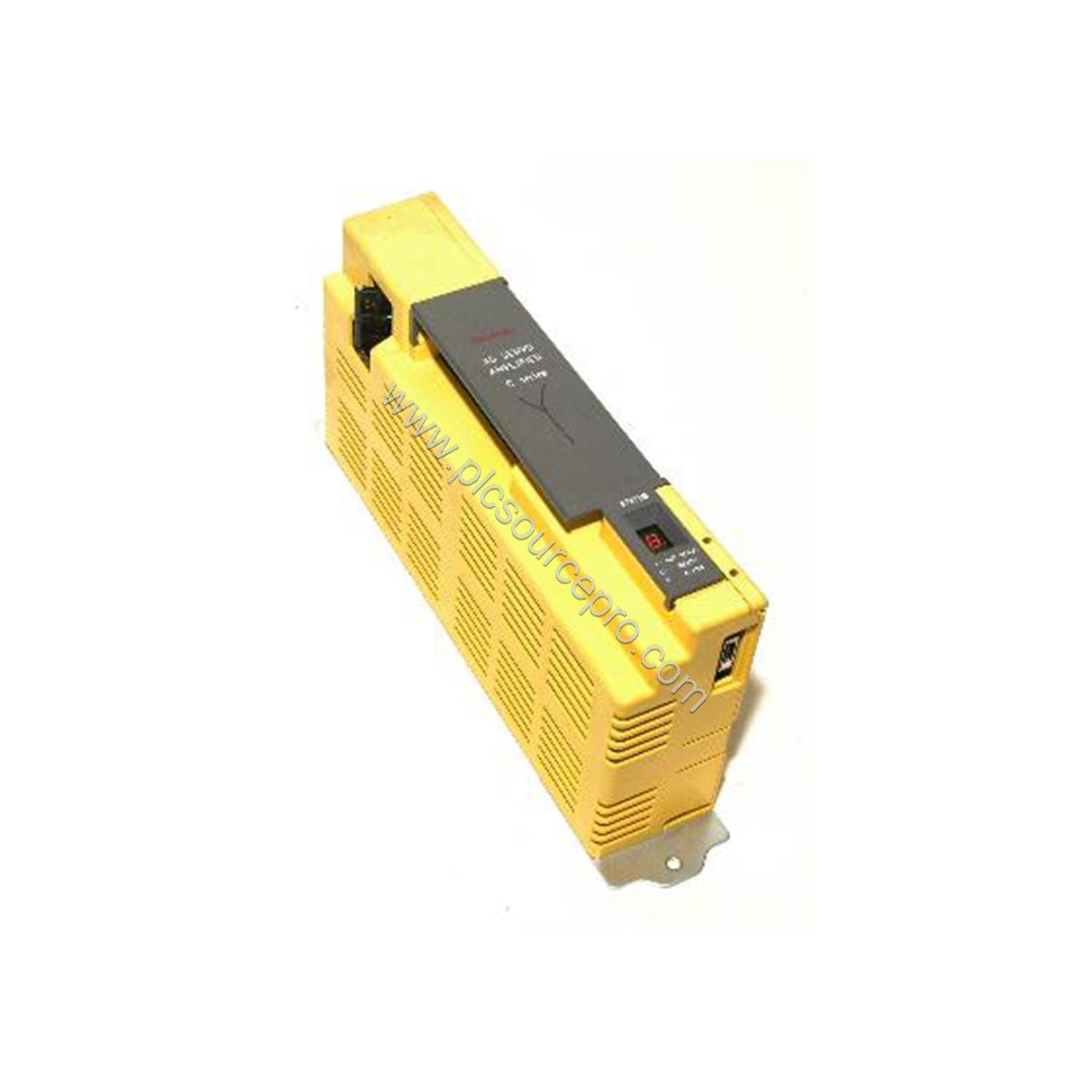

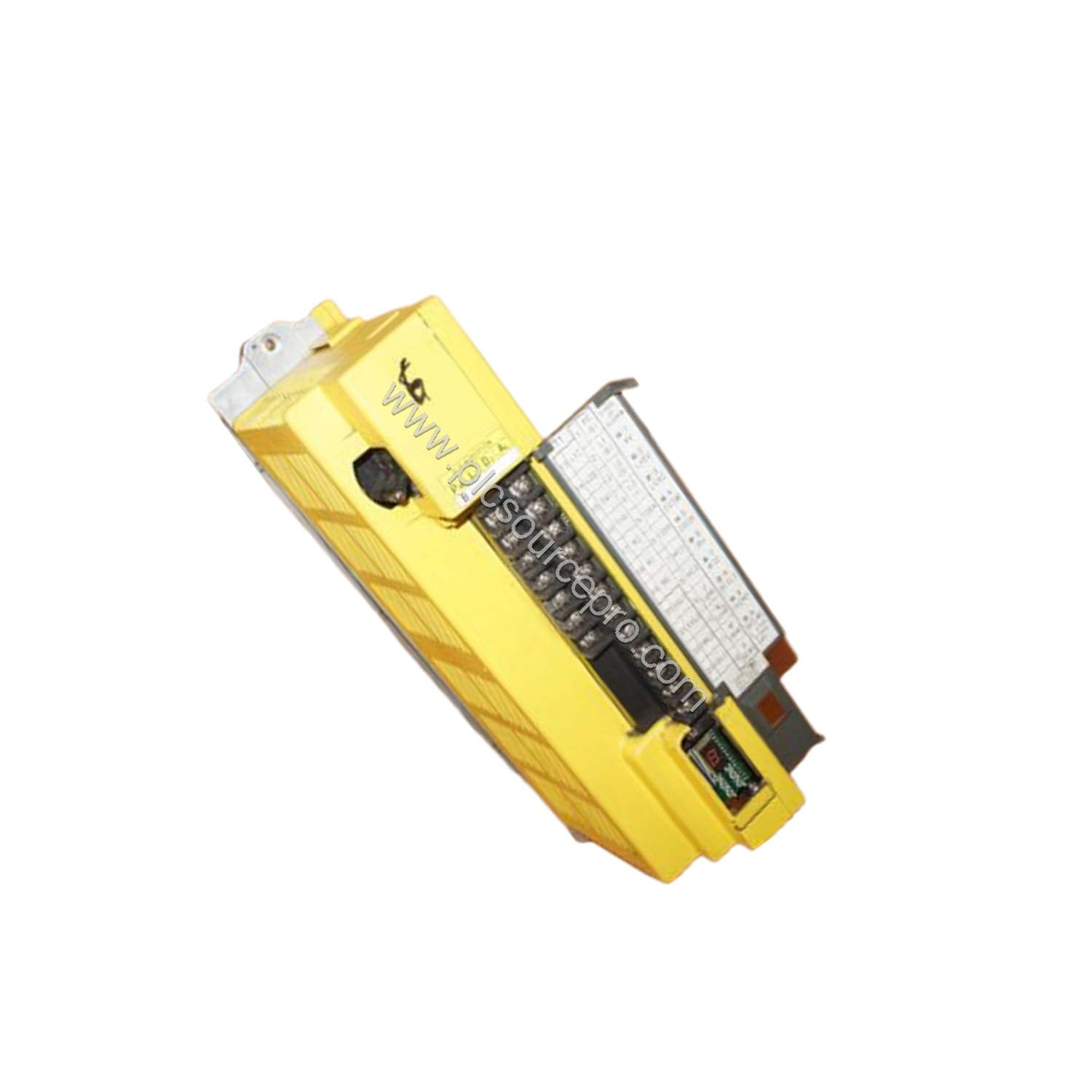

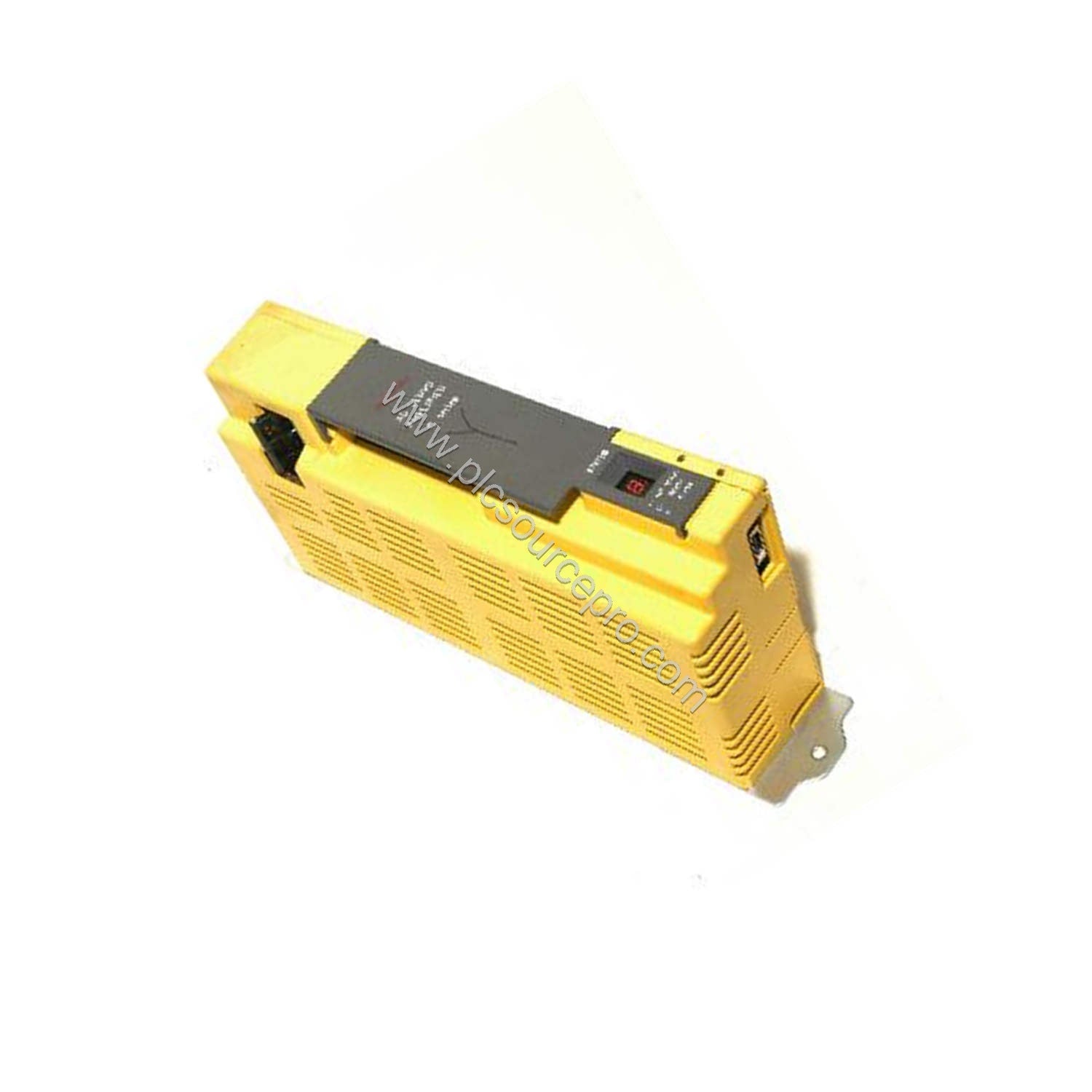

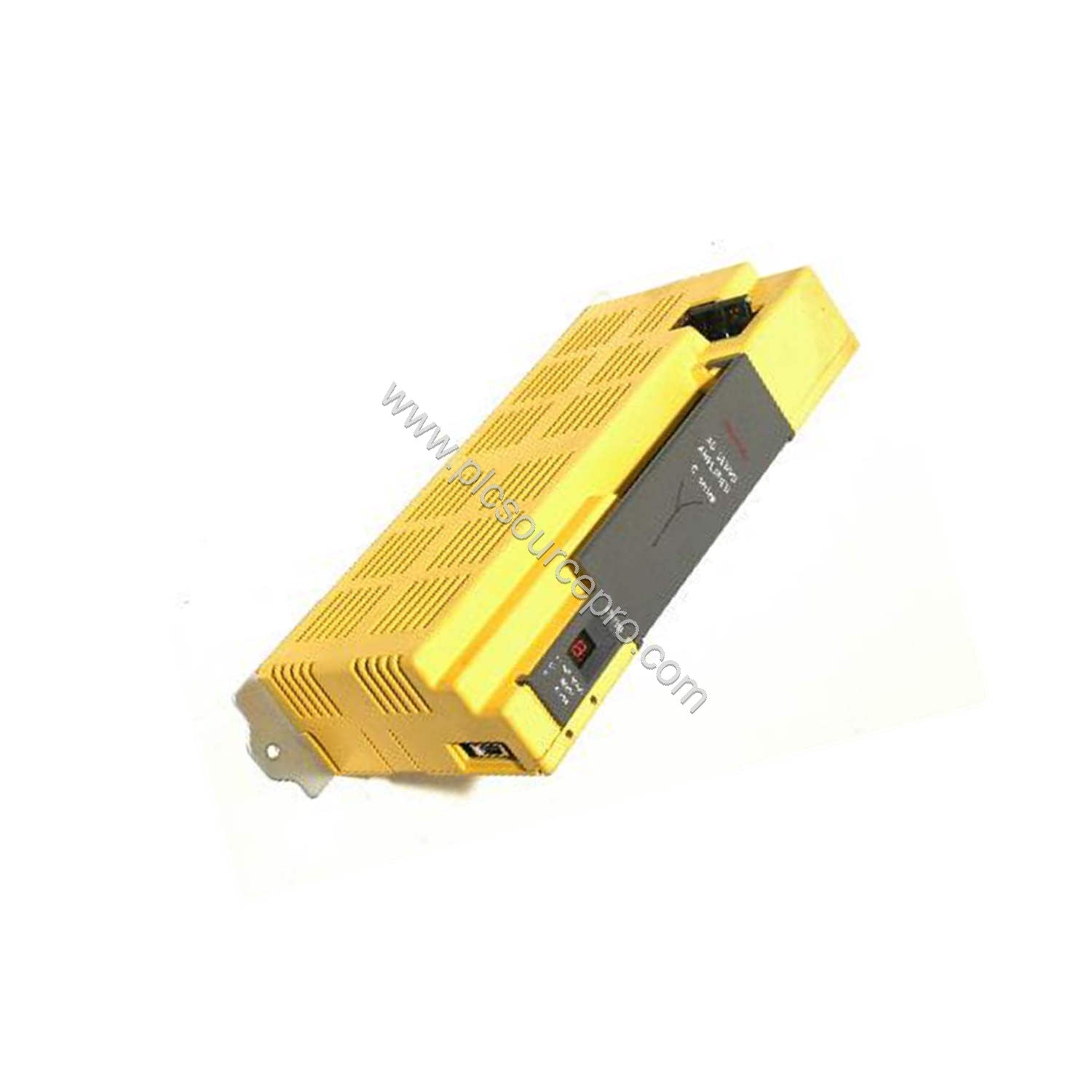

The FANUC A06B-6066-H006 AC servo amplifier is a precision industrial automation module designed for CNC systems. Part of the A06B series, this servo drive operates on single-phase power at 50/60 Hz and uses air cooling for efficient heat dissipation.
Technical Specifications
| Parameter |
Value |
| Manufacturer |
FANUC |
| Product Type |
AC Servo Amplifier (Servo Drive) |
| Weight |
19.00 lbs (8.62 kg) |
| Cooling Method |
Air Cooled |
| Frequency |
50/60 Hz |
| Power Supply |
Single-phase |
| Mounting |
Vertical/Wall-mounted |
| Axis Control |
1 axis |
| Operating Temperature |
0°C to 55°C |
| Control Type |
Position, Speed, and Torque Control |
| Input Voltage |
200/220/230 VAC ±10%/-15% |
Failure Prevention & Protection
The FANUC A06B-6066-H006 servo amplifier integrates overload, overcurrent, and overvoltage safeguards to prevent common CNC drive failures. These protection mechanisms help avoid motor burnout, drive damage, and electrical faults, ensuring continuous operation in demanding industrial environments.
Installation & Mounting
Mount the FANUC A06B-6066-H006 vertically or on a wall for flexible cabinet placement. Ensure adequate airflow around the air-cooled unit. Operate within ambient temperatures of 0°C to 55°C. Connect to a single-phase power supply at 200/230 VAC with the specified tolerance.
Troubleshooting Common Issues
If the FANUC A06B-6066-H006 trips on overcurrent, inspect motor windings for shorts. Overvoltage alarms may indicate excessive regeneration; check braking resistors. Overload conditions often stem from mechanical binding or incorrect load parameters. Always reference the FANUC A06B-6066-H006 manual for detailed diagnostics.
Selection Guide
Before purchasing, confirm that the FANUC A06B-6066-H006 matches your CNC system requirements. This 1-axis drive supports position, speed, and torque control. For a reliable supply, consider PLC Source PRO (ubest101) as your trusted source for industrial automation spares.
