Product Overview

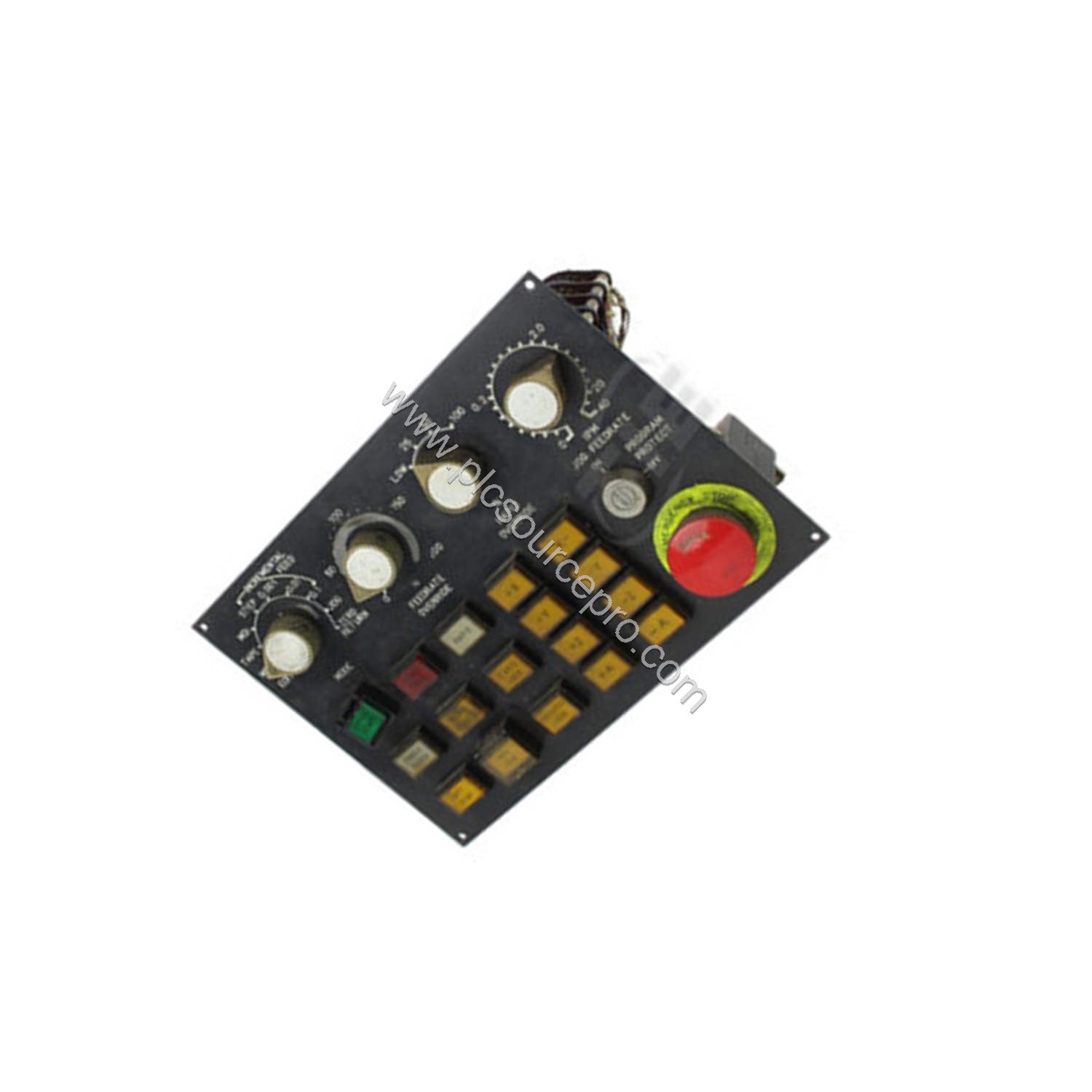

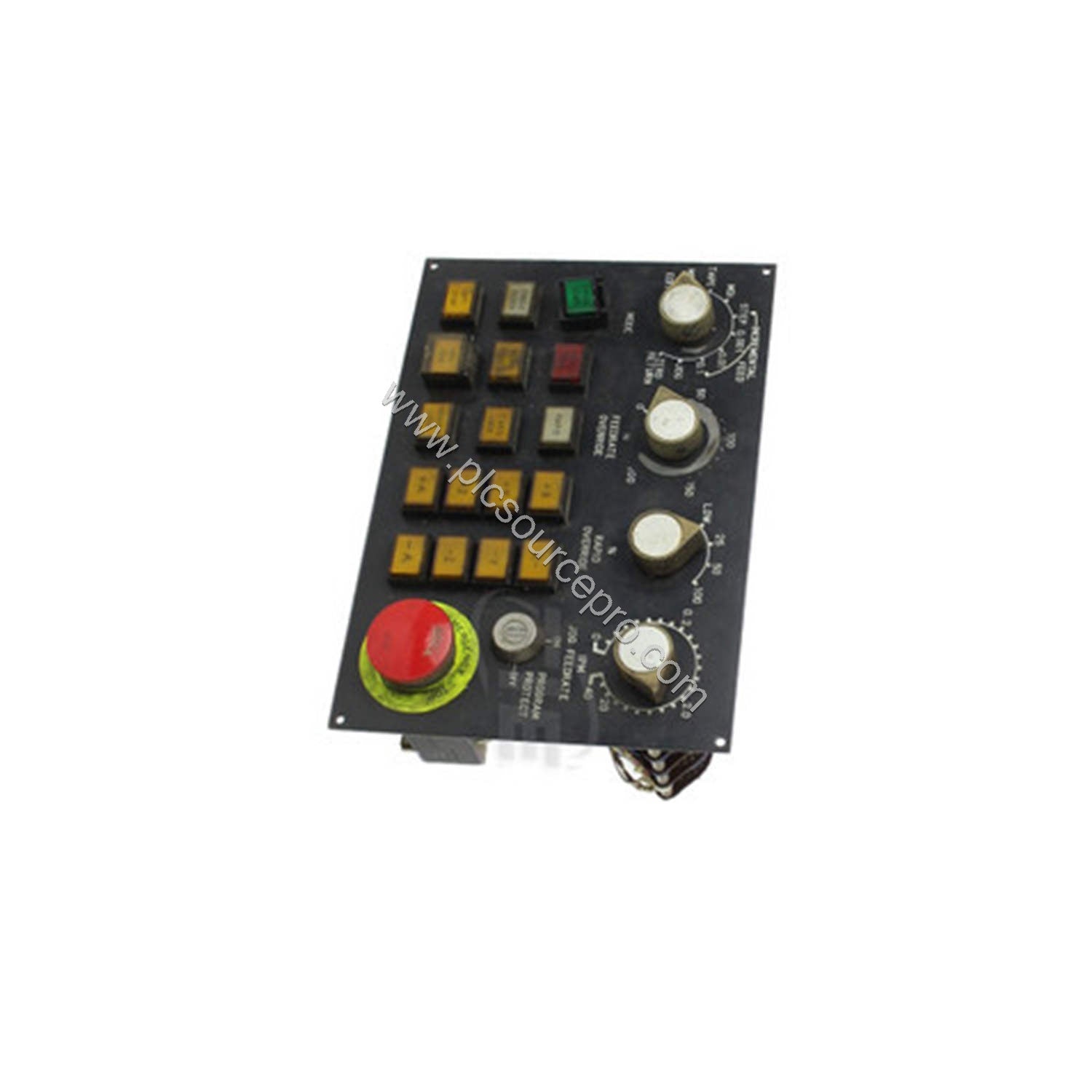

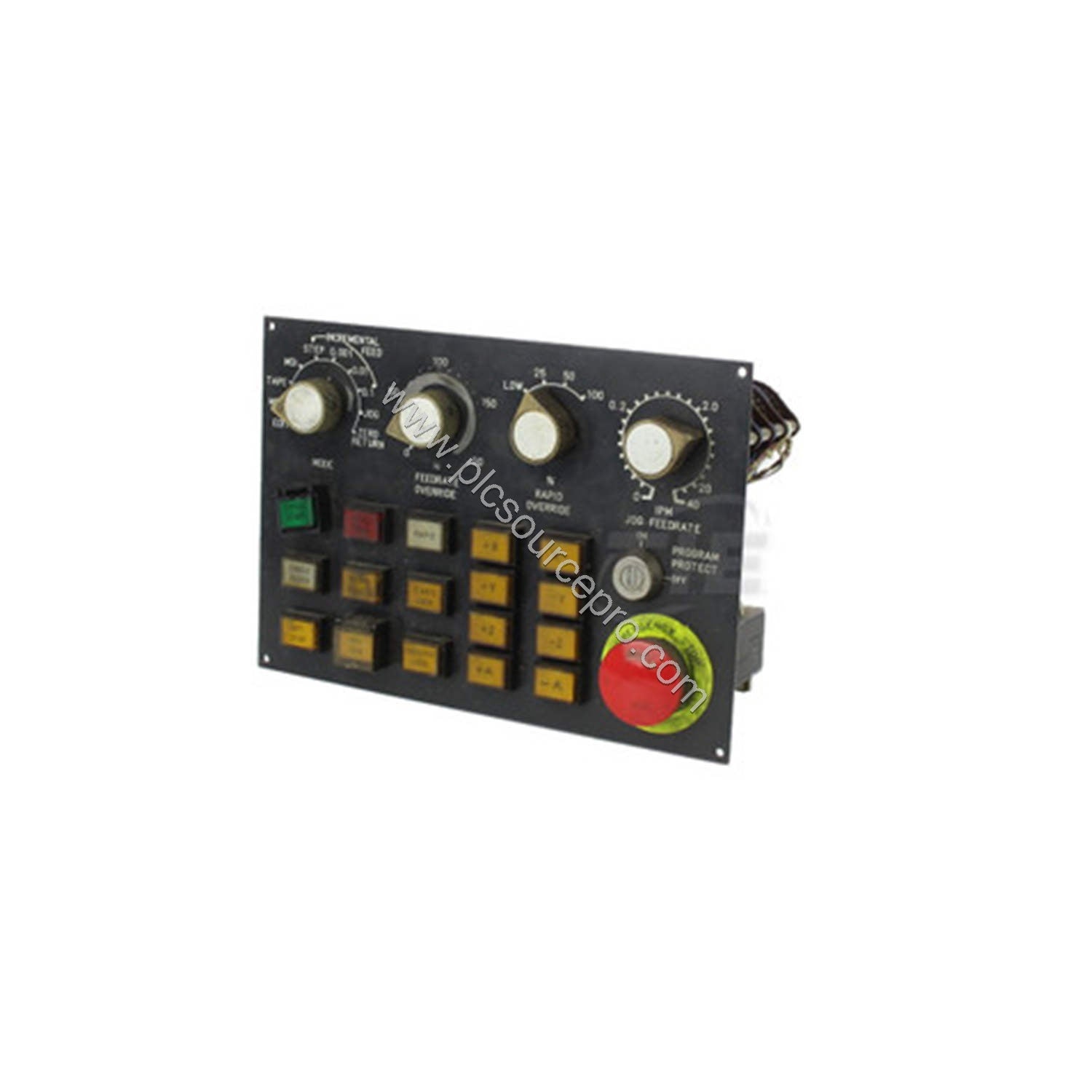

When an emergency stop or quick mode change is critical, the FANUC A02B-0051-C540 operator panel provides intuitive, safe control. Designed for operator interface management, this unit includes an emergency stop button, function keys, and a mode changer knob to handle diverse operational demands. Its rugged construction ensures reliability in demanding industrial environments.
Technical Specifications
The FANUC A02B-0051-C540 delivers precise control with a clear set of parameters. Below are the key specifications:
| Parameter |
Value |
| Manufacturer |
FANUC |
| Product Type |
Operator Panel |
| Product Line |
A02B |
| Part Number |
A02B-0051-C540 |
| Weight |
5.44 lbs (2.47 kg) |
| Safety Feature |
Emergency Stop Button |
| Operator Function |
Keys |
| Mode Changer |
Knob |
| Protection Class |
IP20 |
| Enclosure Rating |
NEMA 1 |
| Cooling |
Natural |
| Max Ambient Temp |
40°C |
| Min Ambient Temp |
0°C |
| Operating Humidity |
80% (non-condensing) |
| Storage Humidity |
80% (non-condensing) |
| Max Operating Altitude |
1000 m above sea level |
Application Scenarios
The FANUC A02B-0051-C540 operator panel excels in CNC machine control, where function keys allow quick program selection and the mode knob switches between manual, automatic, and edit modes. In assembly line stations, the emergency stop button provides immediate safety shutdown, protecting operators and equipment. Its IP20 and NEMA 1 ratings make it suitable for indoor industrial settings with limited dust and moisture exposure.
Installation and Setup
Mount the FANUC A02B-0051-C540 panel in a clean, dry location within a NEMA 1 enclosure. Ensure adequate airflow for natural cooling. Connect the panel to the control system using the manufacturer-recommended wiring diagram. Verify that all function keys and the mode knob operate correctly before commissioning. The emergency stop button must be accessible from the operator's normal position.
Maintenance and Reliability
Regularly inspect the FANUC A02B-0051-C540 for signs of wear on the emergency stop button and function keys. Clean the panel with a dry cloth; avoid liquids. Check that the mode knob turns smoothly without binding. The unit requires no scheduled lubrication. Maintain ambient temperature below 40°C and relative humidity below 80% to ensure long service life.
Selection Guide
Before purchasing a FANUC A02B-0051-C540, verify that your system requires an operator panel with these specific features. Confirm the mounting dimensions and electrical interface compatibility. For technical support or to place an order, contact ubest101 – a trusted source for industrial automation spares. Ensure you have the correct part number: A02B-0051-C540.
