Product Introduction

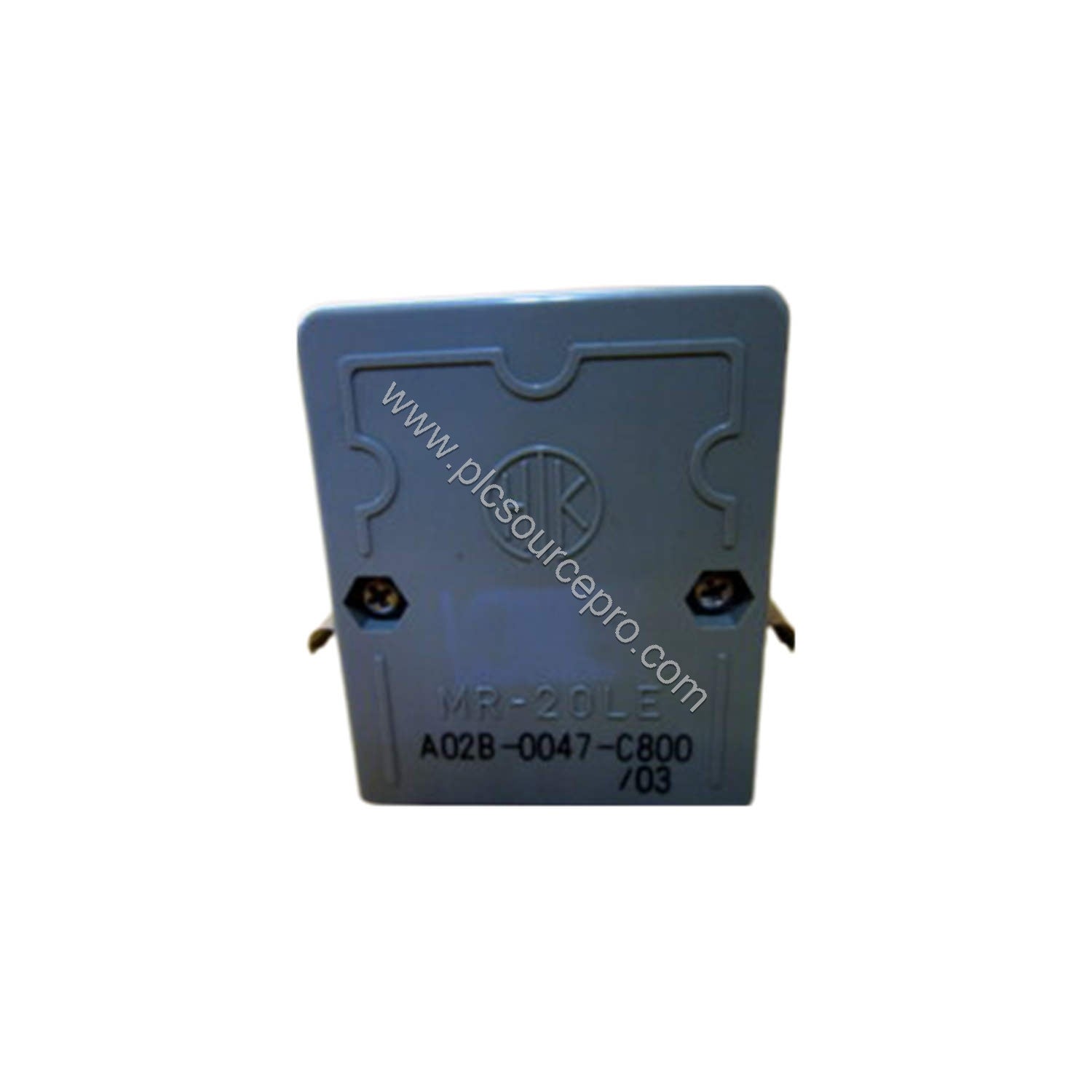

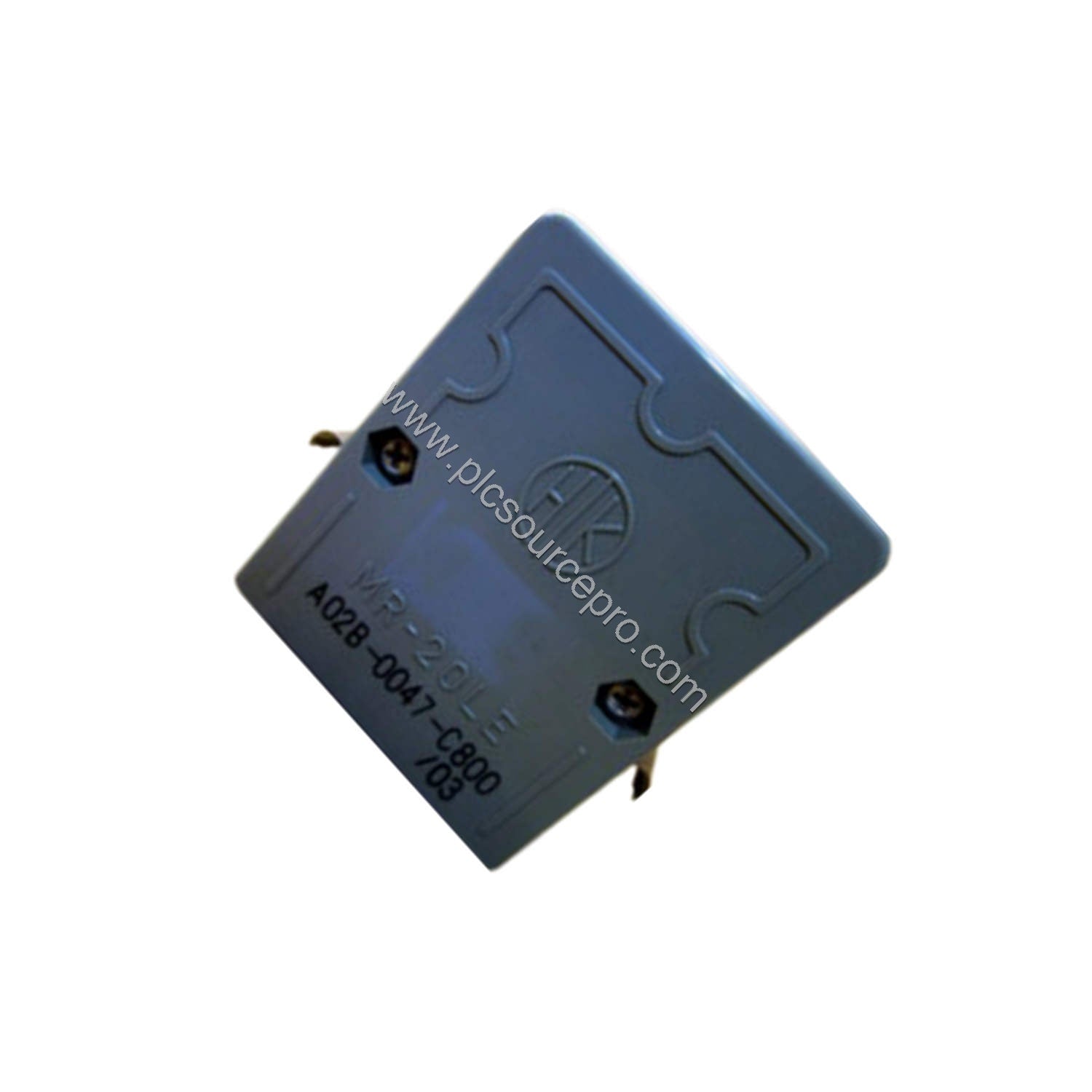

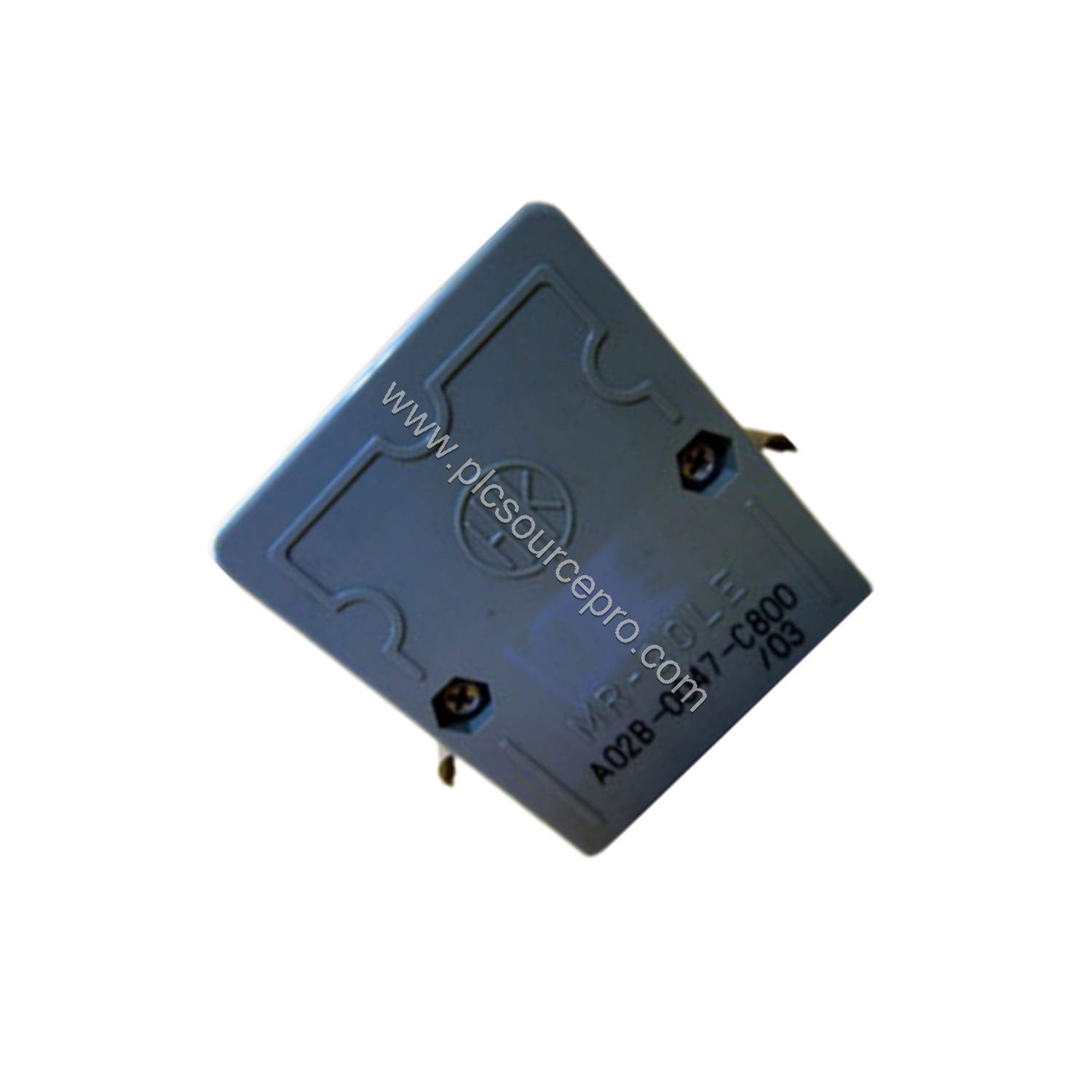

The FANUC A02B-0047-C800 is a terminator kit designed for reliable connections in industrial automation systems. This unit features a 20-pin male connector, enabling robust interfacing with control modules. With an operating temperature range from -40°C to 105°C, the A02B-0047-C800 ensures performance in extreme conditions, reducing unplanned downtime and maintenance costs. Part of the A02B series, this terminator kit delivers long-term value for high-stakes applications.
Technical Specifications Breakdown
The FANUC A02B-0047-C800 terminator kit includes key parameters that guarantee signal integrity and durability. Below are the critical specifications:
| Specification |
Value |
| Manufacturer |
FANUC |
| Product Type |
Terminator Kit with HONDA Connector |
| Connector Type |
20-pin male connector |
| Ambient Operating Temperature |
-40 to 105°C (non-condensing) |
| Insulation Resistance |
1,000 megaohms or more at 500 V DC |
| Contact Resistance |
5 milliohms or less |
| Withstand Voltage |
1,000 V AC for 1 minute |
| Humidity Tolerance |
90% to 95% relative humidity (non-condensing) |
| Weight |
0.13 lbs (0.06 kg) |
| Connector Shape |
Square |
| Termination Style |
Receptacles or crimp pins |
These specifications make the A02B-0047-C800 ideal for environments where electrical noise and humidity could compromise standard connectors. The high insulation resistance minimizes leakage, while low contact resistance ensures efficient power transfer.
Industry Applications
The FANUC A02B-0047-C800 terminator kit excels in demanding industrial settings. For example, in robotic assembly lines, the robust 20-pin male connector maintains signal integrity despite vibration and temperature extremes. In outdoor oil and gas monitoring stations, the wide temperature range and humidity tolerance (90%–95% RH) prevent connector failure. Additionally, in metal processing plants, the 1,000 V AC withstand voltage provides safety margins against transient surges. Choosing the A02B-0047-C800 reduces replacement frequency, directly improving operational ROI.
Maintenance & Reliability
To maximize the lifespan of your FANUC A02B-0047-C800, inspect the connector pins regularly for oxidation or damage. The square connector shape and straight connection direction simplify installation and reduce wear on contacts. Keep mating surfaces clean and dry to maintain contact resistance below 5 milliohms. In high-humidity environments, ensure ventilation prevents condensation. With minimal maintenance, this terminator kit delivers consistent performance, lowering total cost of ownership.
Selection Guide
Before purchasing the FANUC A02B-0047-C800, verify that your system requires a terminator kit with a 20-pin male HONDA connector. This unit is lightweight (0.13 lbs) and suits applications where weight is critical. Ensure your mating receptacle accepts crimp pins or receptacles as termination style. For bulk or custom orders, contact PLC Source PRO (formerly ubest101) for volume pricing and availability. The A02B-0047-C800 is a direct replacement for existing FANUC terminator kits in A02B series systems.
