Product Overview

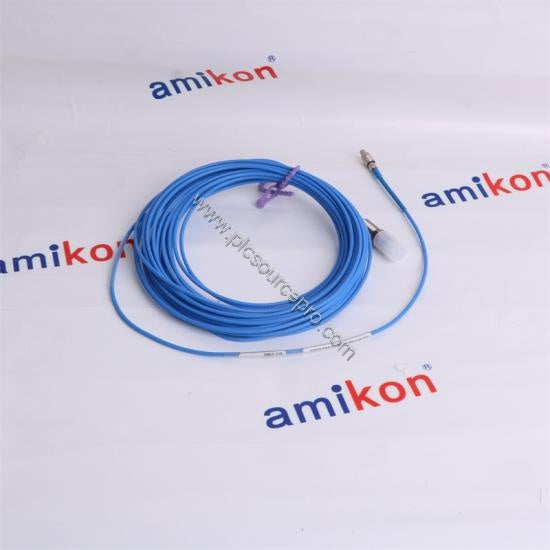

The Emerson EZ1080-060-00-50 410 eddy current sensor delivers precise non-contact shaft displacement measurement for critical turbomachinery. Designed for steam, gas, and hydro turbines, compressors, gearboxes, pumps, and fans, this sensor measures radial and axial dynamic displacement, position, eccentricity, and speed. The EZ1080-060-00-50 features an 8mm diameter probe with M10x1 threads, a 600mm sleeve, no armor, and a 5.0-meter cable for flexible installation.
Key Specifications
- Linear Measurement Range: 2 mm (80 mils)
- Initial Air Gap: 0.5 mm (20 mils)
- Incremental Scale Factor (ISF) API: 7.87 V/mm (199.9 mV/mil) ± 5% or ISO: 8 V/mm (203.2 mV/mil) ± 5% @ 0 to 45°C
- Deviation from Best Fit Straight Line: ± 0.025 mm (± 1 mil) @ 0 to 45°C
- Minimum Target Size: 14 mm (0.55 in) recommended 20 mm
- Minimum Shaft Diameter: 20 mm (0.79 in) recommended 25 mm
- Protection Class: IP67 (IP68 with DOC-TEST)
- Operating Temperature: Sensor tip -35 to +180°C; cable & connector -35 to +150°C
- Weight: Approx. 100 g (3.53 oz) with 1m cable
Compatible Target Materials
The Emerson EZ1080-060-00-50 works with ferromagnetic steels including 42CrMo4, P235S, C35, 34CrMo4, 26NiCrMoV14, ST 37, S235JR, X35CrMo17, CK1500590, ASTM A276 Type 410, 30CrNiMo8, 18CrNiMo7-6, and others on request.
Applications & Benefits
Replace aging vibration probes with the Emerson EZ1080-060-00-50 to improve measurement accuracy and system reliability. In steam turbines, this sensor monitors radial vibration and thrust position to prevent catastrophic failure. For centrifugal compressors, it provides precise shaft eccentricity data essential for surge control. The EZ1080-060-00-50’s robust design reduces downtime and maintenance costs compared to older contact-based sensors.
Installation Guidance
Mount the Emerson EZ1080-060-00-50 with the M10x1 thread into a suitable probe holder or bracket. Ensure the initial air gap of 0.5 mm (20 mils) is set during installation. The 5-meter cable allows connection to compatible signal converters. For pressure-sealed applications, order the DOC-TEST separately to verify sealing integrity. Avoid bending the cable beyond its minimum radius.
Selection & Ordering Advice
When selecting the Emerson EZ1080-060-00-50, confirm your target material and required cable length. This model includes a 600mm sleeve, no armor, and 5m cable. For hazardous area installations, verify the converter’s intrinsic safety or increased safety approvals. Purchase from UBEST Automation for genuine Emerson parts and expert support.
