Product Introduction

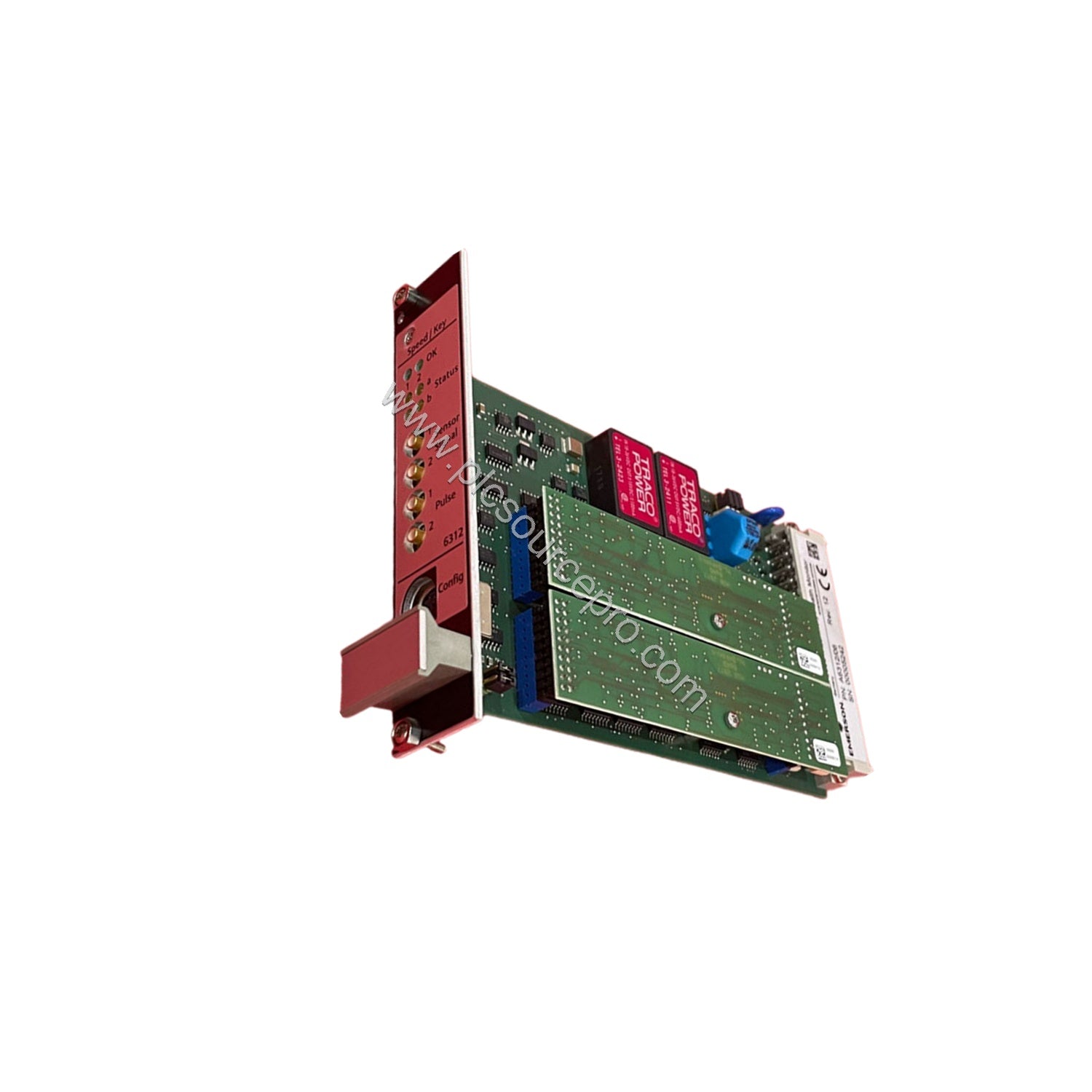

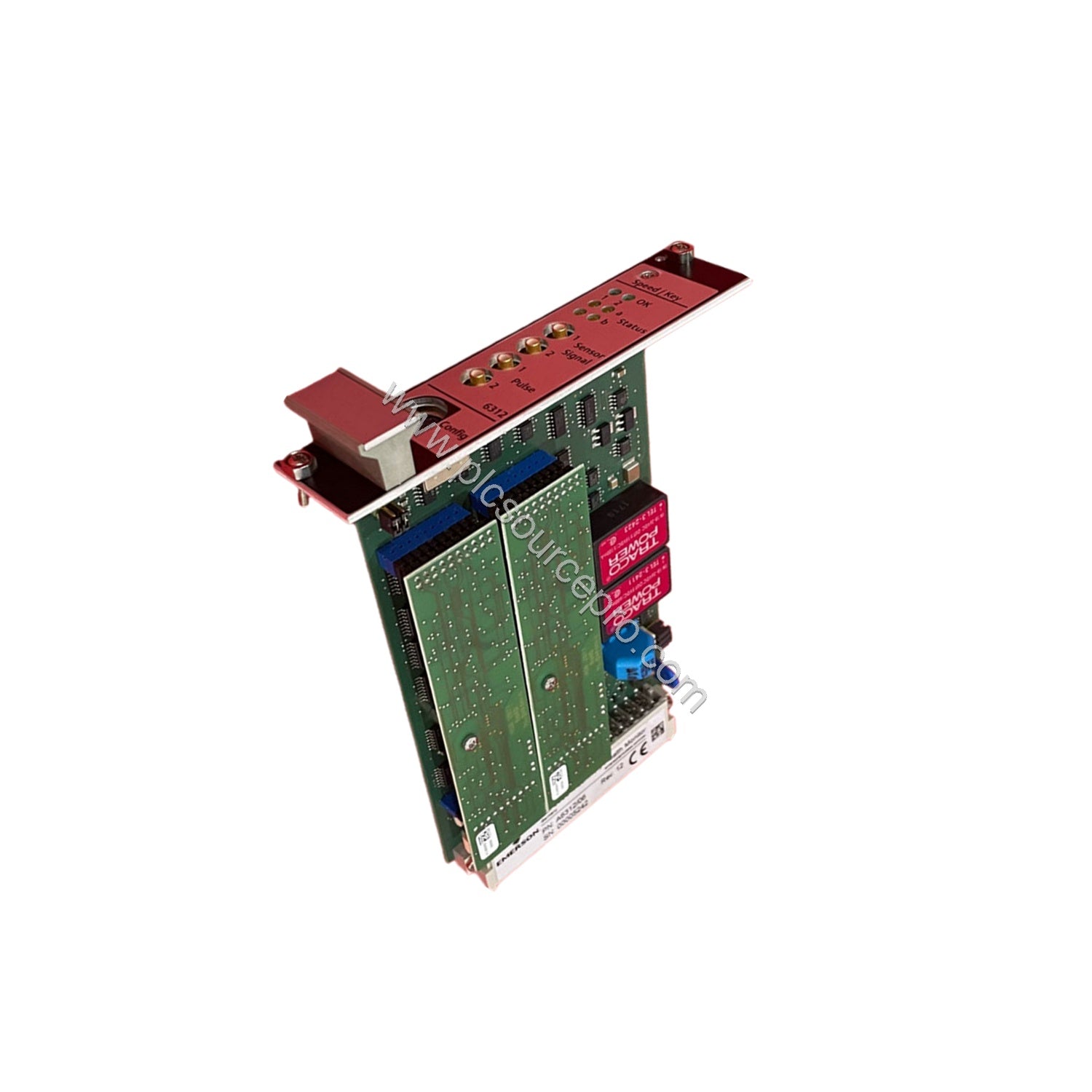

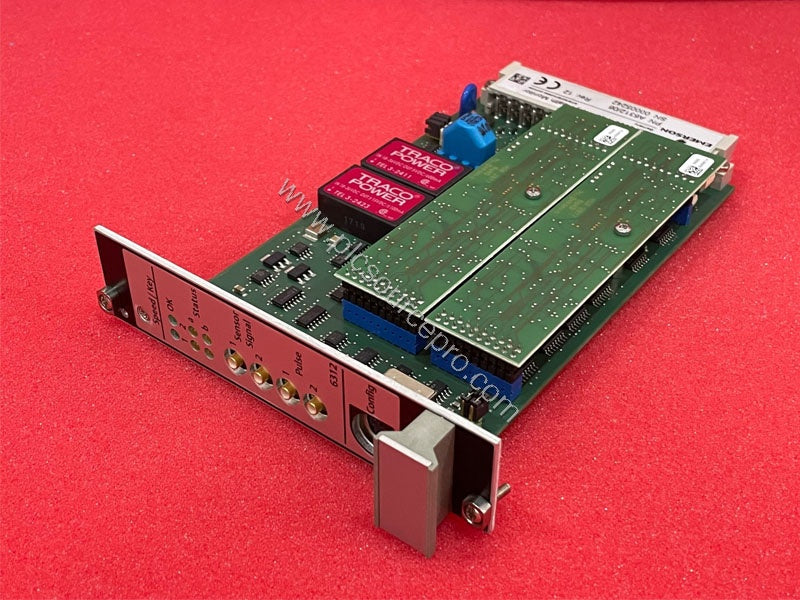

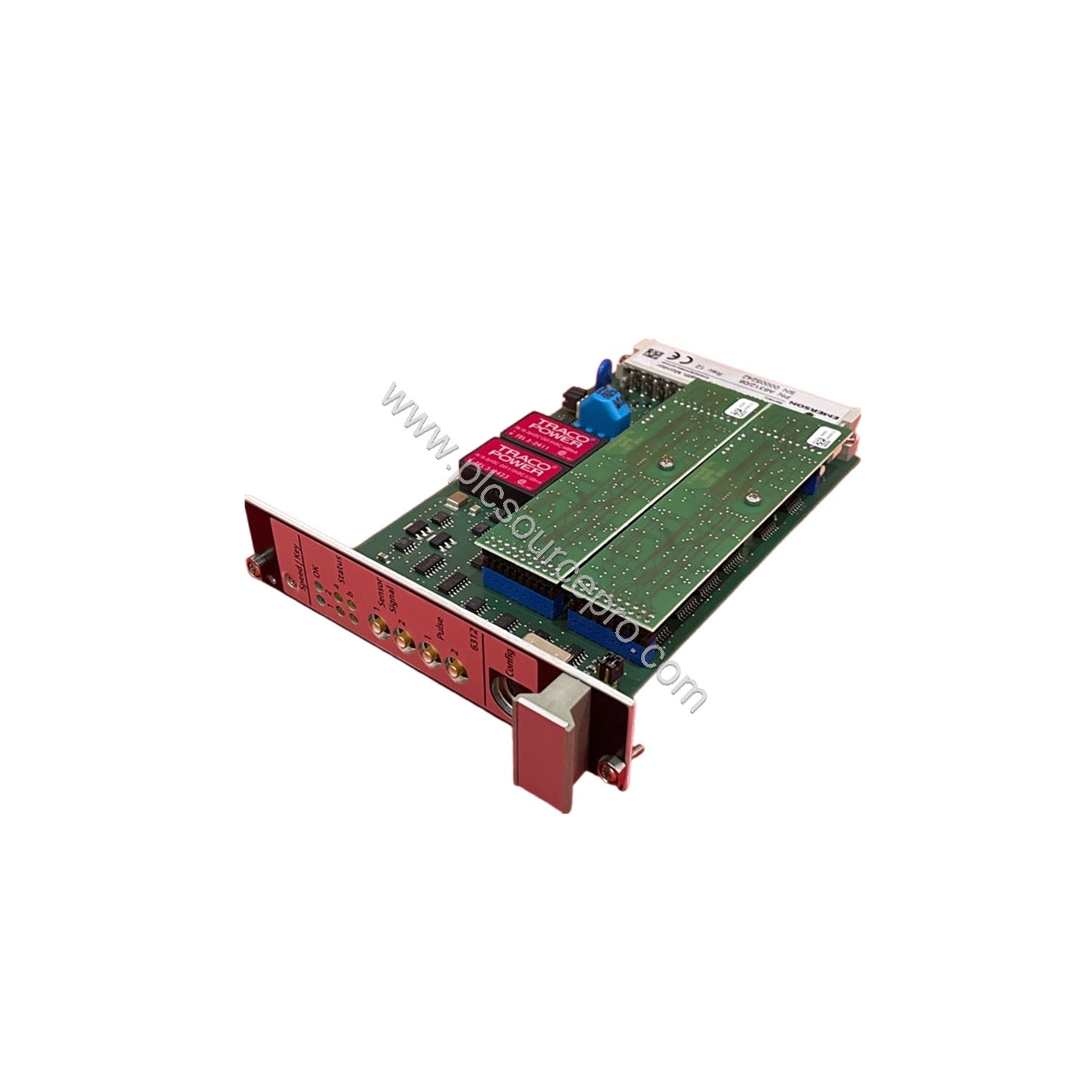

When rotating machinery faces speed sensor failures or phase inaccuracies, the Emerson A6312 provides robust protection with redundant mode and continuous self-diagnostics. This 1-slot monitor is designed for high reliability in monitoring speed, phase, zero speed, and direction of rotation. It is used together with the AMS 6500 to build a complete API 670 machinery protection monitor. Applications include steam, gas, compressors, and hydro turbo machinery.
The Emerson A6312 accepts two independent eddy current differential inputs and supports sensor gap voltage monitoring and pulse counting for automatic failover in redundant mode. Key specifications include an input frequency range of 0–20,000 Hz (65,535 RPM), an input voltage range of 0 to ±27.3 VDC, and a galvanically isolated sensor power supply delivering -26.75 VDC nominal.
Technical Specifications
| Parameter |
Value |
| Input Frequency Range |
0–20,000 Hz, 65,535 RPM |
| Input Voltage Range |
0 to ±27.3 VDC |
| Input Resistance |
>100 kΩ |
| Sensor Power Supply Nominal Voltage |
-26.75 VDC |
| Current Mode Output Load |
<500 Ω |
| Power Consumption |
Max 6 W, 250 mA at 24 VDC |
| Operating Temperature |
0°–65°C (32°–149°F) |
The Emerson A6312 offers hot swappable, API 670 compliant modules, buffered proportional outputs, and self-checking for hardware temperature, power input, sensor, and cable integrity. It supports rear buffered 0/4-20 mA outputs and TTL pulse outputs.
Industry Applications
In steam turbine monitoring, the Emerson A6312 continuously tracks shaft speed and phase to detect zero speed and reverse rotation. For gas compressors, its redundant mode ensures uninterrupted operation even if one sensor fails. Hydro turbo machinery benefits from precise key phase measurement for advanced vibration analysis. The monitor’s configurable alarm setpoints (5–100% of full scale) and time delays (0–5 seconds per channel) allow tailored protection for each machine.
Compatibility and Integration
The Emerson A6312 integrates seamlessly with AMS 6500 monitors and the PlantWeb digital plant architecture, including Ovation and DeltaV control systems. It is compatible with displacement sensor part numbers 6422, 6423, 6424, and 6425, as well as CON 011/91, 021/91, and 041/91 drivers. The module fits into 19-inch rack mount chassis (6TE wide for AMS 6000, 8TE for AMS 6500). Communication is via RS-232 on the front Mini DIN configuration socket for parameter setup and status monitoring.
Maintenance and Reliability
The Emerson A6312 reduces unplanned downtime through its comprehensive self-checking features. It continuously monitors hardware temperature, power supply, sensor and cable integrity, and internal system watchdog. The galvanically isolated sensor power supply prevents ground loops. For maximum reliability, redundant mode allows automatic switchover from primary to backup tachometer. The module supports remote limit multiply (1.00–4.99 factor) and trip bypass via relay input, enabling effective failure management.
Selection Guide and Purchasing Advice
When selecting the Emerson A6312, verify that your displacement sensors match the part numbers 6422–6425 and that the driver module (CON 011/91, 021/91, 041/91) is appropriate for your application. The monitor requires one slot per module and up to 14 modules fit into a 19-inch rack. For assistance in configuring your machinery protection system, contact UBEST Automation—your reliable source for industrial automation parts. (Visit ubest101.myshopify.com for more details.)
