Product Overview
When critical turbomachinery experiences sudden axial shaft movement, the Emerson A6210 of Inputs Eddy current, differential Thrust Position Monitor provides reliable machinery protection. This two-channel module, part of the AMS 6500 system, monitors thrust position, differential expansion, and rod position in reciprocating compressors. The Emerson A6210 detects small axial movements in 40 ms or less, minimizing risk of rotor-to-case contact. Redundant sensors and voting logic are recommended for critical applications.
Key Specifications
- Number of Inputs: Two independent eddy current inputs
- Input Voltage Range: 0 to -22 VDC
- Measuring Frequency Range: 0-8 Hz (10 Hz, -3 dB)
- Sensor Power Supply: Nominal -26.7 VDC, 20 mA typical, 35 mA max
- Front Panel Buffered Outputs: Two, -1 to -24 V, >100 kΩ load
- Current Outputs: 0/4-20 mA per channel, <500 Ω load
- Rear Buffered Outputs: 0-10 VDC per channel, >10 kΩ load
- Accuracy: ±1% of full scale
- Power Consumption: Max 6 W, 250 mA at 24 VDC
- Operating Temperature: 0° to 65°C (32° to 149°F)
- Protection: IP00 module, IP21 front plate
- Compliance: API 670 and API 618, EMC EN50081-1/EN50082-2
Application Scenarios
The Emerson A6210 excels in three distinct measurement modes. In Thrust Position Mode, it continuously monitors axial shaft position and triggers alarms on sudden movements, preventing rotor-to-case contact. In Differential Expansion Mode, it measures the relative growth between the case and rotor during turbine start-up, ensuring safe thermal operation. In Rod Position Mode, it detects rider band wear in horizontal reciprocating compressors by measuring piston rod drop, enabling automatic shutdown protection. This modular flexibility makes the Emerson A6210 essential for turbomachinery and compressor safety.
Installation & Setup

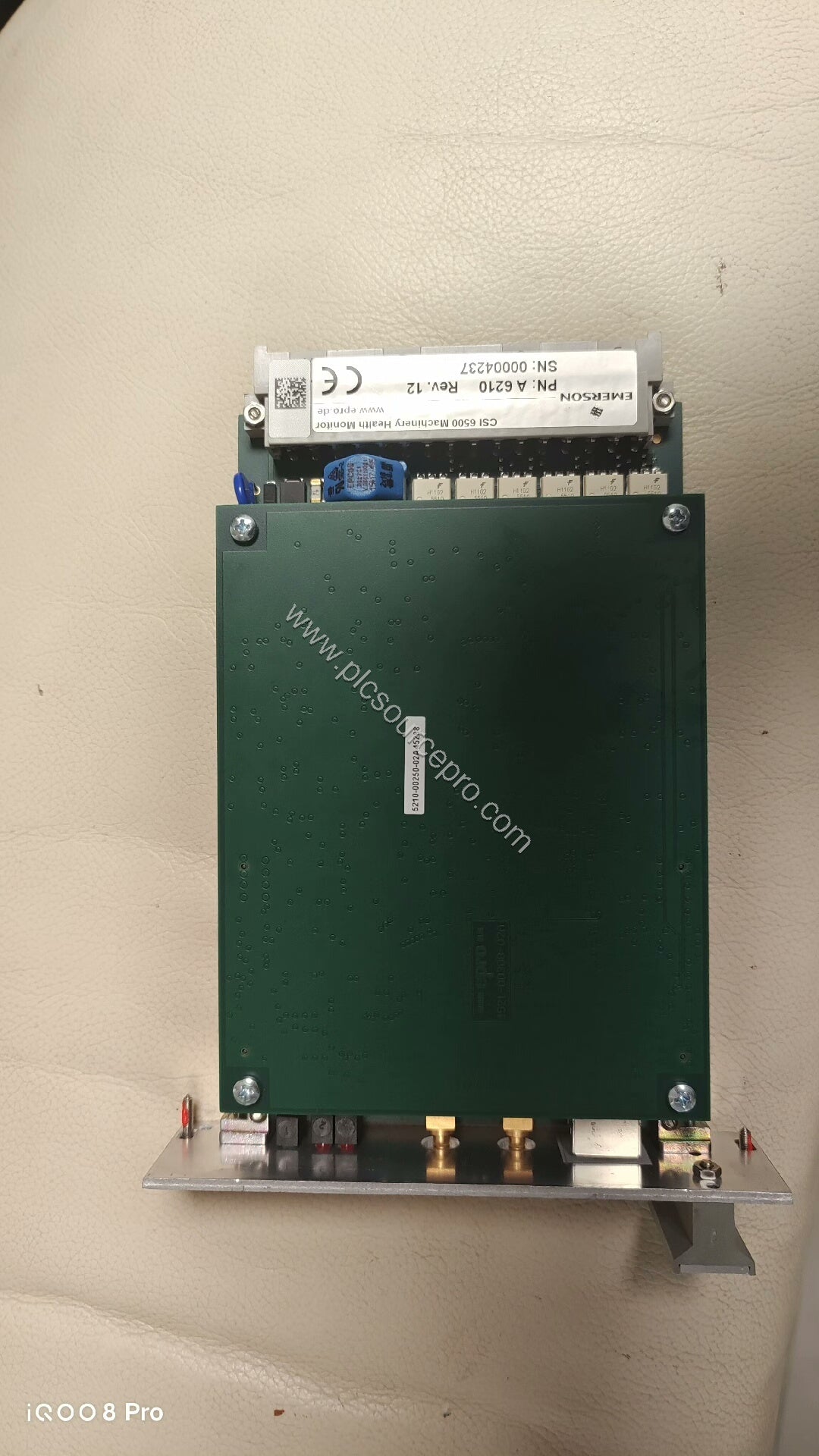

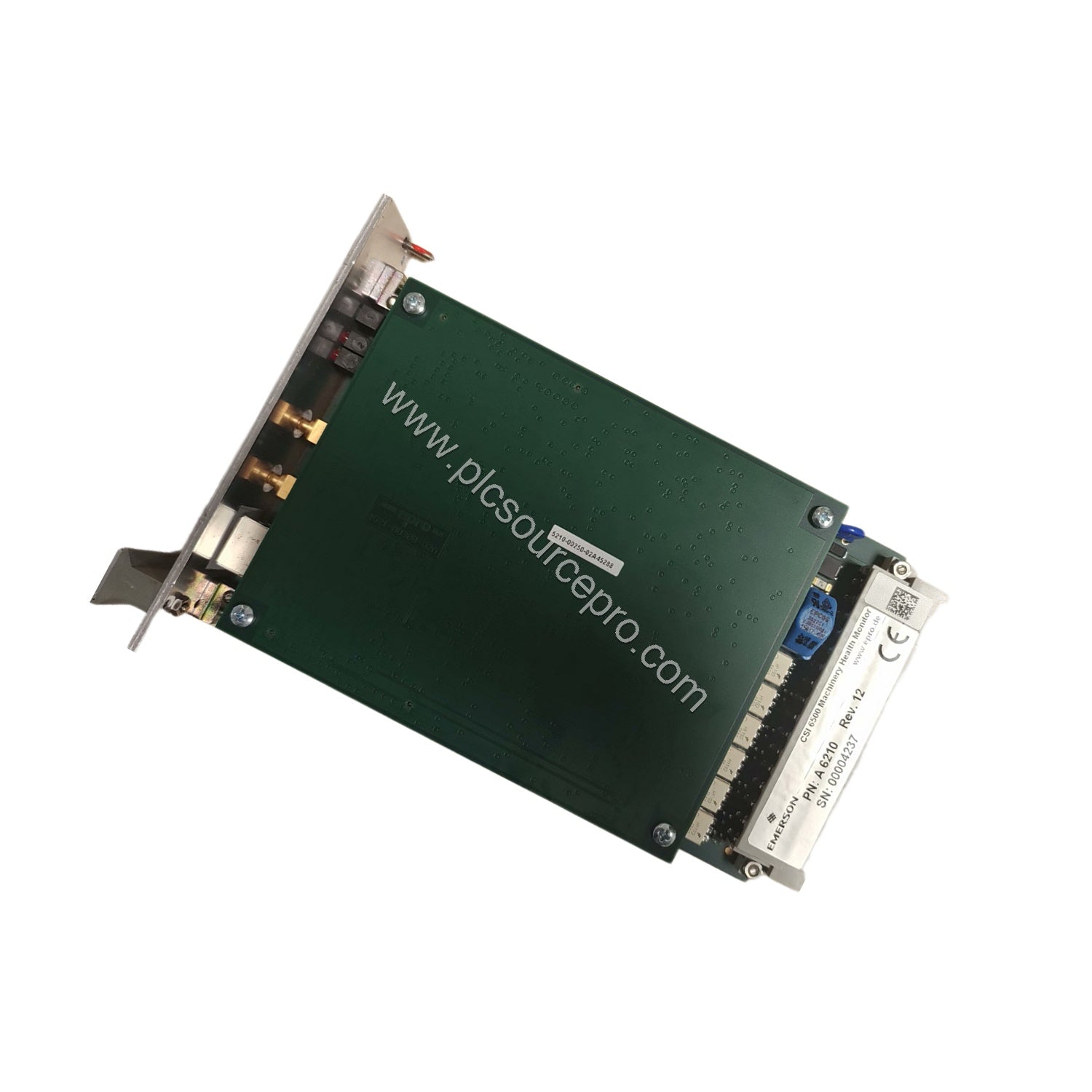

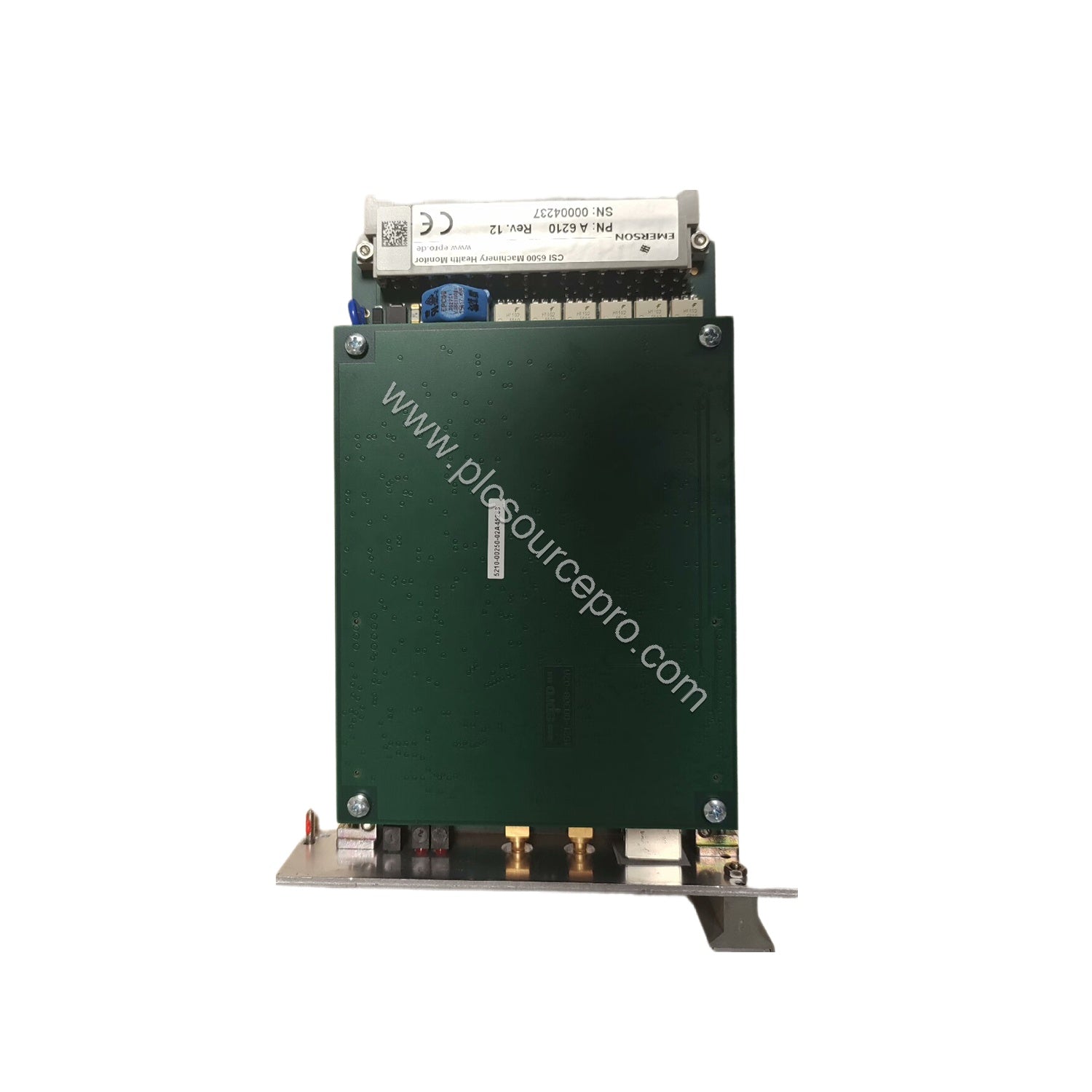

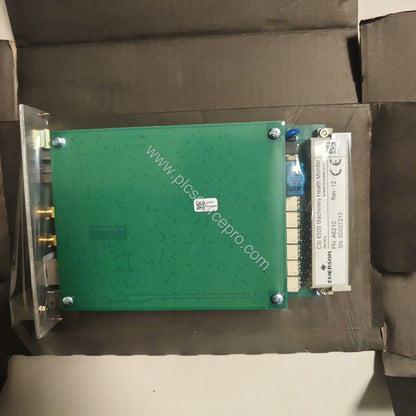

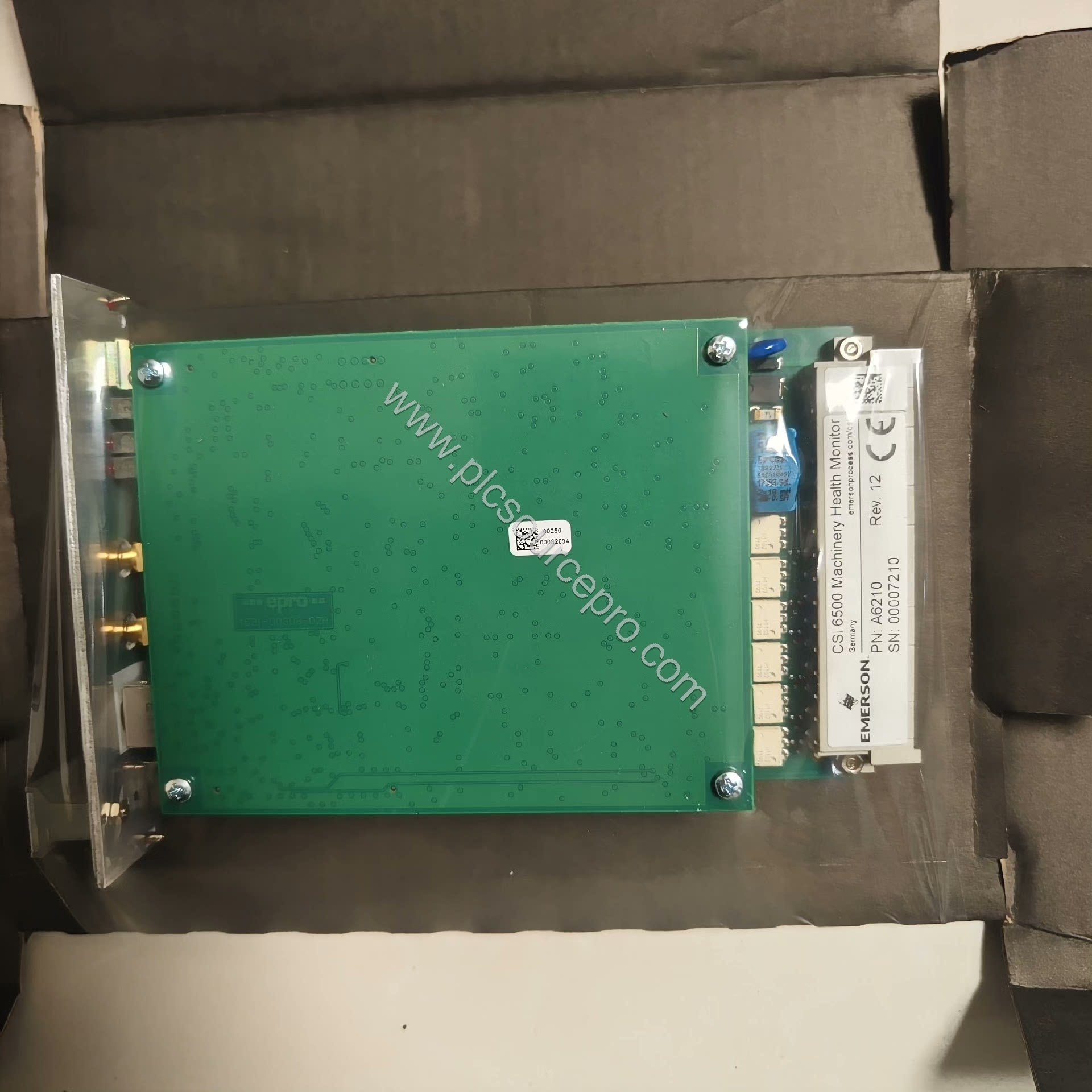

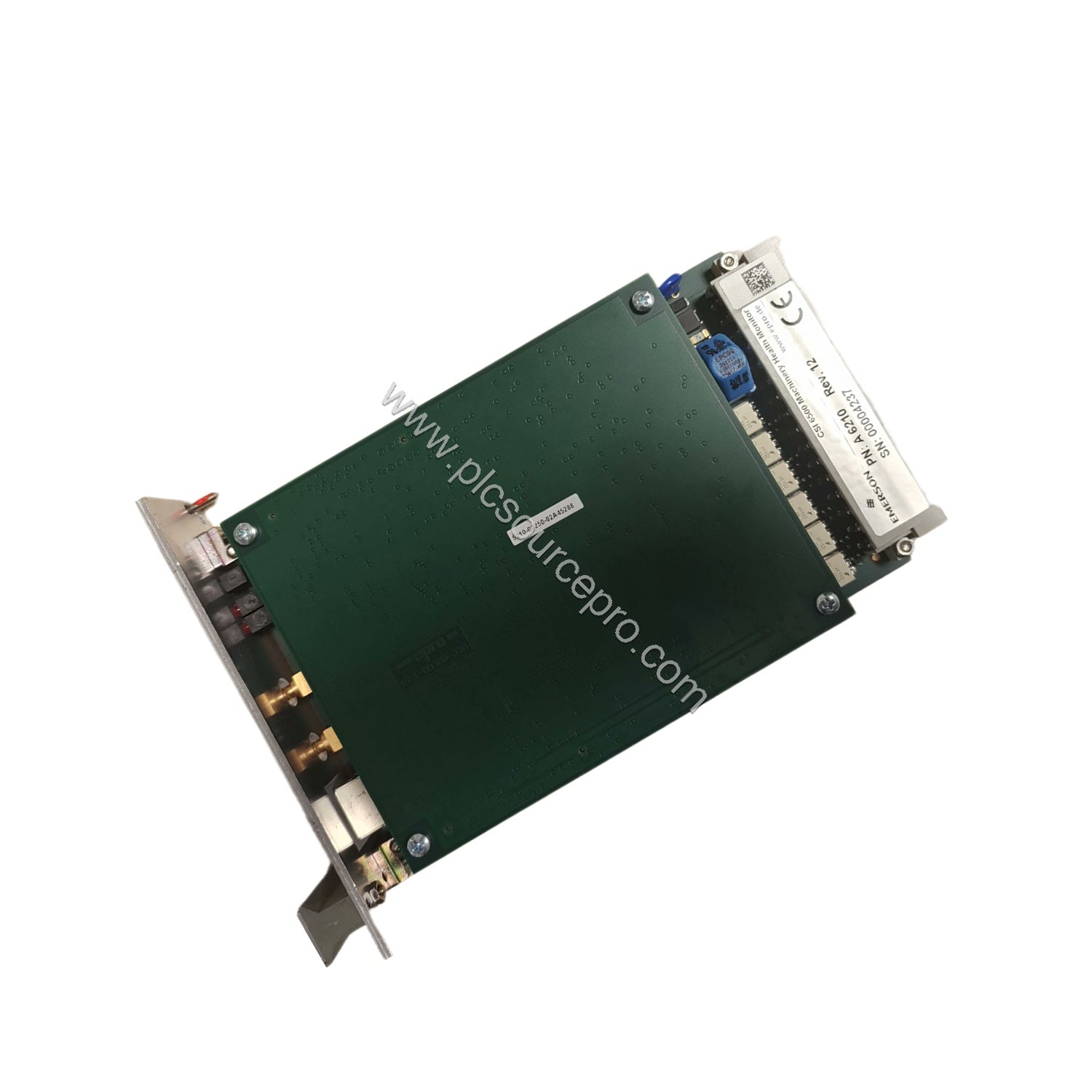

The Emerson A6210 is a 3U, 1-slot hot-swappable module that reduces cabinet space. It accepts displacement sensors 6422, 6423, 6424, and 6425 with driver CON xxx. Built-in software linearization eases sensor adjustment after installation. Front and rear buffered outputs provide 0/4-20 mA and 0-10 V signals. For optimal performance, mount the module in a clean, ventilated rack and ensure proper grounding of sensor cables.
Maintenance & Reliability
Self-checking facilities monitor hardware, power input, and internal temperature. The Emerson A6210 operates in 0° to 65°C environments and withstands vibration per IEC 68-2. Green and red front-panel LEDs indicate channel status and alarms. To maximize reliability, inspect sensor cables periodically and verify alarm setpoints. The module includes a password-protected configuration to prevent unauthorized changes.
Compatibility & Integration
The Emerson A6210 integrates seamlessly with the AMS 6500 Machinery Health Monitor and connects to DeltaV and Ovation process automation systems. Preconfigured Graphic Dynamos and Graphic Macros speed operator graphic development. The module communicates via RS-232 on the Mini DIN configuration socket for parameter setting and status monitoring.
Troubleshooting Common Issues
If a channel indicates not OK, check the sensor cable, power supply, and internal temperature. Alarm delays can be set from 0 to 5 seconds per channel (up to 36 seconds with A6740 relay card). For trip bypass, use remote relay inputs. The Emerson A6210 allows setting alarm hysteresis from 0% to 20% of full scale to avoid nuisance trips. Always use the configuration software to verify measurement range and engineering units.
