Product Introduction

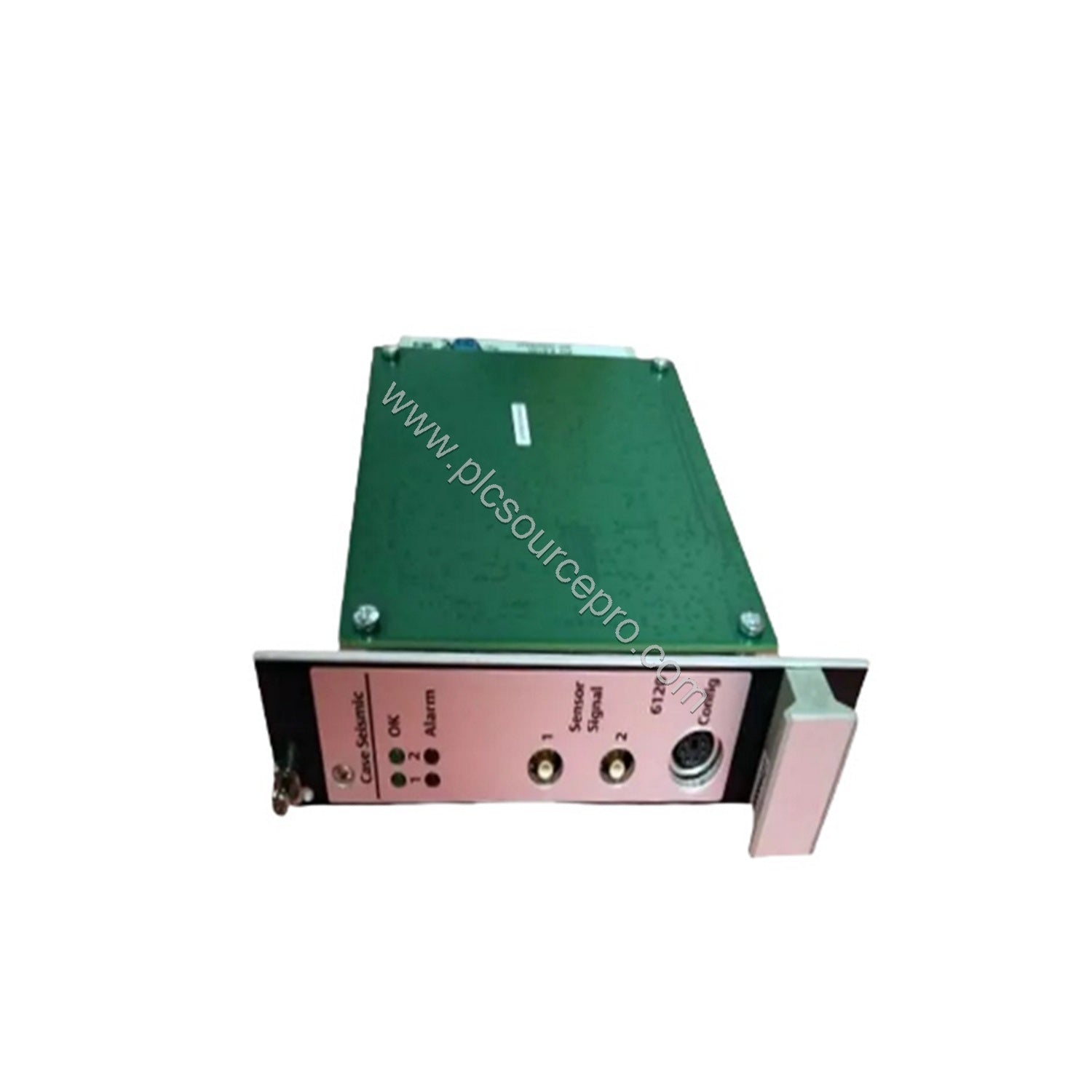

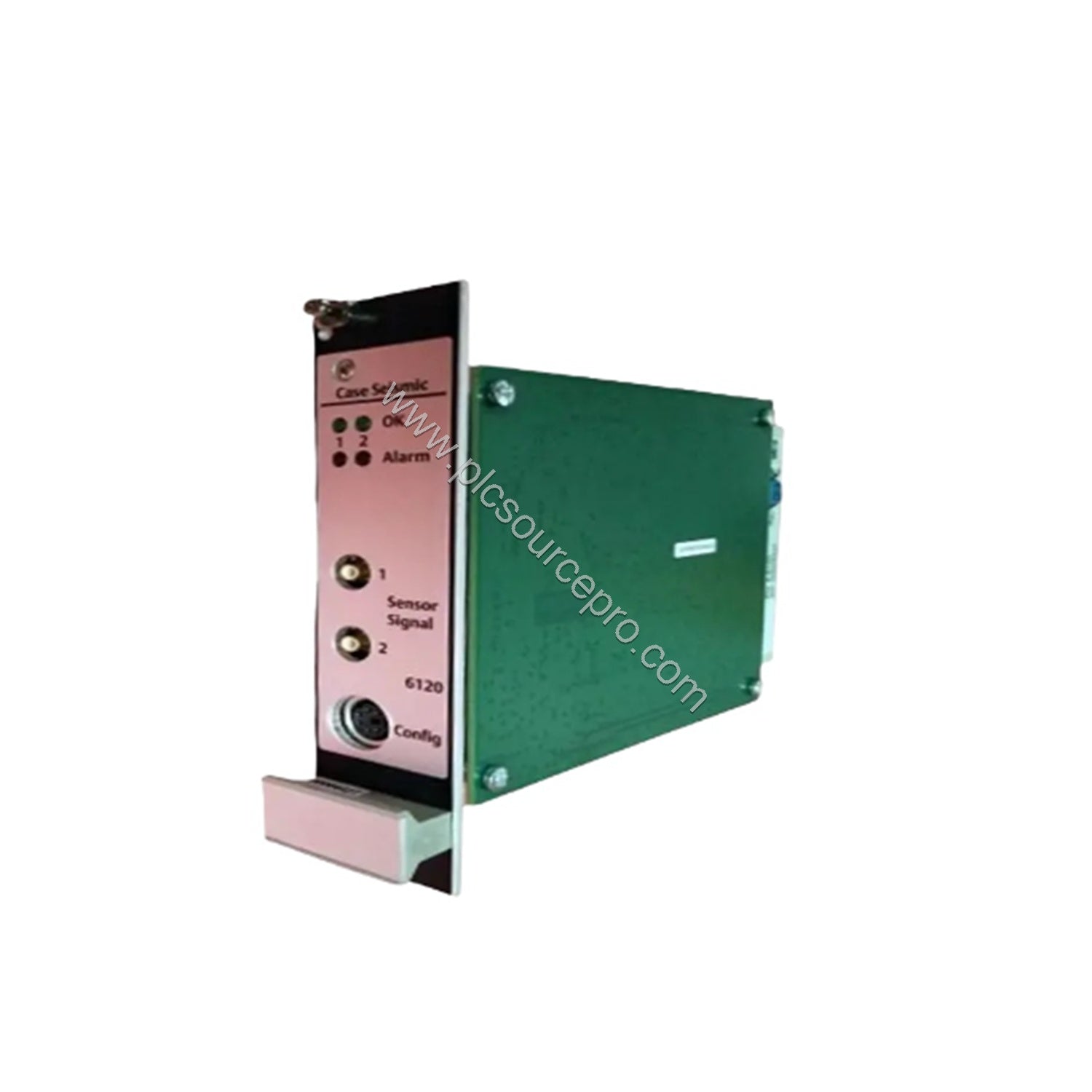

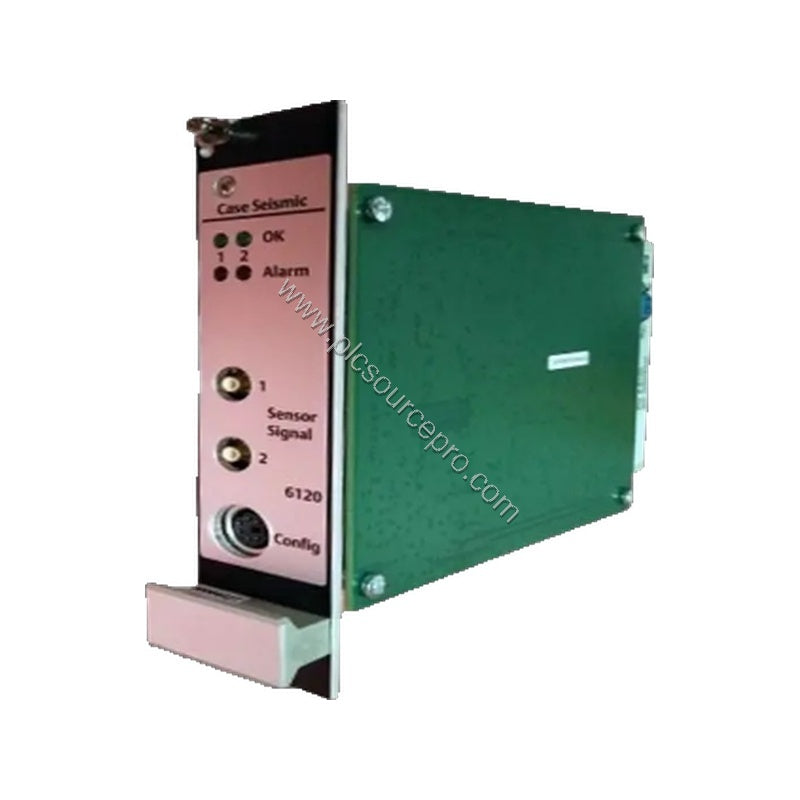

When unplanned machinery downtime threatens production, the Emerson A6120 Case Seismic Vibration Monitor delivers reliable early warning of bearing and casing vibrations. Designed for the CSI 6500 Machinery Health Monitor system, this 1-slot module continuously monitors overall vibration from electro-dynamic seismic transducers. Its core function is to compare vibration parameters against alarm setpoints, driving alarms and relays to protect your most critical rotating assets.
Technical Specifications Breakdown
The Emerson A6120 operates with two independent input channels, each accepting electro-dynamic (electro-mechanical) differential signals from sensors like the 9266, 9267, or 9268. Key performance parameters include:
| Parameter |
Value |
| Input Voltage Range |
-5 to +15 VDC |
| Input Frequency Range |
Lower cutoff 1 or 5 Hz; Upper cutoff 50–2000 Hz adjustable |
| Measuring Range (Vrms) |
5–100 mm/s (metric) / 0.197–3.937 in/sec (English) |
| Frequency Range (analysis) |
10–1000 Hz (VDI 2056, DIN 4566, ISO 3945) |
| Power Consumption |
Max 6 W, 250 mA at 24 VDC |
| Dimensions (HxWxD) |
128.4 x 30.0 x 160.0 mm |
These specs ensure the Emerson A6120 delivers precise vibration data even in harsh industrial environments.
Industry Applications
The Emerson A6120 excels in applications where early fault detection prevents catastrophic failure. Common use cases include:
-
Steam Turbines: Monitors bearing case vibrations to detect imbalance or misalignment.
-
Gas Compressors: Provides continuous protection against rotor rubbing and bearing wear.
-
Hydro Turbomachinery: Tracks casing vibration in hydropower plants, where low-frequency vibrations are critical.
-
Nuclear Power: Case seismic monitoring supports plant safety systems and predictive maintenance programs.
Installation & Setup Guidance
Installation of the Emerson A6120 is straightforward: it occupies one slot in a 19-inch rack and is hot-swappable for minimal downtime. The module accepts standard electro-dynamic seismic sensors (part numbers 9266, 9267, or 9268) via two differential inputs. Use the front Mini DIN RS-232 socket for configuration and parameter monitoring. Ensure proper isolation between sensor inputs and the system power supply as the inputs are galvanically separated. No external mounting brackets are required—the module includes a handle for easy insertion and removal.
Maintenance & Reliability
The Emerson A6120 features extensive self-checking: it continuously monitors power supply, sensor cable integrity, module temperature, and system watchdog status. The green LED indicates channel OK status, and any fault condition triggers a normally closed alarm output. By integrating alarm hysteresis and selectable delays (0–5 seconds, extendable to 36 seconds with the A6740 relay card), the module reduces nuisance trips while ensuring rapid response to genuine faults. Its operating temperature range of 0° to 65°C and IP21 front plate rating make it suitable for most industrial environments.
Selection Guide & Purchasing Advice
Before purchasing an Emerson A6120, verify that your existing sensors are compatible electro-dynamic models (9266, 9267, or 9268) and that your rack has a free slot. For new installations, consider ordering the A6740 relay card for extended alarm delays. The module is also backward-compatible with older mechanical sensors, allowing straightforward upgrades. For reliable supply and technical support, UBEST Automation (ubest101) offers genuine Emerson A6120 modules with fast shipping.
