Product Introduction

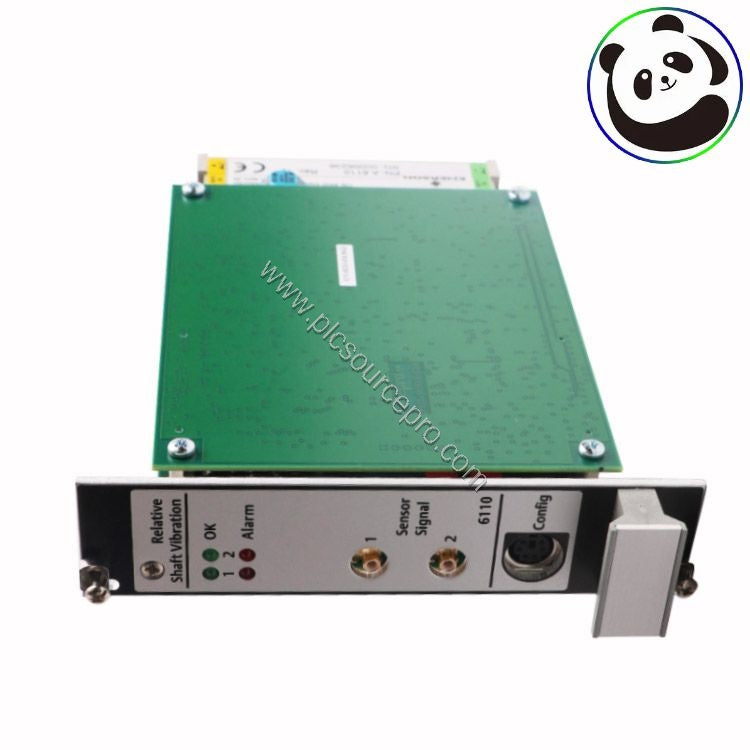

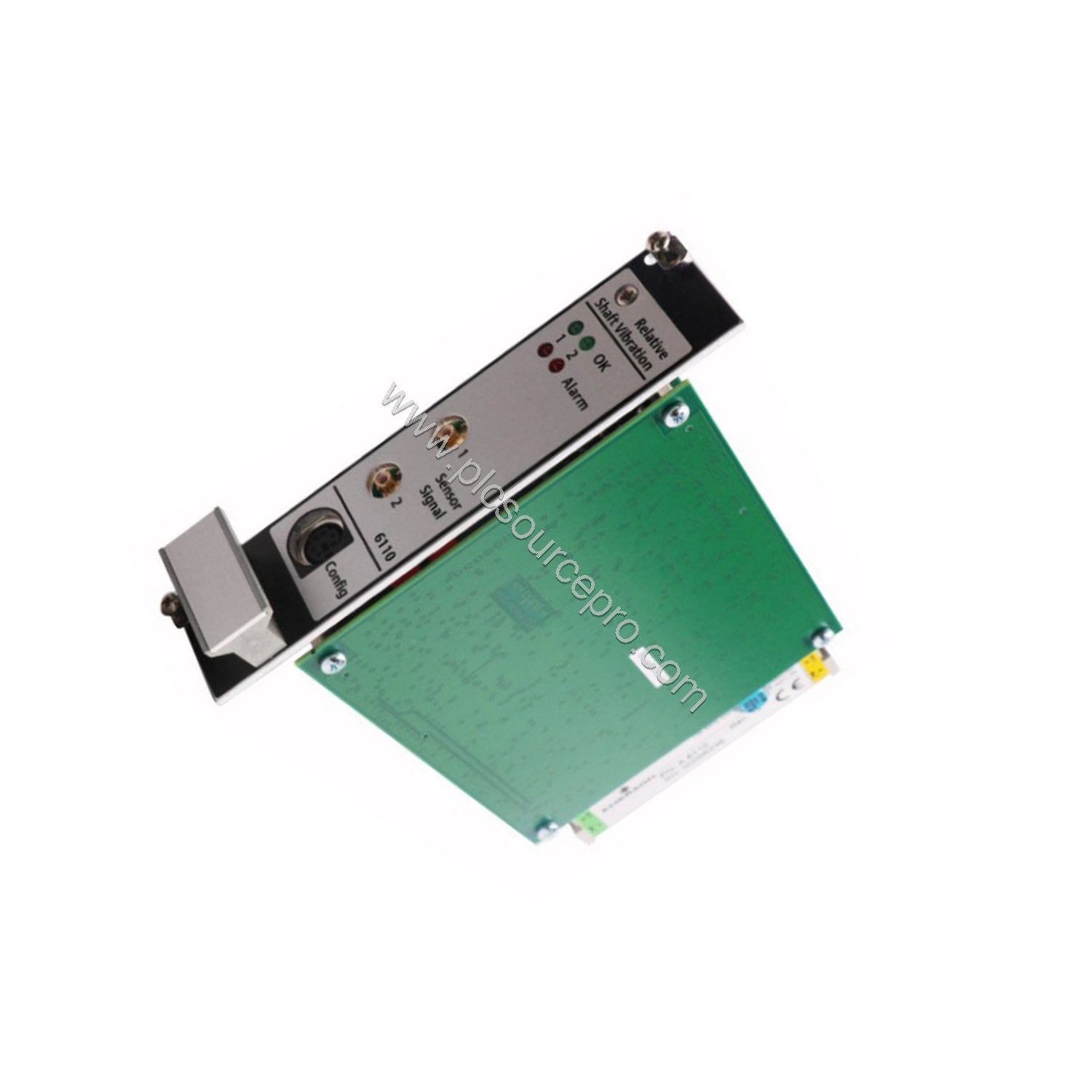

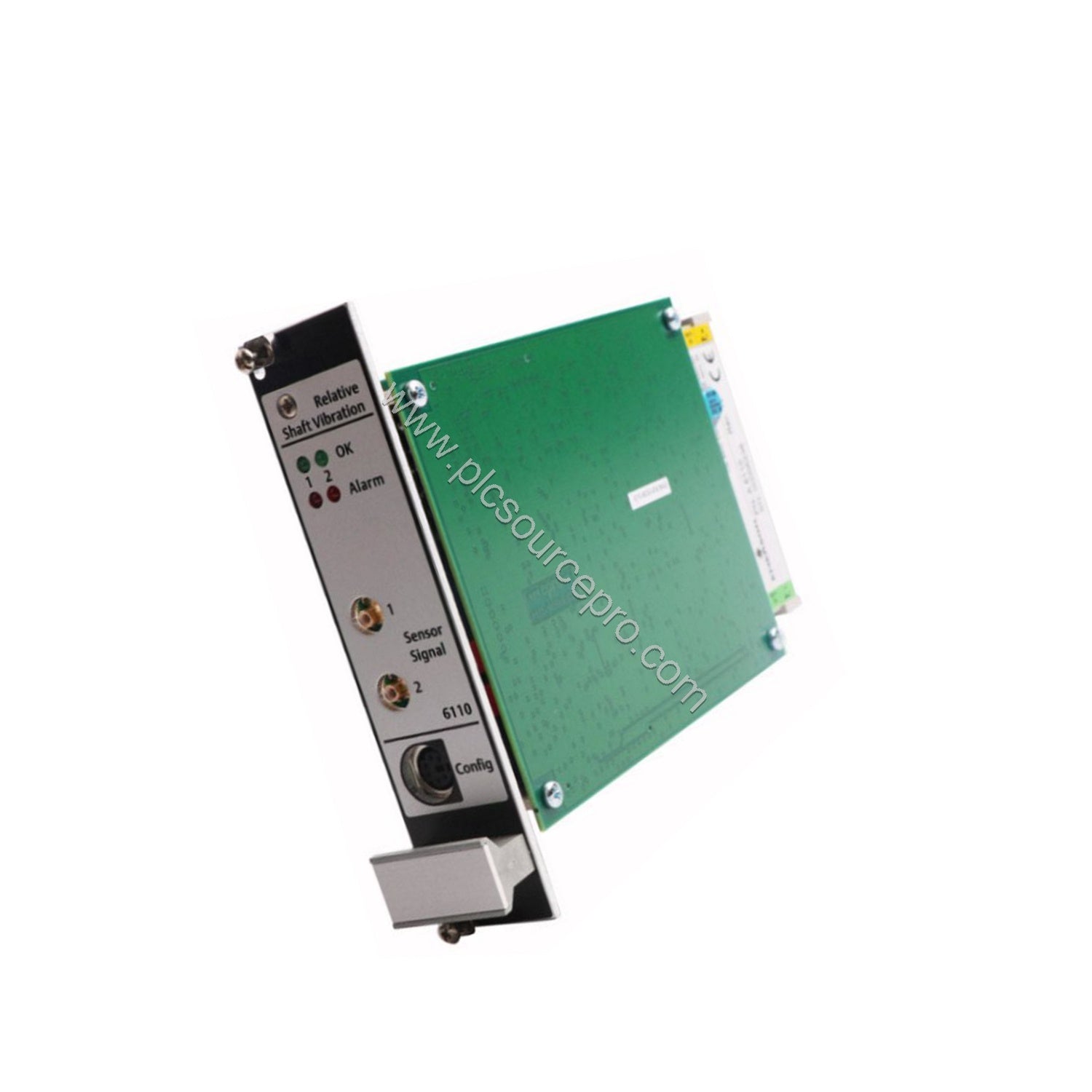

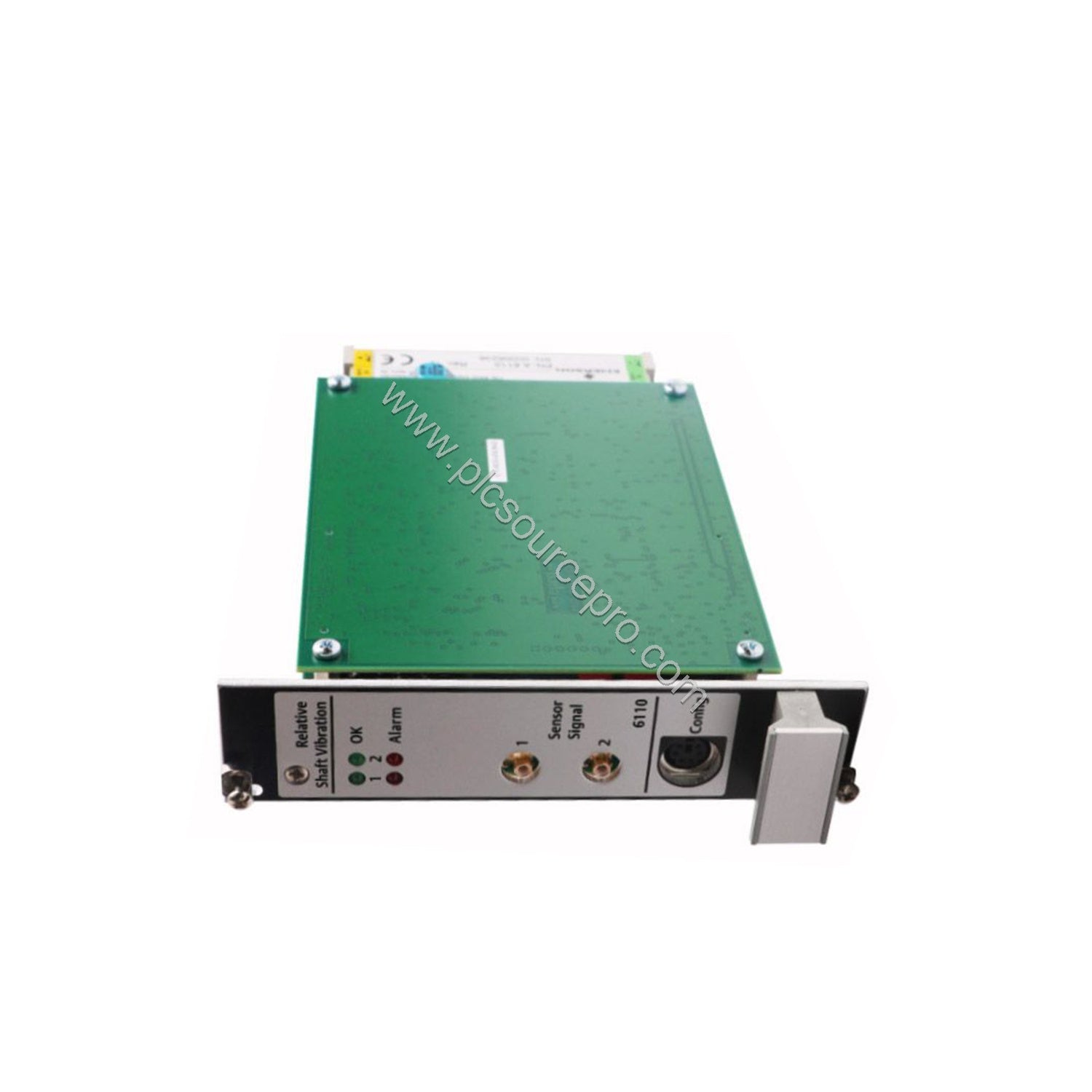

When critical rotating machinery faces unplanned shutdowns, the Emerson A6110 Shaft Relative Vibration Monitor delivers reliable protection. Designed for the AMS 6500 series, this 1-slot module works with steam turbines, gas compressors, and hydro turbo machinery. It accurately measures shaft relative vibration using eddy current displacement sensors, comparing parameters against alarm setpoints to drive alerts and relays. The Emerson A6110 is an integral part of PlantWeb and AMS software, combining machinery health with process control systems like Ovation and DeltaV.
Technical Specifications Breakdown
The Emerson A6110 accepts two independent or combined eddy current inputs. Key parameters include:
-
Input Voltage Range: 0 to -22 VDC
-
Input Frequency Range: Lower cutoff 1 or 5 Hz; upper cutoff 50-2000 Hz adjustable
-
Measuring Range: Continuously adjustable from 0-400 mV (smallest) to 0-8000 mV (largest)
-
Sensor Supply: Nominal -26.7 VDC, 20 mA nominal / 35 mA max
-
Outputs: 0/4-20 mA current mode, 0-10 VDC voltage mode, and buffered raw signals
These specifications ensure precise vibration monitoring for machinery protection. The dual-channel design allows independent or combined monitoring modes, while the hot-swappable, API 670 compliant module reduces cabinet space requirements.
Industry Applications
The Emerson A6110 is ideal for upgrading existing vibration monitoring systems in power generation, oil and gas, and chemical processing. For example, in a steam turbine train, replacing older 4-channel 6U cards with the A6110 halves space requirements while maintaining API 670 compliance. In gas compressor applications, the module's configurable alarm time delays (0-5 seconds per channel) and selectable limit multiply (1.00-4.99 factor) provide flexible protection. The Emerson A6110 also supports trip bypass via remote relay input, adding operational flexibility during maintenance.
Installation & Setup Guidance
The Emerson A6110 fits into a single slot (6 TE width) of a 19-inch rack. Ensure proper grounding and galvanic isolation from power supply. Connect compatible displacement sensors (PR6422/23/24/25) and driver CON 011/91, 021/91, 041/91. Use the Mini DIN RS-232 configuration socket for parameter setup. The module is hot-swappable, allowing replacement without powering down the rack. Verify input resistance >100 kΩ and load conditions for outputs (<500 Ω for current, >10 kΩ for voltage).
Selection Guide & Purchasing Advice
Before purchasing the Emerson A6110, confirm your rack space (1 slot) and power supply (24 VDC, 250 mA max). Check compatibility with existing AMS 6500 backplane and sensor types. The A6110 replaces older thrust and differential expansion monitors (like the A6210) but is specifically for shaft relative vibration. For reliable sourcing, UBEST Automation provides OEM-qualified Emerson A6110 modules with fast delivery. Contact us at ubest101 for application support and ordering.
