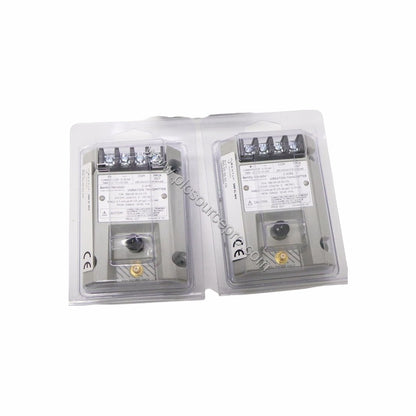

Product Introduction: The Bently Nevada 991-25-50-03-00 Thrust Transmitter
In rotating machinery, undetected axial thrust can lead to catastrophic bearing failure. The Bently Nevada 991-25-50-03-00 Probe Vibration Transmitter provides reliable, real-time monitoring of shaft position. This axial thrust transmitter accepts a 3300 NSv proximity probe and converts the measurement into a 4-20 mA signal for integration with control systems. Designed for DIN rail mounting, the 991-25-50-03-00 offers a full-scale range of 25-0-25 mils and a system length of 5.0 meters. Manufactured in the U.S.A., this unit is built for demanding industrial environments.
Technical Specifications Breakdown
The Bently Nevada 991-25-50-03-00 delivers precise performance with key specifications:
-
Power: Requires +12 to +35 Vdc input at the transmitter terminal.
-
Output: 4-20 mA signal over full-scale range in 2-wire configuration.
-
Accuracy: Within ±1.5% over specified full-scale range (typical).
-
Maximum Loop Resistance: 1,000 ohms including cable at 35 Vdc.
-
Current Limiting: 23 mA typical.
-
Environmental Limits: Operating temperature -35°C to +85°C; storage -51°C to +100°C.
-
Weight: 0.43 kg (0.9 lbm).
These parameters ensure reliable operation in harsh conditions. The zero and span adjustments are non-interacting for easy calibration.
Real-World Applications
The 991-25-50-03-00 is ideal for axial thrust monitoring in turbines, compressors, and large pumps. In steam turbine applications, the transmitter provides early warning of rotor displacement. The fast Not OK response (output drops below 3.6 mA within 100 µs) protects machinery from damage during probe or cable faults. This makes the Bently Nevada 991-25-50-03-00 a critical component in predictive maintenance strategies.
Installation and Setup Guide
Mount the 991-25-50-03-00 on a standard DIN rail using the provided DIN clips and screws (mounting option 03). Connect a 3300 NSv proximity probe and extension cable to the input. Wire the output loop to a PLC or DCS analog input. Ensure the power supply provides +12 to +35 Vdc. Calibrate using the non-interacting zero and span adjustments. The transmitter is designed for axial measurement; verify proper probe gap.
Maintenance and Reliability
The Bently Nevada 991-25-50-03-00 operates in temperatures from -35°C to +85°C. No routine maintenance is required, but periodic calibration checks ensure accuracy. The robust design and current limiting (23 mA typical) prevent damage to the loop. The Not OK feature provides automatic self-diagnostics, enhancing system reliability.
Selection Guide and Purchasing Advice
When selecting the 991-25-50-03-00, verify the system length option (5.0 meters) and mounting hardware. Ensure compatibility with your 3300 NSv probe. For additional assistance, contact PLC Source PRO supplier ubest101 for expert advice on integration.
