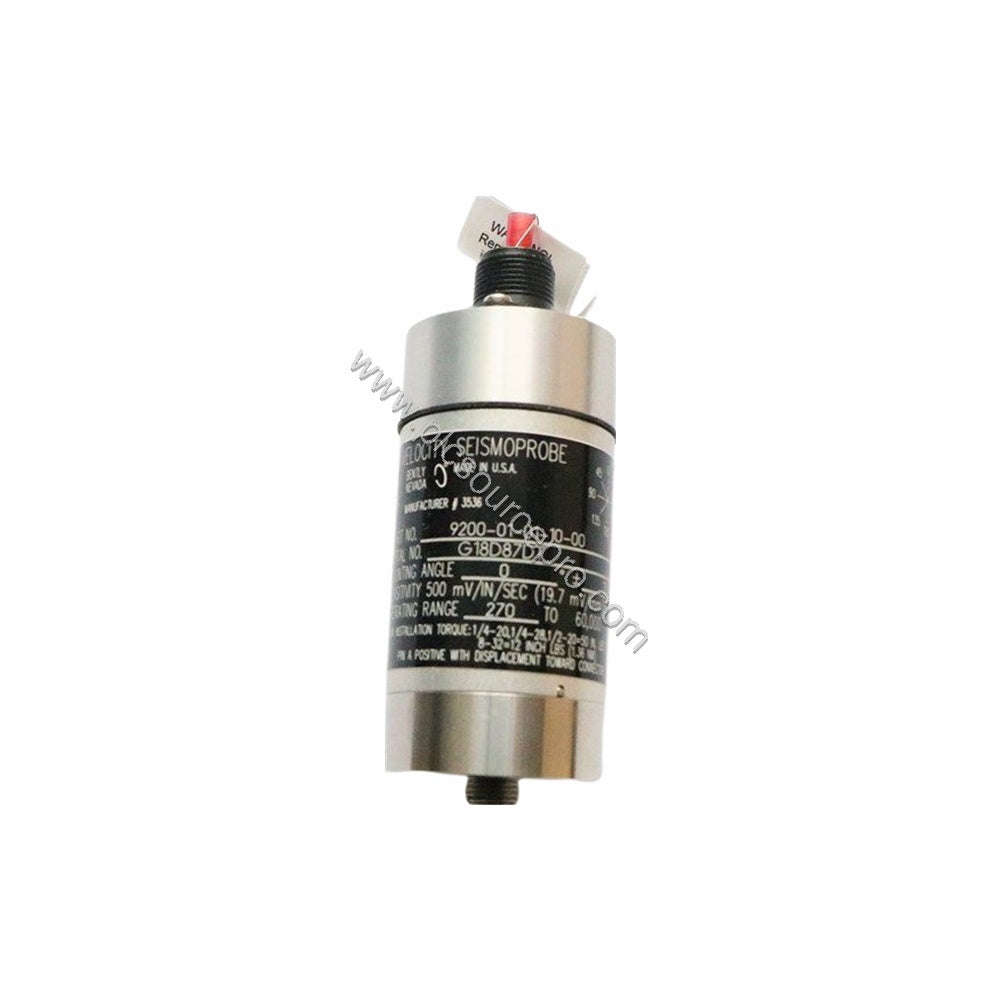

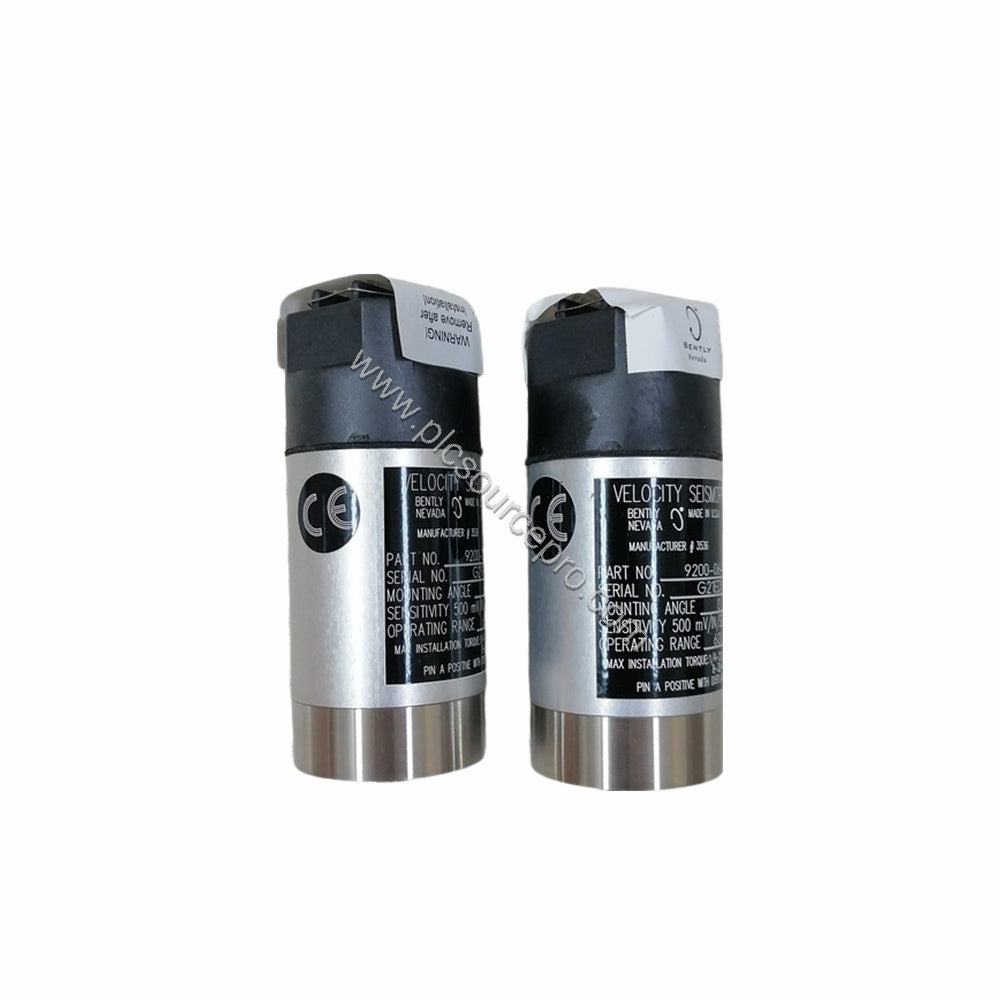

Product Introduction
When machinery vibration threatens operational reliability, the Bently Nevada 9200-03-06-10-00 Two-Wire Velocity Seismoprobe Transducer delivers precise measurements for early fault detection. Part of the trusted Model 9200 series, this Industrial Automation Module is designed for continuous vibration monitoring in rotating equipment. The 9200-03-06-10-00 provides a 20 mV/mm/s sensitivity with ±5% accuracy when properly terminated. Its robust construction withstands harsh industrial environments.
Technical Specifications
The 9200-03-06-10-00 offers critical performance metrics derived from factory calibration. Key parameters include:
- Sensitivity: 20 mV/mm/s (500 mV/in/s), ±5% at calibration angle
- Calibration Load: 10 kΩ across terminals A and B
- Sensitivity Temperature Coefficient: 0.2%/°C
- Dynamic Operating Range: 2.54 mm (0.100 in) peak-to-peak maximum displacement
- Velocity Range: 25 mm/s (1 in/s) at +22°C, 100 Hz, 10 kΩ load
- Coil Resistance: 1.25 kΩ ±5%
- Locked Coil Inductance: 125 mH typical
- Operating Temperature: -29°C to +121°C
- Relative Humidity: Up to 95% noncondensing (100% with integral cable)
- Case Material: Anodized aluminum A204
- Gasket Material: Neoprene
- Height: 102 mm typical; Diameter: 41 mm typical; Weight: 300 grams
Industry Applications
The Bently Nevada 9200-03-06-10-00 is ideal for upgrading legacy vibration monitoring systems in turbines, compressors, pumps, and fans. Its two-wire configuration simplifies integration with existing PLCs and DCS. For example, in a steam turbine installation, the 9200-03-06-10-00 can replace older transducers to improve low-frequency response down to 4.5 Hz (270 cpm).
Installation Guide
Mount the 9200-03-06-10-00 using the circular M10X1 stud base at the specified angle (90° ±2.5° for option 03). Ensure proper termination with a 10 kΩ load across pins A and B. The transducer is dust and moisture resistant but avoid submersion unless using integral cable options. Verify connector option (06: 0° ±100) and calibrate at the intended mounting angle for accurate sensitivity.
Maintenance & Reliability
Routine inspection of the Bently Nevada 9200-03-06-10-00 involves checking cable integrity, connector tightness, and verifying output within expected ranges. The anodized aluminum case provides corrosion resistance in humid environments up to 95% noncondensing. With no moving parts aside from the seismic element, this transducer offers long service life when installed correctly.
Selection Guide
When ordering the 9200-03-06-10-00, confirm the mounting angle/operating frequency option (03 for 90° ±2.5°, 4.5 Hz), connector option (06 for 0° ±100, 10 Hz), mounting base (10: circular M10X1 stud), and agency approval (00: none required). For reliable supply, choose ubest101 as your source for new, factory-packed units with full warranty.
